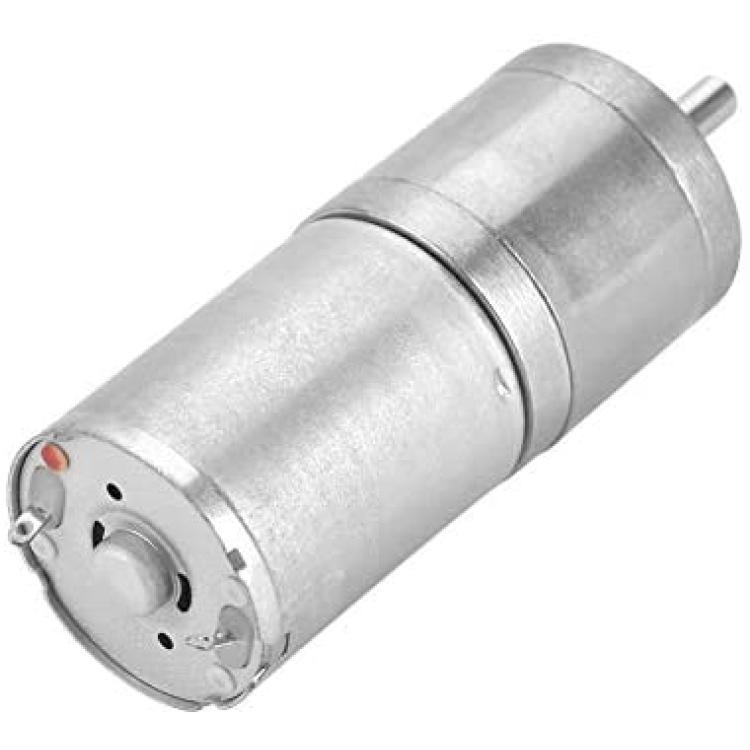

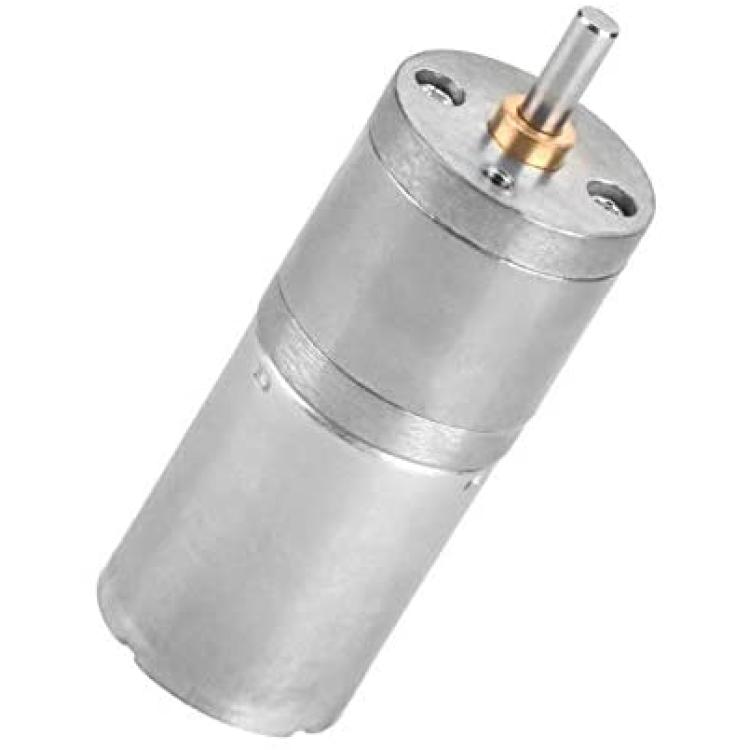

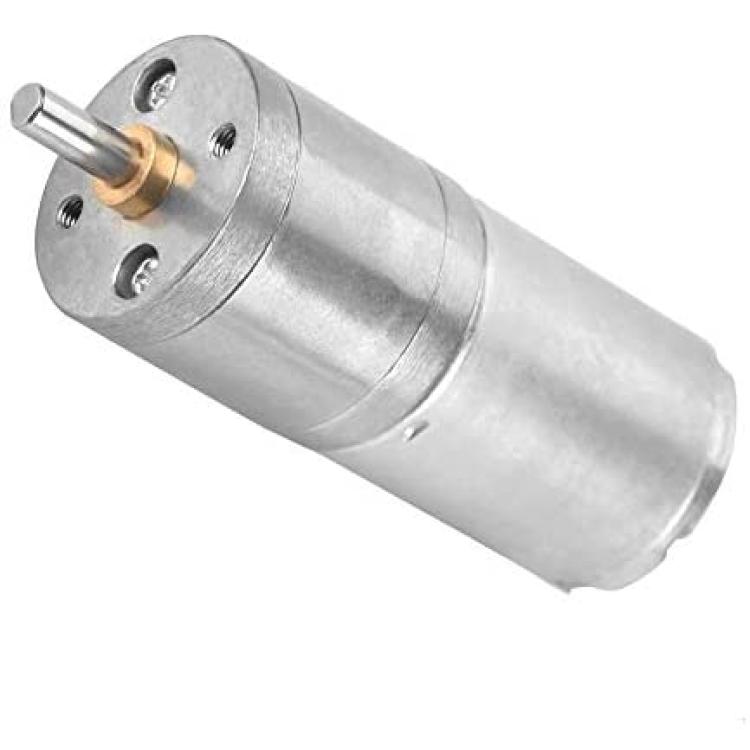

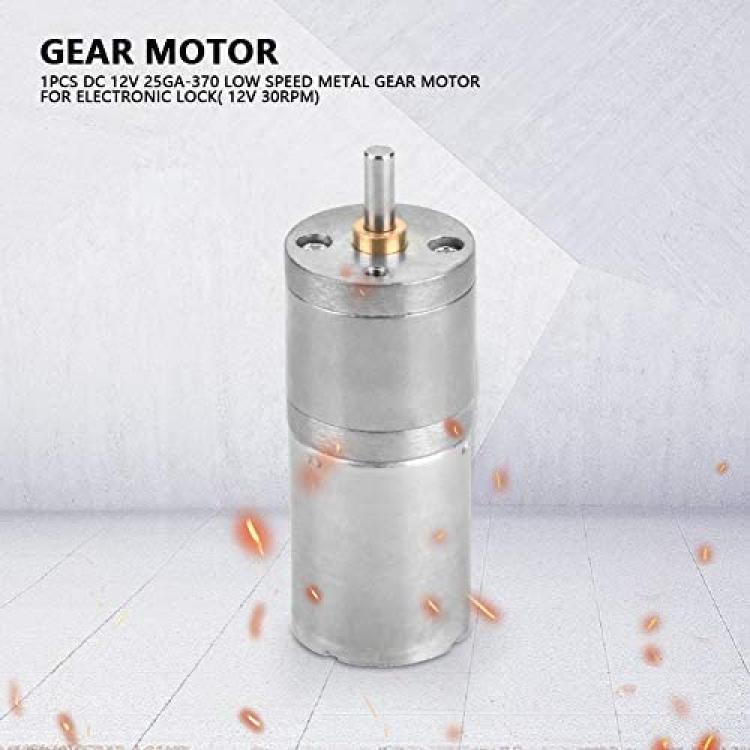

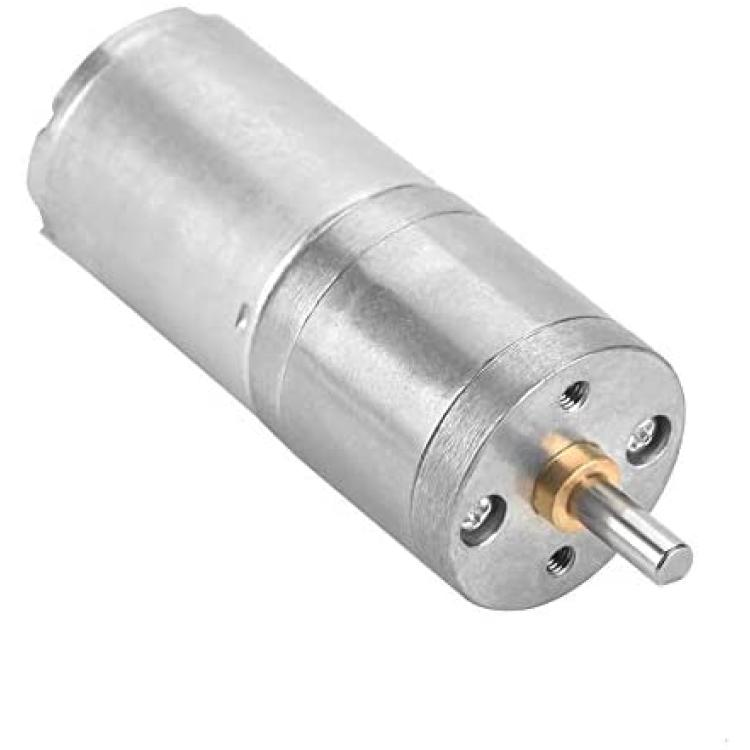

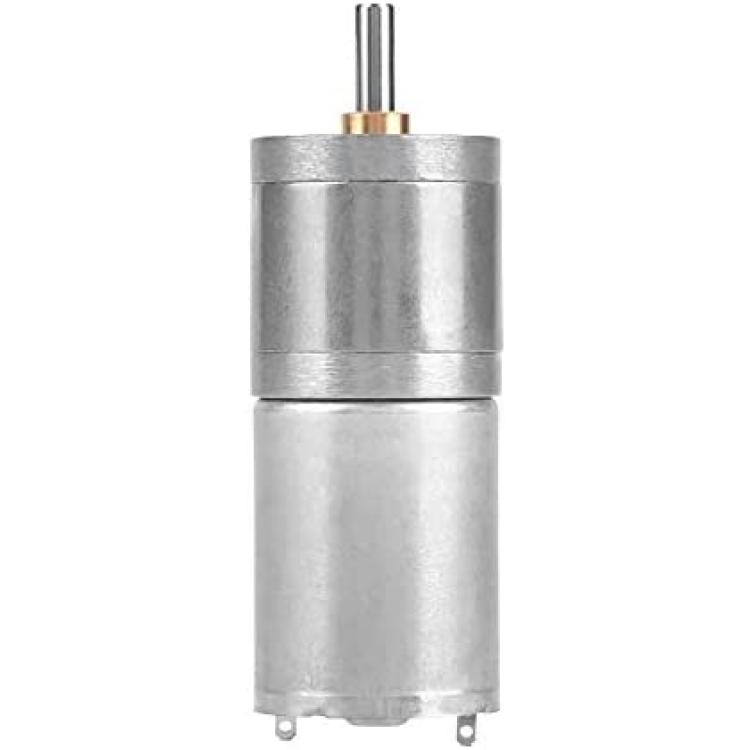

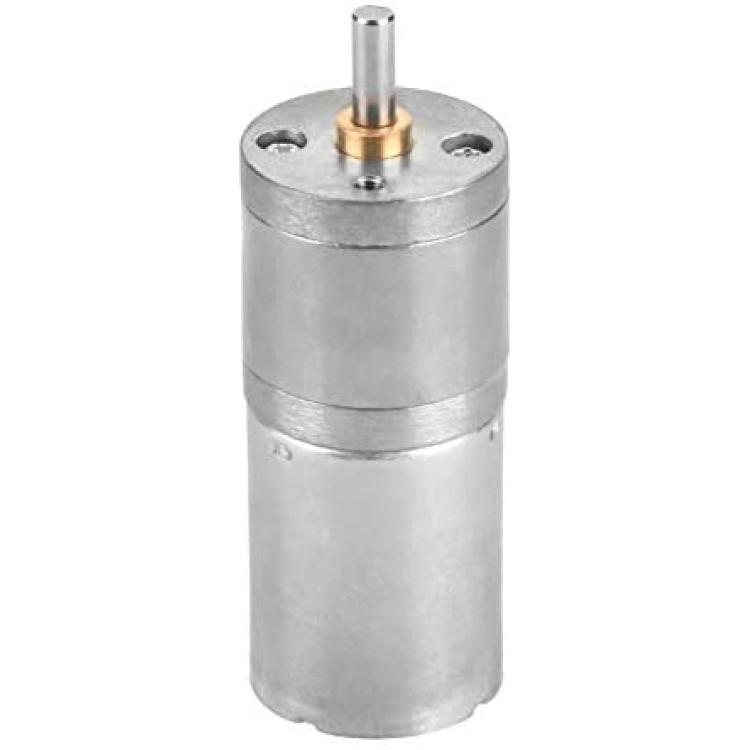

25GA-370 DC 12V Micro Gear Box Motor Speed Reduction Geared Motor for Electronic Lock(30RPM)
Availability: In Stock
About this product
*Product parameter: Rated voltage: 5-12 (V), Rated current: 0.06 (A), Shaft length: 10 mm/0.4in.
*This DC motor features large moment of force, low speed, and low noise.

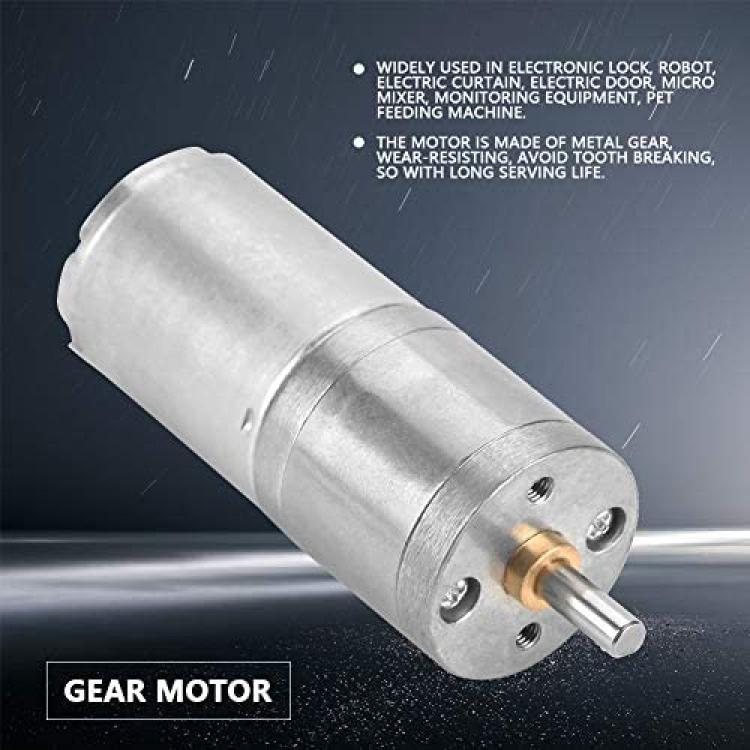

*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
*This motor is adopted of pure copper wire coil, with low heat and low loss.
*Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine
Description
Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM
Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz
Package list:
1 x gear motor
