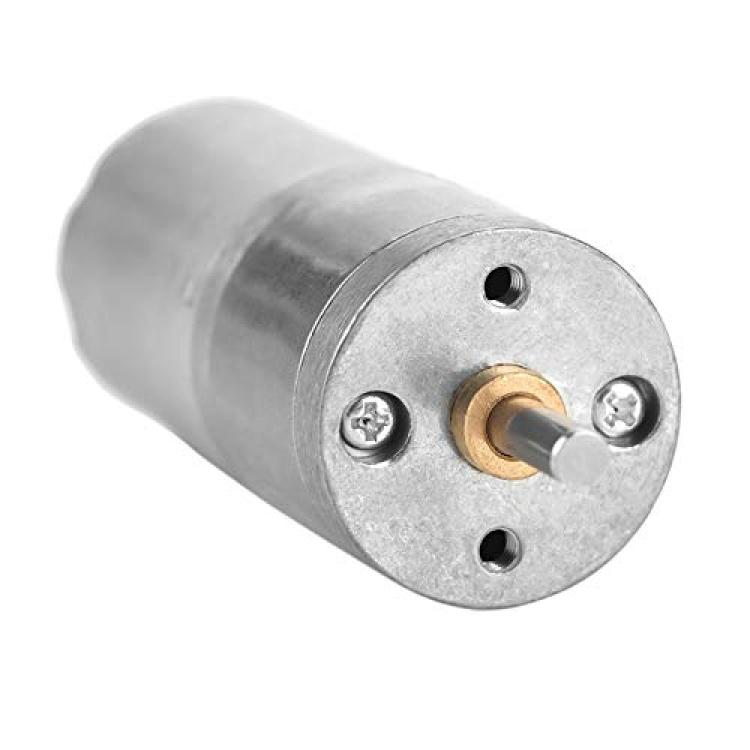

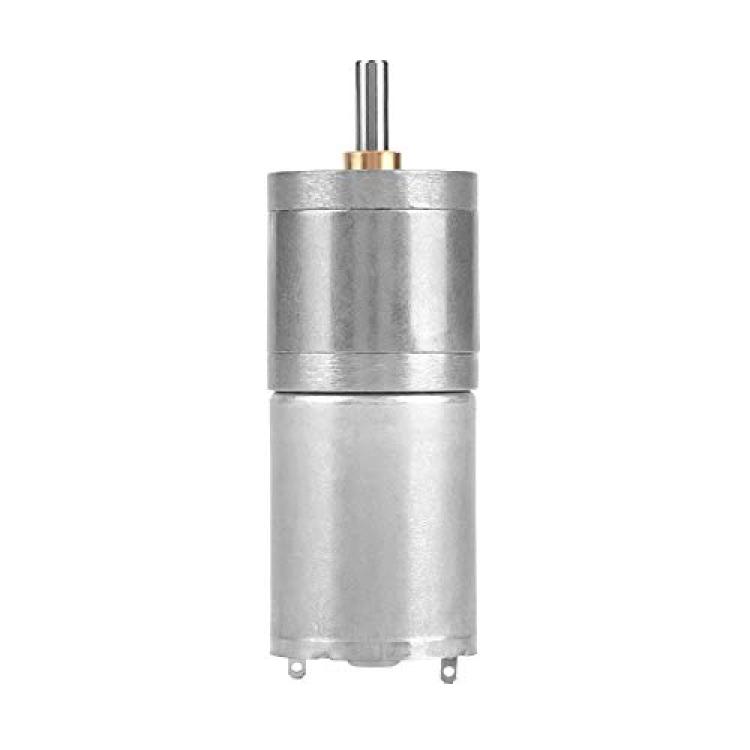

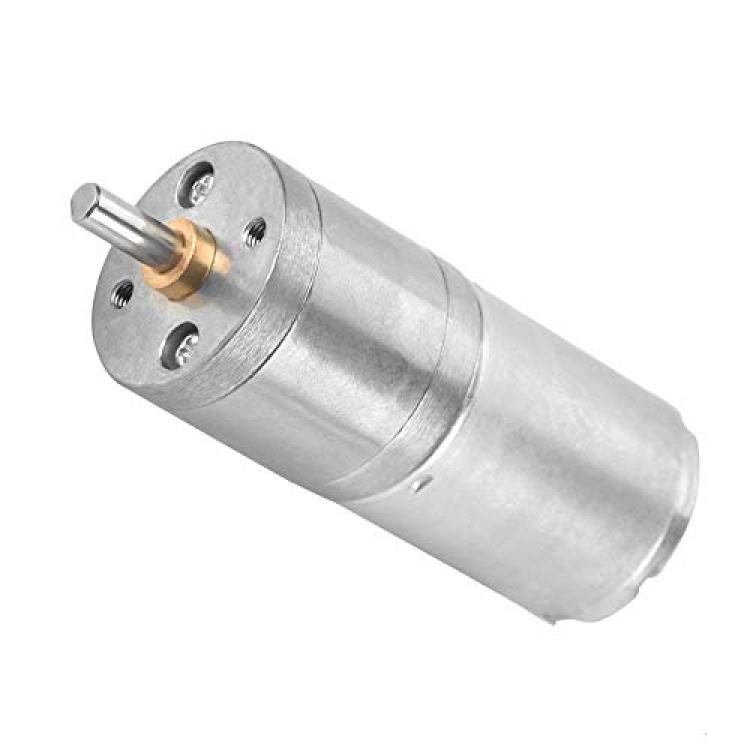

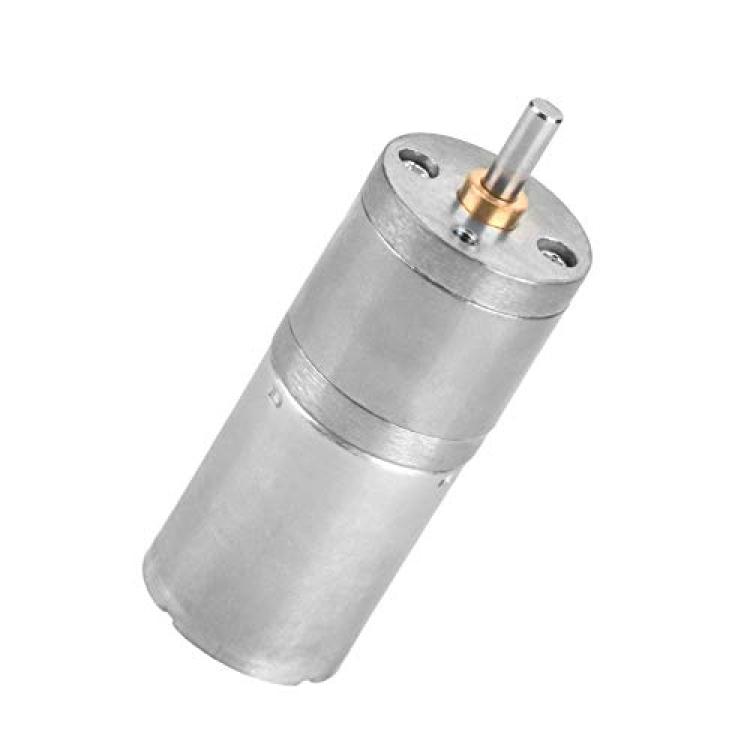

DC Motor,DC Gear Motor DC Electric Gear Motor,25mm DC 12V 25GA-370 Low Speed Metal Gear Motor for Electronic Lock (12V 300RPM)

Features:

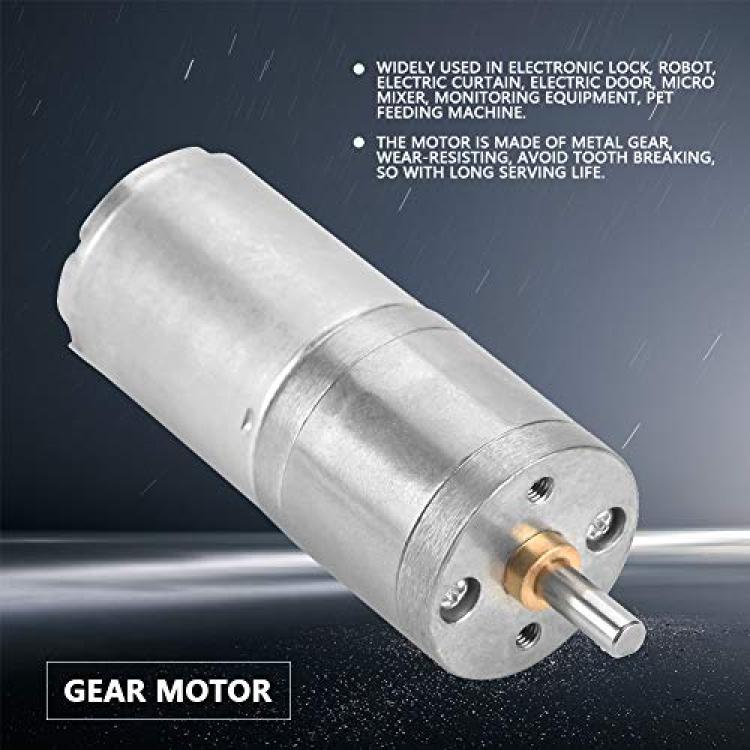

This product is a DC gear motor with high precision metal gear, stable working  This DC motor features large moment of force, low speed, and low noise. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. This motor is adopted of pure copper wire coil, with low heat and low loss. Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine

Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM

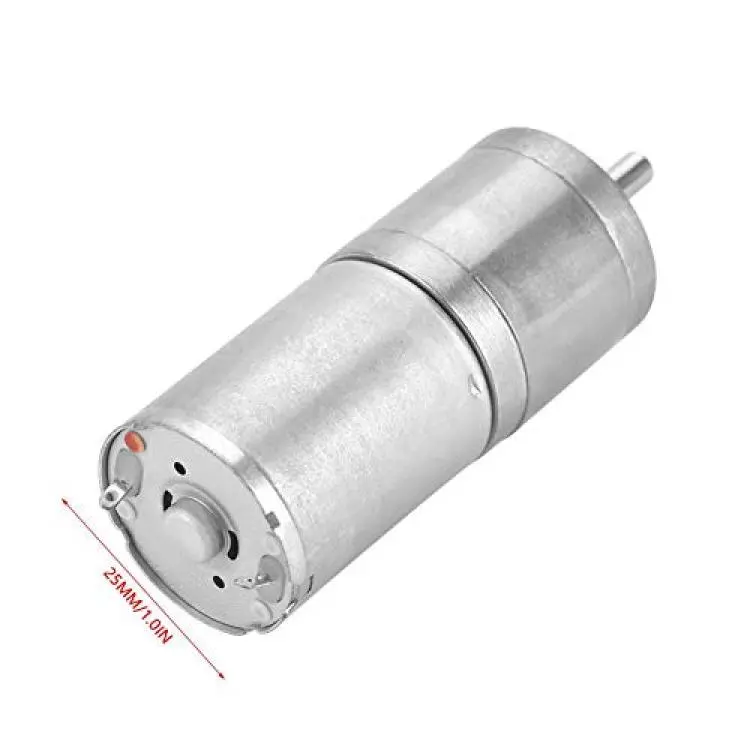

Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio       no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM ?150MA 3RPM ?70MA 1150gf.cm ?2.1A 15.4kgf.cm 12V 1:150 10RPM ?170MA 7RPM ?100MA 980gf.cm ?2.1A 14.8kgf.cm 12V 1:150 30RPM ?170MA 25RPM ?100MA 770gf.cm ?2.1A 12.0kgf.cm 12V 1:200 60RPM ?170MA 51RPM ?100MA 750gf.cm ?2.1A 11.8kgf.cm 12V 1:100 100RPM ?150MA 73RPM ?185MA 660gf.cm ?2.1A 10.5kgf.cm 12V 1:50 200RPM ?180MA 165RPM  ?105MA 580gf.cm ?2.1A 8.8kgf.cm 12V 1:30 300RPM ?190MA 254RPM ?145MA 180gf.cm ?2.1A 7.8kgf.cm 12V 1:25 400RPM ?190MA 344RPM  ?145MA 170gf.cm ?2.1A 7.7kgf.cm 12V 1:20 500RPM ?190MA 460RPM  ?145MA 150gf.cm ?2.1A 7.5kgf.cm 12V 1:10 1000RPM ?190MA 820RPM  ?145MA 88gf.cm ?2.1A 7.2kgf.cm

Package list:
1 x gear motor
