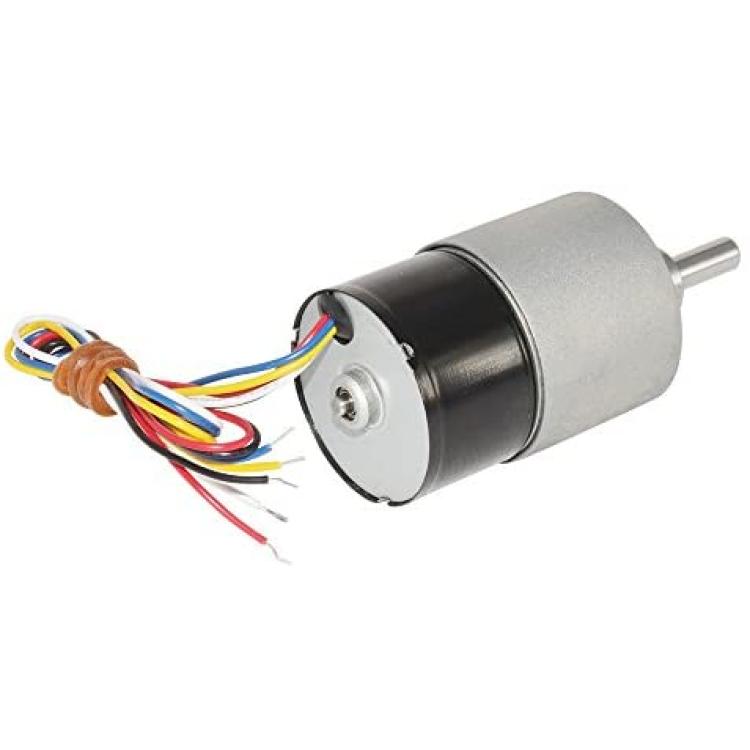

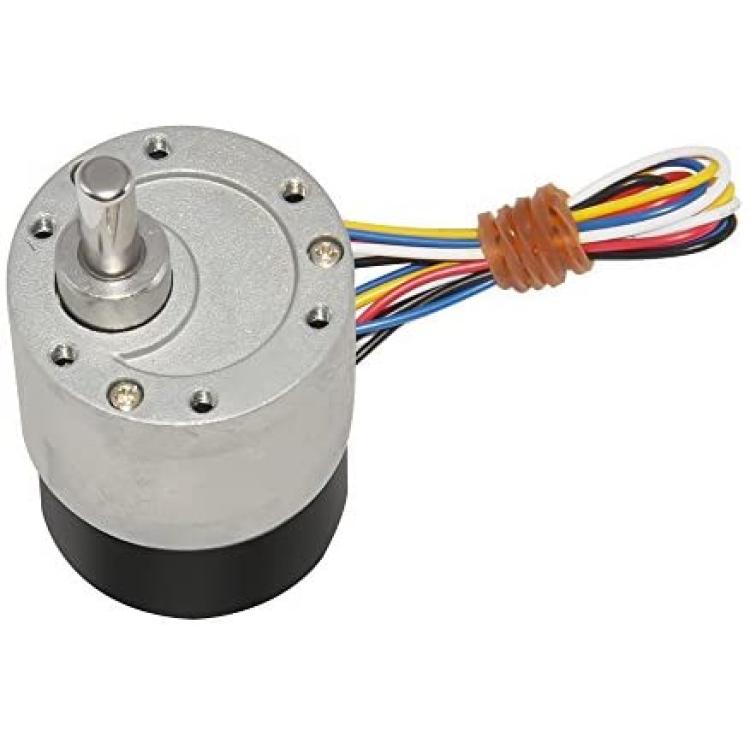

Aobbmok High Speed 12V 600RPM Small Brushless Geared DC Motor
About this product
*37mm Brushless DC Gear motor; High torque; CW & CCW rotation; Speed adjusted by 0_5v PWM controller; with FG Pulse signal: 9 pulse/round.
*Super long life, the continue working time more than 30000hours; Rated Voltage: DC 12V; No-Load Speed: 600RPM; Rated Torque: 1.5kg.cm; Reduction Ratio: 1/10.
*Main Body Dimensions:44 x 37mm / 1.73in x 1.46in (L*D); Out Shaft Dimensions: 15.5 x 6mm / 0.61 x 0.236in (L*D) with 12 x 0.5mm / 0.472 * 0.017inches flat cut off.
*Small size dc gear motor with low speed and big torque, Suitable to small diameter, low noise and big torque application.

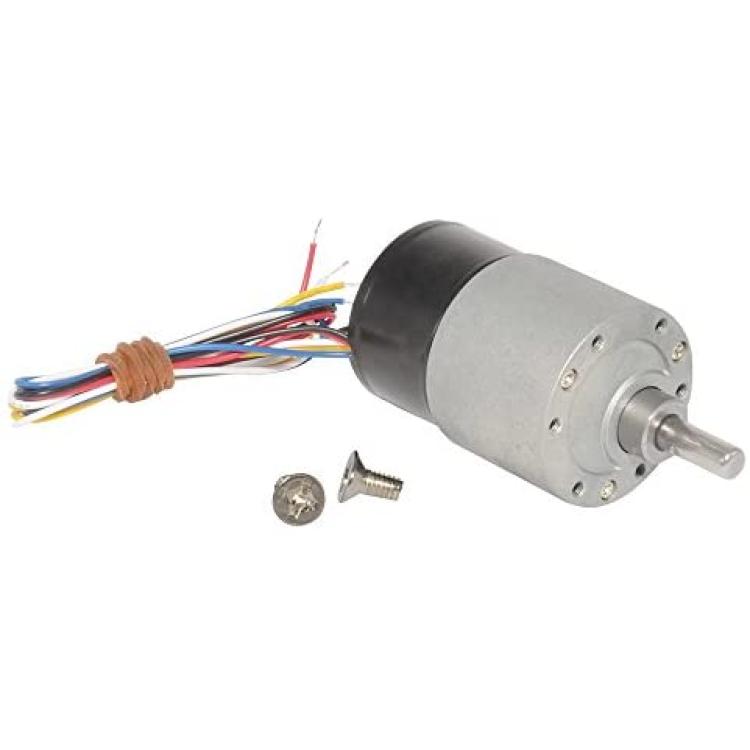

*Package Listing: 1PCS x Brushless DC Geared Motor+6pcs mounting screws; if you need other motors, pls contact us, there are many other models in our store.
Description
Specifications:
Product type: Brushless DC Gear motor
Rated Voltage: 12V
No-Load Speed: 600RPM
No-Load Current: ? 0.20A
Rated Torque: 1.5kg.cm
Reduction Ratio: 1/10
Main Body Dimensions:44 x 37mm / 1.73in x 1.46in (L*D)
Out Shaft Dimensions: 15.5 x 6mm / 0.61 x 0.236in (L*D) with 12 x 0.5mm / 0.472 * 0.017inches flat cut off
Package Listing: 1PCS x Brushless DC Geared Motor+6pcs mounting screws(Free gift)
Wiring Diagram:
Red ---- Power+
Black---- Power-
White----Vacancy: CCW direction; Ground Connection(White+Black?Power-): CW direction
Yellow---FG Pulse Signal: 9Pulse/Round
Blue-----0~5V PWM Controller
Sweet Tips:
1.Be sure to keep the wiring connection correct before Working; 2.Be sure to keep the motor stopped before change the CCW/CW direction; Or the motor will be burned!!!
