SHINA Upgrade 4 Axis Mach3 5M Wired USB Handwheel Pulse 100PPR Optical Encoder Generator MPG Pendant CNC Control

Feature:

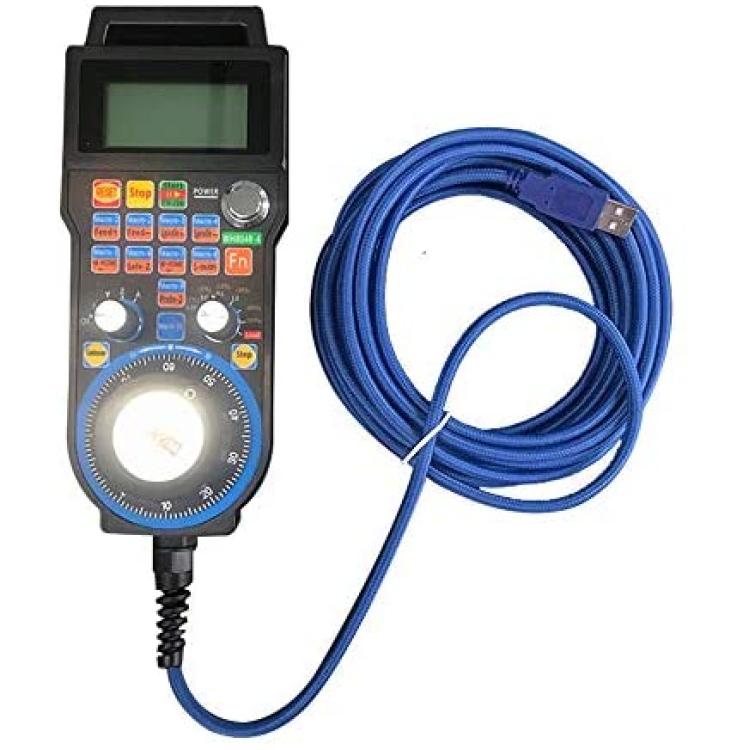

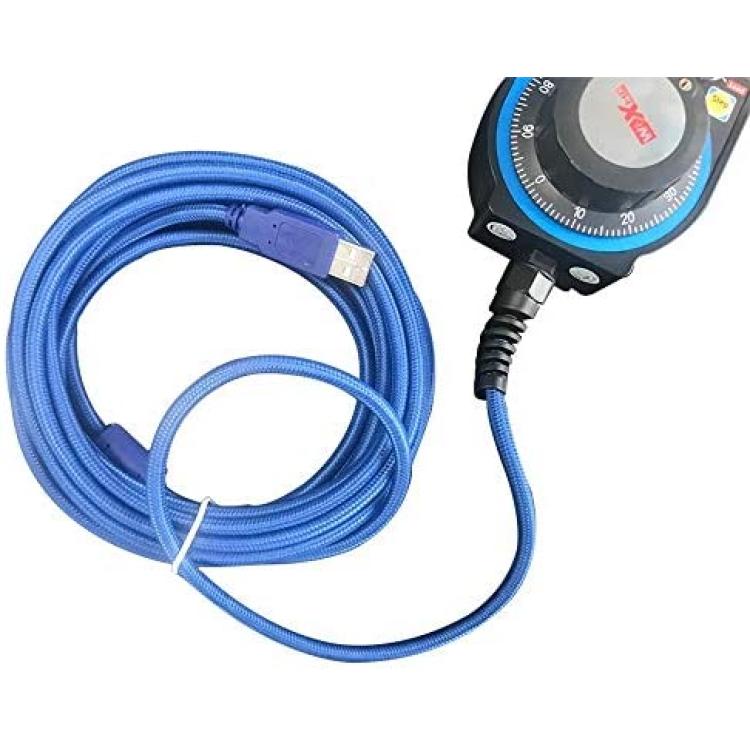

1.Connected with a shielded 5meters USB cable, signal transmission is stable and reliable

2.100PPR manual pulse generator, support 10 macro function button

3.LHB04B-4:LCD Dispiay machine coordinates and workpiece coordinates X,Y, Z,A-axis

4.LCD Display: Spindle speed value, processig feed rate value

5.Work for Mach3, All the buttons can be programmable

Description:

 LHB04B-4: Supports four-axis motion control.

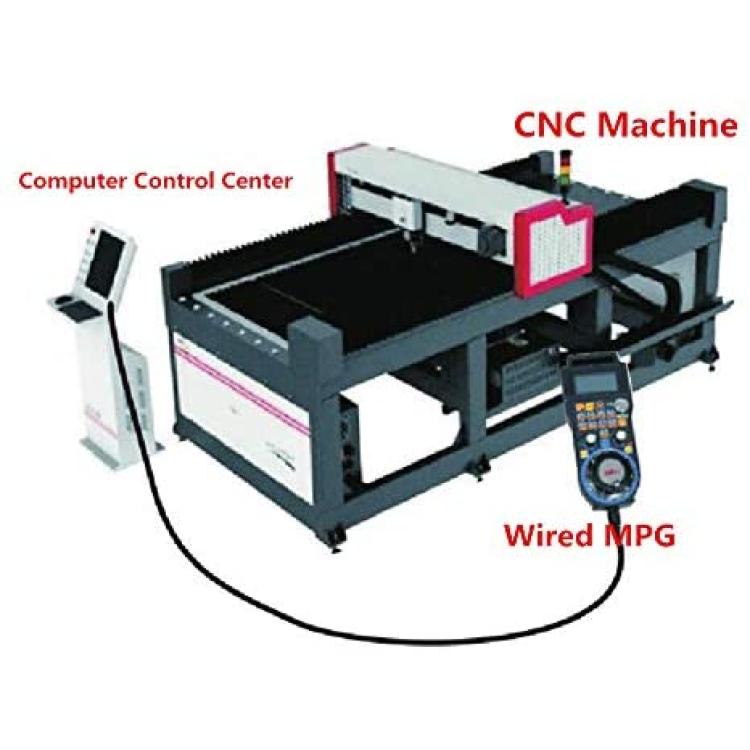

CNC machine tool for all Mach3 systems in Windows environment

- work for Mach3

- support 4 axis

- All the buttons can be programmable

- About the hand wheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.

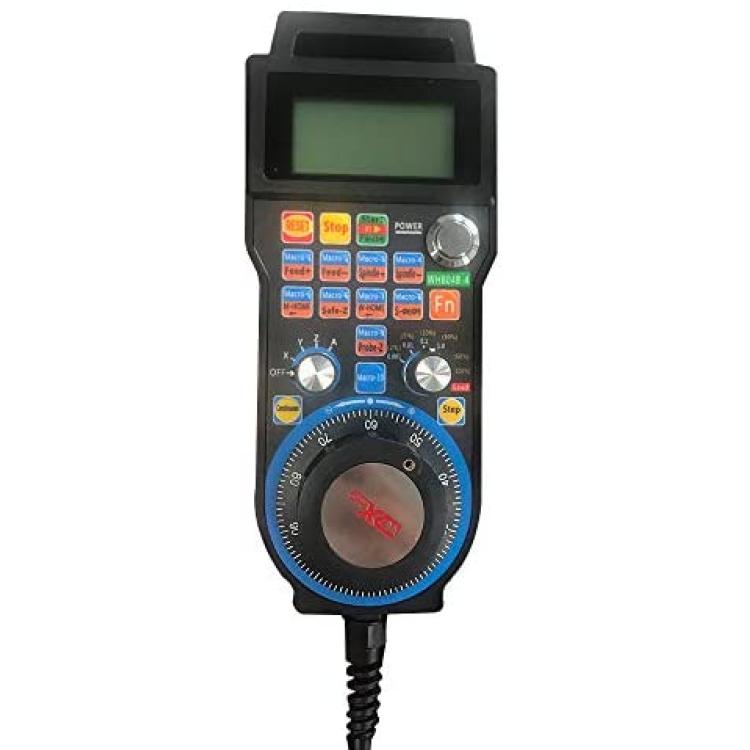

- Rich real-time display of large screen LCD:

- display machine status,run,pause,idle,step value

- display axis workplace coordinate and axis machine coordinate

- show the feed rate,spindle speed

How to use:

1,Insert the USB line to PC, wait for the automatic driver installation is completed

2,The drivers(in the CD inside) Shuttle Pro V3. 84. dll copied to /Mach3/ PlugIns

3,The all macro files (in the CD inside macro folder )copied to../ Mach3/ macros/ under Mach3 Mill

4,Wired MPG, turn on the power switch of the handwheel

directly. you can normally use.

Package include:

1 x CNC Handwheel (batteries are NOT included)

1 x Chinese/English User Guide

1x Warranty Card
