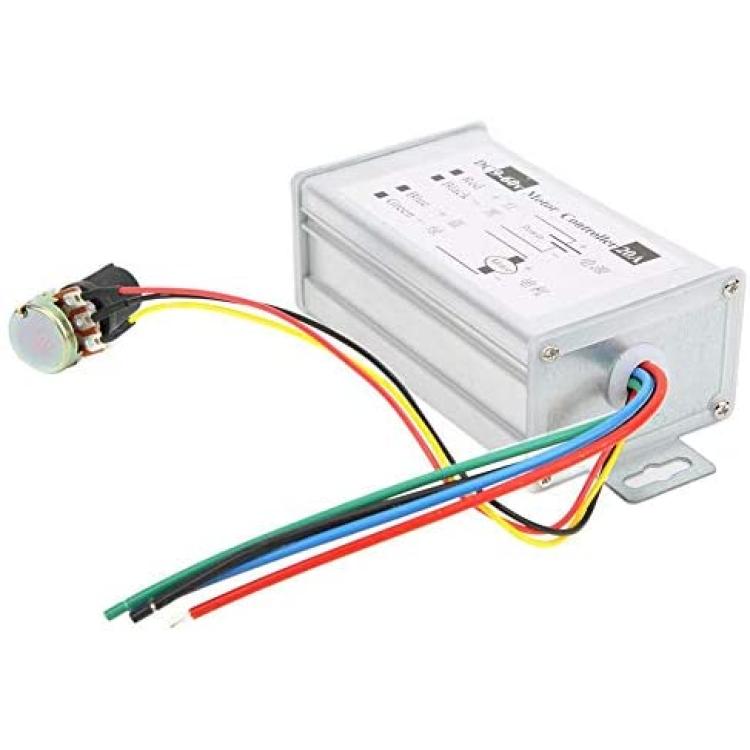

PWM DC Motor Speed Controller, Electronic Load Durable Potentiometer Control Motor Governor, Brush Motor Driver Controls Module for DC9-60V Linear Under Load Electronic Component 20A
About this product
*【Scope of Application】The motor speed controller is suitable for DC motors (or DC loads) up to 20A.
*【Working Principle】The DC motor speed regulator controls the speed of the DC motor by adjusting pulse width modulation (PWM).
*【Adjustable Range】The adjustable speed range of the speed control switch is 0%-100%, which can meet the basic needs of consumers.
*【Multifunction】The potentiometer has variable speed rotation function and button rotation function.

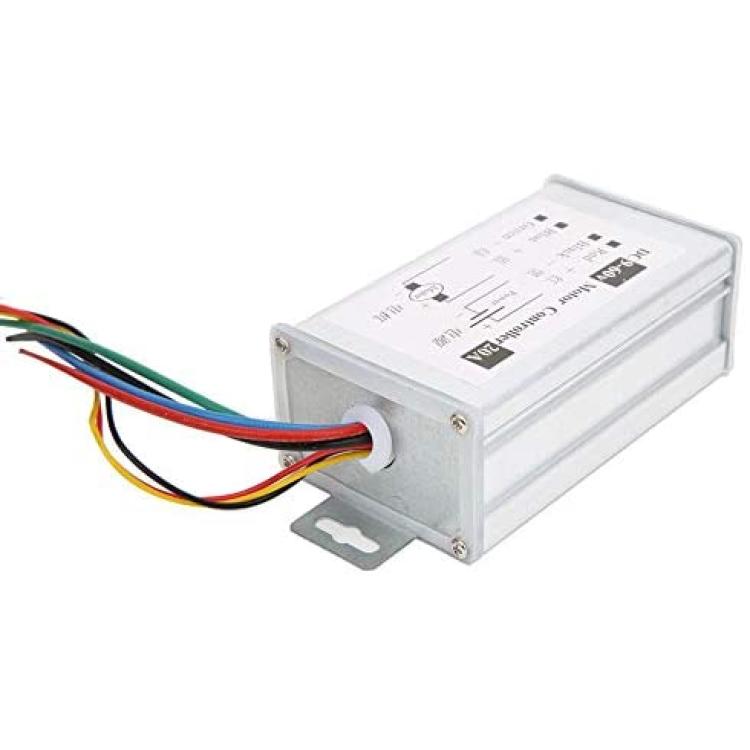

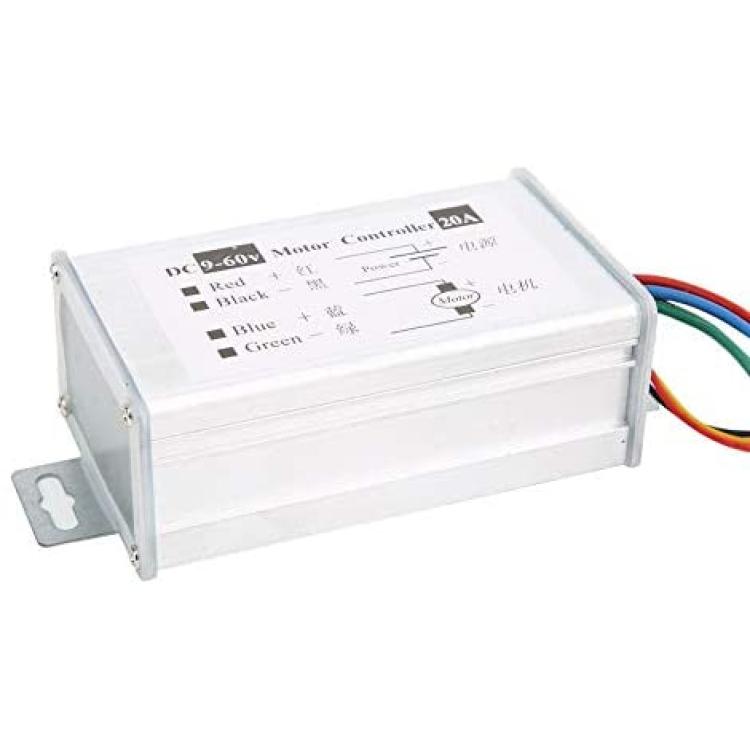

*【Easy to Install and Use】The electronic component has a metal shell and connection label, which is easy to install and use.
Description
Feature:
Spec:
Input Voltage: DC9-60V
Output Voltage: Linear Under Load
Output Current: 0-20A
Continuous Power: 1200W
Speed Control Type: Flowing Adjustment

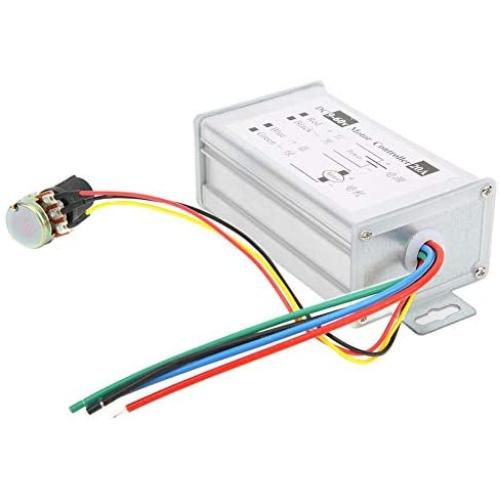

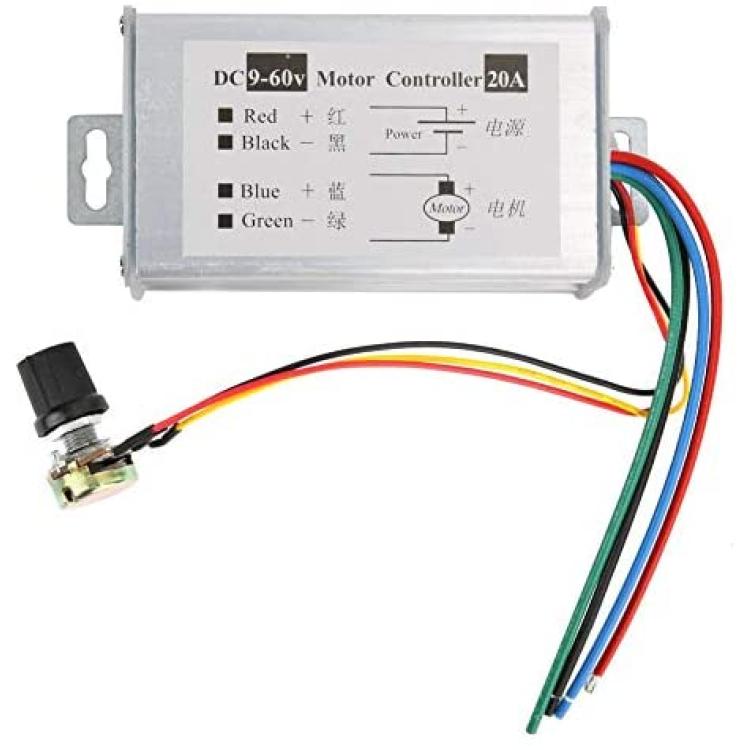

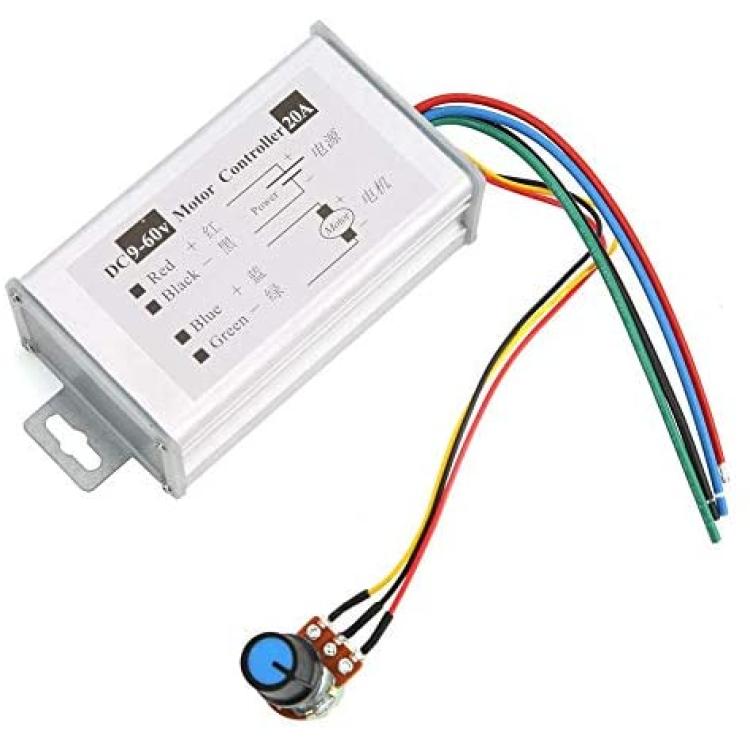

Speed Control Mode: Potentiometer (Linear)
Speed Range: 0-100%
Control Frequency: 25KHZ

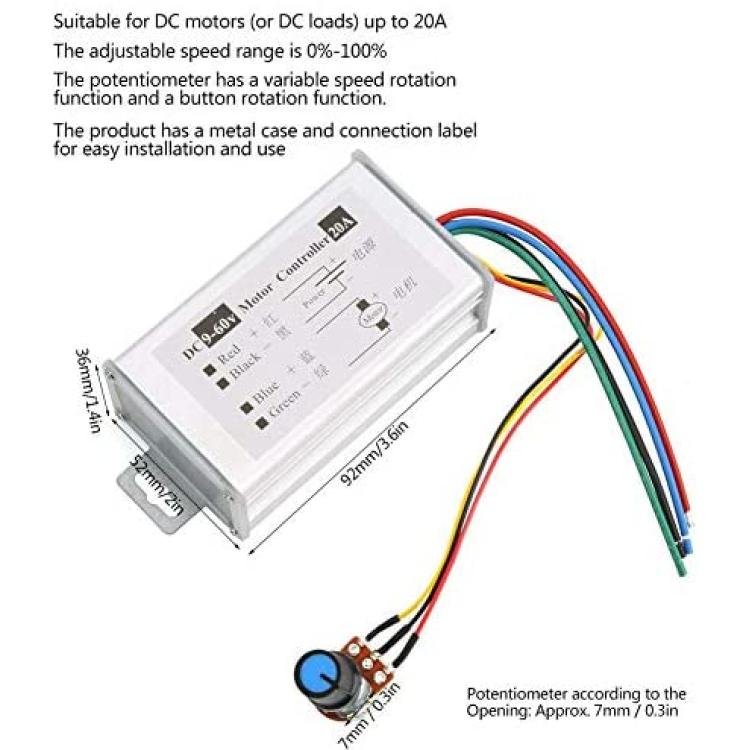

Module Size: Approx. 92 x 52 x 36mm / 3.6 x 2 x 1.4in
Weight: Approx. 130g / 4.6oz

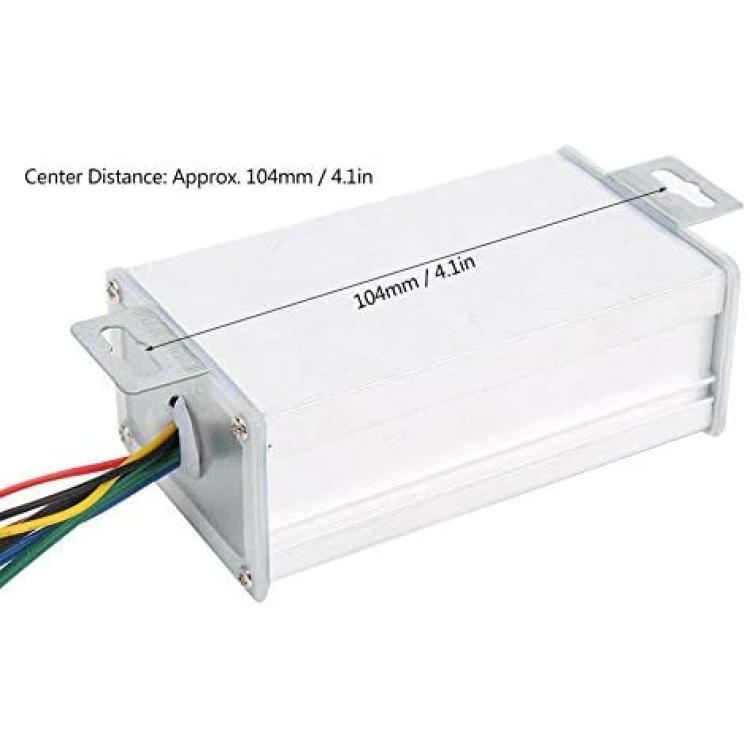

Center Distance: Approx. 104mm / 4.1in
Potentiometer Opening: 7mm
Package List:
Notice:
Please allow ±2cm error due to manual measurement. Thanks for your understanding.Â
