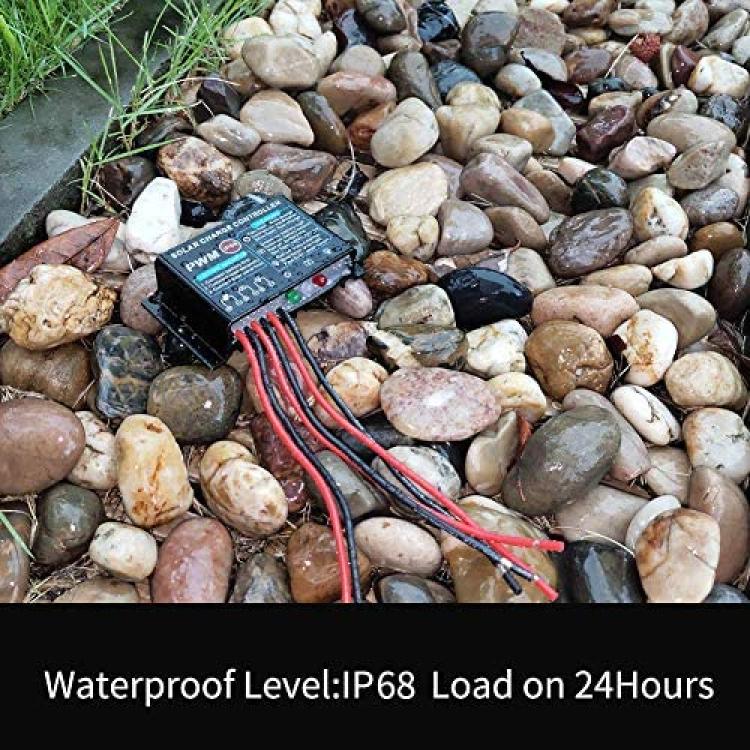

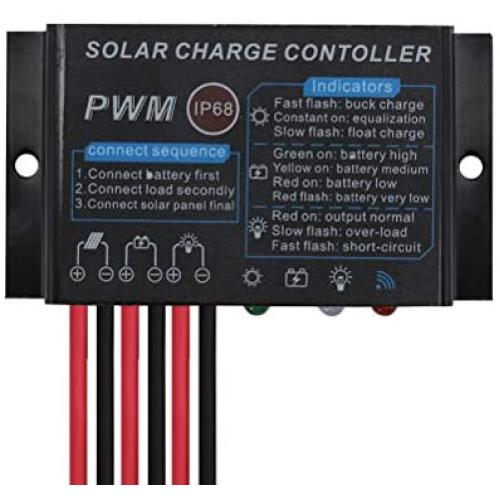

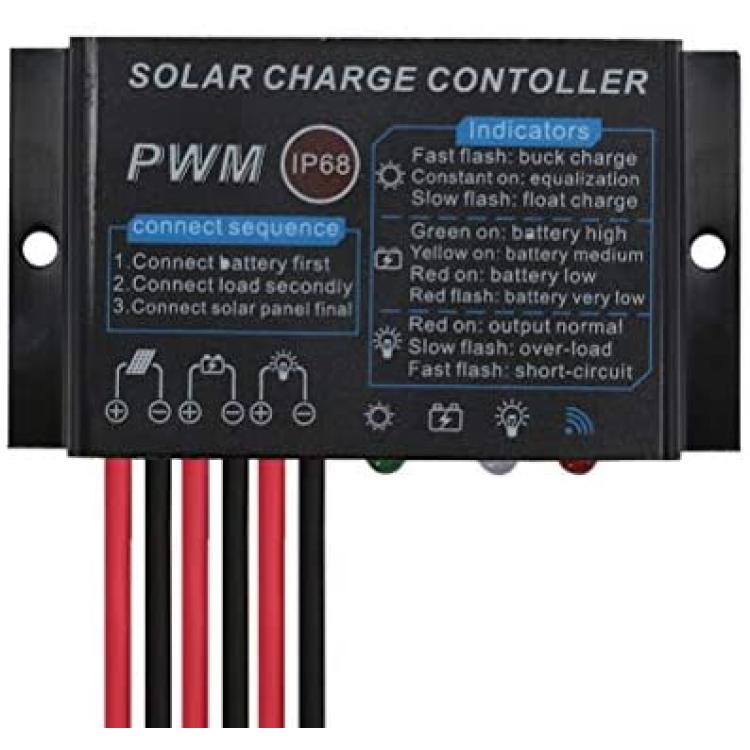

PowMr Solar Charge Controller Waterproof - 10A Charge Controller 12V 24V Auto Load on 24Hours IP68 Waterproof Solar Controller for Lead-Acid Battery (CMP-03 10A)

Safety Instructions: A) Make sure your BAT has enough voltage for the waterproof solar charge controller to recognize the batteries type before first installation and only sufficient voltage can charge or activate the controller. That means it won't charge or activate when hooked to a dead or low-voltage BAT, or connecting only with PV but without BAT
B) The connection cable should be as short as possible to minimize loss.
C) The solar regulator is only suitable for lead acid batteries: OPEN,AGM, GEL It is not suited for nickel metal hydride, lithium ions or other batteries.
D) The charge regulator is only suitable for regulating PV. Never connect another charging source to the charge regulator.

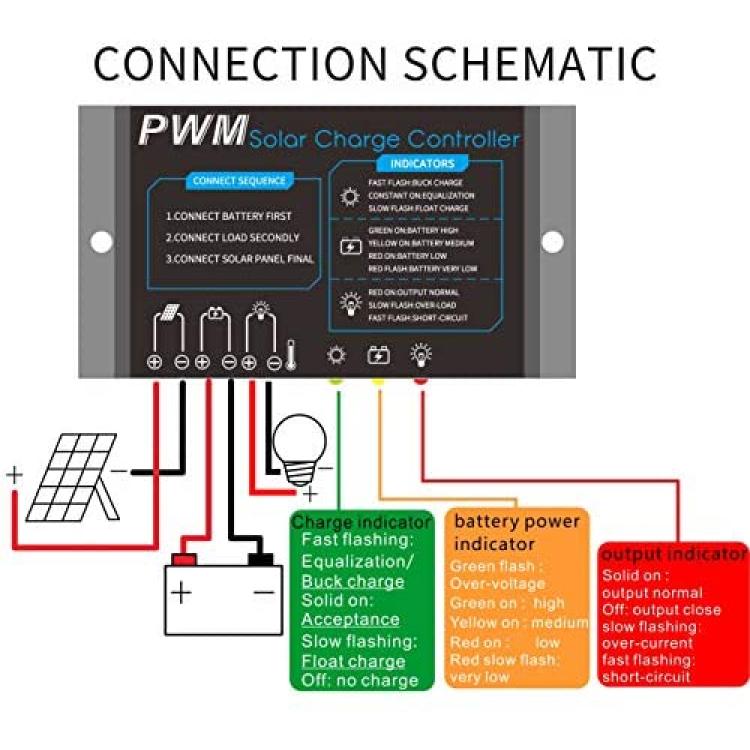

How to connect solar system with the controller:
Step 1: Connect the BAT to the solar charge controller firstly- plus and minus.(it will auto adapts to the BAT voltage)
Step 2: Connect the load to the controller secondly.
Step 3: Connect the PV to the controller finally - plus and minus.

? Note: The reverse order applies when deinstalling.

Specification:
? Color: Black
? Rated Charging Current:10A
? Rated Discharging Current:10A
? Max Solar Input Voltage: ?41V
? System Voltage:12V/24V Auto Adapt
? Self consume: ?10mA
? Operating Temperature: -20 ~ +60? ? Equalize Charging Voltage:14.4V/28.8V
? Bulk Charging Voltage:14.2V/28.4V
? Float Charging:13.8V/27.6V
? Discharge Stop Voltage:11.2V/22.4V
? Discharge Reconnect Voltage:12.6V/25.2V

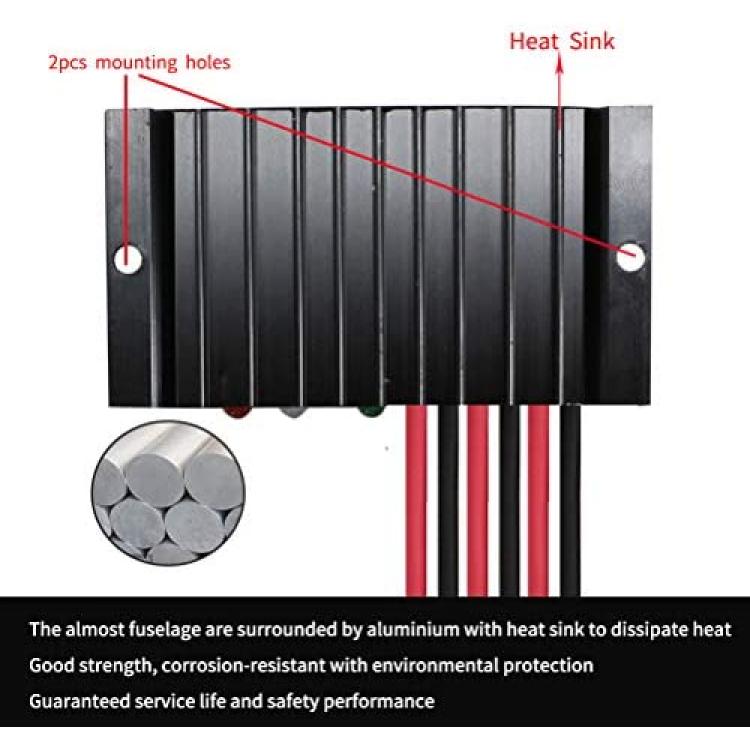

? Housing: Aluminum Alloy
? Maximum Wire Size:16AWG

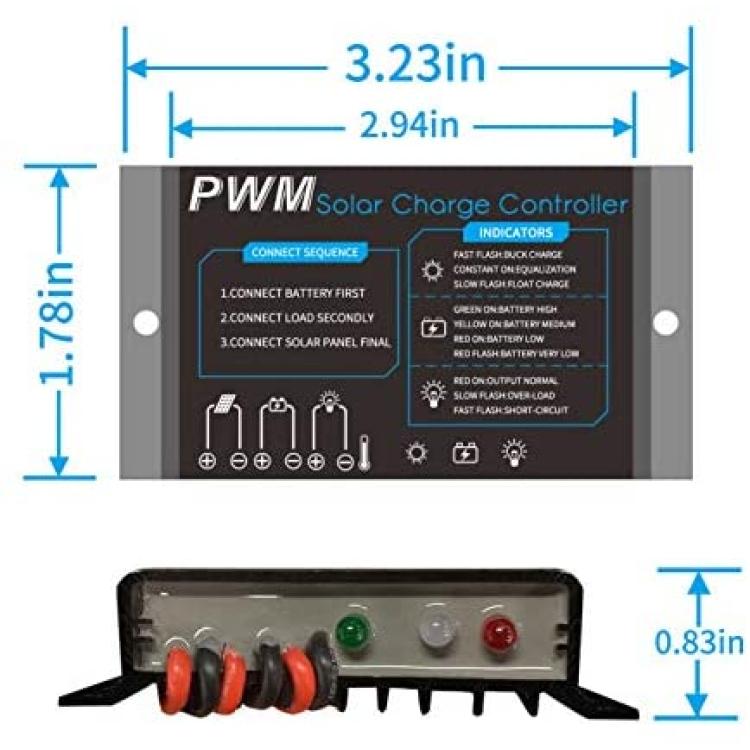

? Size/Weight: 3.23* 2.94* 0.83in/0.27lb

Package Include?
? 1 X 10A Waterproof Solar Charge Controller
? 1 X English User Manual
