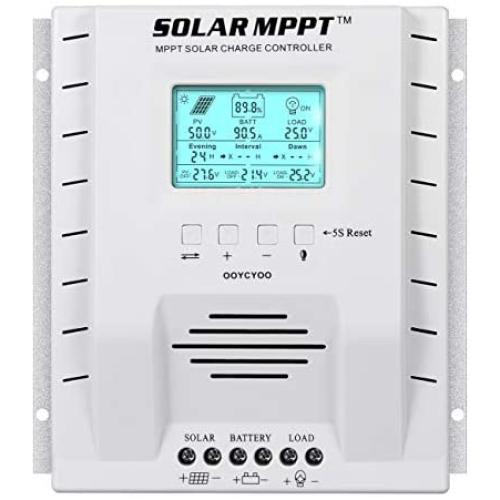

MPPT Charge Controller 60A amp, 12V 24V Auto 60A Solar Panel Charge Regulator, Max 100V Input with LCD Display for Lead-Acid Sealed Gel AGM Flooded Lithium Battery (60A MPPT)

The P-Series Charge Controller is suitable for a variety of off-grid solar applications.It can protect the battery from excessive discharge and excessive charging of a solar cell module loads

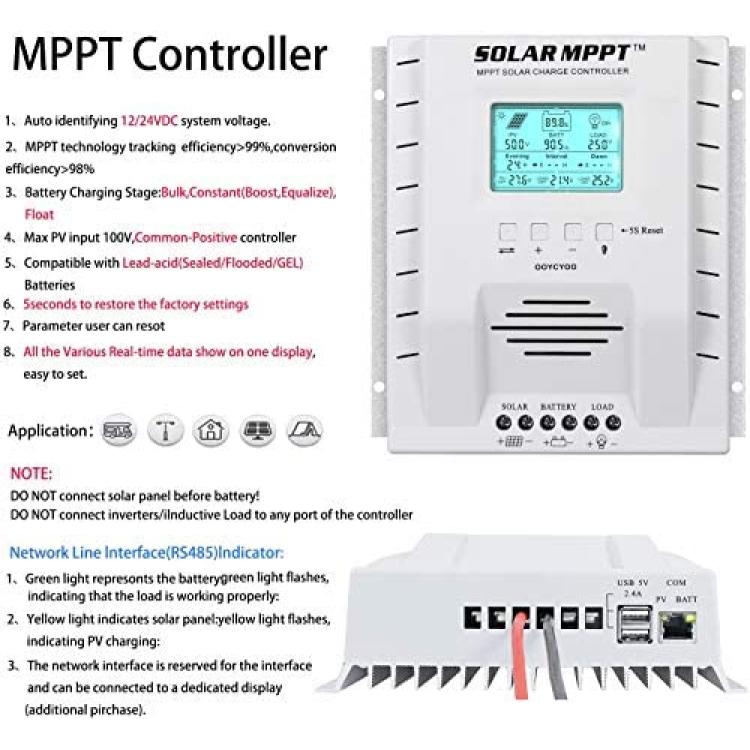

Features:

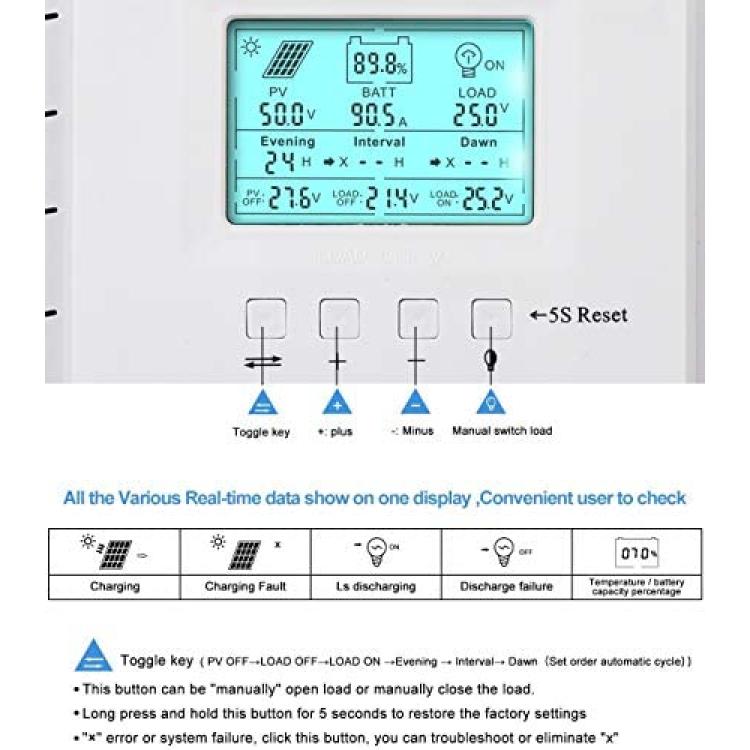

1.Various real-time data is displayed on one display(Volt, Amaps, %,°C)
2.Advanced MPPT technology ensures up to 99.5% tracking efficiency.
3.Battery model selection:lead acid(gel,sealed,submerged)
4.Charging mode:three levels(constant current, constant voltage, floating charge) to extend battery life.
5.user programmable for the battery type,load control,timer setting
Suitable for various specifications of solar panel

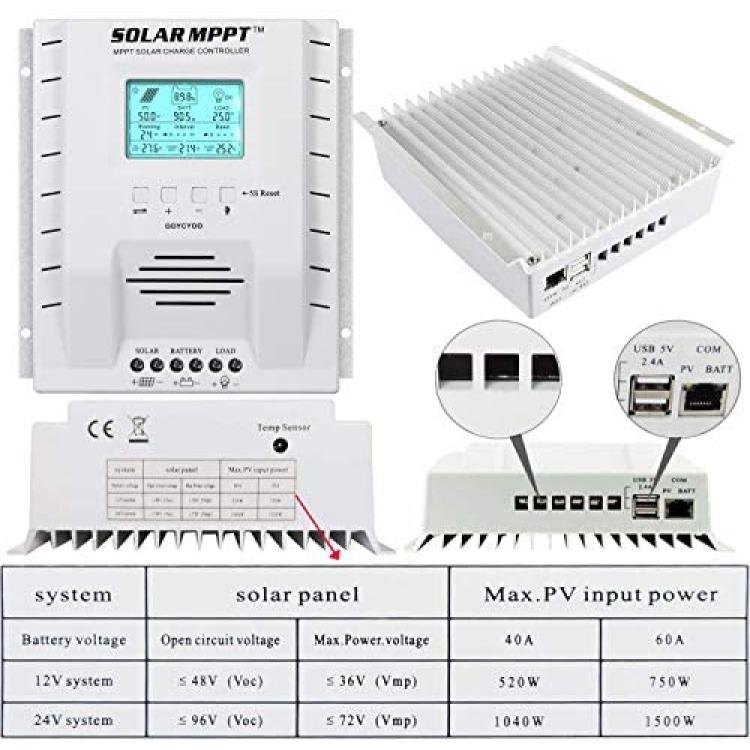

.Technical data:
MPPT P60:
12V system:open circuit voltage ?48V(Voc) maximum. PV input power:780W
24V system:Open circuit voltage ?96V(Voc) maximum.PV input power:1560W
Automatic identification of 12V/24V DC system voltage
Rated charging/discharging current:60A
Maximum open circuit voltage solar panel (Voc):18V-48V(12V system)/36V-96V(24V system)
Power terminal:10 AWG
User programmable for battery Type, load control,dual timer settings

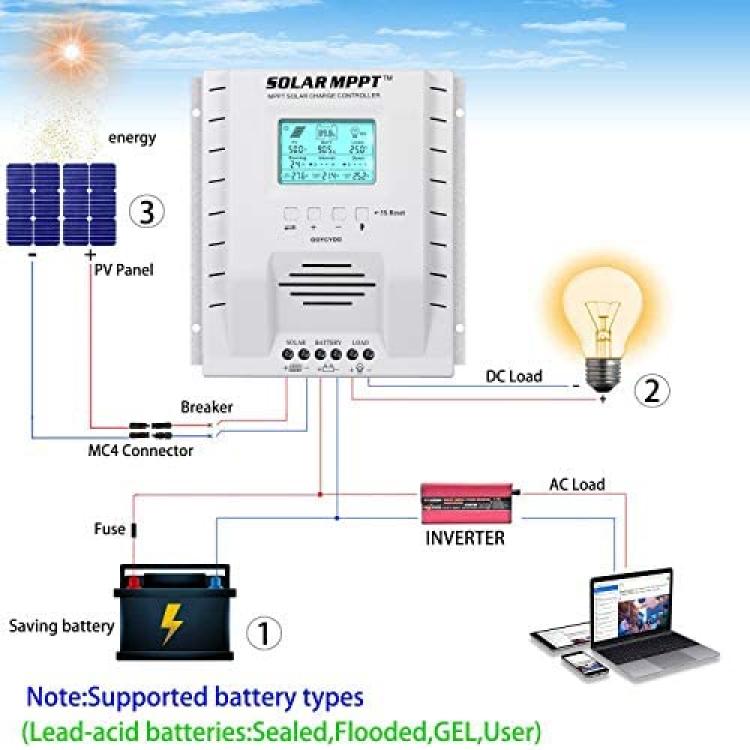

Warm Tips:
Battery must be connected first!

Never connect the soalr panel array to the controller Without/Before a Battery.

THE DISASSEMBLY SEQUENCE IS CONTRARY TO THE WIRING ORDER.

Never connect any inverter/wind/Alternator/Charger into the charge controller!

Ensure the battery voltage is enough.(>9V)

Never exceed the max input power/Voltage of your controller

Packing:
1*MPPT P60 solar charge controller
1*English Manual
1*Fixing screw
1*Remote temperature sensing line
