Renogy Rover 30 Amp 12V/24V DC Input MPPT Solar Charge Controller Auto Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

Renogy Rover 30 Amp 12V/24V DC Input MPPT Solar Charge Controller Auto Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

Brand: Renogy
Product Code: HSM40075
Availability: In Stock

US$63.92

- +

For Bulk Order, Get Better Price.

About this product

*Automatically detect 12V or 24V DC system voltages innovative mppt technology with High tracking efficiency up to 99% and peak. Conversion efficiency of 98%.

*Die-cast aluminum design for heat dissipation and the capability of measuring the batterys temperature and remote monitoring. Customizable charging voltages.

*Charges over-discharged Lithium-Ion batteries. Error code detection for easy self diagnoses.

*Compatible with various deep cycle battery options: Sealed, gel, Flooded, and lithium. Electronic protection: overcharging, over-discharging, overload, and short circuit. Reverse protection: any combination of solar module and Battery, without causing damage to any component. 4-Stage charging: bulk, boost, Float, and equalization and LCD screen with programmable charging parameters.

*Rs232 port allows the Rover to communicate with the bt-1 Bluetooth module, which can pair with the Renogy DC Home Smart phone app.

Description

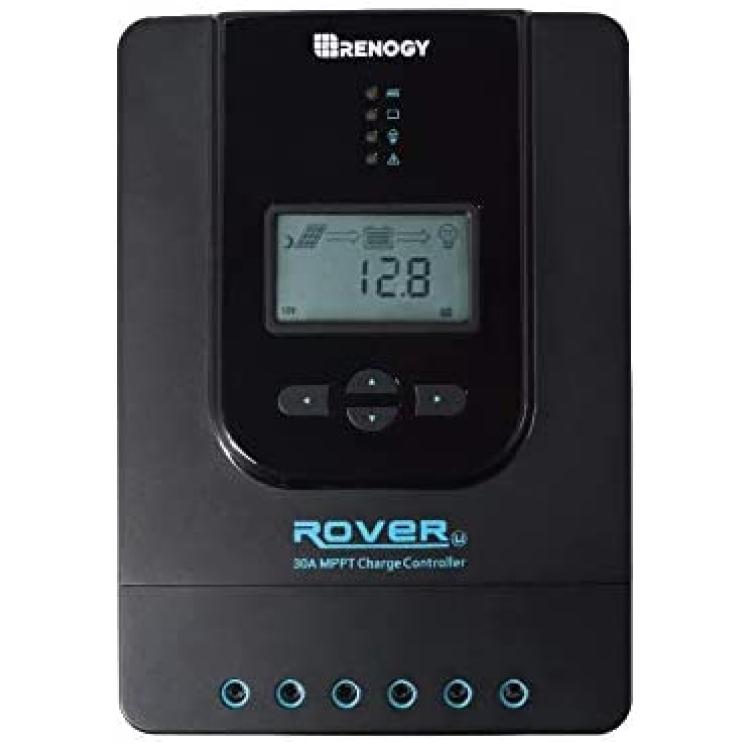

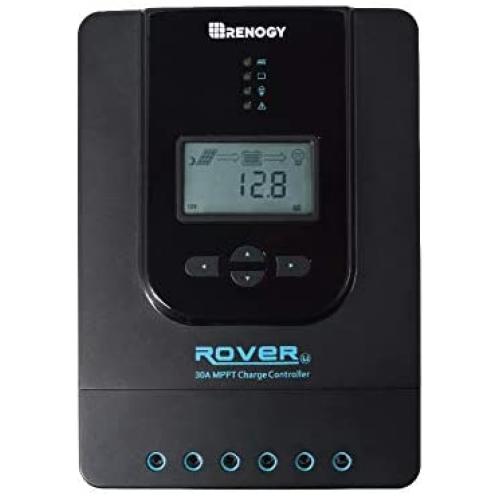

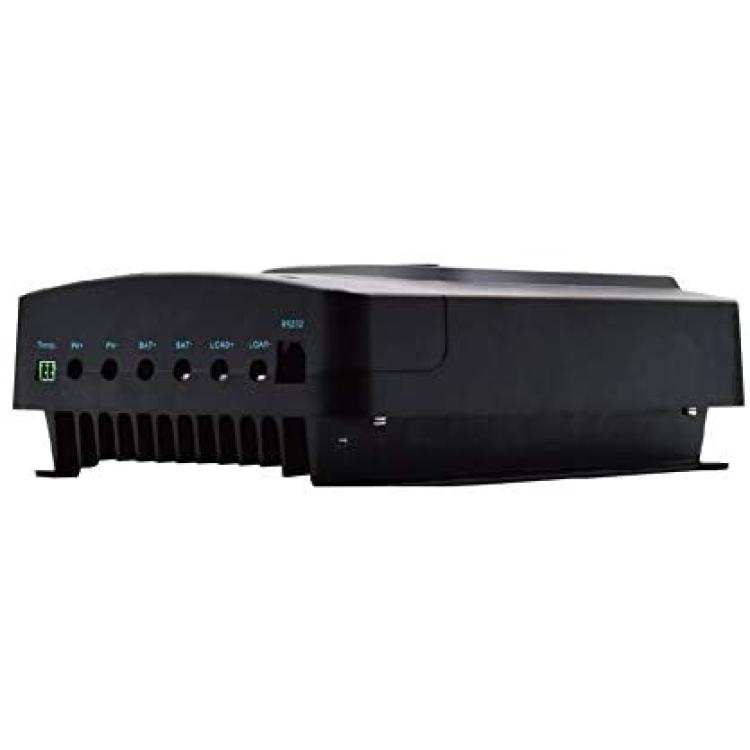

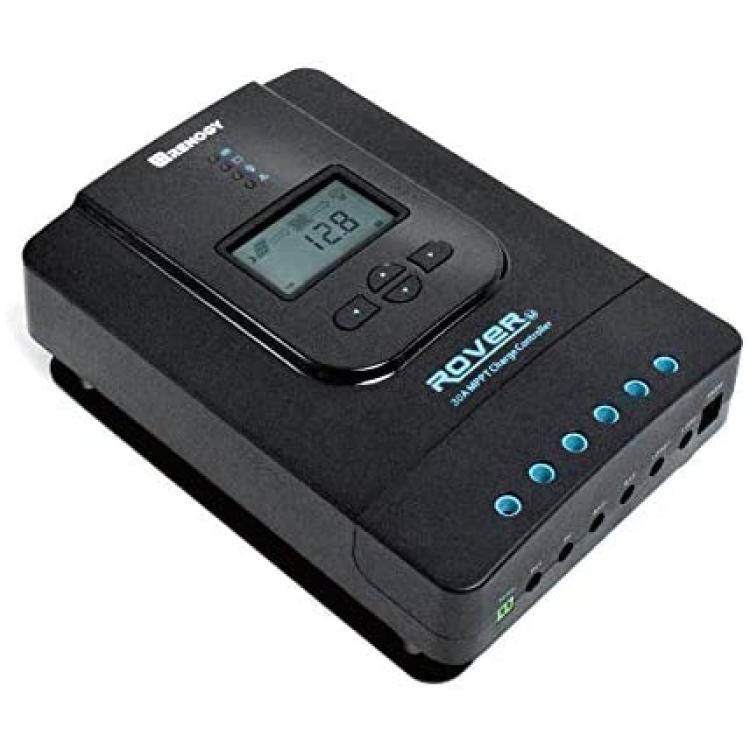

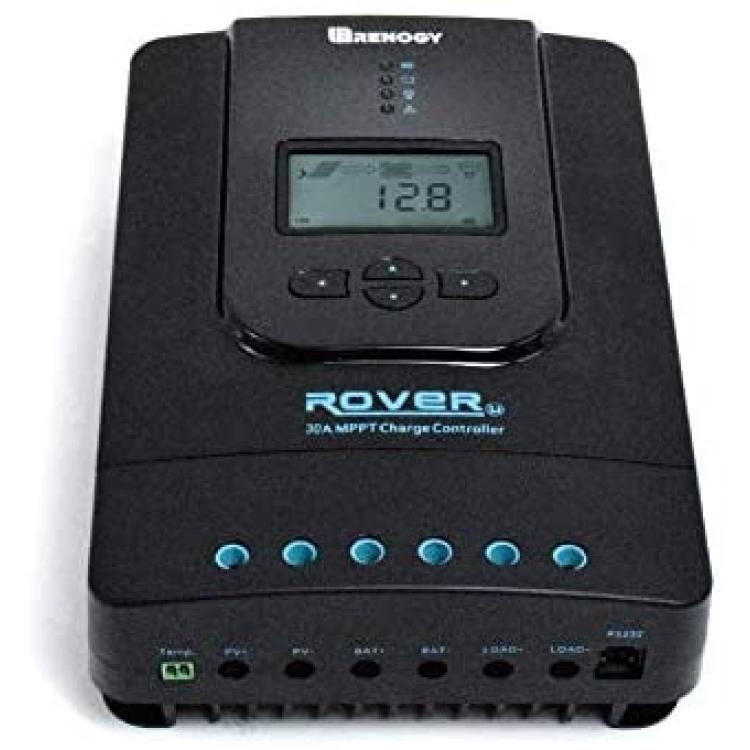

Meet the newest addition to the Renogy Rover series, the 30A rover-li MPPT Charge Controller. The rover-li is not only capable of self-diagnosing Errors, but it can also automatically detect 12V/24V systems. Pair this MPPT Charge Controller with the battery of your choice, from sealed to lithium. This 30A charge controller is encapsulated with a sturdy case that protects against general wear & tear. It also includes an aluminum heat sink for heat dissipation. Compatible with the Renogy BT-1 Bluetooth module, users can connect to & monitor their solar power systems in real time, straight from their phones. Specification Rated Battery Current: 30A Rated Load Current: 20A Max. PV Input Short Current: 50A Max. Battery Voltage: 32V Max Solar Input Voltage: 100VDC Charge circuit voltage drop: ? 0. 26V Discharge circuit voltage drop: ? 0. 15V Working Temperature: -35°C to +45°C Max Terminal Size: 8AWG Rated Load Current: 10% to 90% NC Overall Dimension: 9. 37 x 6. 81 x 2. 85 in Net Weight: 4. 41 lb.
