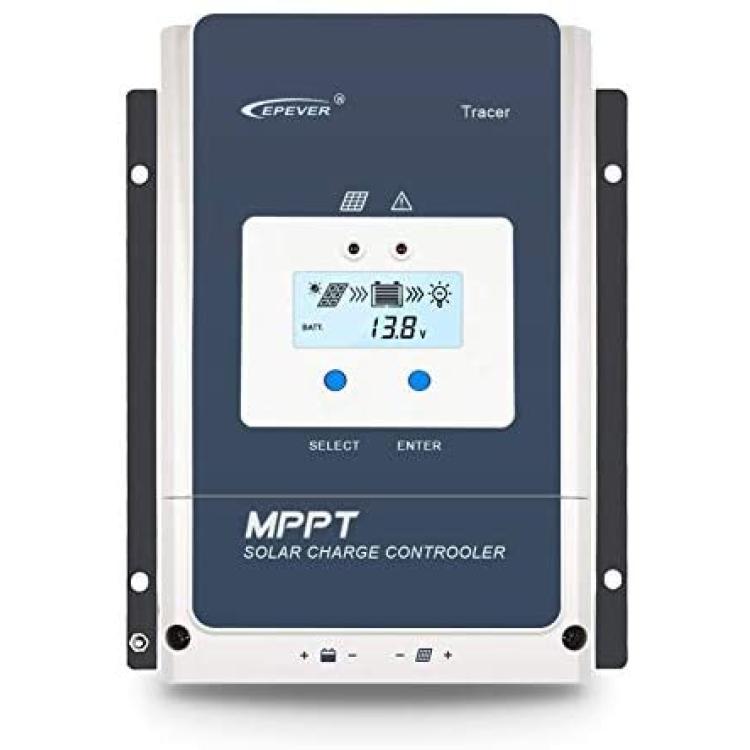

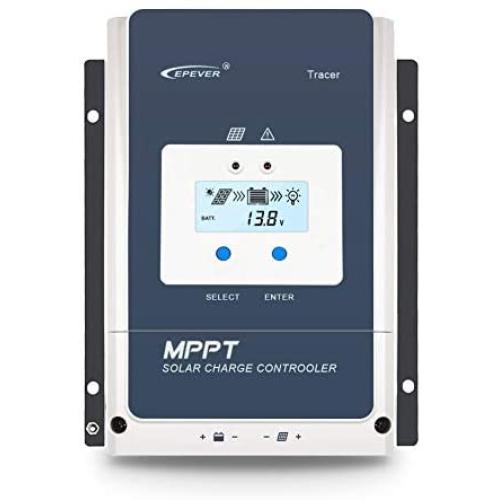

EPEVER 50A MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identifying System Voltage Max.PV 150V Solar Panel Regulator (Tracer 5415 an)

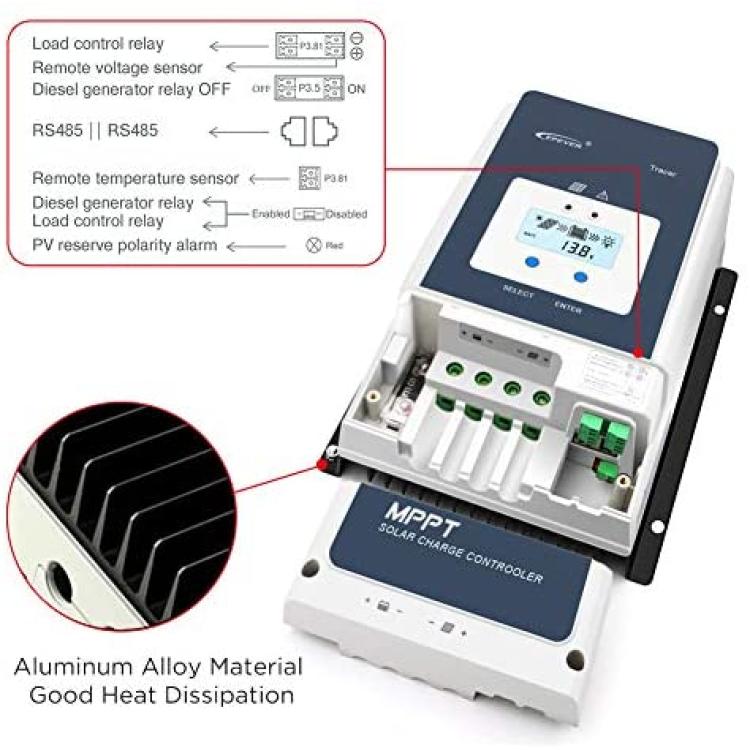

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.MSRT can sure very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel.With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system.It support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc.CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s lifeThe accuracy of the recognition and tracking at the highest point of multiple-peaks MPPAuto control system to limit the charging power & current go over the rated valueBattery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction functionLoad relay control external load switch signal to realize diversified load work modesAll-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.Lead-acid batteriesLithium-ion batteriesThe controller connection sequence is Battery--Load--Solar Panel, and discounect the system in the reverse order Solar Panel--Load--BatteryBrowse interface: when no operation, the interface will be automatic cycle, but the follow two interfaces not be display1 x Tracer 5415AN Solar Charge Controller1 x User Manual
