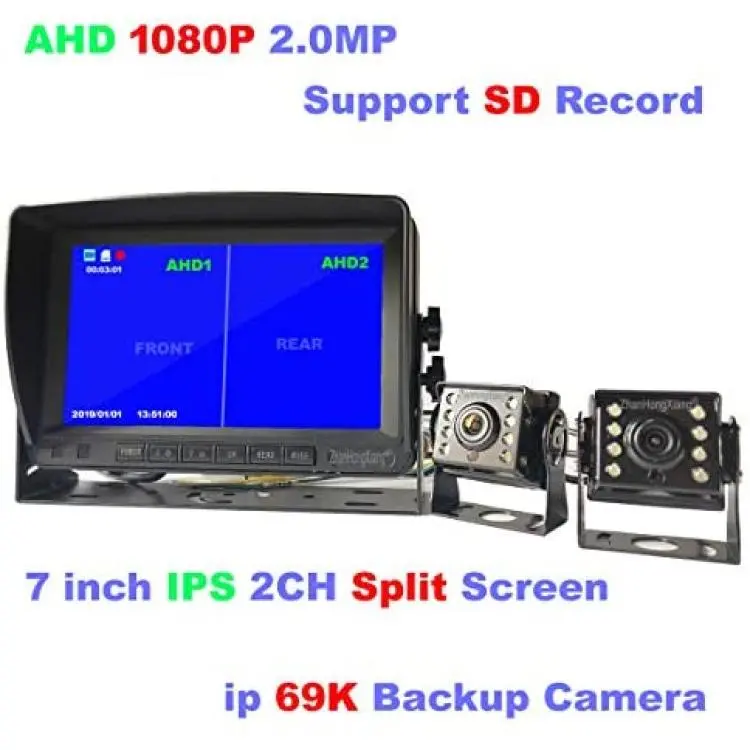

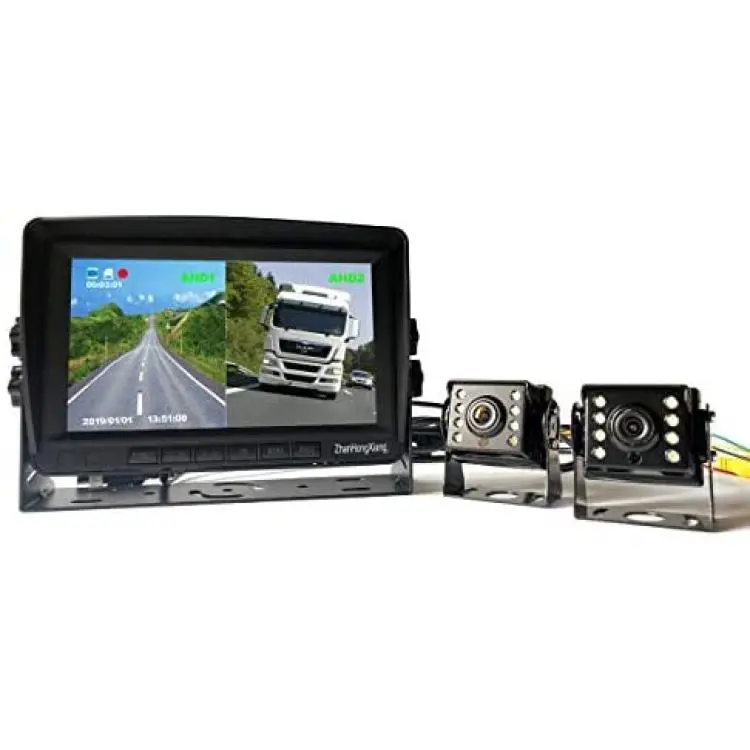

Car Backup Cameras System Build-in DVR,2 x HD 1080P 4Pin Front Rear View Camera ip69 IR Night Vision + 7'' IPS HD Split Monitor with SD Record 12V~24V for RV Truck Bus Camper Vehicle

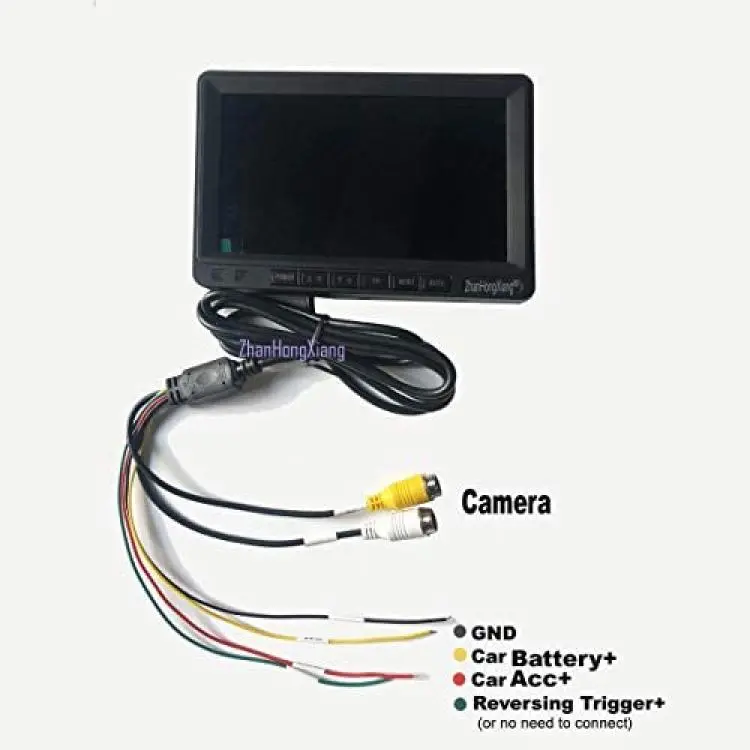

Only need to connect the monitor power wire with car electronics system:
Red wire to car ACC+,
Yellow wire to car Battery+,
Black wire to GND,
Green wire to reversing gear Trigger+ (or No need to connect)

easy to install easy to use

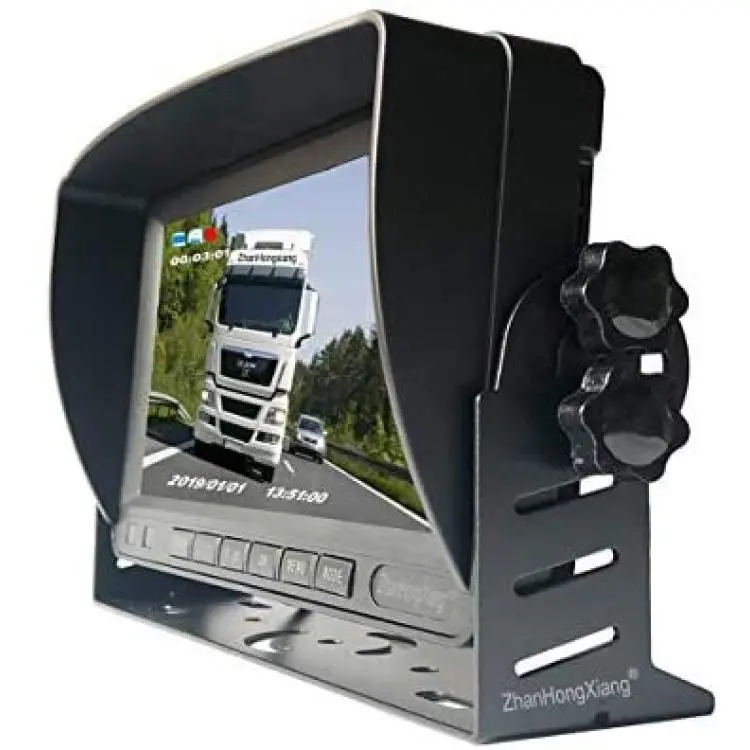

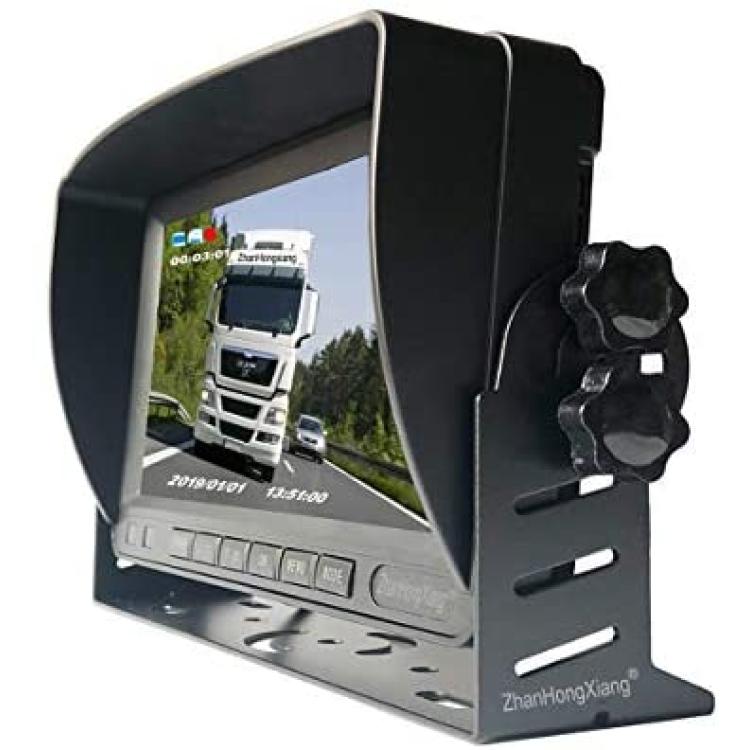

7" CAR DVR MONITOR

Display Size: 7 Inch AHD DVR Screen
Power requirement: DC 12V-24V
Consumption:8W

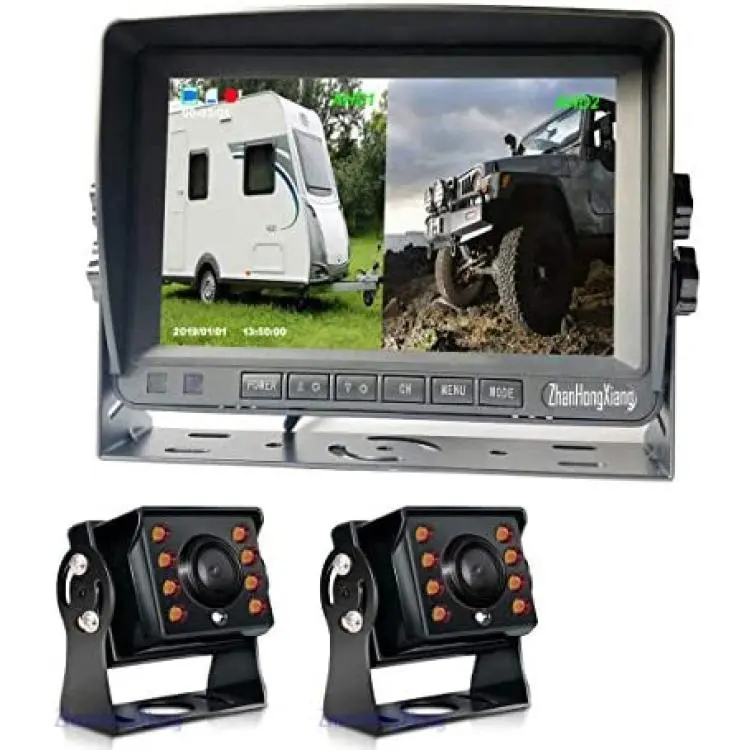

Video:2 channels input ,Split Screen Display
Our Split monitor can display two video at same time,
It can display two image or single large image,
Build in Great SD DVR Loop Recording functions,
Come with 32GB SD Memory Card, Max support 128GB
Reversing Grid Lines Can be turn on or off
Image Can be Mirror or None Mirror (So each camera can be use for front view or rear view at your enjoy)
Image Support Flip with Upside Down
Net Weight: Approx. 1000g
Language: English, Chinese

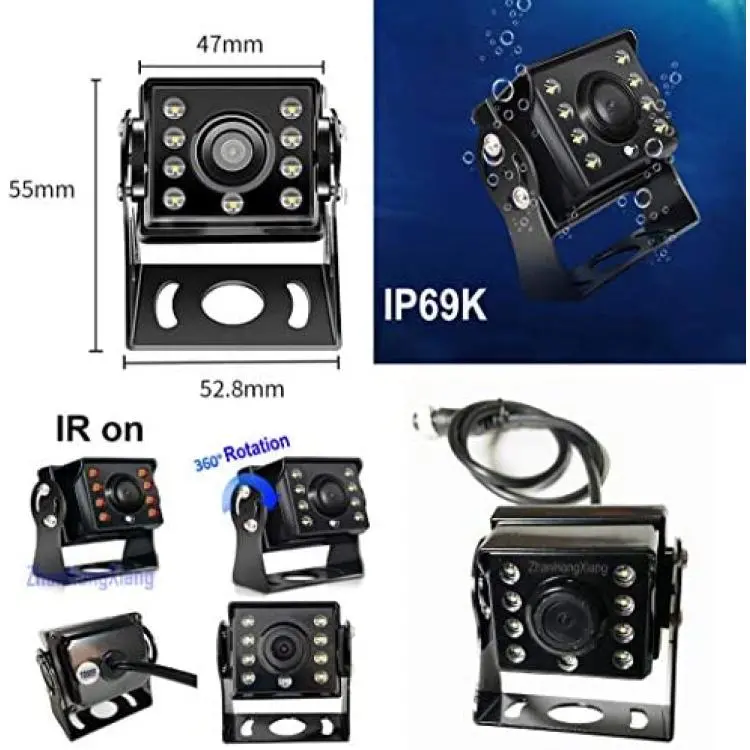

AHD 8 LED IR Car Rear View Camera
100% Not Wash Out AHD 1080P Sensor Mirror image
TV system:PAL/NTSC
Lens:2.1mm(170 View angle )
Number of pixels: 2 Megapixels Camera(1920*1080)
Minimum illumination:0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision:8 LED IR
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Weight: Approx 200g
Waterproof: IP 69K

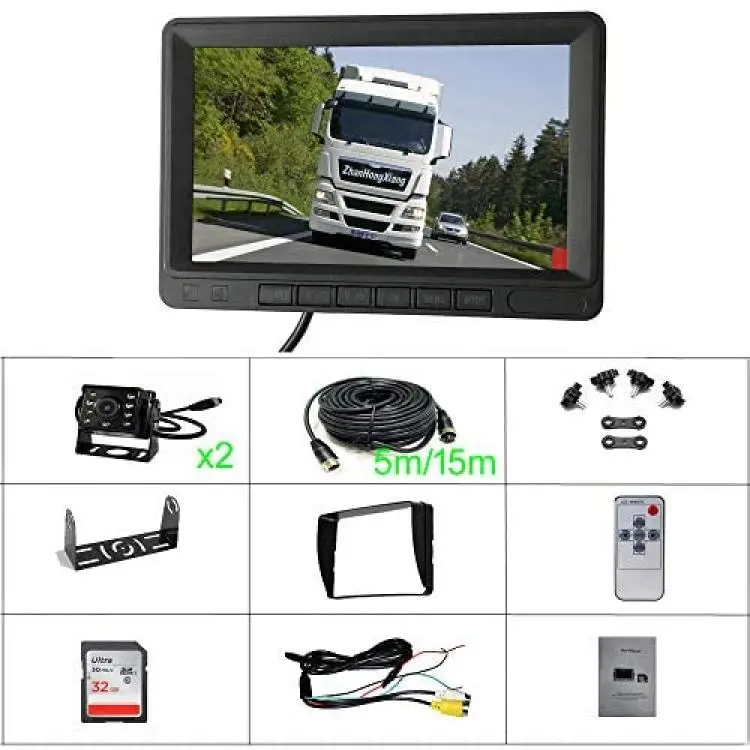

Package included:

1 x 4Pin 7" AHD DVR Monitor
1 x U shape Metal Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
2 x AHD 1080P 8 LED IR Rear View Camera
1 x 4Pin 15M Cable
1 x 4pin 5M Cable
1 x 32GB SD Memory
