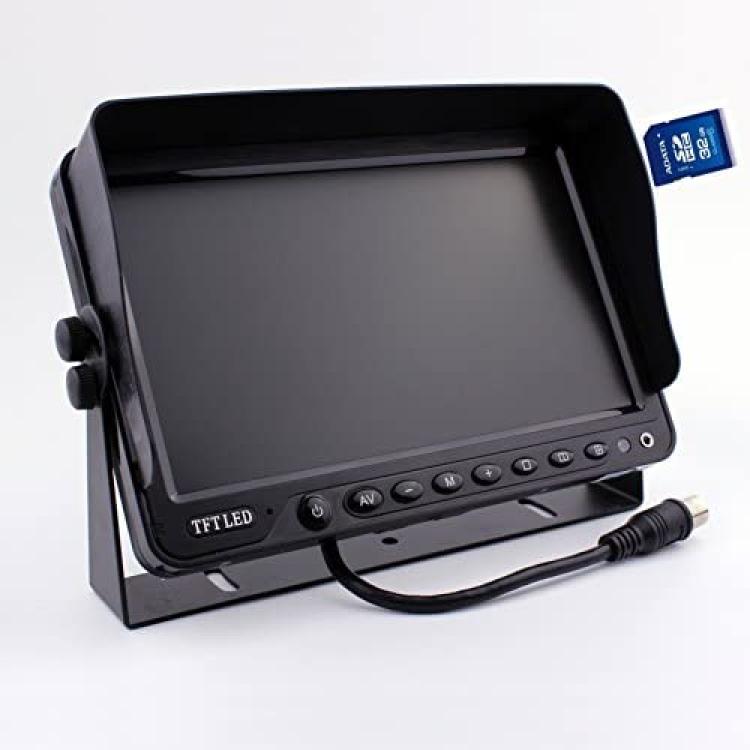

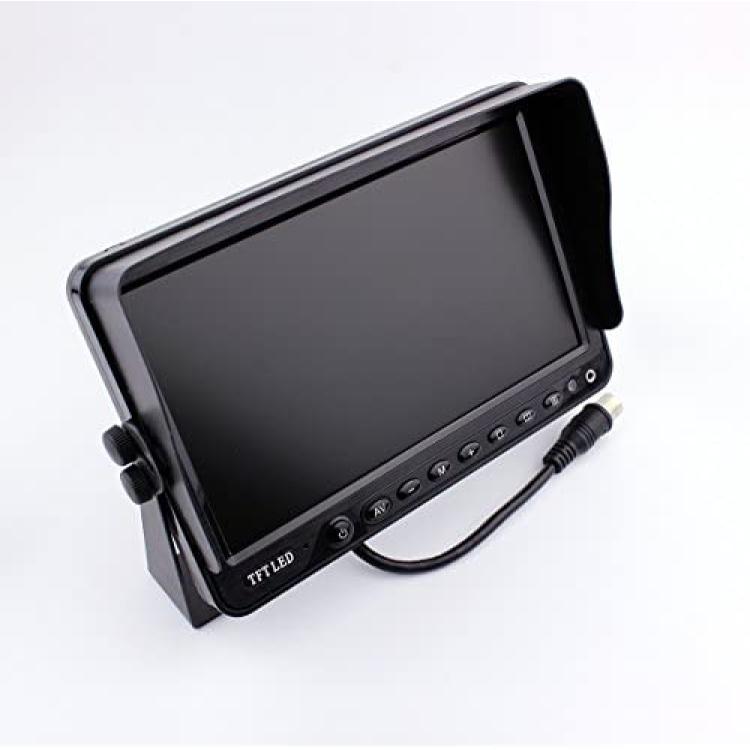

Camnex Car Backup Camera System 7 inch Monitor Build-in DVR Recorder with Quad Split Screen Rear View Camera System Kit 4 x Camera for Truck Van Caravan Trailers Camper Bus RV

Free Shipping to United States, UK, Canada, Mexico and Australia, Fast Shipping via DHL or Other express to Worldwide.

Features:

– High Definition Digital Colour LCD wide screen video monitor, 800 x 480 pixels.

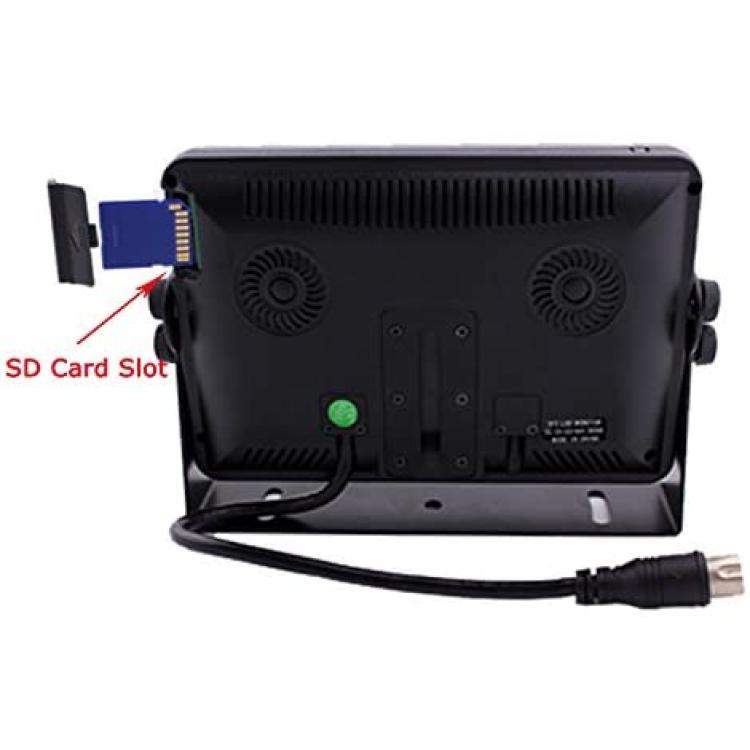

– Built-in DVR recorder. DVR can re record on the same SD card in a loop. Tmaximum 64G.
– All video files are AVI format. Each camera has a separate video file.

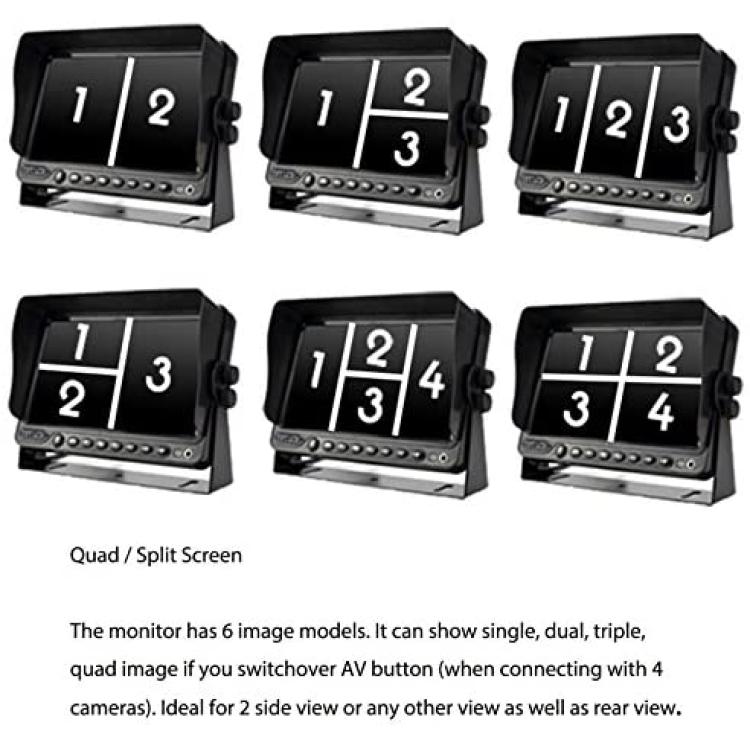

– Built-in quad / Split screen, able to show 4 camera views at one time.
– AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.
– The monitor support 3-ways audio input(AV1, AV2 and AV3). It need cameras have audio output to AV1~AV3 channel. Audio will been recorded to SD card.
– Although monitor supports 5 cameras input, but DVR only records AV1, AV2, AV3 and AV4 images, it can not record AV5 image.
–The monitor do not build-in speaker as default, if you need it, please contact us.
– All DVR functions are set via the remote control.

How to Install this System:

The power cable of monitor has 6 wires, their definition as follows:
Red wire: 12-32V
Black wire: GND
Green wire: V5 trigger wire
Purple wire: V2 trigger wire
Gray wire: V3 trigger wire
White wire: V4 trigger wire

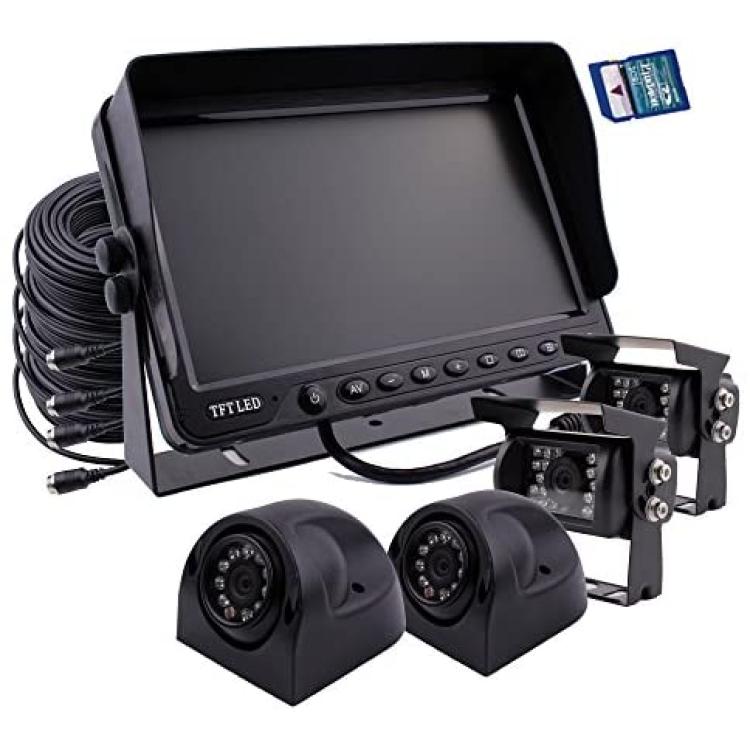

Package List:

– 7” Monitor x 1

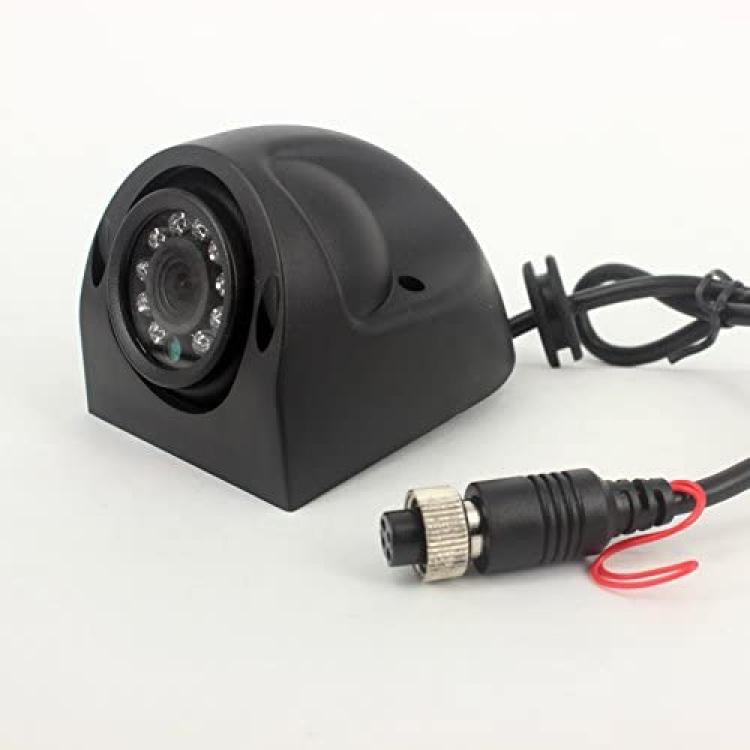

– Side Camera x 2
– Backup Camera x2
– 4PIN 15m Cable x4

SD Card Is Not Included
