Vehicle Backup Camera System,2 x Night Vision 18LED IR Car Rear View Mirror Camera 1920 x 1080P + 9'' IPS Car DVR Monitor with 10m20m Cable For RV Truck Trailer Bus Camper

Only need to connect the monitor power wire with car electronics sytem:
Red and yellow wire to car Positive/Live,
Black wire to GND,
Green wire to reversing Trigger+ (or No need to connect)

easy to install easy to use

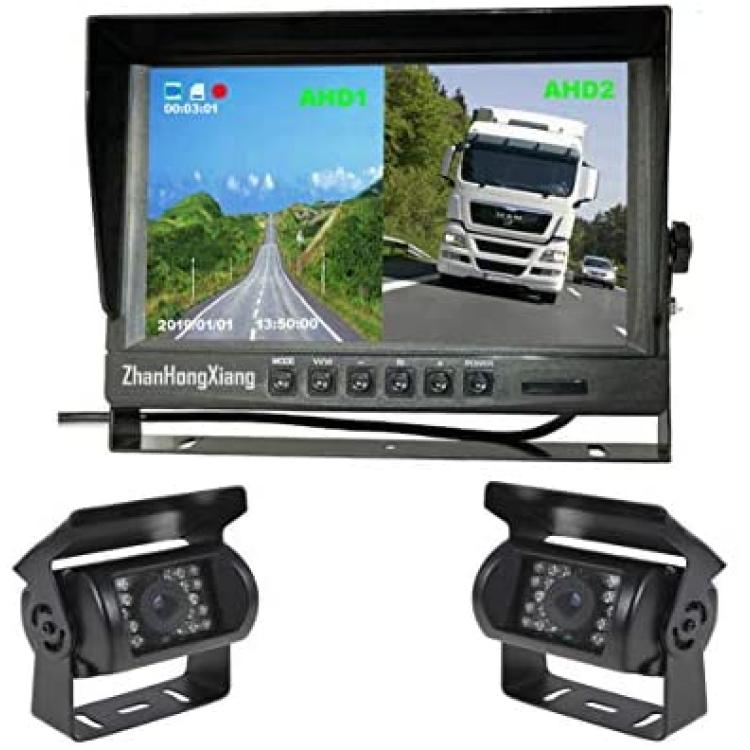

9" IPS DVR MONITOR

Display Size: 9 Inch AHD DVR Screen
Power requirement:DC 12V-24V
Consumption:8W
Video:2 channels input ,Split Screen Display
Our Split monitor can display two video at same time,
you can also switch to AHD 1 or AHD 2 by "V1/V2" button
Build in SD DVR Loop Recording functions,
Come with 32GB SD Memory Card,Max support 128GB
Reversing Grid Lines Can be turn on or off
Image Can be adjust for Mirror or None Mirror(front View or Rear View)
Image Can Be Flip Upside Down also
Net Weight: Approx. 1000g
Lauguage:English,Chinese

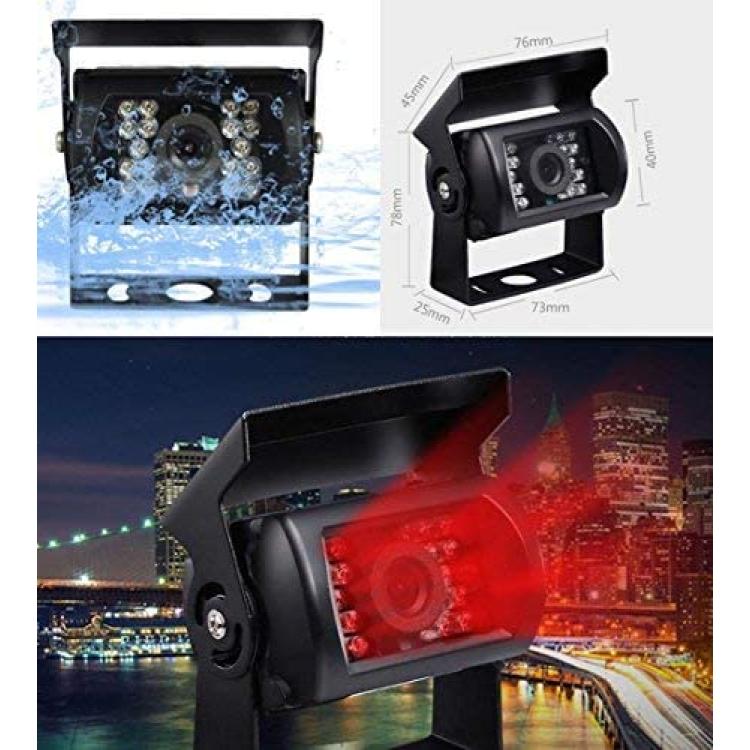

AHD 18 LED IR Car Rear View Camera
100% Not Wash Out AHD 1080P Sensor Mirror image
TV system:PAL/NTSC
Lens:2.8mm(120 View angle )
Number of pixels: 2 Megapixel Camera(1920*1080)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:18 LED IR
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Weight: Approx 290g
Waterproof:IP 68

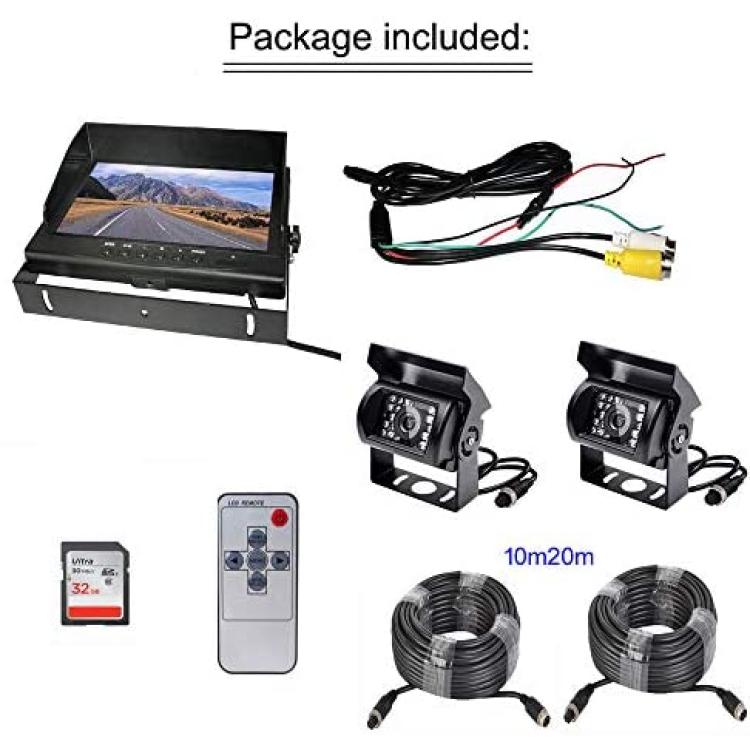

Package included:

1 x 4Pin 9" AHD DVR Monitor
1 x U shape Metal Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
2 x AHD 1080P 18 LED IR Rear View Camera
1 x 4Pin 20M Cable
1 x 4pin 10M Cable
1 x 32GB SD Memory
