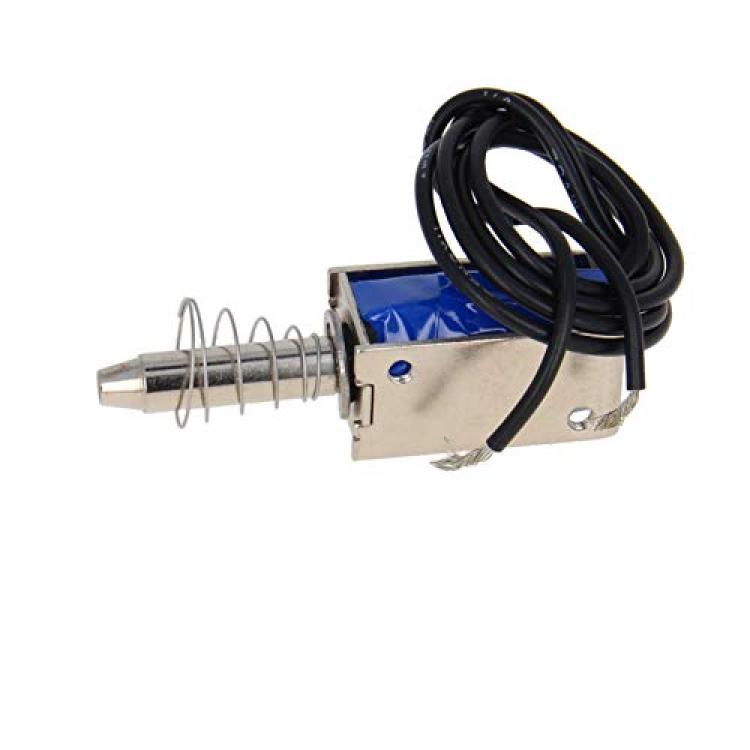

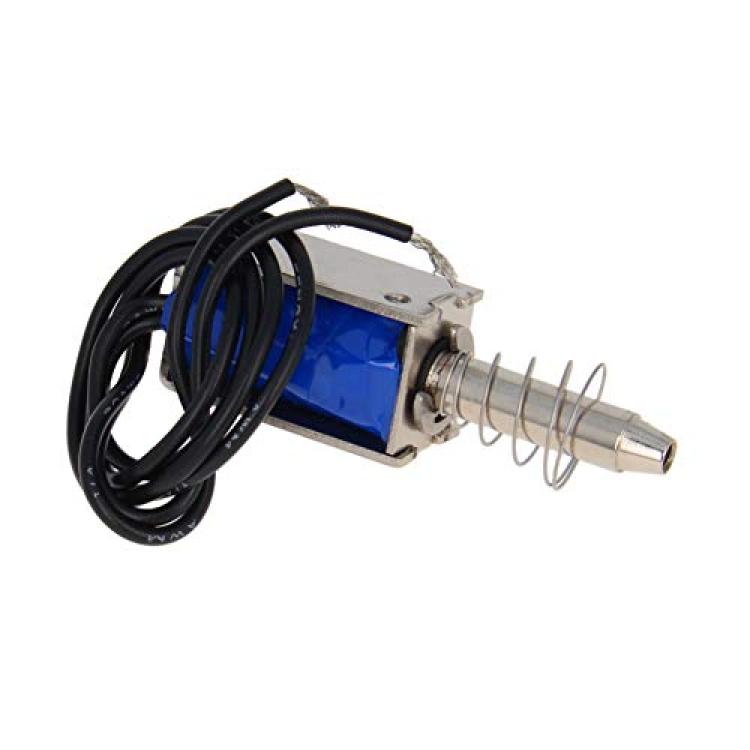

Fielect DC 12V 5N Push Pull Type Solenoid Electromagnet, 0.3A 3.6W 10mm Stroke, Open Frame Type Solenoid Electromagnet, Linear Motion JF-0730

Fielect DC 12V 5N Push Pull Type Solenoid Electromagnet, 0.3A 3.6W 10mm Stroke, Open Frame Type Solenoid Electromagnet, Linear Motion JF-0730

Product Code: HSM27031
Availability: Pre-Order, Inquiry Price

US$4.78

- +

For Bulk Order, Get Better Price.

About this product

*Voltage: DC 12V; Current:0.3A; Power :3.6W; Stroke: 10mm; Force:5N.

*Action Form : Push Pull Type; Package Content : 1 x DC Push Pull Type Solenoid Electromagnet.

*Size: 14 x 17 x 30mm/0.55" x 0.66" x 1.18""(L*W*H)

*Advantages:Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity

*Application:DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,auto door lock,etc.

Description

Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
High power, pull push type, linear motion, is easy to install.
Note:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
