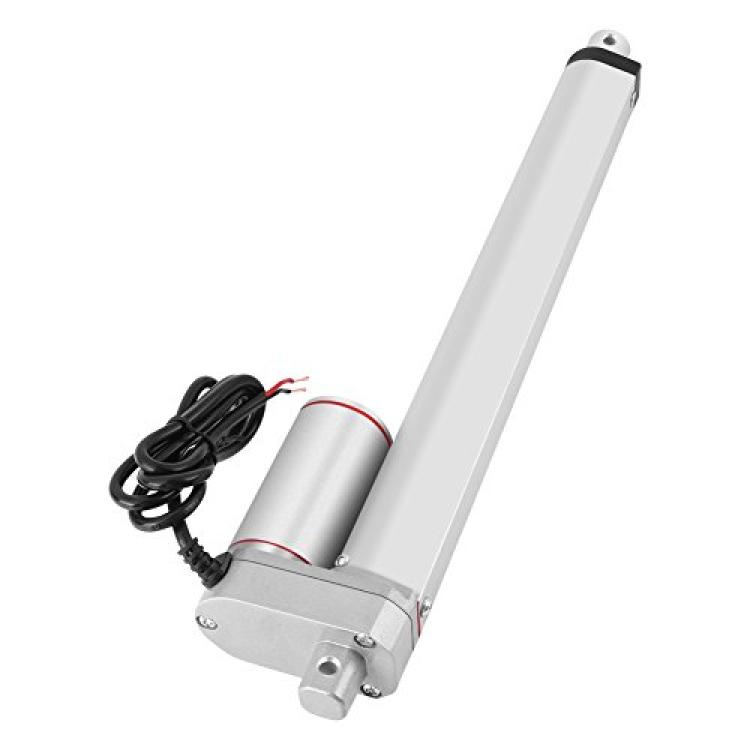

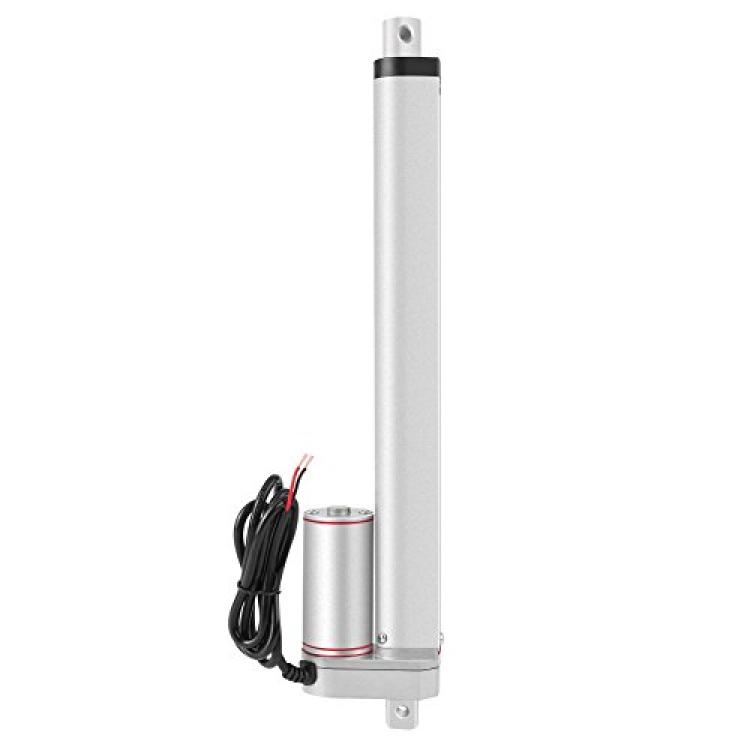

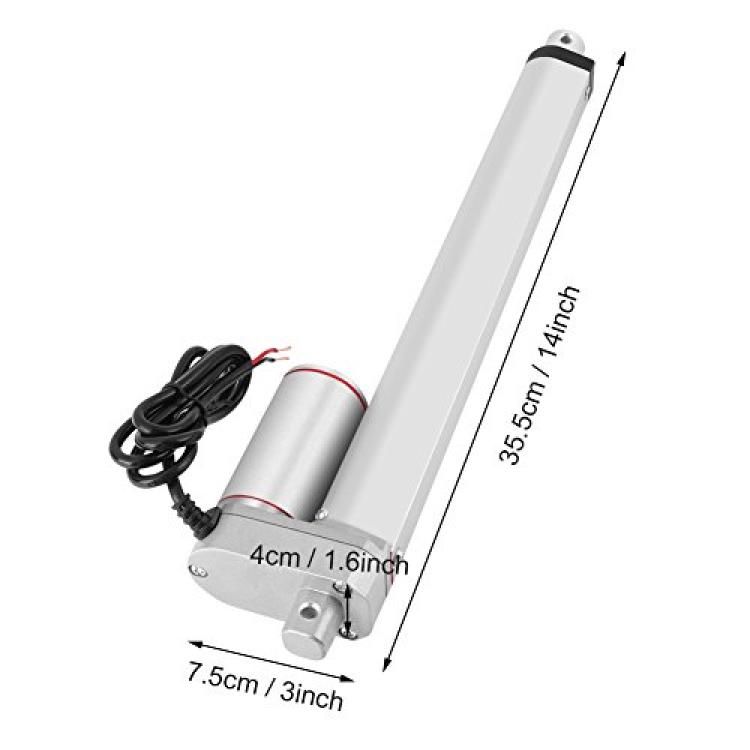

Linear Actuator, Electric Linear Actuator Motor Stroke Heavy Duty DC 12V Load Linear Actuator Electric Motor 9.84in
Availability: Pre-Order, Inquiry Price
About this product
*【How it Works】After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements
*【Electric Motor Linear Actuator】Electric putter, also known as push rod motor, electric cylinder and linear actuator
*【Electric Drive】The electric putter is an electric drive that converts the motors rotational motion into a straight reciprocating motion of the push rod

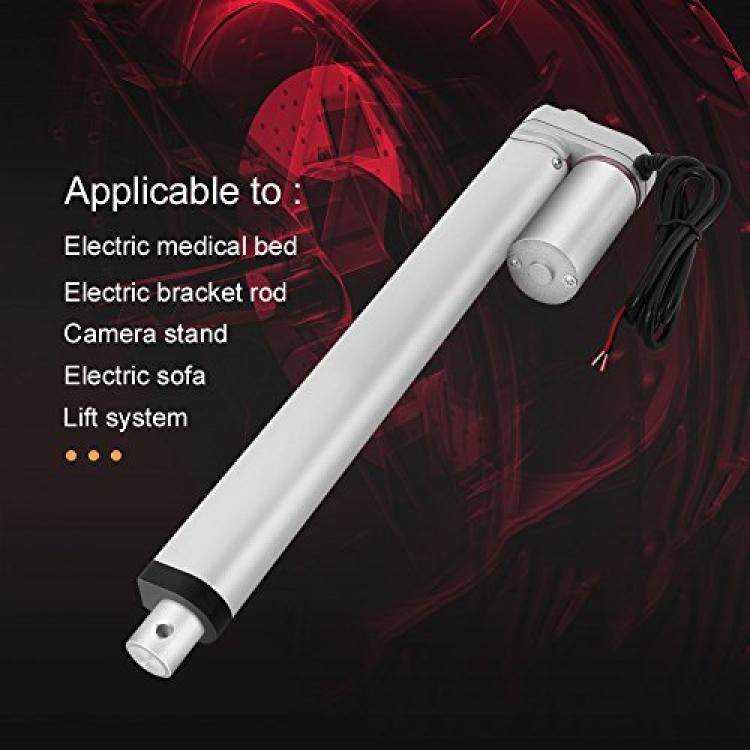

*【Application】Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control
*【Shipping】This item will ship from USA ,delivery time need about 4-7 days. The products are packed well to prevent breakage during transportation. If there is any questions please feel free to contact with us, our experienced customer service team will response in 24 hours
Description
Specifications:
Weight: 1340 g
Permanent magnet DC motor drive voltage: 12V DC

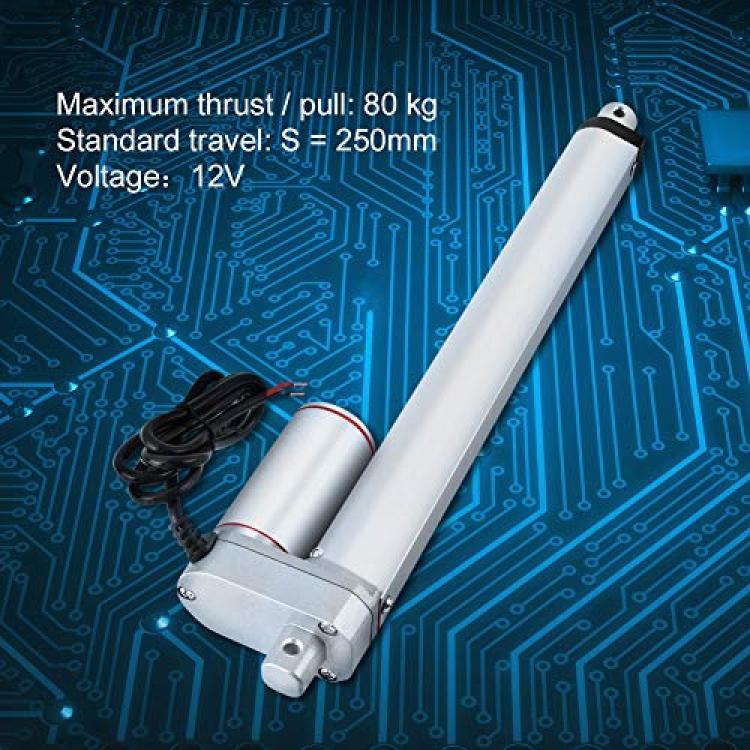

Maximum pull: 800N
Maximum thrust: 500N
Standard Stroke: S =250mm
Minimum distance (the distance between the front and rear of the two holes) :L = S(stroke)+ 105mm putter between two holes = 2XS(travel)+ 105mm
No load speeding: 10mm/s
Speed and thrust relationship: 5mm / s (kg) -50s (50kg)
environment temperature: -26~50?
Standard protection level: IP54
Noise level: ?42dB

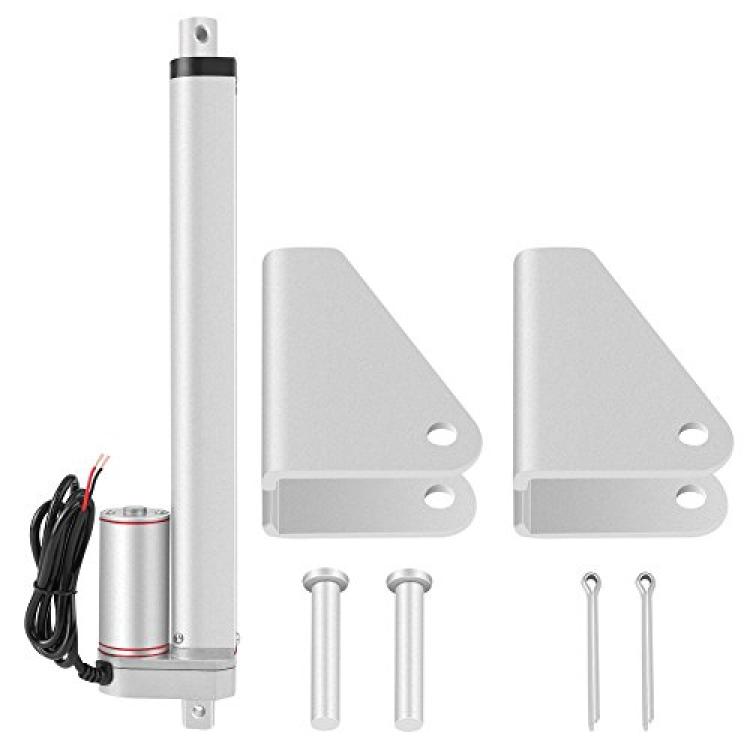

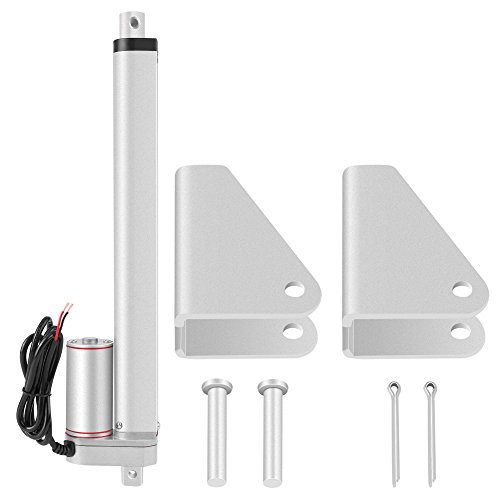

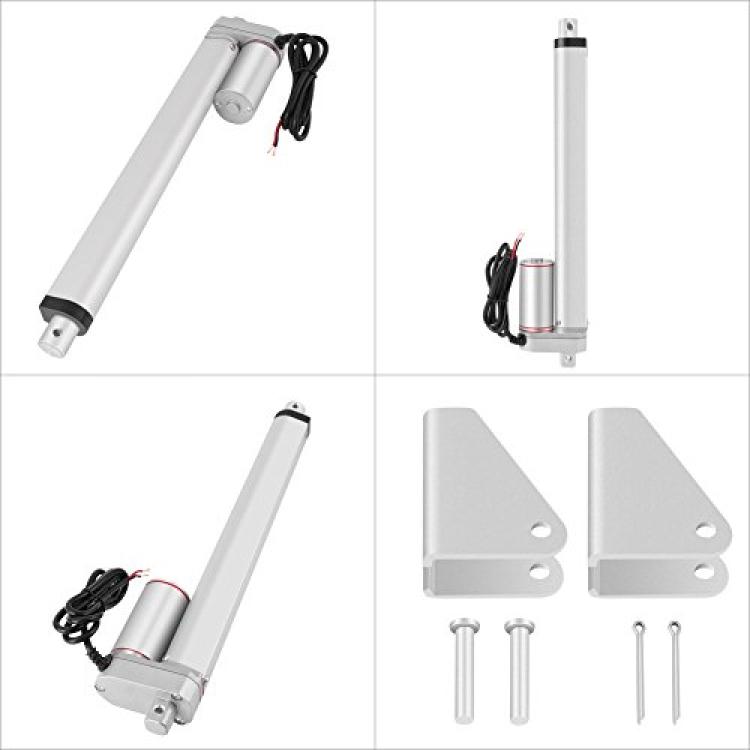

Package Included:
1 x Electric Linear Actuator Motor

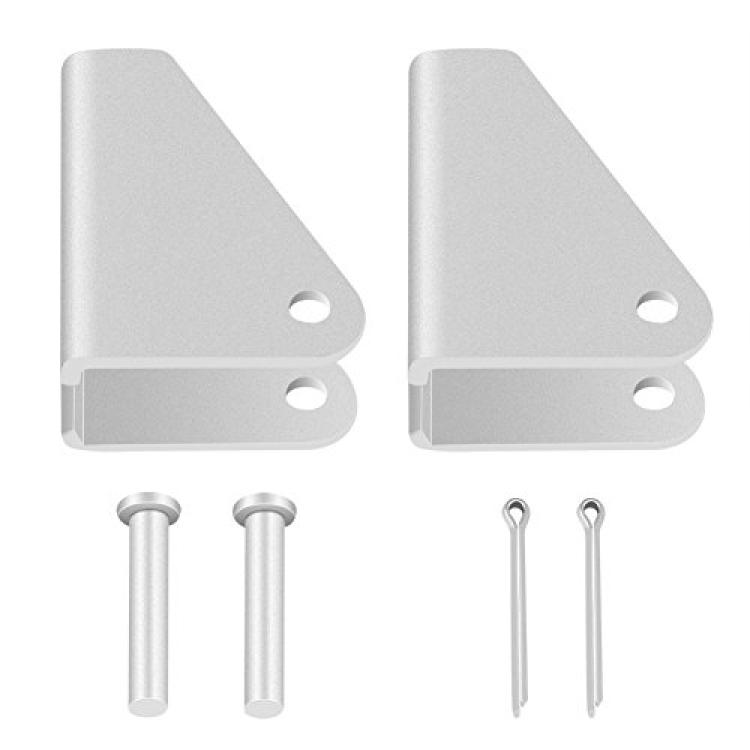

2 x Bracket
2 x bolt
2 x cotter pin for the linear actuators
