BEMONOC DIY Design DC 24V Linear Actuator Reciprocating Motor Stroke 12mm 16mm 20mm Adjustable High Speed 800rpm
Availability: Pre-Order, Inquiry Price
About this product
*✔Model Number: DIY37GB330; Voltage: 24V; No-load Speed: 800RPM;

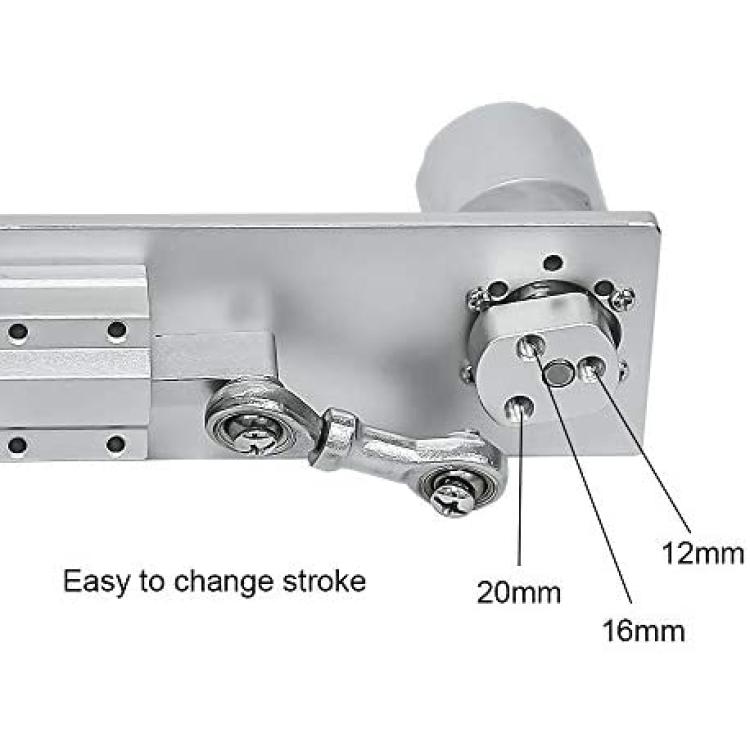

*✔Stroke: 12mm 16mm 20mm( If there is no message about the stroke, we will send stroke 20mm by default，you also can adjust 12/16mm by yourself easily);

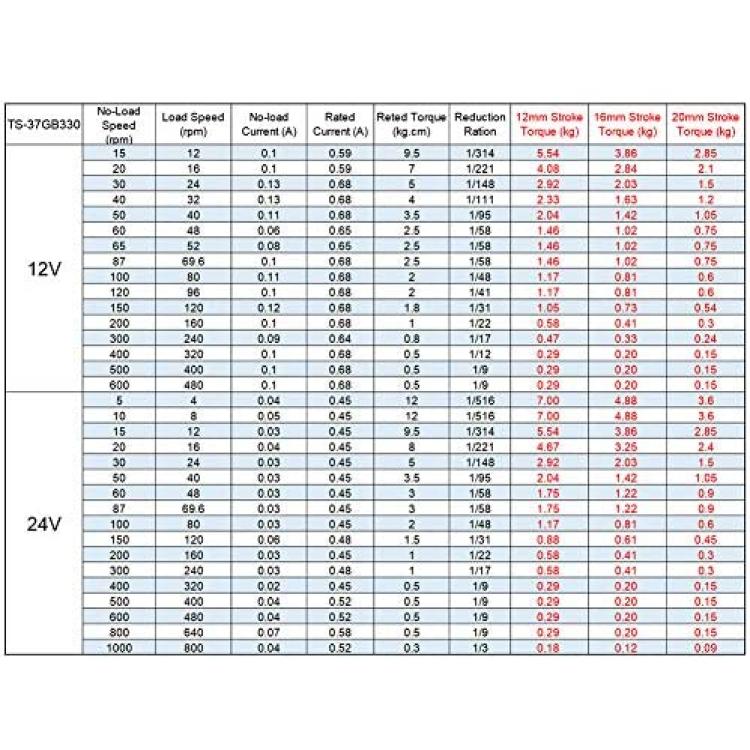

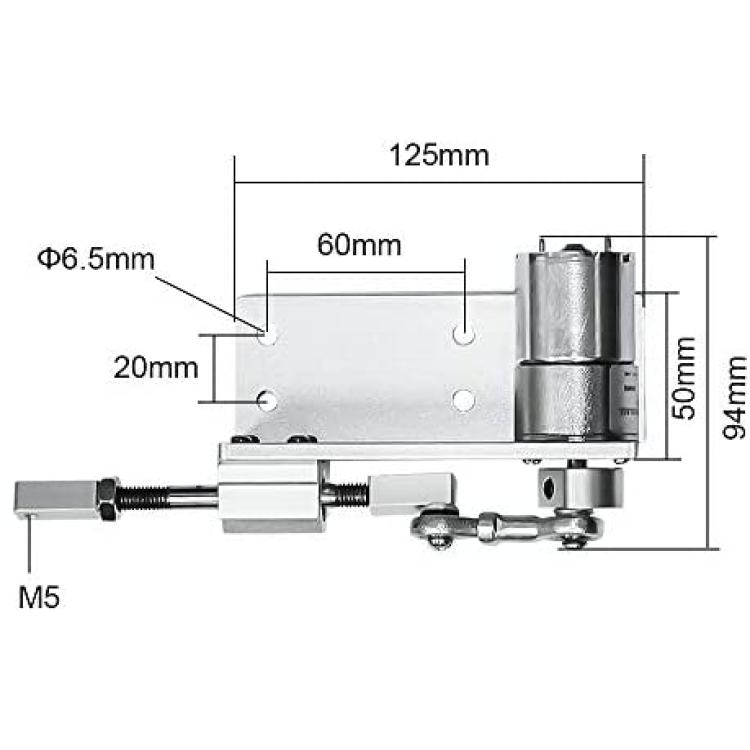

*✔Different Stroke, Different Torque, the Torque and CAD Dimension Reference Picture; Reversible Working: CW/CCW; Package Listing: 1PCS DC Gear Motor & 1PCS Actuator;
*✔Application: Shale shaker, Vibrating screen, Incense machine Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment, Lifespan lab testing and so on(reference only, specific applications require reference torque;
*✔Quality Guarantee: We shipped every actuator after we test it; if you have any questions about our products or order, pls leave us message firstly, we will help you solve it, pls trust our brand "BEMONOC" and give us the chance, thanks!
Description

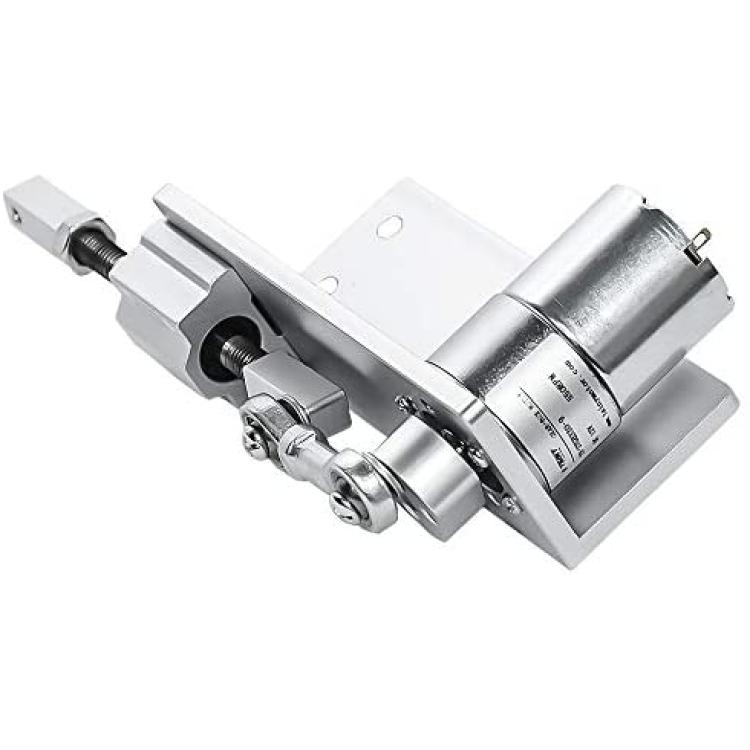

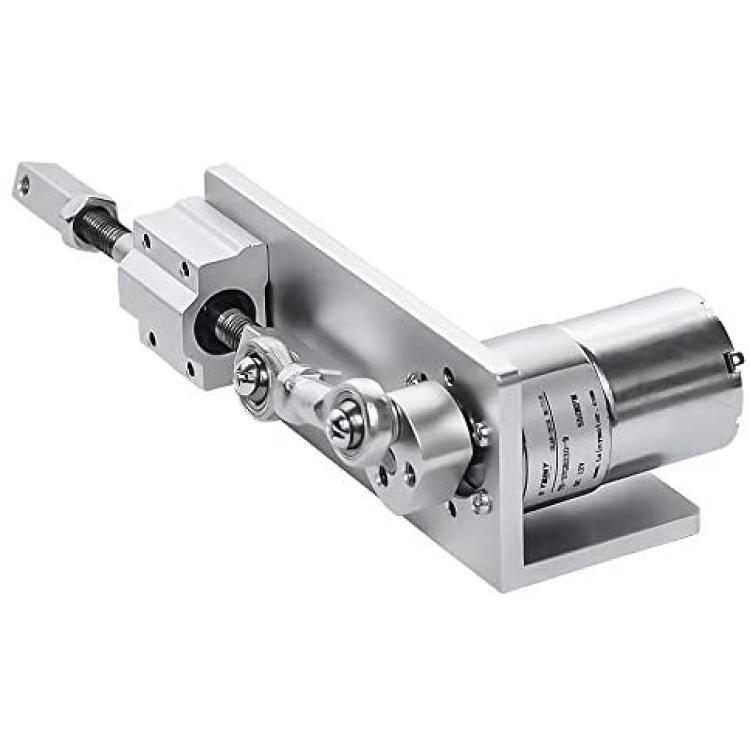

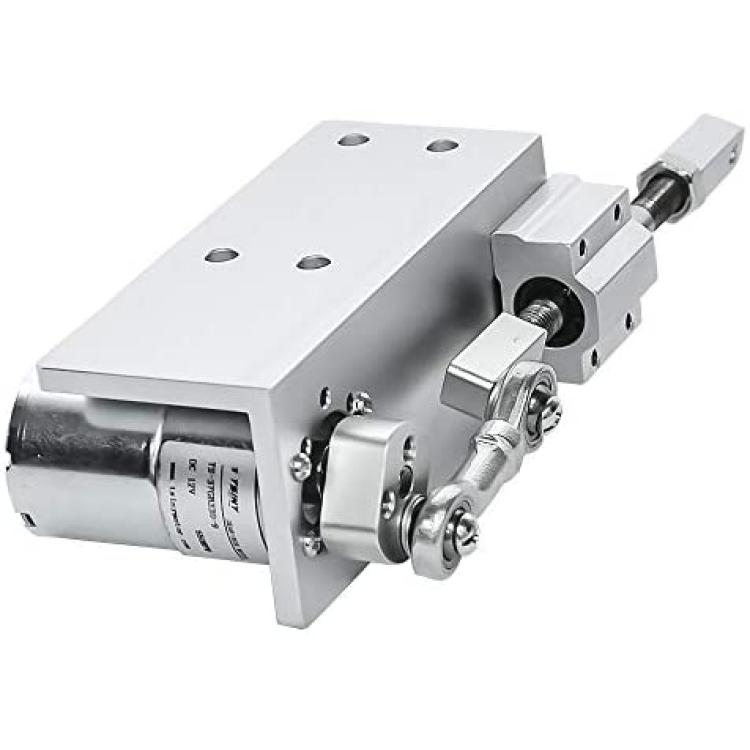

This Linkage Mechanism is an automatic constantly reciprocating linear actuator motor, which frequency is Variable.
This machine output in an axle, the run speed on axis is Non-uniform. If require speed uniform please don't bid.
This machine is Non-standard manual production, the surface is rough. If require surface precise please don't bid.
The speed faster, the noise louder. If require quietly, please be careful before bid.
Linear motion part is consist of sliding linear ball bearing and steel axle. Axle need adds lubricating oil at regular intervals, in order to limited axle temperature less than 90 degrees, and oil wetness.
Due to rotating lump is affected by gravity, the machine go and back speed is different.
Warning: Speed higher than 100rpm has very small force, the load larger then maximum force will break gearbox. Clear all barriers before operating the motor, even use your hand holding the shaft may break the motor
Please do accord to our advices for avoid unnecessary trouble!!!! Many customers have already broken the gears inside without proper operation, it causes much trouble.
