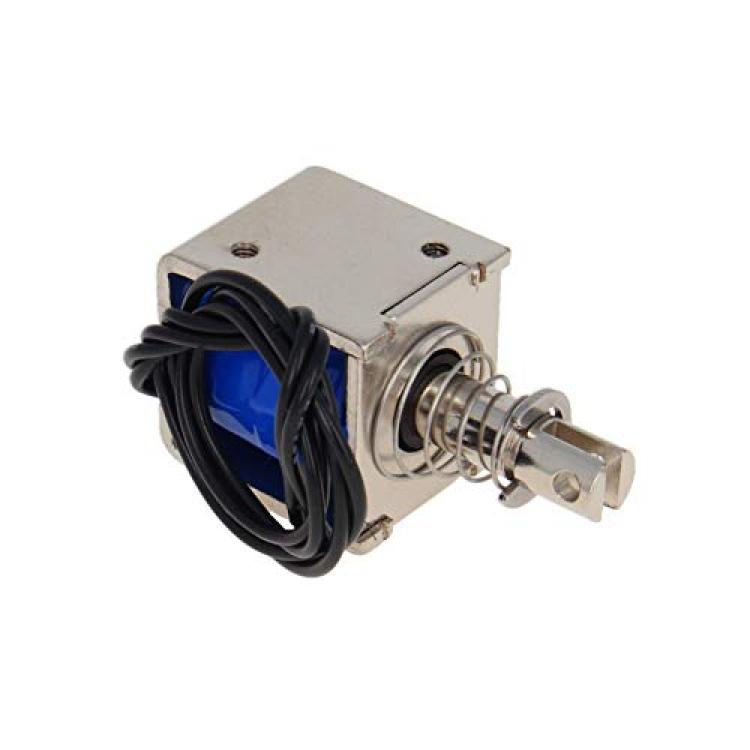

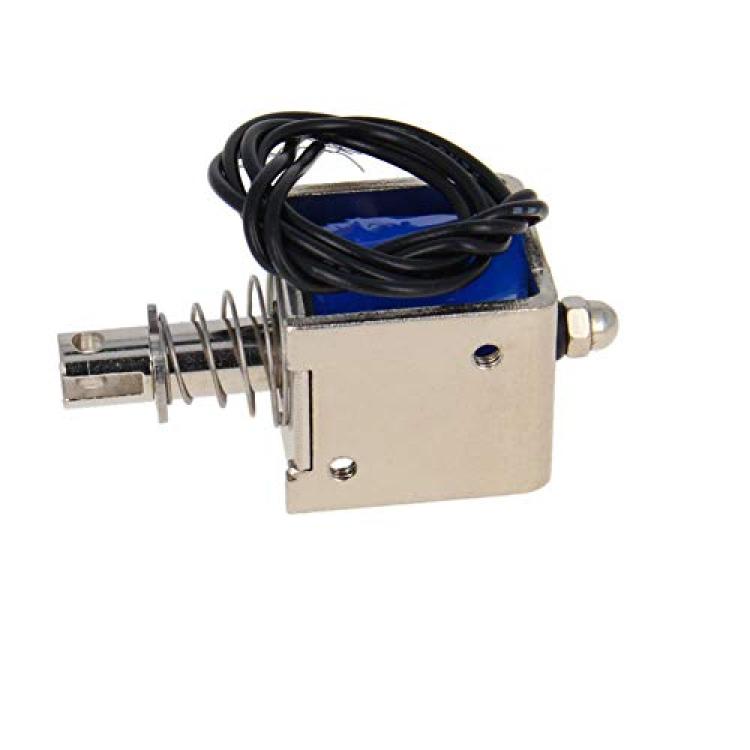

Fielect DC 12V 20N Push Pull Type Solenoid Electromagnet, 10mm 2A Open Frame Type Solenoid Electromagnet, Linear Motion, JF-0826B-12V
Availability: Pre-Order, Inquiry Price
About this product
*Voltage : DC 12V; Stroke : 10mm; Force: 20N; Current: 2A.
*Size: 22 x 25 x 26mm/0.86" x 0.98" x 1.02"(L*W*H);
*Support DC 12V voltage, linear motion, is easy to install.
*Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
*Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
Description
Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
High power, pull push type, linear motion, is easy to install.
Note:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
