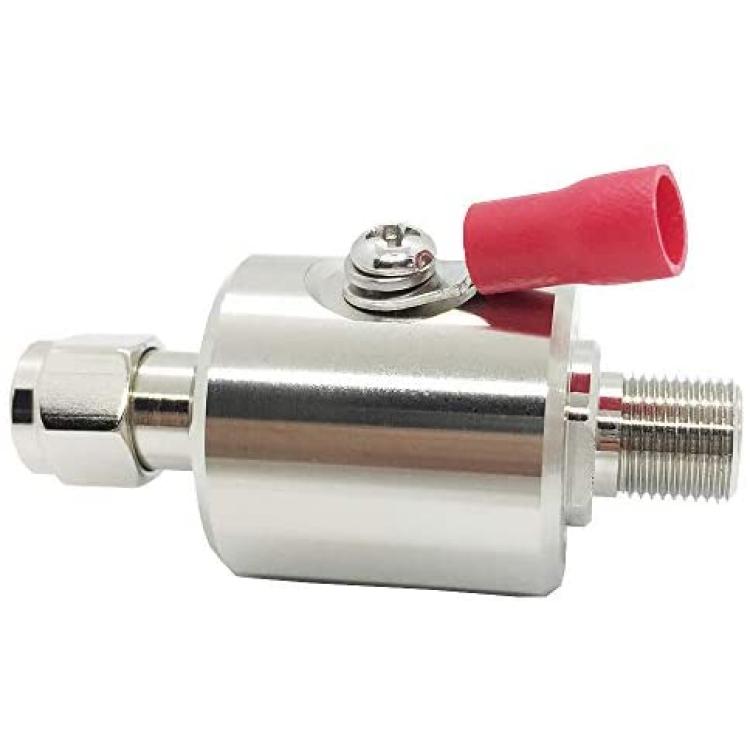

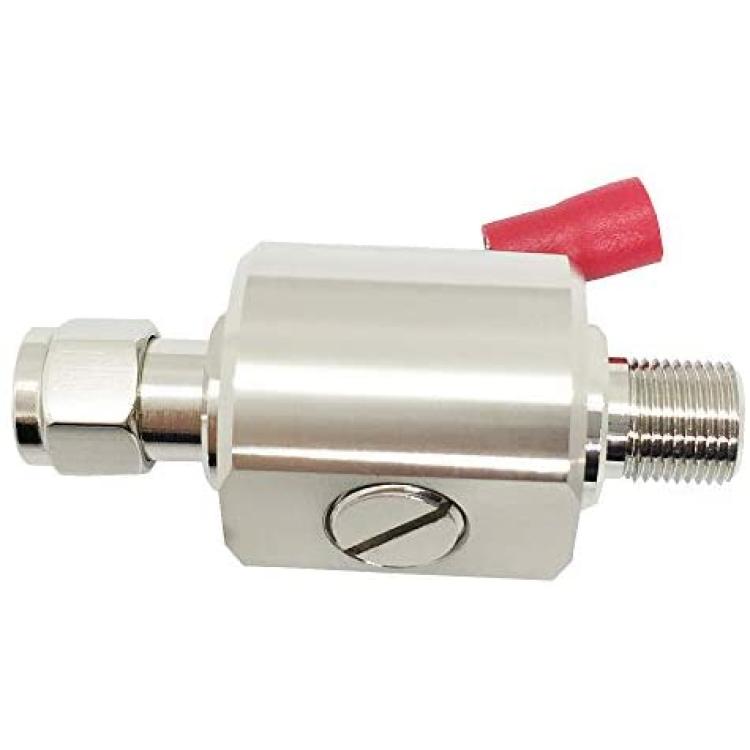

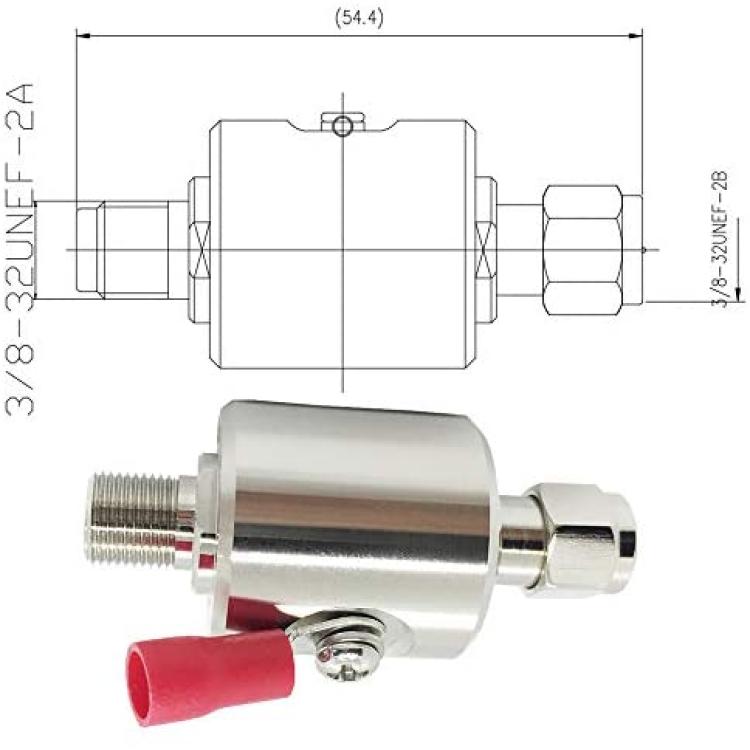

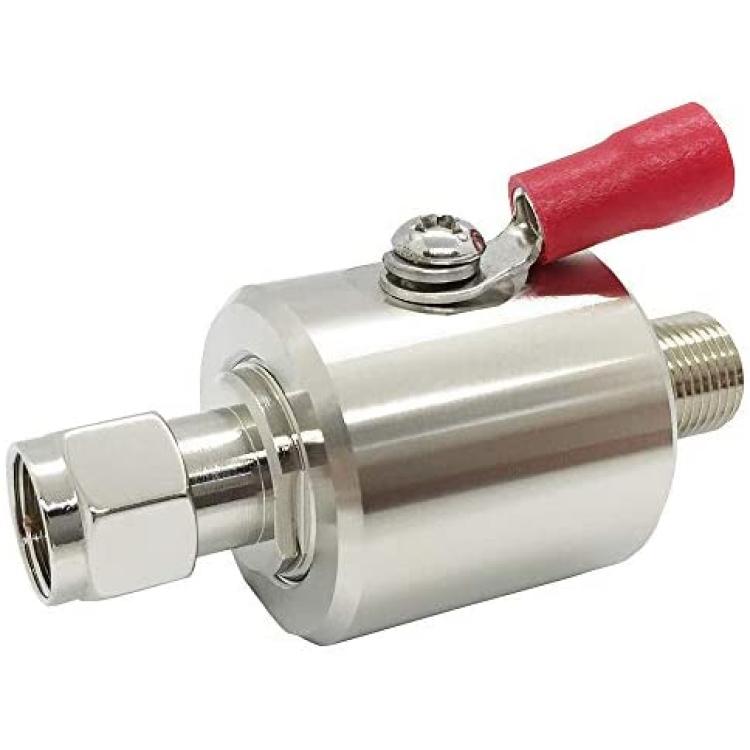

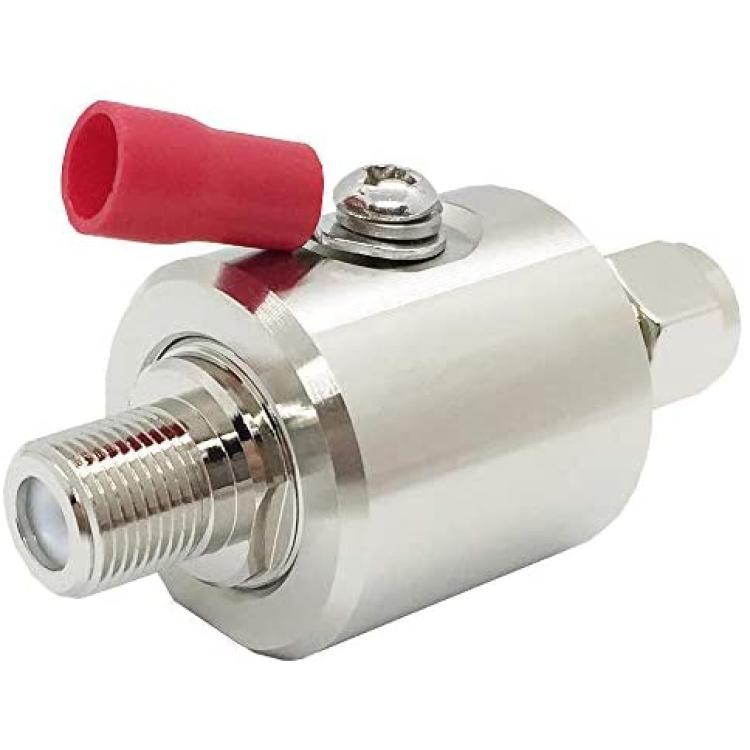

Lightning Arrester F Type Male to Female 3GHz 75 ohm Cellular 2G 3G 4G LTE CATV Satellite with 90V Gas Tube Discharge Surge Arrester

It is a high-performance 75 Ohm coaxial F-Type Lightning Protector that operates over the frequency range of DC-3 GHz.
It is ideal for protecting 75 Ohm 2G 3G 4G LTE cellular boosters and repeaters.
It is also ideal for Direct Broadcast Satellite services ,because it will pass DC feed and control signals which are required for powering and selecting the desired LNBF at the satellite antenna. The DC passing feature can also be used to power remote amplifiers on CCTV systems.
I1.Materials & Plated:
Body brass with nickel plated,Teflon(PTFE) Insulator for a reliable signal every time
Connectors: F type -Male to F type-Female 75 ohm
RoHS compliant
2.Electricail Characteristics?
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR less than 1.2
Contact Resistance:Center conductor ? 1.5m?, Outer conductor ? 1m?
Max Power:50W
discharge current capacity(kA@8/20?S):10
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
3.Package include:
1 piece surge protector
4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 75 ohm Lightning Surge Protector with F Male to Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
They can also be installed near the antenna for additional protection.
