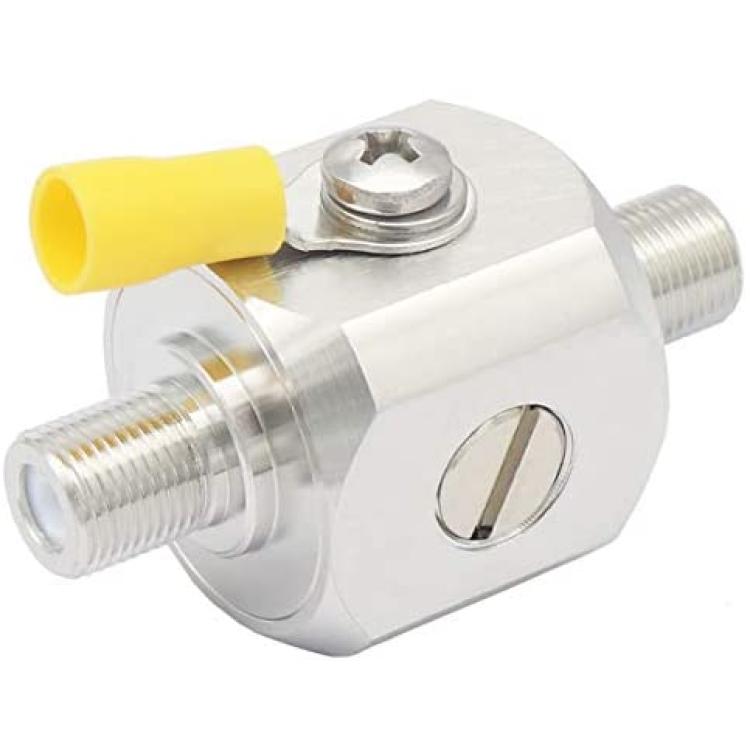

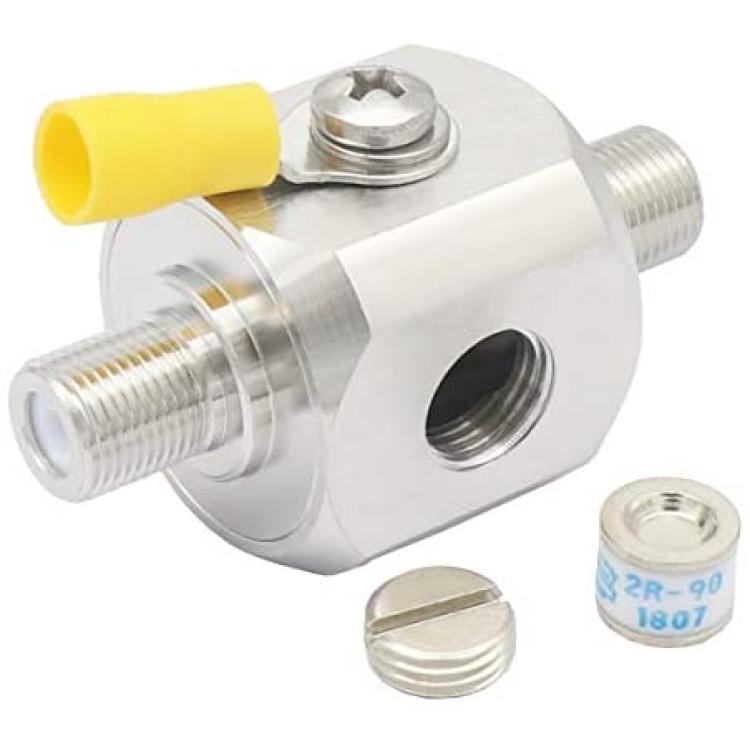

F Type Lightning Arrestor Female to Female Square 3GHz 75 ohm with 90V Gas Tube Discharge TV Surge Protector Surge Arrester

1.Materials & Plated:
Body brass with nickel plated,Teflon(PTFE) Insulator for a reliable signal every time
Connectors: F type-Female to F type-Female 75 ohm
RoHS compliant
2.Electricail Characteristics?
Impedance:75 ohm
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR less than 1.2
Contact Resistance:Center conductor ? 1.5m?, Outer conductor ? 1m?
Max Power:50W
discharge current capacity(kA@8/20?S):10
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
3.Package include:
1 piece lightning arrester F type
4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 75 ohm Lightning Surge Protector with F type-Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The tv antenna lightning arrester safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
This lightning protector is specifically for 75 ohm systems.
Lightning surge protector for Coaxial cable.
They boast an insertion loss of less than 0.2 dB.
Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
They can also be installed near the antenna for additional protection.
