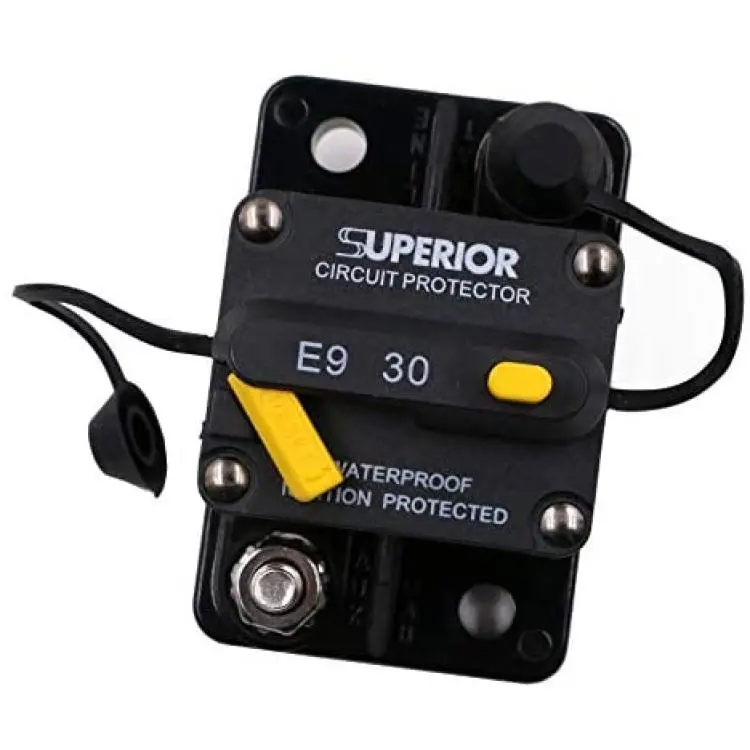

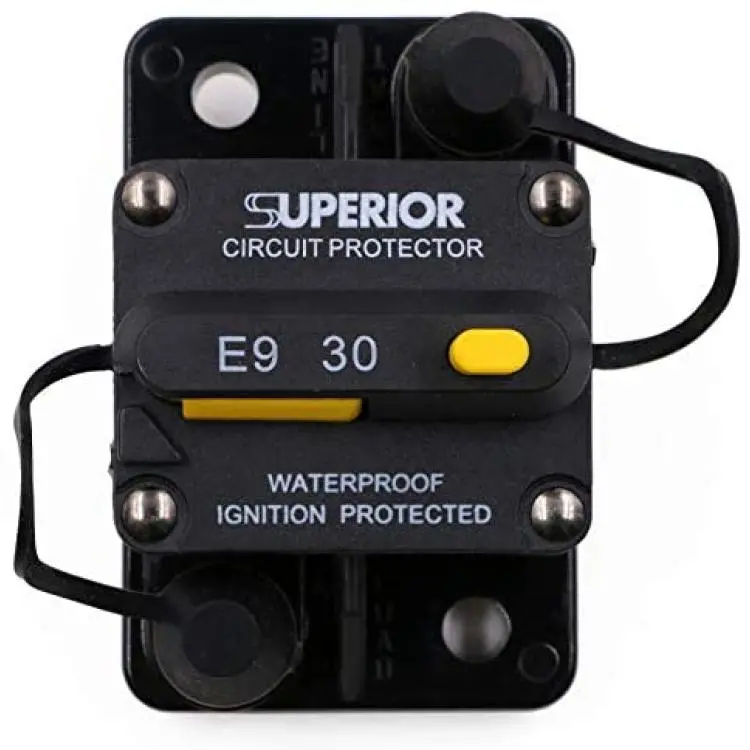

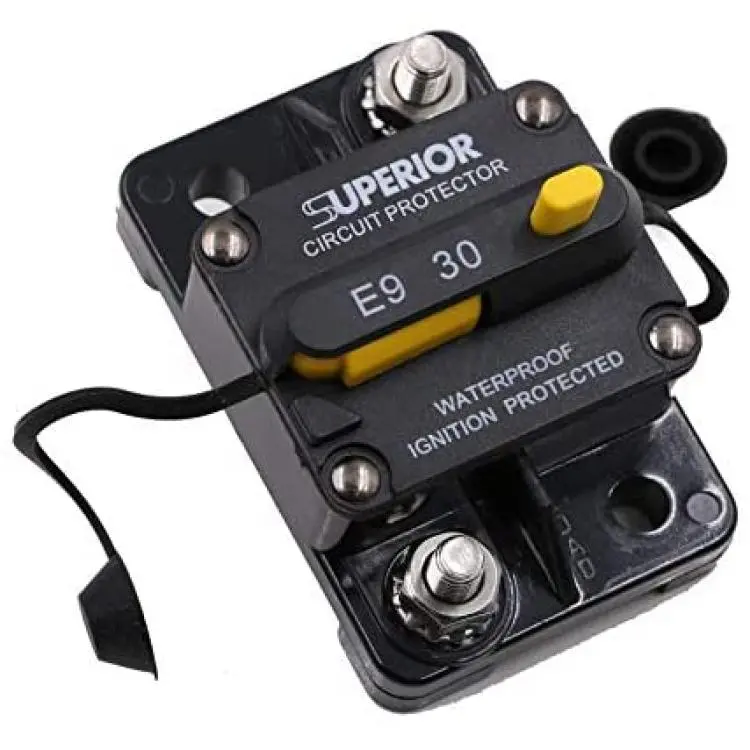

T Tocas 30 Amp Surface-Mount Circuit Breakers with Manual Reset, 12V- 48V DC, Waterproof (30A)
Availability: In Stock
About this product
*Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
*1/4" Stainless Steel Studs, Surface Mount, protective stud insulator included
*Hi-Amp 30A Circuit Breaker, Red or Yellow (Random Color) manual reset button
*Housing is thermalplastic UL rated 94V0
*Manual Reset Circuit Breaker,can also be used as an on/off button switch for the battery
Description
Note:The color of the reset lever and push to reset button will be red or yellow(It will be in random)
Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications.
Others include battery charger and DC audio system.
Voltage:up to 48Vdc
Rated Current:Consult Factory
MountingWide:Surface Mount
Reset Type:T3, Manual
Operating Temperature:-32ºC (-25ºF) to 82ºC (180ºF)
Interrupt Capacity:
2,500A @ 14Vdc (25-200A)
1,500A @ 48Vdc (25-200A)
1,500A @ 14Vdc (225A-300A)
Regulatory Sepcification:SAE J1625; SAE J1171; UL 1500; ABYC E-11; CE; IP67

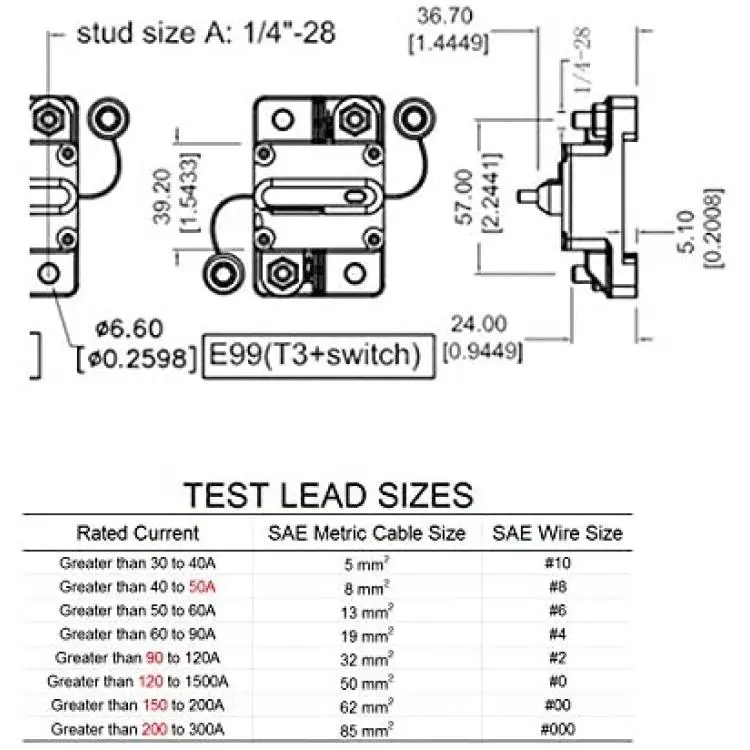

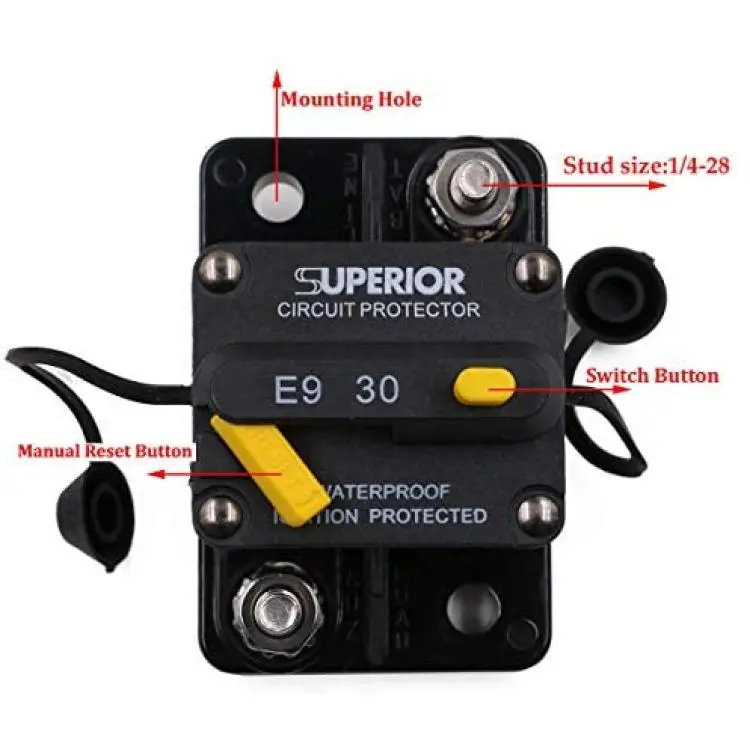

Termination:1/4" Stainless Steel Studs
Body:UL-rated 94V0 thermoset plastic
Storage Temperature:-34ºC (-30ºF) to 149ºC (300ºF)
Packing list:
1 * 30 Amp Circuit Breaker with Manual Reset
