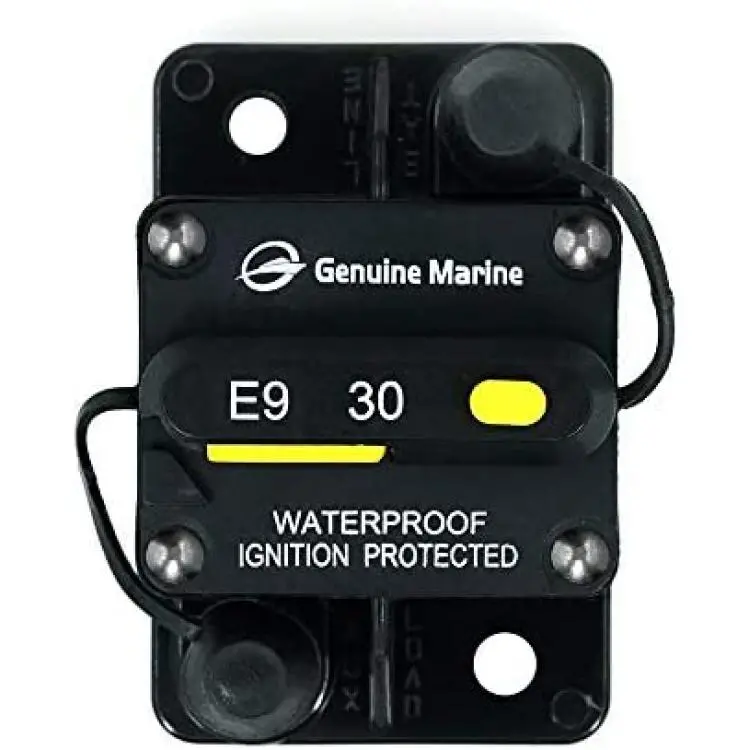

Circuit Breaker 30 Amp, Car Automotive Marine Boat Audio Circuit Breaker with Manual Reset, 12V-42VDC, Waterproof (30A)
Availability: In Stock
About this product
*Compact and lightweight design, meet S.A.E. J1625, J1171, UL1500 (Ignition Protected).

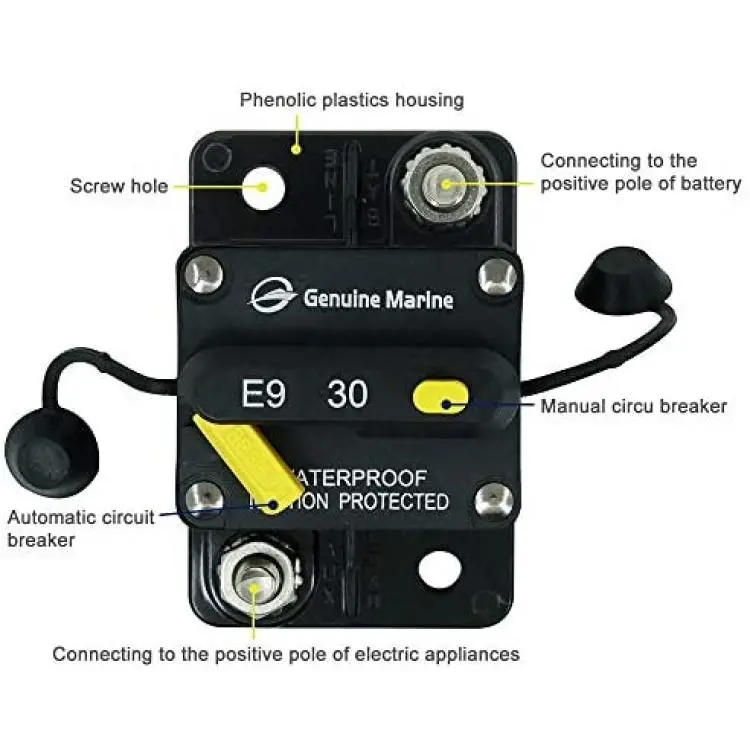

*1/4 Inch stainless steel bolts connecting terminal, including protective stud insulator fully sealed on the back side end, and provide a tight connection.

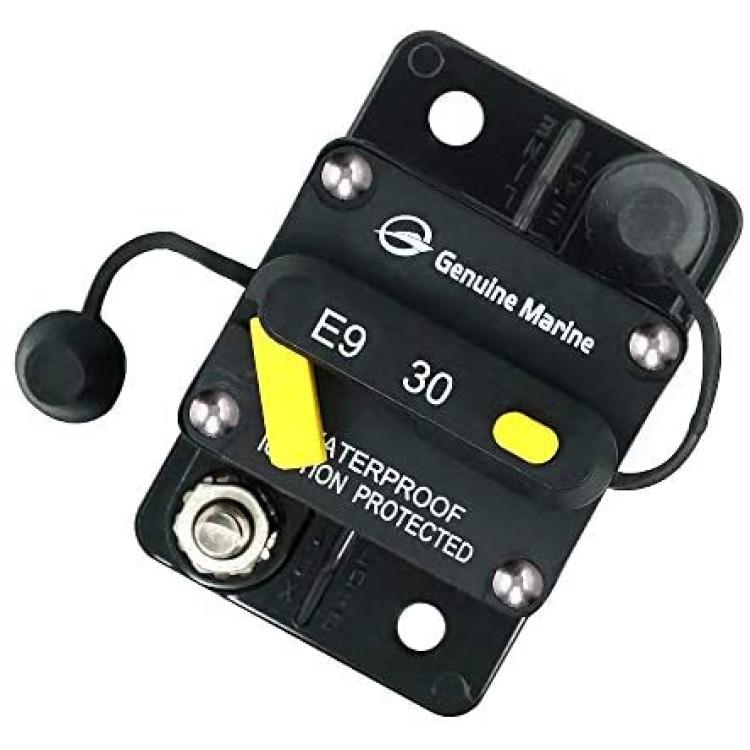

*Yellow manual reset button.
*Surface Mount with light and easy installation features, working fine, perfect circuit protection avoid the possibility of shorting, prevent excessive current, the protection of electrical appliances.
*Manual Reset Circuit Breaker,can also be used as an on/off button switch for the battery.
Description
This Circuit Breaker offers critical protection to your system. When the system is over power or short circuit, the breaker will cut and save your equipment. No need to replace the fuses, the system can be reset by a simple switch which also offers safe and instant system shut down. Â Â
Features:Â
Water resistant housing. Â
High Current Circuit Breaker, to protect to your system.Â
Unique Push Button Reset can also be used as a Kill Switch. Â
Self-test, manual control and easy to operate with manual reset arm. Â
Prevents excessive current and stops power surges from damaging Amps. Â

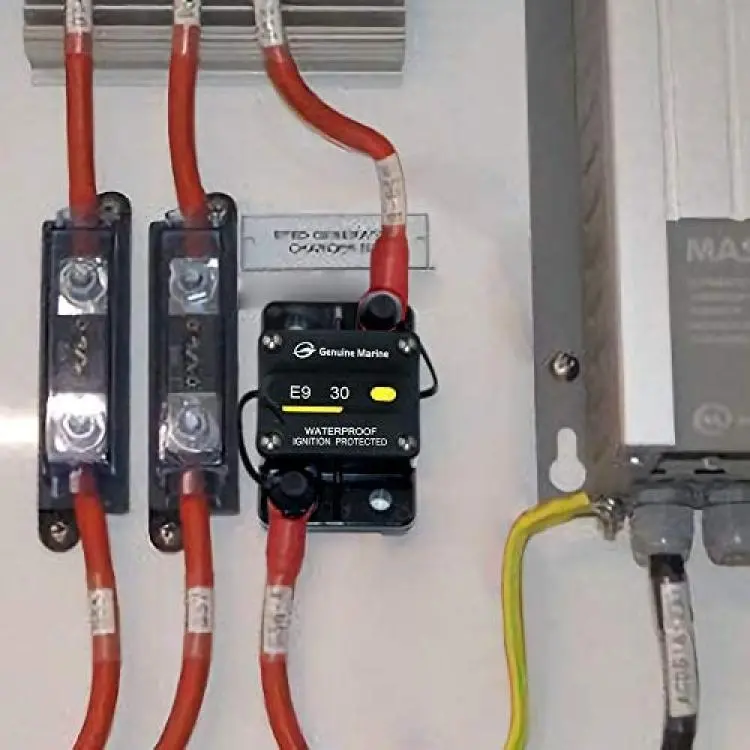

Can be mounted on Panel or Firewall. Â Â
Specifications: Â
-Manual Reset Circuit BreakerÂ
-Power Rating: 30 AmpÂ
-Voltage: Up to 42V DC
-Manual Reset ButtonÂ

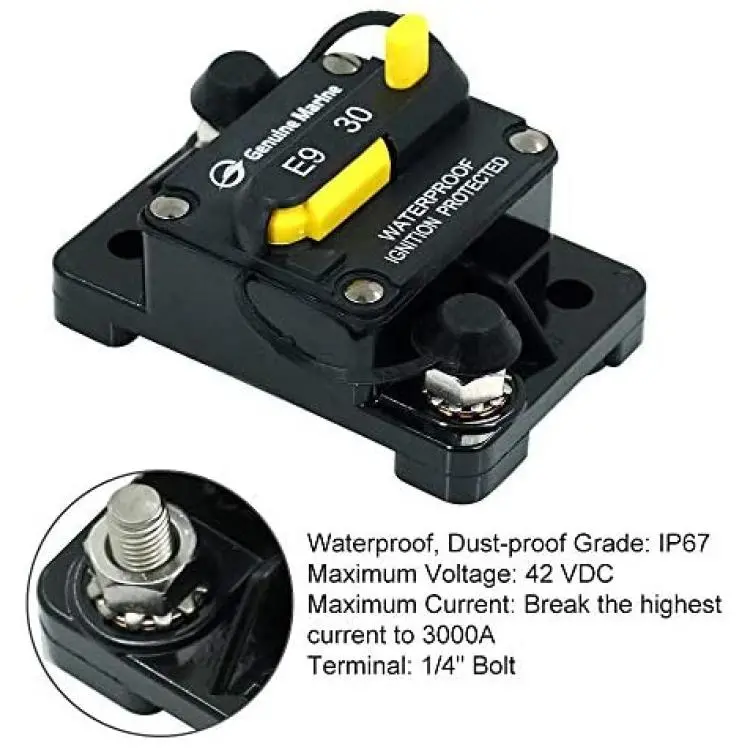

-Splash and Dust Proof at IP67 gradeÂ
-Operating Temperature: -32C to 82C (-25F to 180F)
-Storage Temperature: -34C to 149C (-30F to 300F)
-Termination:1/4" Stainless Steel Studs
-Surface Mount, protective stud insulator included
-Regulatory Sepcification:S.A.E, J1625, J1171, UL 1500
Packing list:
1 * 30 Amp Circuit Breaker with Manual Reset
