Erayco 100 Amp Circuit Breaker with Manual Reset for Car Marine Trolling Motors Boat ATV Manual Power Protect for Audio System Fuse, 12V-48VDC, Waterproof (100A)
About this product
*✅ 【Function】: The circuit breaker can protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps.
*✅ 【Specification】: Current 50A 80A 100A 150A 200A 250A, waterproof, accessories Including wire lugs 2pcs and copper washer 4pcs, improve the conductivity.
*✅ 【Resettable】: Manual reset button, manual control and easy to operate with manual reset arm, also can be used as a Kill Switch.
*✅ 【Installation】: Surface Mount, mount on panel or firewall. Water resistant housing, protective stud insulator included, splash & dust Proof.
*✅ 【Wide Application】: Mainly used for car audio and Amps protection and in trucks, boat, RVs , marine, buses ect; also used in battery charges and DC sound system.
Description

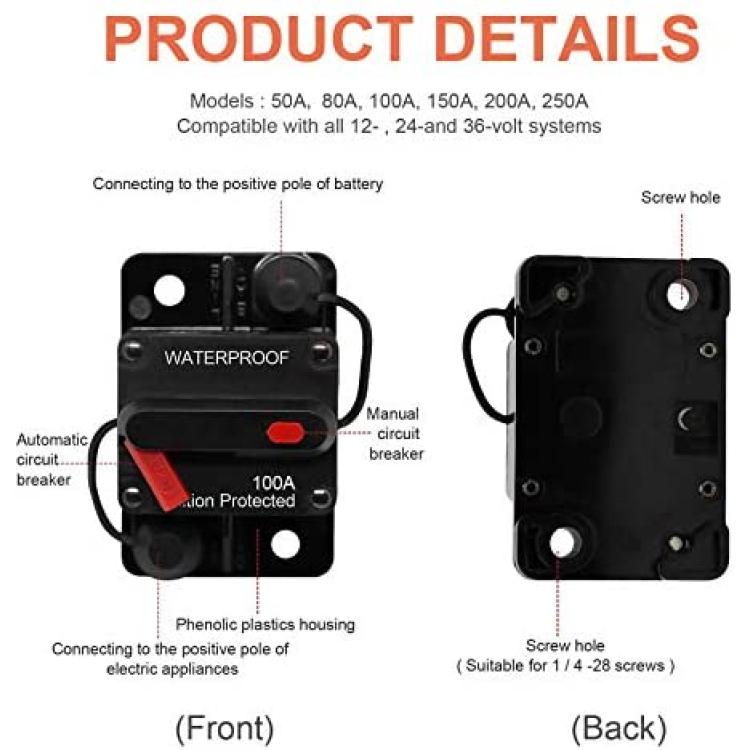

Erayco 12V- 48VDC Waterproof 50A 80A 100A 150A 200A 250Amp Auto Circuit Breaker with Manual Reset
Features:
-Stops power surges from damaging your amps ,protects your trolling motor from electrical damage.
-Mount on panel or firewall unique push button reset can also be used as a kill switch
-No more spending money on replacing fuses
-Unique push button reset can also be used as a kill switch
-Good conductivity and craftsmanship, high temperature pressure
-Application: Typically used in auxiliary and accessory circuits for Boat, Trucks, Buses, Marine, RV and ATV applications. Also can used as an on/off button switch for the battery or DC sound system.
Specifications:
-Rated current: 50/80/100/150/200/250 Amp
-Rated voltage: 12-48VDC Maximum
-Breaking capacity: 3000A @ 48 VDC
-Manual Reset Circuit Breaker
-Red manual reset button
-Surface Mount, protective stud insulator included
-Ambient temperature: -32 °C to 82 °C (-25 °F to 180 °F)
-Storage Temperature: -34 °C to 149 °C (-30°F to 300°F )
Size: (LxWxH) 74 x 49 x 44 mm /2.9 x 1.9 x1.7 inch

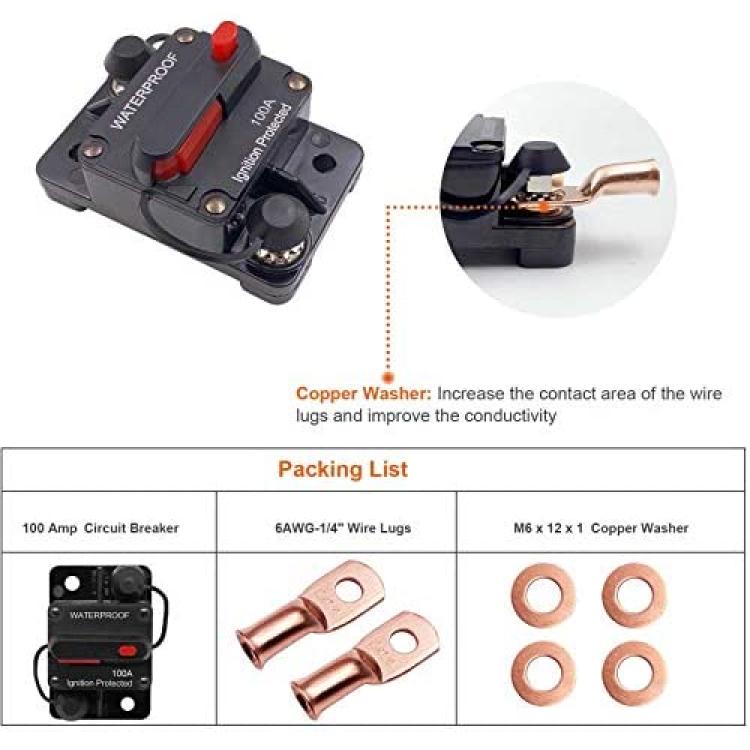

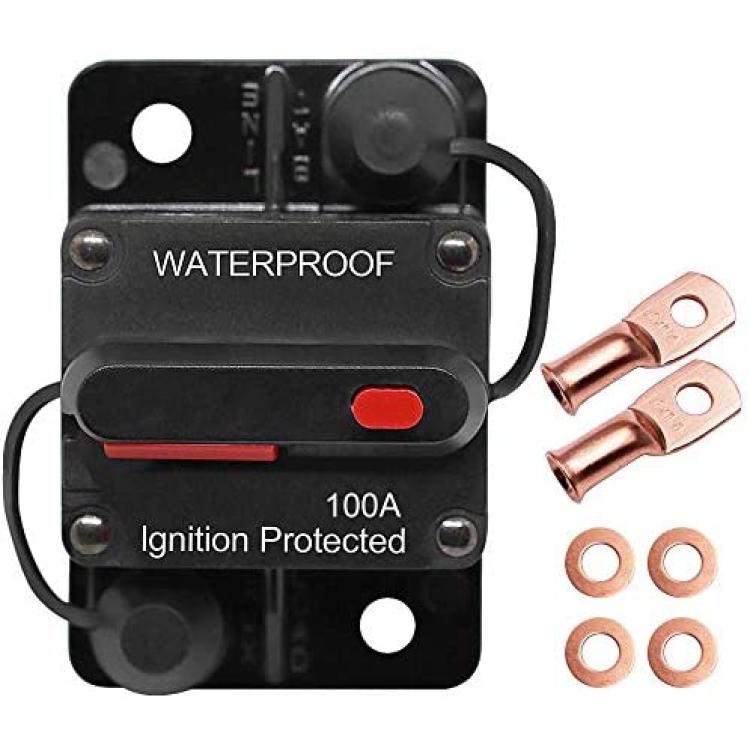

Package Includes:
1 x 100A Circuit Breaker with Manual Reset
2 x 6AWG-1/4'' Wire Lugs
4 x M6 Copper Washers
Notes:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow 1-3cm measuring deviation due to manual measurement.
