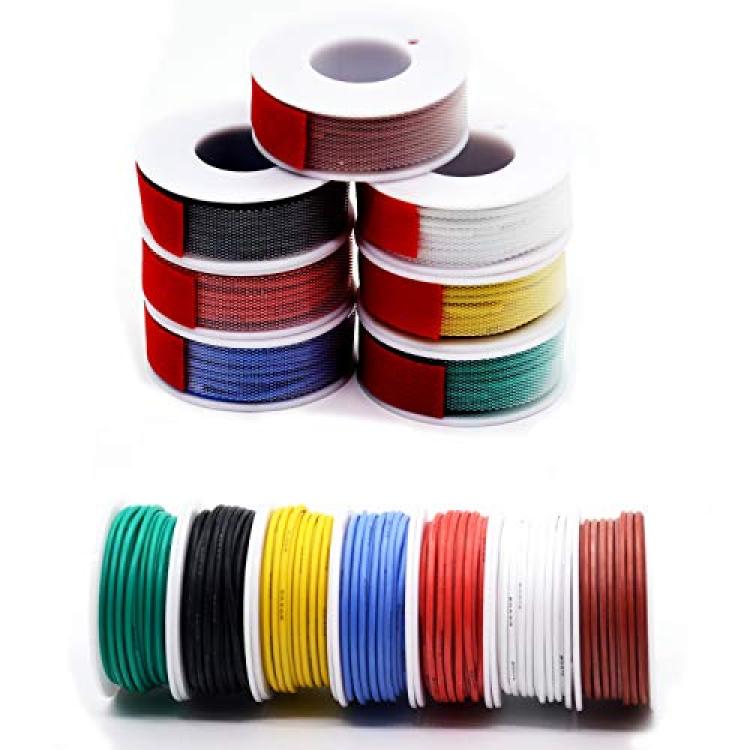

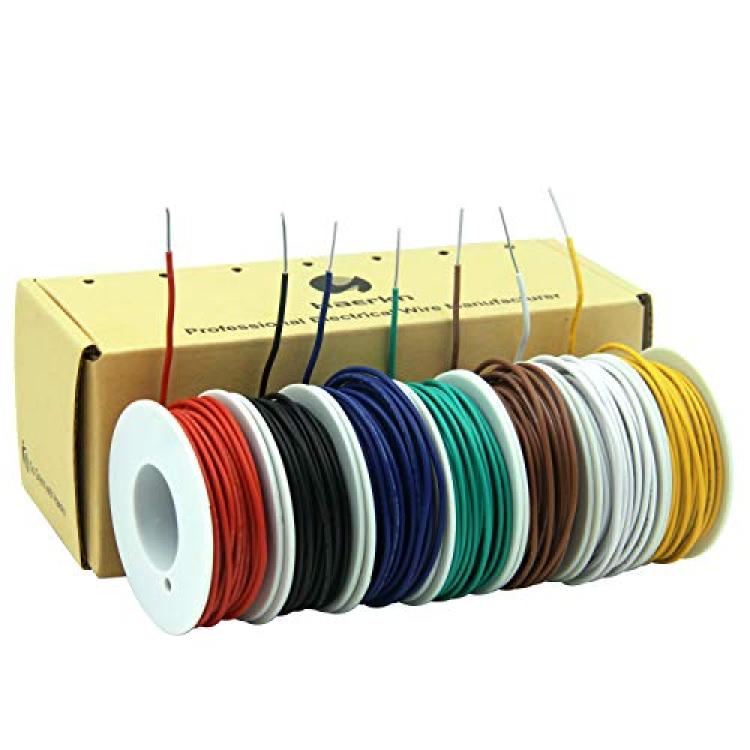

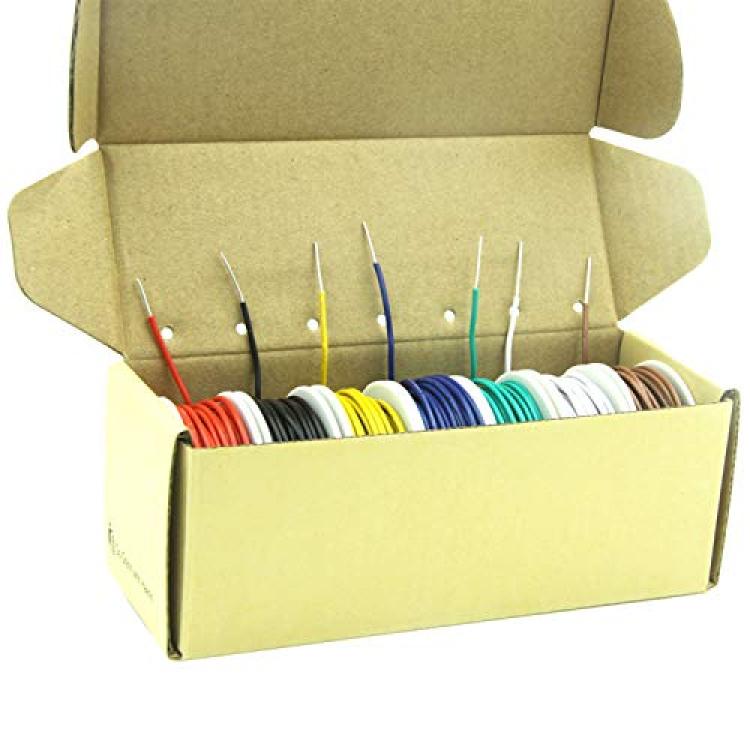

18 awg Solid Wire kit Electrical Wire Cable 7 Colors 16.5ft Each Spool 18 Gauge 0.8mm² Hook up UL1007 Tinned Copper Wire breadboard Wire for DIY

18 awg Solid Wire kit Electrical Wire Cable 7 Colors 16.5ft Each Spool 18 Gauge 0.8mm² Hook up UL1007 Tinned Copper Wire breadboard Wire for DIY

Product Code: HSM15069
Availability: Pre-Order, Inquiry Price

US$6.48

- +

For Bulk Order, Get Better Price.

About this product

*Material : PVC + 0.8mm² High-purity oxygen-free Solid Tinned Copper wire

*Voltage Rating: 300 Volts; Rated temperature: -20℃ - + 80 ℃; Bear Current:8.0A;Flame retardant: VW-1 and FT1

*Wire Length :5Meters / 16.5Ft each color/spool

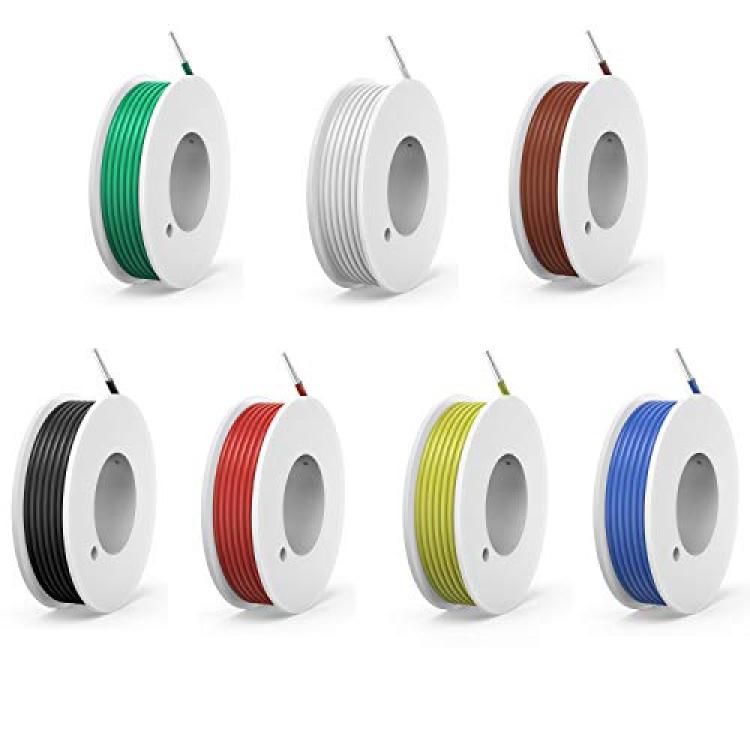

*7 Colors : Black Red Yellow Green Blue White Brown

*Resistant to water, oil,Easy handling,stripping,and termination: Low-fray design, the copper wire is tinned,protecting them from corrosion and making it easier to solder

Description

Total 7 Colors: Black?Red?Yellow?Green?Blue?White?Brown
Length?each color 16.5 feet(5 Meters)

Nominal Voltage: 300V
Testing Voltage:3kV
Temperature Range:-20 ? to 80 ?
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: PVC

Conductor?
(1) Gauge:18AWG(0.8mm²)
(2) Copper Number/Wire Diameter:1/1.02mm
(3) Diameter: ?1.02mm

Insulator:
(1) Jacket Thick:0.38mm
(2) Over Diameter:1.8mm

Bear Current: 8.0A

Marking Content: E300956 AWM 1007 18AWG 80? 300V VW—1 GUANGDONG HAERKN NEW ENERGY CO.,LTD c AWM 18AWG 80? 300V I A FT1 ROHS
