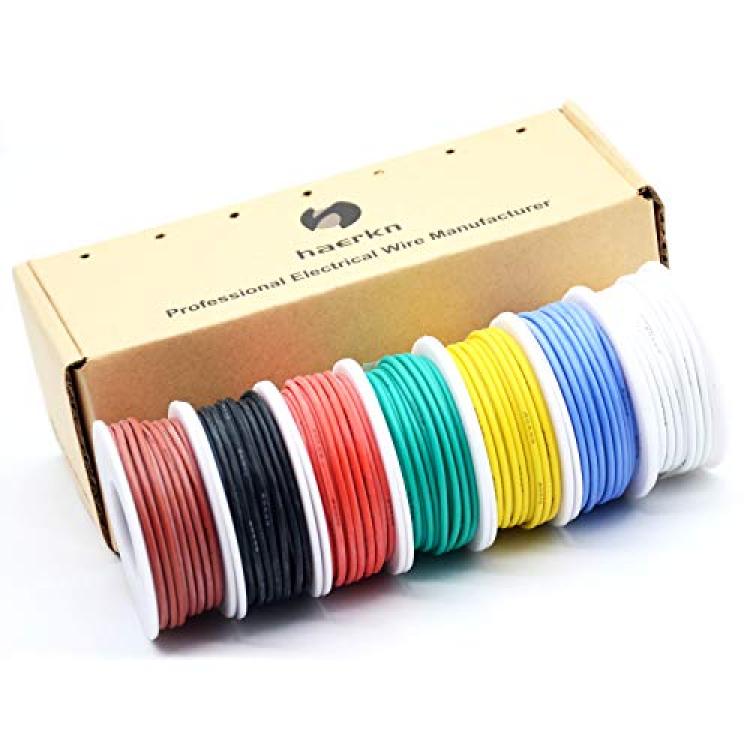

20awg Silicone Electrical Wire Cable 7 Colors (23ft Each) 20 Gauge Hookup Wires kit Stranded Tinned Copper Wire Flexible and Soft for DIY
Availability: Pre-Order, Inquiry Price
About this product
*Material : Silicone rubber+0.5mm² High-purity oxygen-free Tinned Copper wire

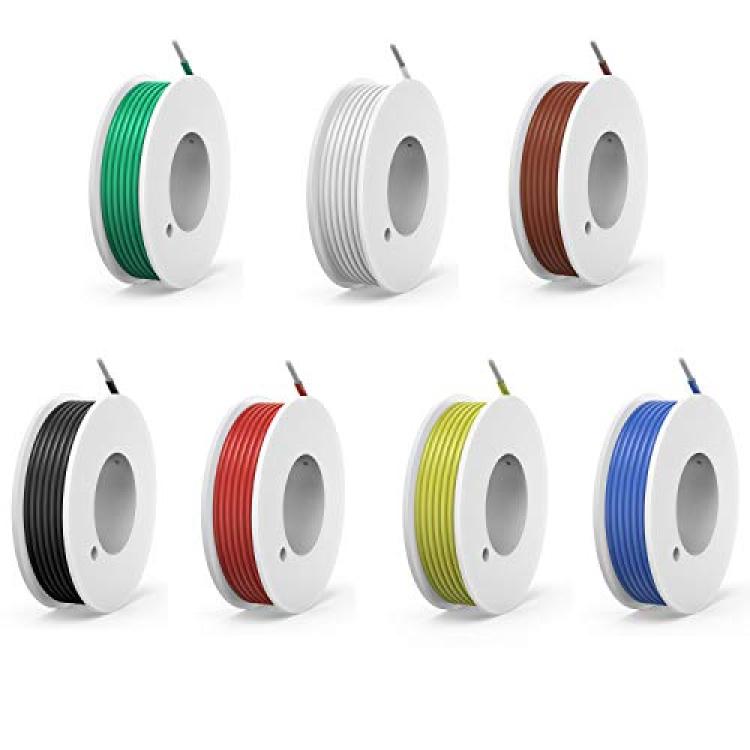

*Total 7 Colors:Black ,Red,Yellow,Green,Blue,White and Brown; Wire Length :7Meters / 23Ft each color/spool
*Voltage Rating: 600 Volts; Rated temperature: -60℃- + 200℃; Bear Current:5.0A
*20 Gauge silicone wire - super flexible 100 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
*Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, stripping, crimping terminals,connect,cut
Description
Total 7 Colors:Black ,Red,Yellow,Green,Blue,White and Brown
Length?each color 23 feet(7 Meters)
Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 ? to 200 ?
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone Rubber
Conductor?
(1) Gauge:20AWG(0.5mm²)
(2) Copper Number/Wire Diameter:100/0.08mm
(3) Diameter: ?0.92mm
Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:1.8mm
Bear Current: 5.0A
