Fermerry Silicone Stranded Wire Automotive Wire 16 Gauge Jumper Wire Electronic Tinned Copper Hook up Wire 6 Colors 10Ft Each 16AWG Electric Wire (10 FT 6 Colors Each, 16AWG)
Availability: Pre-Order, Inquiry Price
About this product
*Package Include: 16 gauge silicone stranded wire 10ft of each 6 different colors (black, red, blue, white, green, yellow, total 60ft), also packed both of φ4.8mm HEAT SHRINK TUBINGS (3pcs * 6colors=18pcs total) & 4 inch WIRE TIES (3pcs * 6colors=18pcs total)
*SPECIFICATIONS - super flexible 16 AWG electric wire 252 strands 0.08mm tinned copper wire, OD=3mm; 600 volts voltage rating; withstand -60 degree to 200 degree; super soft silicone insulation
*FEATURES - high quality silicone rubber insulation & premium hairline 0.08mm tinned copper conductors make the cable super flexible, caused super low impedance & highly efficient electric wire,easy to handling, stripping, crimping terminals & welding
*Application-Fermerry silicone wires are widely used in LED lighting, electrical and electrical equipment, aluminum batteries, RC batteries, model wiringz harnesses, instrumentation internal connections, large transformers and motors connecting equipment with wires,etc
*Customer Service-Please feel free to tell us your inquires and issues, we will apply questions for you and give you the pleasant shopping experience.
Description

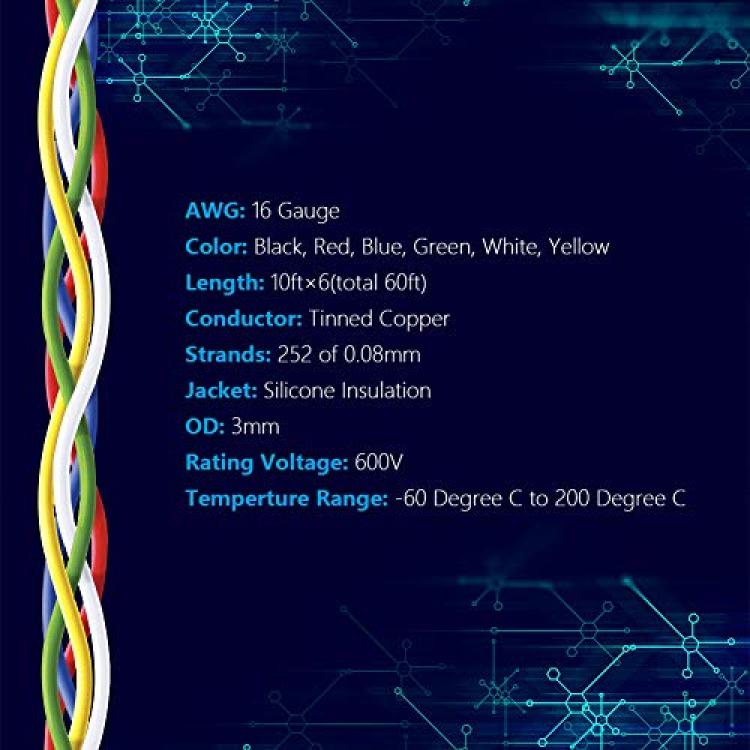

Specification:16 AWG
Nominal Voltage: 600V
Testing Voltage:3000V
Temperature Range:-60 Deg C to 200 Deg C
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone

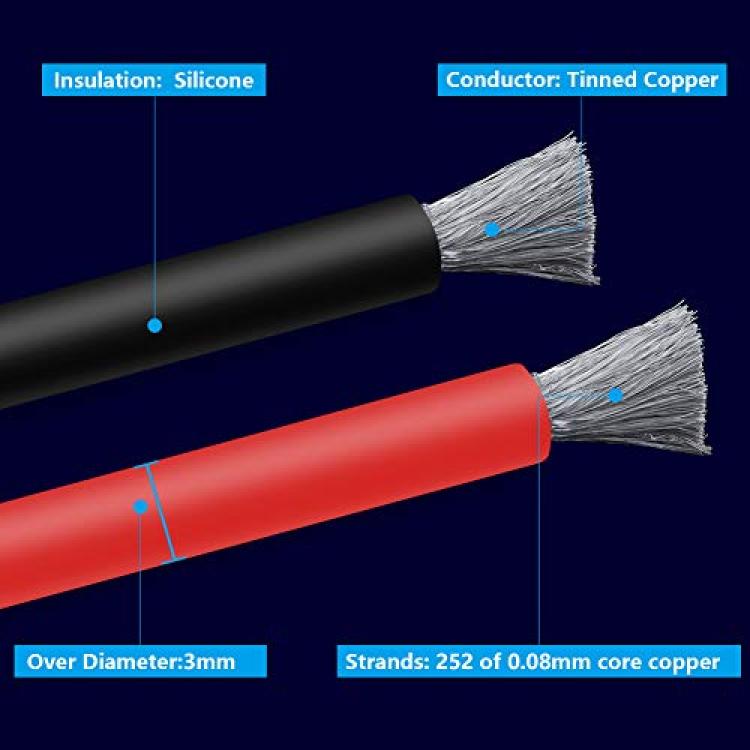

Conductor:
(1) Gauge:16 AWG
(2) Copper Number/Wire Diameter:252/0.08mm
(3) Diameter: ?1.5mm
Insulator:
(1) Jacket Thick:0.75mm
(2) Over Diameter:3mm
Bear Current:19A
Items:

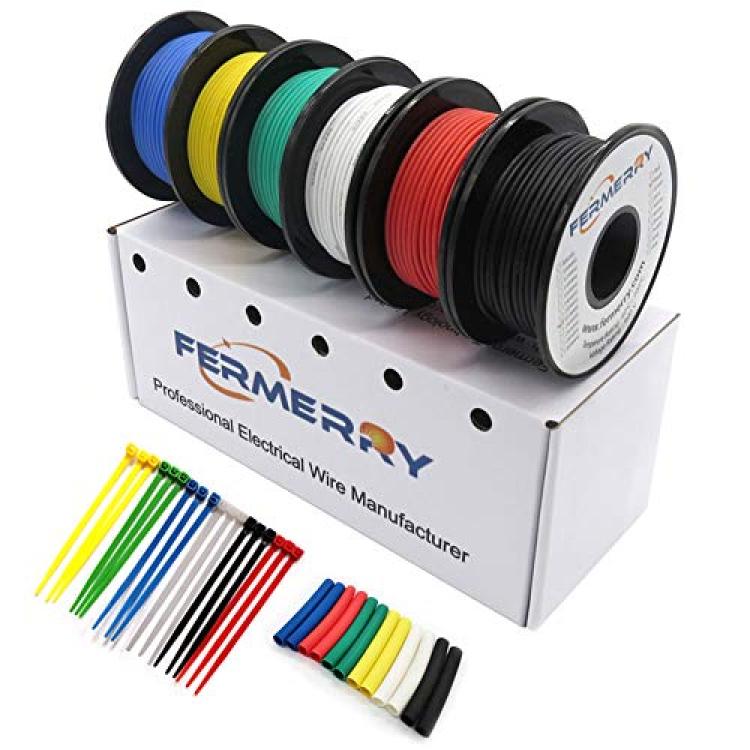

16 Gauge Silicone Wire 10 ft 6 colors(Black,Red,Blue,Green,White,Yellow)
3pcs 6 colors each heatshrink tubes
3pcs 6 colors each Black and Red wire ties
