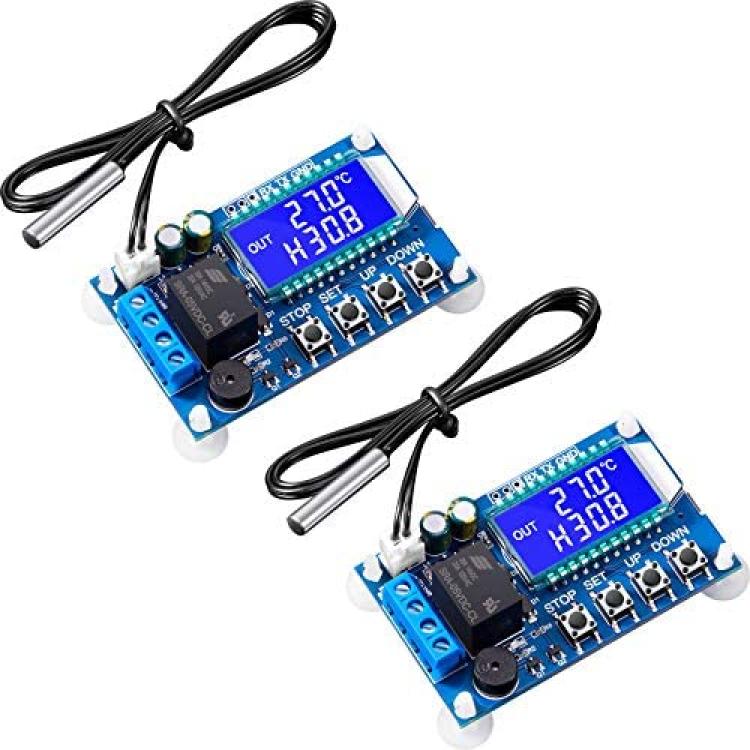

2 Pieces XY-T01 Electronic Temperature Controller, DC 6 - 30V 24V Digital Temperature Control Module -50°C to 100°C Digital Thermostat Temperature Control Switch Boards with Waterproof NTC Probe
Availability: In Stock
About this product
*Product features: the electronic thermostat power supply is DC 6-30V or 5V micro USB, the control load current is 10A (max), the test temperature is from -50 to 110℃, the temperature control accuracy is 0.1 ℃, the refresh rate is 0.5 seconds, and the sensor length is 0.5 meters
*Product function: this digital temperature control module has heating mode ("H") and cooling mode ("C"), with the function of high temperature alarm ("ALA"), delayed start ("OPH"), temperature correction function -10.0~10.0°C ("OFE" ), remote parameter reading/setting, real-time temperature report and more

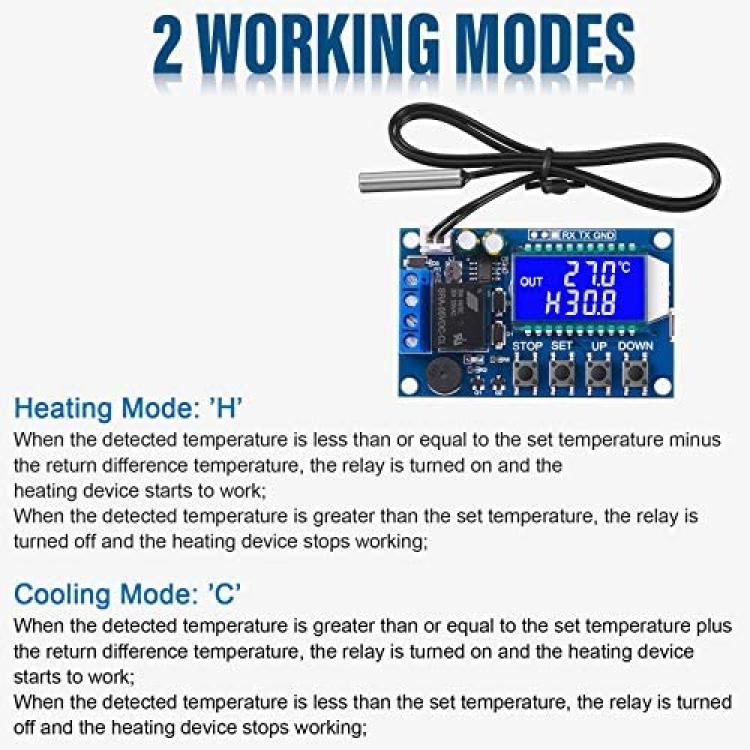

*2 Working modes: this electronic temperature controller has 2 working modes, heating mode (start temperature is lower than stop temperature) and cooling mode (start temperature is higher than stop temperature), range from -50°C to 110°C; The high temperature control accuracy reaches 0.1℃
*Waterproof probe: XY-T01 electronic thermostat is equipped with a 0.5-meter NTC10K probe, which is made of stainless steel, is waterproof and not easy to rust, easy to use and can last for a long time
*Use for: the electronic thermostat can be widely applied in intelligent home and industrial equipment, suitable for household appliances, office machines, audio, automobiles, etc.
Description
2 Pieces XY-T01 Electronic Thermostat Controller, DC 6-30V 24V Digital Temperature Controller Module High Temperature Alarm -50°C to 100°C Electronic Temperature Control Switch Module with Waterproof NTC Probe
Features:
Reliable and durable:
The performance of the electronic temperature control switch module is stable, and the control accuracy is 0.1 degrees Celsius. In addition to being applied for household appliances, it is also suitable for industrial equipment, automobiles, etc. as intelligent protection switches or temperature control switches.
Specifications:
Product model: XY-T01
Power supply: DC6.0-30v or 5v micro USB
Temperature control range: -50?-110?
Temperature control accuracy: 0.1?
Measuring input: NTC10K/B3950
Refresh rate: 0.5 seconds
Output type: relay output 10A
Probe type: waterproof NTC probe
Probe's length: 0.5 m
High temperature alarm ALA: sound-light alarm
Delay start OPH: 0-9999 minutes
Temperature correction: -10 to 10?, actual temperature = measuring temperature + calibration value

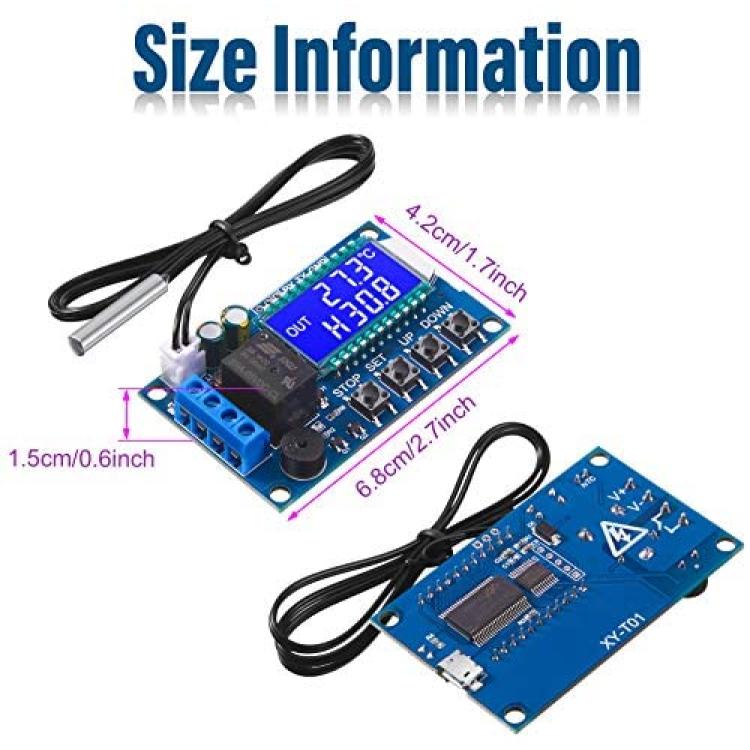

Size: 68 x 42 x 15 mm/2.68 x 1.65 x 0.59 inches
Working mode/setting temperature/return temperature setting:
1. In the running interface, short press the "set" key to enter the quick setting interface;
2. After entering the quick setting interface, short press the "set" key to switch the parameters you want to set (work mode/set temperature/return temperature);
3. Use the "up" "down" key to modify the parameter value, and they support short press/long press;
4. Press and hold the "set" button for more than 3 seconds or without any button operation for 6 seconds , it will save the parameters and automatically exit the quick setting interface.
Set ALA/OPH/OFE (alarm temperature /delay starting setting/temperature correction):
1. In the running interface, long press "set" for more than 3 seconds to enter the parameter setting interface;
