OREI 1x4 HDMI Extender Splitter Multiple Over Single Cable CAT6/7 1080P with IR Remote EDID Management - Up to 165 Ft - Loop Out - Low Latency - Full Support
About this product

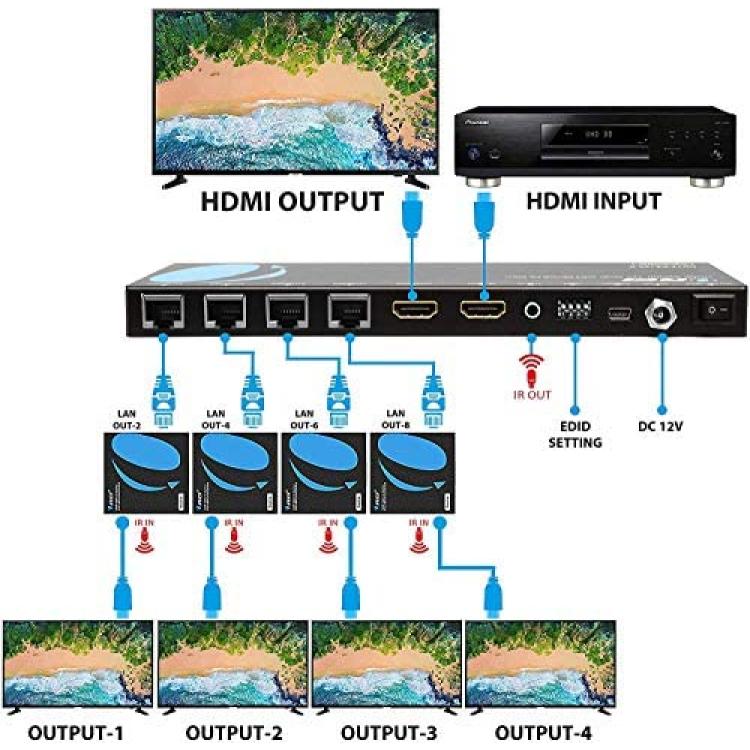

*Distribute 1080p 1 HDMI source to 4 HDMI displays over network cable simultaneously, Splitter included - no Switcher needed - power over LAN cable - no adapters needed on receiver

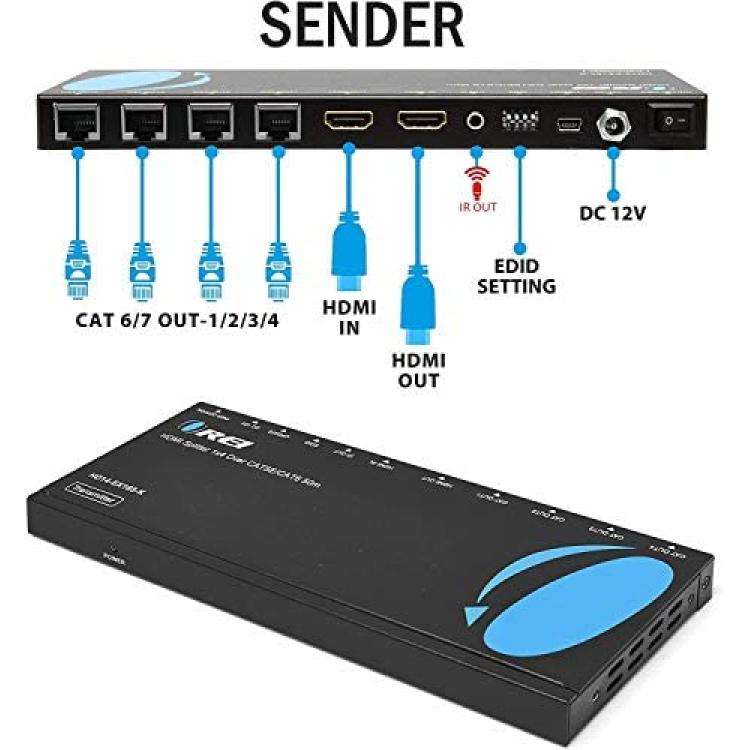

*Hdmi transmitter is equipped with 4 port Cat6 output. And 1 additional HDMI output to connect to a local display or monitor.
*Ire remote control. Supports 2060Hz IR pass back, control a DVD player or other HDMI video source from a remote location with the included IR cables that forward commands over a dedicated DDC Channel.

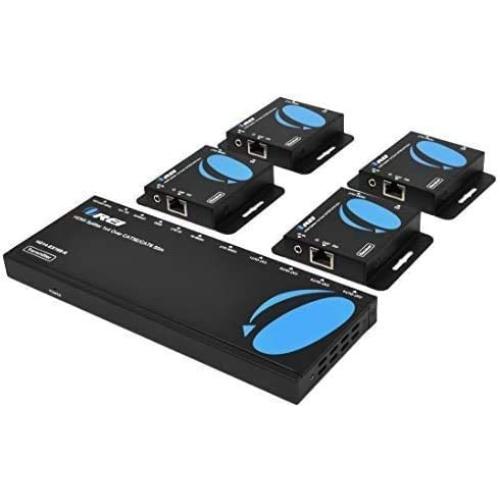

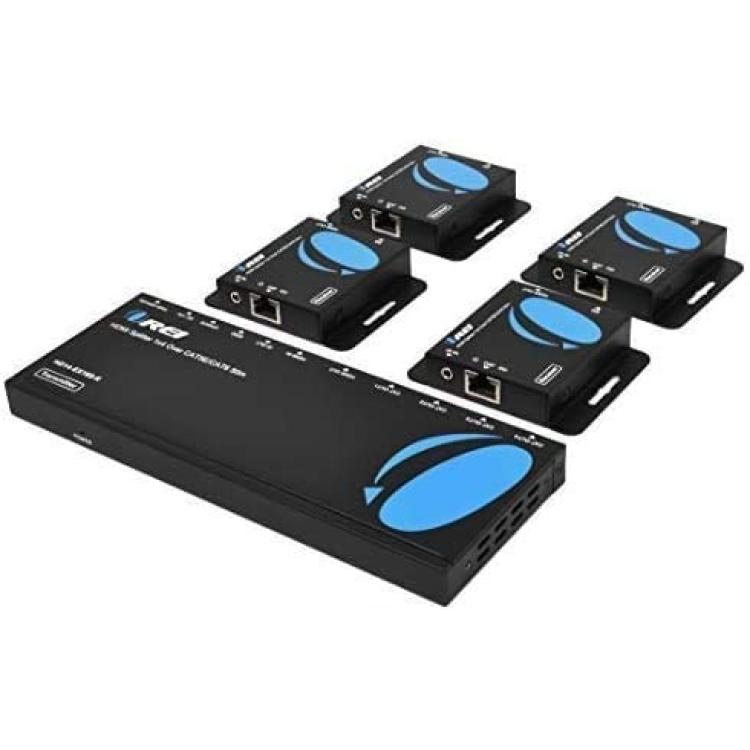

*Includes: 1 x Transmitter, 4 x receivers, 1 x Power adapter, 1 x IR blaster cable, 4 x IR receiver cables, 1 x user Manual. 1 Year Ore Manufacturers warranty
Description
OREI 1 X 4 HDMI Extender. This HDMI extender splitter includs one transmitter and two receivers, extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 50m/ 164ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed,the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect. Specification: HDMI Singal: HDMI 1.3, Compatible with HDCP1.2 Resolution Supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz CAT6/7: up to 50m (165ft) at 1080p@60Hz IR Singal: Support 20~60KHz IR device Audio Format: PCM, LPCM EDID: Support EDID setting fuction Network cable: UTP/STP CAT6/6a/7 Power Supply: DC5V/2A Power Consumption:
