Description

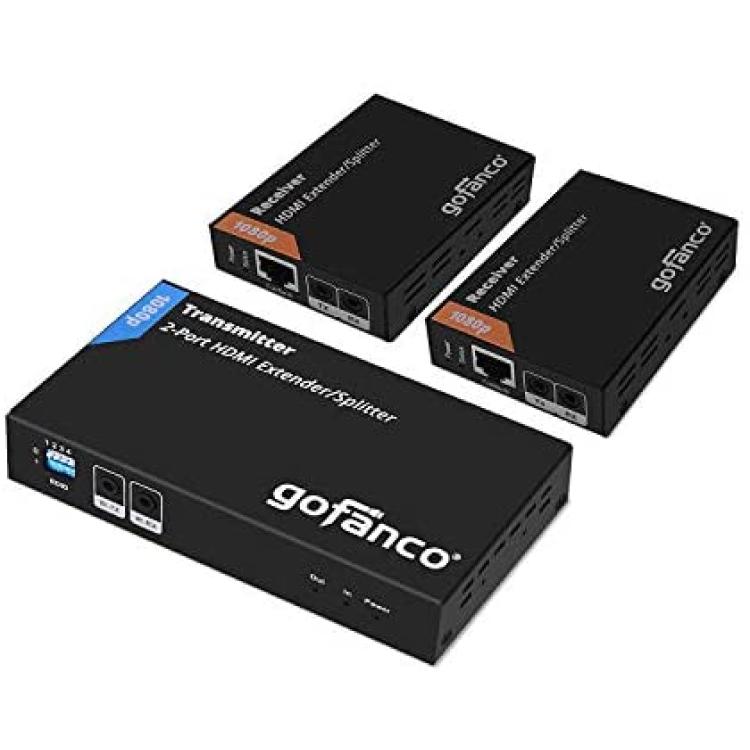

gofanco Prophecy 2-Port HDMI Extender/Splitter over CAT5e/6/7 with Loopout – 50m extends uncompressed HDMI audio/video signals over cost effective CAT5e/6/7 cabling, while maintaining signal strength and lossless video. An HDMI loopout on the Transmitter and Bi-directional IR provide convenience and flexibility to your installation.

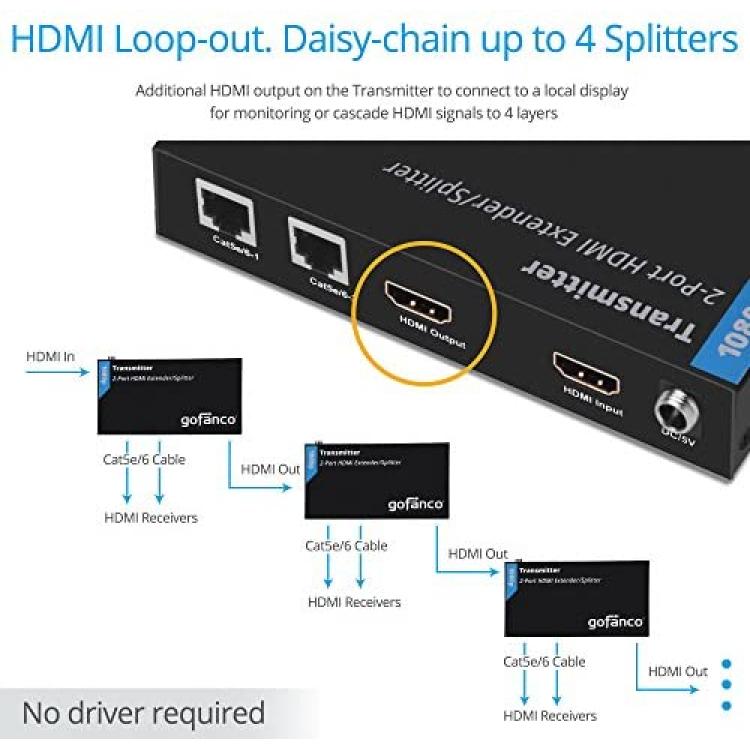

HDMI Loopout
Compatible Devices
Applications
Gyms
Sports Bars
House of Worship
School Auditoriums
Broadcasting Stations
More!
Important Notes
Specifications
Package Contents
Transmission Range
40m (130ft) at 1080p@60Hz
50m (165ft) at 1080p@60Hz
30m (98ft) at 4K/60Hz -50m (164ft) at 4K/30Hz - 60m (197ft) at 1080p/60Hz
35m (114ft) @4K/60Hz 4:4:4 & 4K HDR & 60m (198ft) @1080p
150m (492ft) at 1080p@60Hz
40m (130ft) at 1080p@60Hz
Resolution/HDR
1080p@60Hz | 3D
1080p@60Hz | 3D
4K @60Hz (YUV 4:4:4 8-bit) | 1080p @60Hz | 3D | HDR
4K @60Hz (YUV 4:4:4 8-bit) | 1080p @60Hz | 3D | HDR
1080p@60Hz | 3D
1080p@60Hz | 3D
HDMI/HDCP
1.3/1.2
1.3/1.2
2.0/2.2
2.0a/2.2
1.4/2.2
1.3/1.2
HDMI Loop Out
?
?
?
?
?
HDBaseT
?
?
Power Over Cable (PoC)
?
?
RS-232
?
?

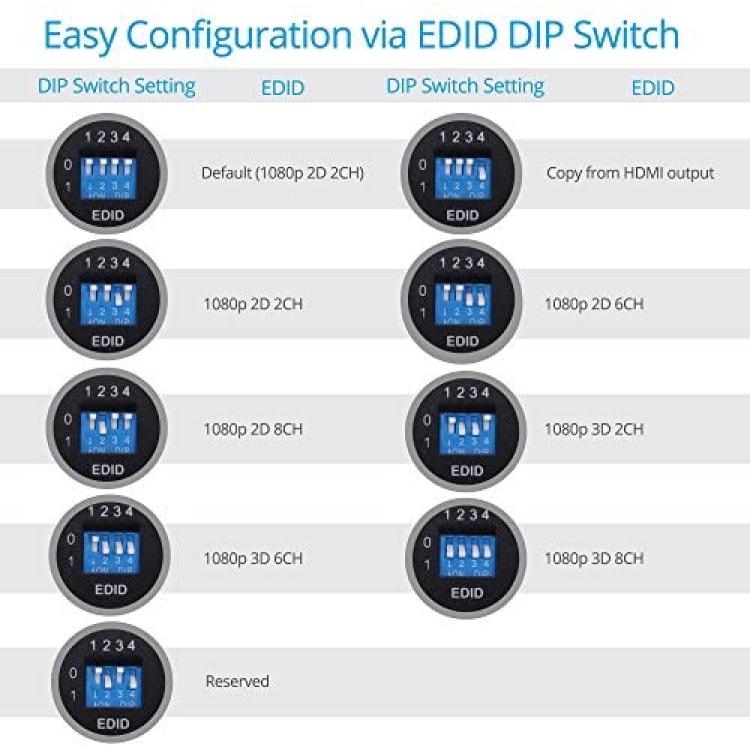

EDID Management
?
?
?
?
?
?
Downscaling
?
Available Sizes
2-Port & 4-Port
2-Port & 4-Port
2-Port & 4-Port
2-Port & 4-Port
4-Port
8-Port
Other Alternatives
Search
1x4 HDMI Extender Splitter
Search
Long Range 1x4 HDMI Extender Splitter
Search

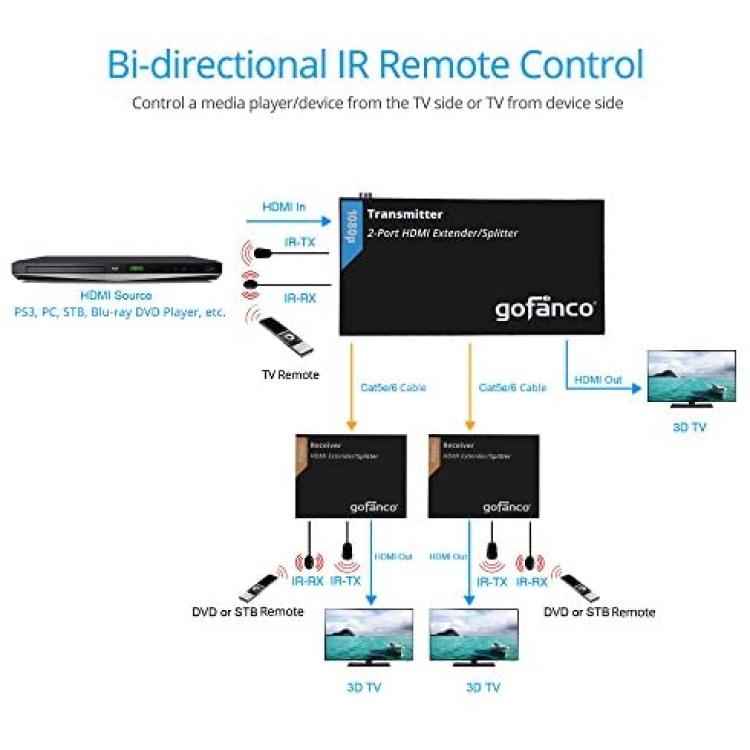

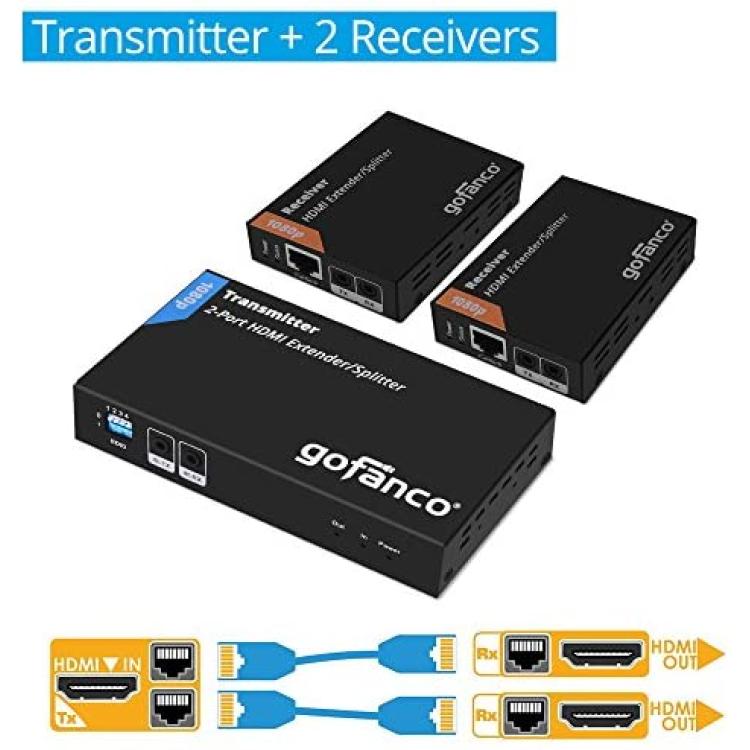

Extend and distribute 1 HDMI source to 2 HDMI displays over CAT6 simultaneously. *Good quality CAT cables are essential in delivering quality contentCompatible with HDMI 1.3 and HDCP 1.2 standards.Supports up to 1080p @60HzSupports 5.1-channel & 7.1-channel, Dolby True-HD, DTS-HD Master Audio FormatsHDMI Transmitter is equipped with 2 port HDMI splitter; Additional HDMI output on the Transmitter to connect to a local display for monitoring.Supports IR extension, allowing source device to recognize remote commands.HDMI source device, such as computer PCs, game consoles, Blu-ray players, and media playersHDMI displays, monitors, and HDTVs1080p ONLY Gyms Sports Bars House of Worship School Auditoriums Broadcasting Stations More! A good quality CAT5e/6/7 cable is essential in delivering quality content. CAT6/6a/7 is recommended over CAT5eWe recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH).This kit is point to point and comes with 1 Transmitter and 2 Receivers. It’s not meant to work through routers or network switchesIf you live in an area with thunderstorms, plug this products power adapter into a surge protector power strip to protect your device from voltage spikesVideo resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60HzTransmission range: Up to 50m (165ft) at 1080p@60HzUp to 40m (130ft) at 1920x1200Up to 40m (130ft) for 5.1-channel & 7.1-channel audioHDMI 1.3 and HDCP 1.2 compliantNetwork cable: UTP/STP CAT6/6a/7HDMI loopout on TransmitterHousing: MetalCountry of origin: ChinaRegulatory approvals: FCC, CE, RoHSProphecy 2-Port HDMI Extender/Splitter Kit – 50M (1 Transmitter & 2 Receivers)3x Power adapters (1x 5V/2A for TX, 2x 5V/1A for RX’s)3x IR Blaster cables (for TX’s)3x IR Receiver cables (for RX’s)Surface mount accessoriesUser’s guideSKU = HDExt4P-ProASIN = B076VVZGP3SKU = HDMIExt4PASIN = B0714N2JFZSKU = HDbitT4PASIN = B07X6KTTBR
