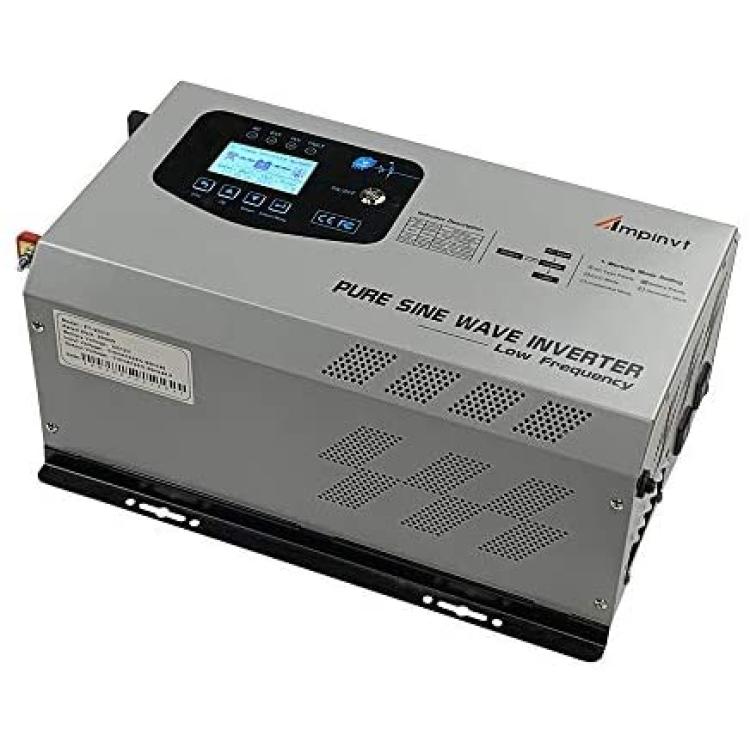

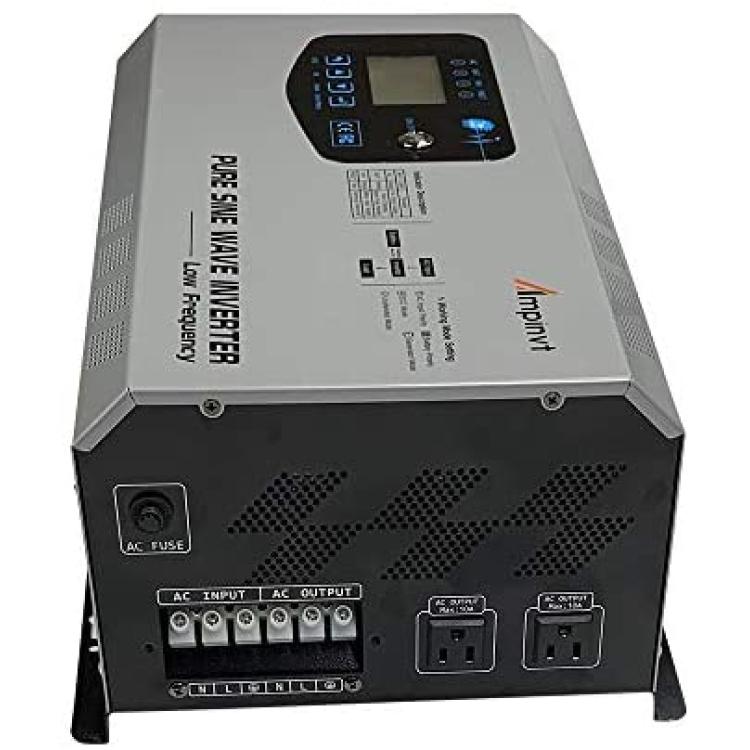

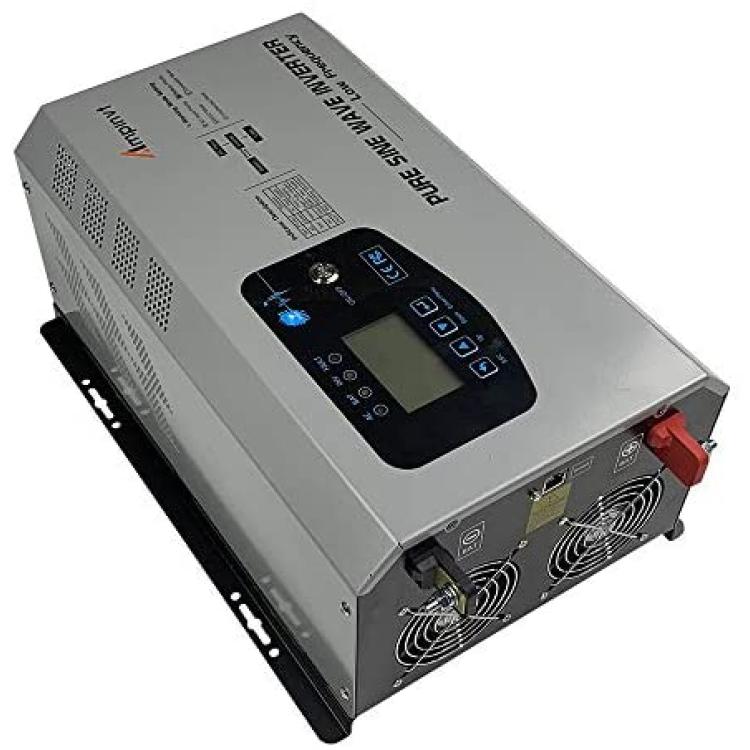

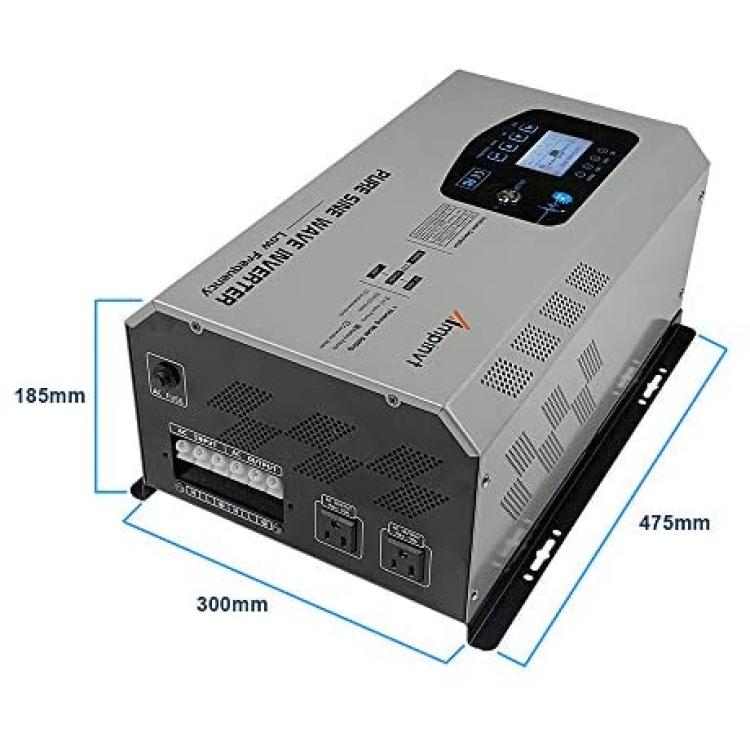

AMPINVT 2000W Peak 6000W Pure Sine Wave Power Inverter DC 12V to 110V AC Output Converter with Battery AC Charger LCD Display,Off Grid Low Frequency Solar Inverter for Car, Battery Priority Selector
Availability: Pre-Order, Inquiry Price
About this product
*continuous 2000 Watt low frequency pure sine power inverter Peak 6000 watts off grid solar inverter
*Working Mode(optional): 1.AC Input Priority; 2.Battery Prioritye; 3.ECO Mode; 4.Generator Mode; 5.Unattended Mode;
*Adjustable charge current off-0%-100%, Five Stage Smart Charger, 35A battery AC charger max For lifep04，Sealed Gel AGM Flooded Lithium, Sealed, Gel, and Flooded Batteries
*charging current and charging voltage can be adjusted;customizable voltage for low voltage protection and voltage for low voltage recovery.
*High-definition LCD display,full-vision real-time monitoring data,Remote panel available,5-10msec typical transfer time
Description
Product overview
FT Series Toroidal Transformer Low Frequency Pure Sine Wave Inverter With AC charger ?AC charger?AC and DC switch time<=8ms?Toroidal Transformer?
City power priority mode, energy-saving mode, battery priority mode, three working modes are optional.
In addition to over-voltage, overload, low-voltage, high temperature and short circuit protection, it also has intelligent speed control air cooling mode.
Advantage
1.64-bits DSP Intelligent control chipset.

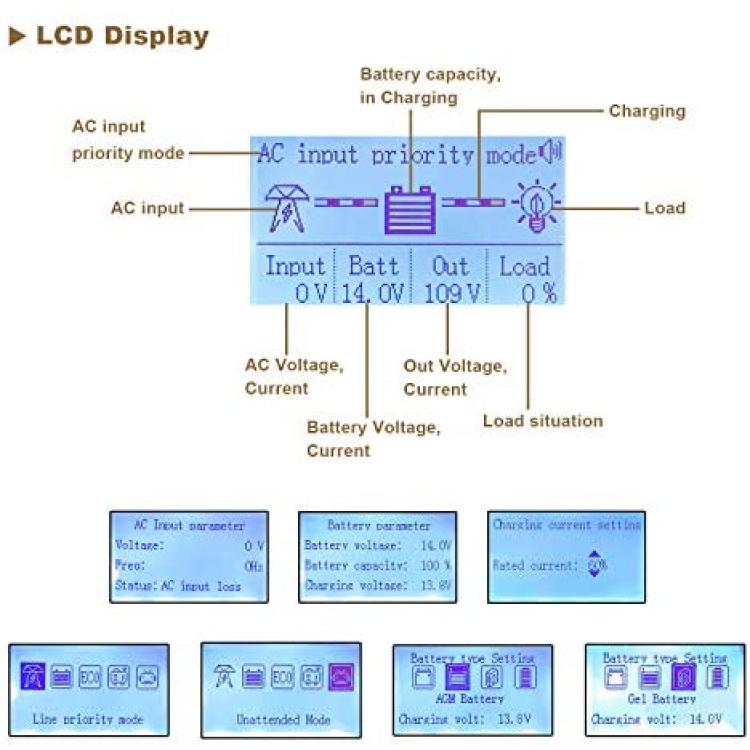

2.LED and LCD display with multi-function,Real-time display of dynamic values.
3.Built-in automatic AC charger and automatic AC mains switcher. Switch time ?8ms.
4. Protection of low voltage, overvoltage, short circuit, overload and temperature.
5.Continuous stable pure sine wave output with built-in AVR stablizer.
6.3 times surge power,excellent loading capability.
7.50Hz/60Hz automatic recognition.
8. Pure sine wave output wave form, input and output isolation design.
Working Mode Setting:
1. AC Input Priority--- Preferential use of municipal electricity, (household 110V AC) municipal power outage to battery power supply, municipal power to return to municipal power supply!
2. Battery priority mode----Priority should be given to battery power supply. After low voltage protection, the battery will be transferred to market power supply. When the battery is full, the battery will be transferred back to battery power.
3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.
4. Generator Mode---Use an unstable AC voltage (such as an alternator) through the inverter's AVR regulator to make the output voltage more stable!
5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!
High effecience,no load current 0.5A,Fast switching speed
High-efficiency Power tube.Strong resistance to current and voltage impact
The US imports DSP control chips,multiple high Q,high-flux inductances,new imported compenents,high-density motherboad desigh,MPPT tracking rate and higher power generation rate,up to 98%.

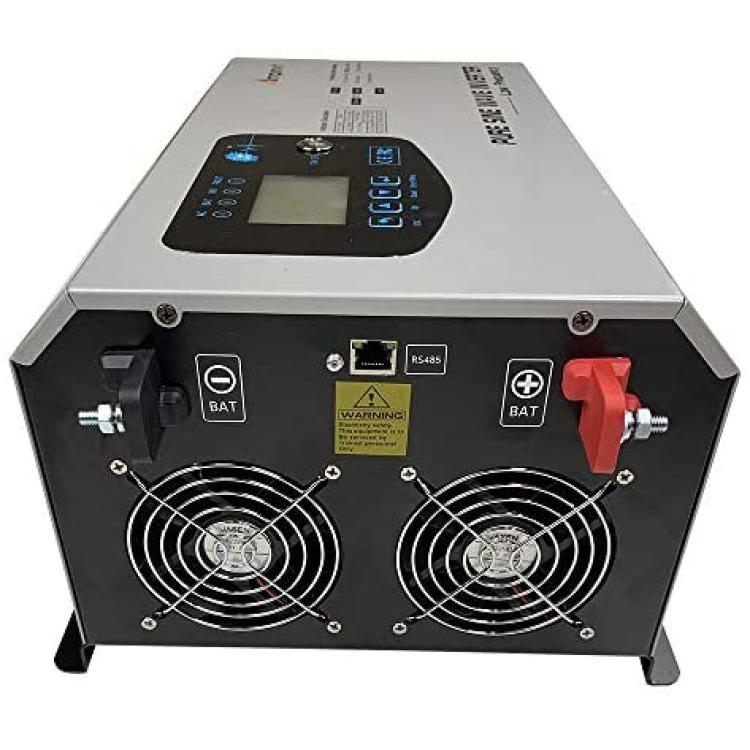

1.Cooling way:intelligent speed control air cooling; 2. Communication interface; RS-485 3.Work Environment:Temperature:-25°C - +75°C 4. Humidity:<90%(No dew).Related Products
