3000W Power Inverter Charger Pure Sine Wave Converter with AC Charger DC 12V in to AC 110V Out for Home Car RV Off-Grid Solar System
About this product
*The pure sine wave inverter is combination of an inverter. Battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%.Professional solution for off-grid system,perfect combination of low-voltage UPS and inverter, Self consumption down 50% than frequency inverter
*Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch at the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.the liner switch can effectively reduce the max charging current to 20% of its peak.Choosing “0” in the battery type selector will disable charging function
*AC/Battery Priority: Our inverter is designed with AC priority by default, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. the inverter can be easily customized to Battery priority via a DIP switch, When you choose battery priority, the inverter will invert from battery despite the AC input.
*Auto Gen Start：the inverter can be customized to start up a generator when the battery voltage goes low.When the inverter goes to low battery alarm, it can send a signal to start a generator, and turn the generator off after battery charging is finished. The auto gen start feature will only work with generators designed to work with this feature.
*Protections: AC input over voltage protection/AC Input low voltage protection/Low battery alarm/High battery alarm /Over temperature protection/Over load protection Short Circuit protection (1s after fault)/Back feeding protection
Description
Output?
Output Power: 3000 w
Surge Power:9000 w
Output Voltage: 120v ±5
Output Frequency:50/60hz±0.5%
Output Waveform?True sine wave?THD<3%?
Power Factor:0.1-1
Input?
Voltage Range:10-16VDC
DC Input Voltage?12VDC
Efficiency:87%
AC Charger:
AC Input voltage :90-135VAC
DC Output voltage?Fast(14.0-15.1v) ,Float(13.3-13.8v)
Charger Current: 80A/40A/25A
AC Bypass:
Transfer time:<8ms
Input Vot Waveform:Utility AC or Generator? sine wave ?
Max bypass current: 30A
Control&Signal :
Remote Control (optionbal):CR10-11orPTM-12
DIP Switches?Charger Current,O/P Frequency, AC Output Voltage?AC/DC priority
Network Function: Stand alone or TCP/IP Optional
Battery type: Manual Optional

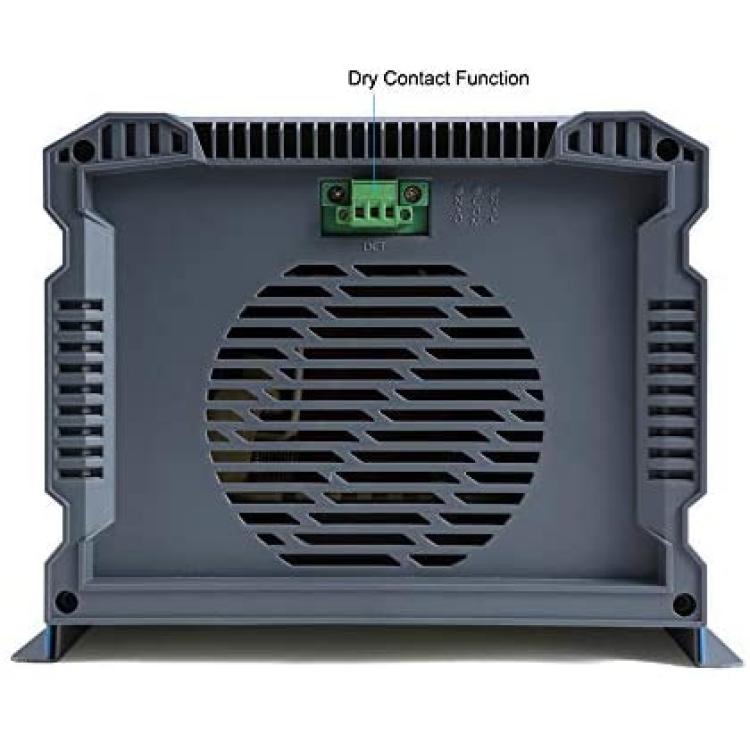

Dry Con Terminal : By relay
Protection:
Input Under-Voltage Protection
Input Under-Voltage Alarm
Input Over-Voltage Ptotection
Output Overload
Output Short
Over temperature
DC Input Reverse Polarity
Application
: Kitchen appliances,Industrial equipment ,Office equipment,Household,Home entertainment
Certification:
CE, FCC,LVD
