Plasma Cutter Pilot Arc CUT60 Voltage 220V 60A Cutting Non Touch Machine Portable Plasma Cutter(CUT60L)
Availability: Pre-Order, Inquiry Price
About this product
*1. Non-touch Pilot Arc: it efficiently cuts though rough, painted, and rusty surfaces and produces minimal slag；the technology allows you to cut without touching the tip to the metal. It provides a better cutting quality and longer consumable life
*2. Input and Output: 220V input, 20-60 A output, Non-HF Blowback Start, there is no HF interference
*3. Wide Applications: Suitable for cutting stainless steel, alloy steel, mild steel, copper, carbon steel and aluminum, and other metals. Can be widely used at demanding industrial and construction work, or home and hobby us
*4. Setup Easily: The air regulator and water trap is a combined unit mounted at the back machine,the whole machine can be setup very quickly, and it is to reduce the chance of water entering the plasma torch
*1. Non-touch Pilot Arc: it efficiently cuts though rough, painted, and rusty surfaces and produces minimal slag；the technology allows you to cut without touching the tip to the metal. It provides a better cutting quality and longer consumable life
Description
Features:
Lower Freqency Advanced Inverter IGBT Technology
Non-touch Pilot Arc torch allow you to cut without touching the tip to the metal.

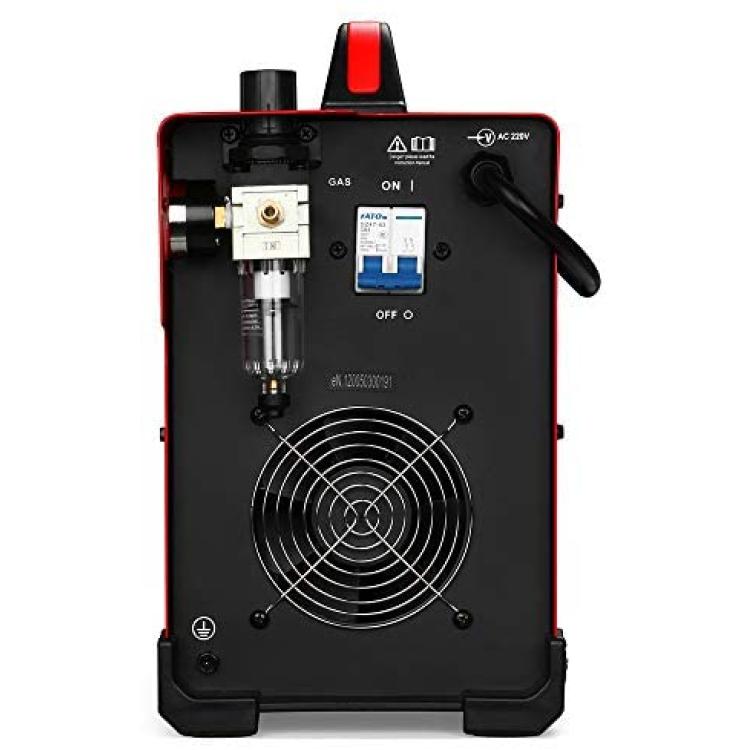

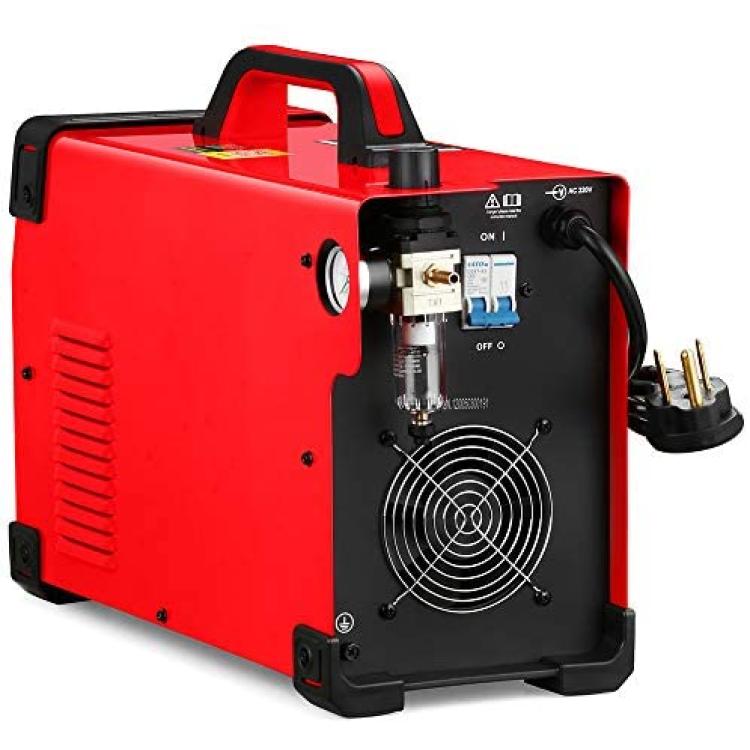

The air regulator and water trap is a combined unit mounted at the back machine,reduce the chance of water entering the plasma torch.
Duty Cycle Cycle 60% at 60 Amps
2T/4T Function enabled. Operating procedure using the 2T / 4T Function with torch
Cutting Thickness:20mm
Outstanding cutting performance. Especially suitable for cutting carbon steel, stainless steel, aluminum and copper.
 Specification:

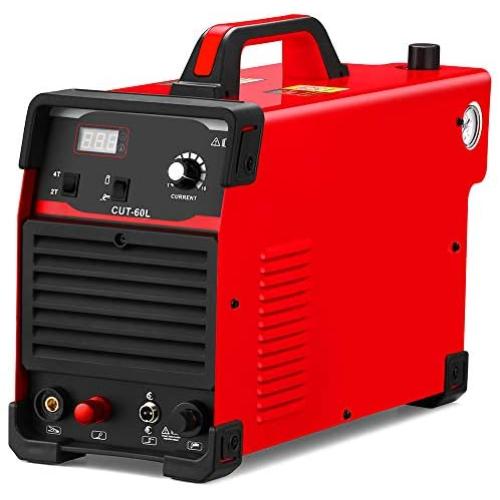

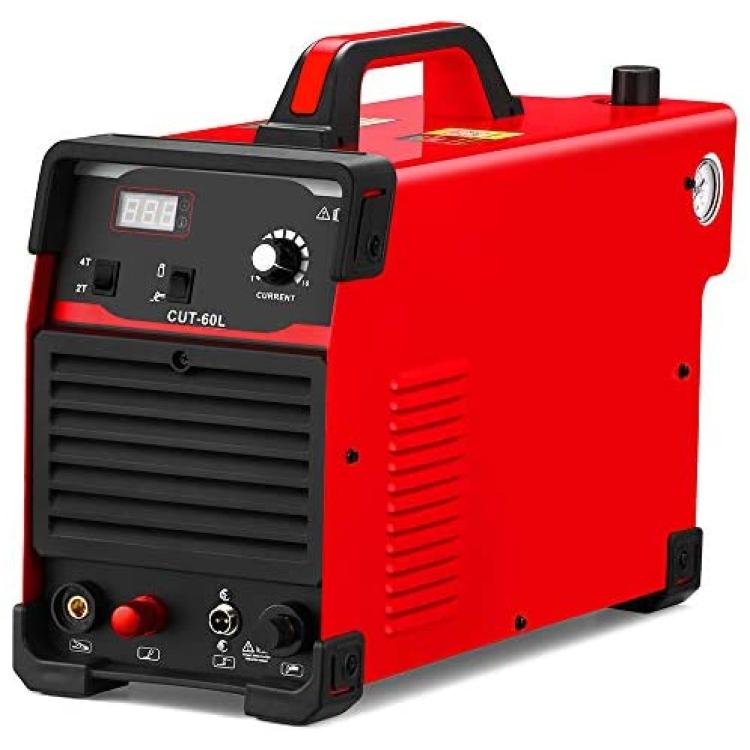

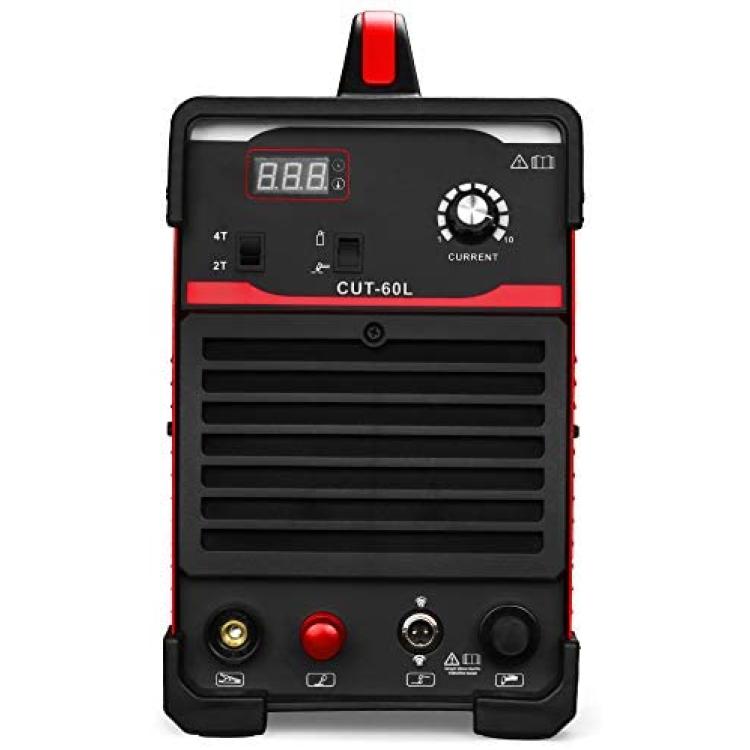

Model: CUT-60L
Power Voltage: 1P AC 220 ± 10%, 50/60Hz
Rated Input Power (KVA): 10
Rated Input Current:45.7A
Rated Output Current:20-60A
No-load Voltage: 415V
Pressure Mpa (S):0.4-0.6
Duty Cycle:60%
Pilot Arc Model: Non Touch Start
Cutting thickness (mm) :0.1-20mm
Packaging?
1 X 60A Plasma Cutter
1 X Cutting Torch
1 X Air Regulator
2 X Plasma Cutter Tips
1 X Musk & Electrode
5 feet Ground Clamp & Cable
