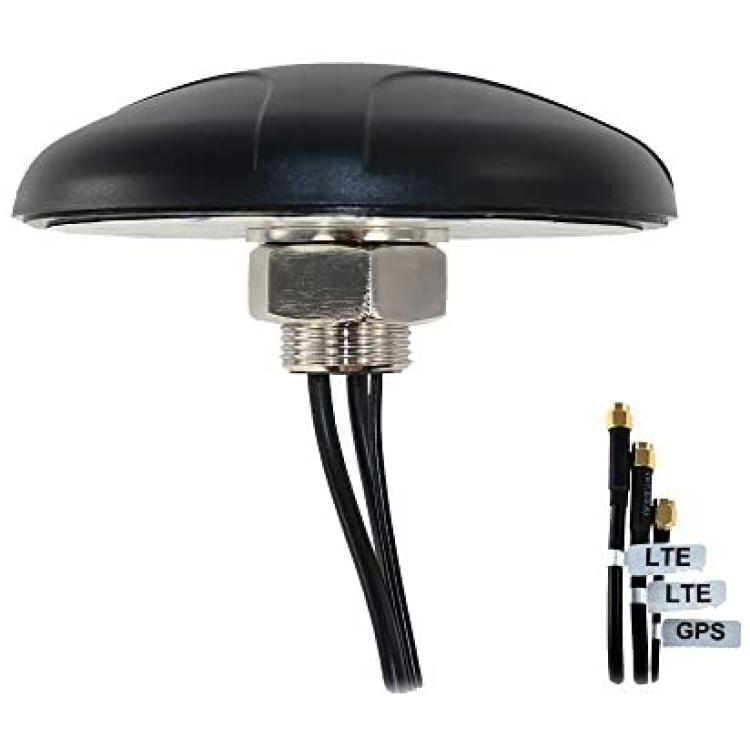

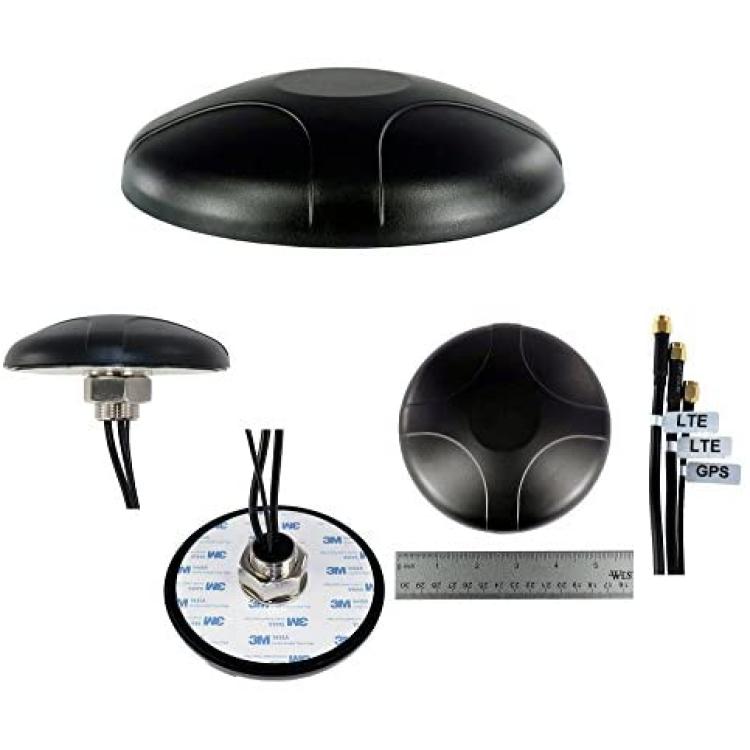

Proxicast Professional Low-Profile MIMO LTE + GPS 3-in-1 Combination Screw Mount Vehicle Antenna

Proxicast's 3-in-1 LTE/GPS antenna is a low-profile, heavy-duty, multi-element / multi-band combo antenna designed for use in fleet management, mobile video, fire, police, EMS and remote monitoring applications that cost-effectively combines high efficiency and peak gain in a compact easy to install form factor.

Featuring 2 LTE cellular and 1 GPS elements, it is ideally suited for 2x2 MIMO vehicular modems and routers from vendors such as Motorola, Sierra, Cisco, Cradlepoint, Digi, MoFi, Pepwave, Proxicast and others.

LTE coverage includes all bands used by commercial and public safety operators worldwide. The active GPS element has a low noise amplifier (LNA) and covers the GPS L1 band.

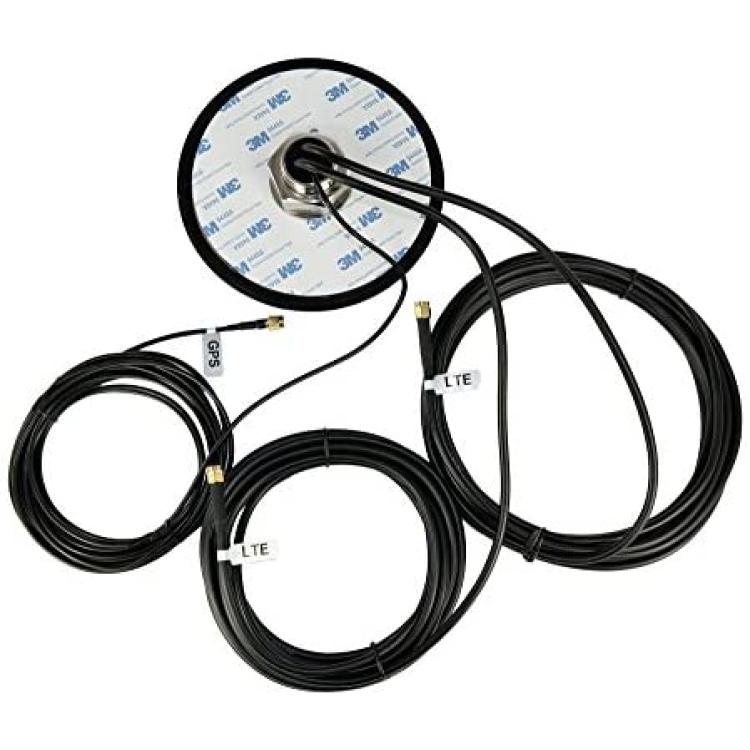

Each antenna element includes a 5 meter (16.4 ft) low-loss pre-terminated coax cable.

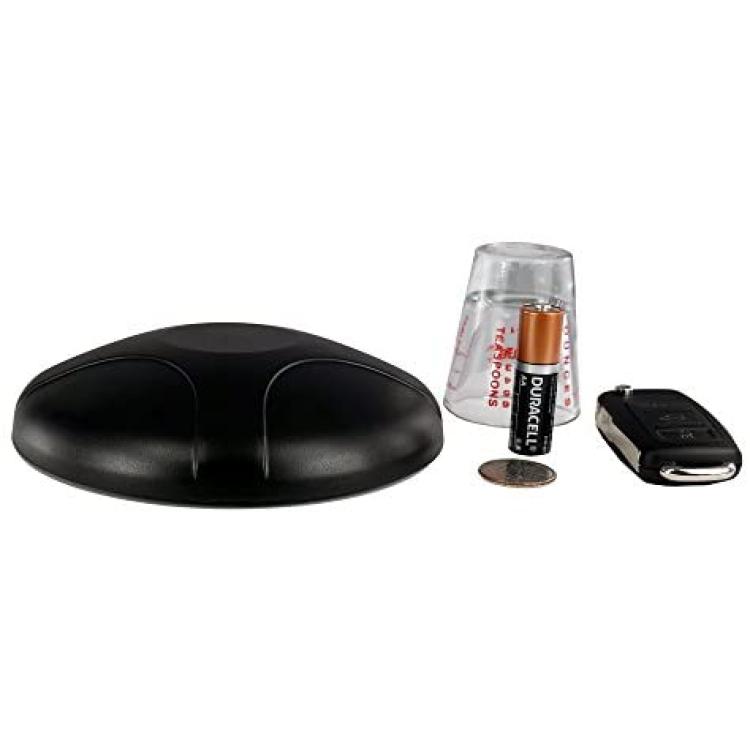

The slim, durable ABS radome has the lowest profile (1.26 in) of any combo antenna and is fully waterproof. It's smooth dome withstands car washes and tree branches.

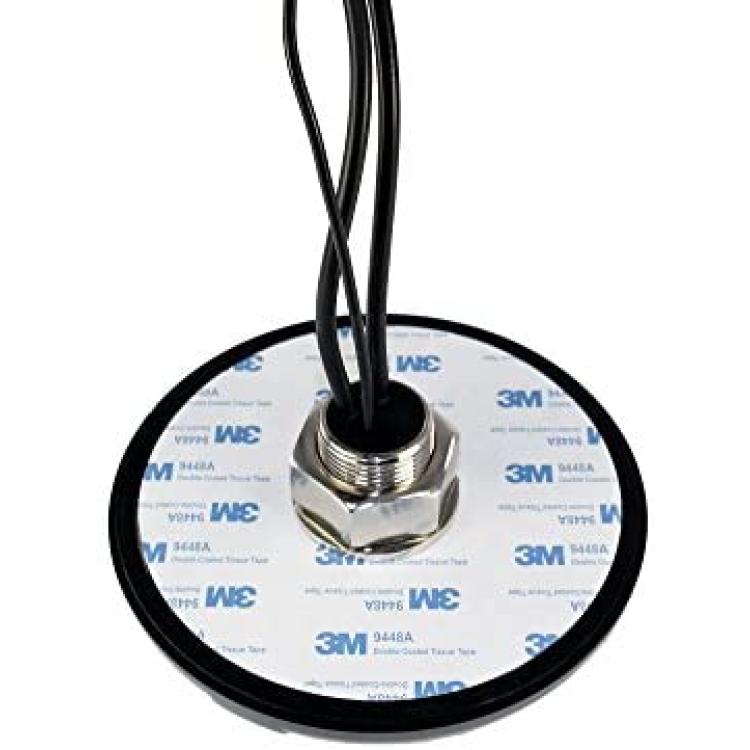

Installation requires only a 1.25 in diameter hole. The included rubber gasket, adhesive pad and mounting nut seal the opening from water and dust.

Specifications

LTE
• Frequency Range: 698-960 / 1710-2700 MHz
• Gain: 3 dBi x 2
• Cable: 2x 5 meters RG58U

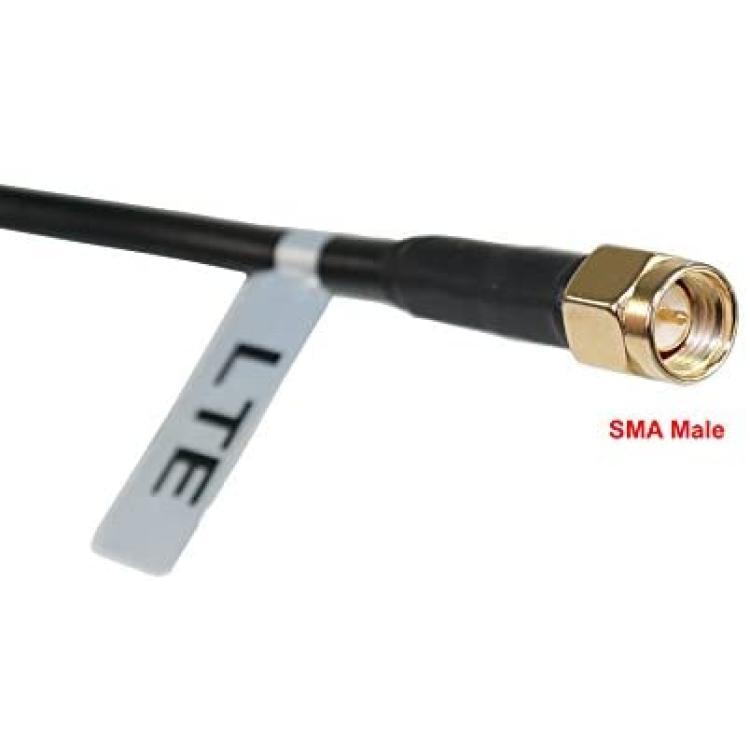

• Connector: 2x SMA Male

GPS
• Frequency: 1575.42 MHz
• Gain: 28±2dB Typical
• Polarization: RHCP
• DC Voltage: 2.2-5.0V
• Cable: 5 meters RG174
• Connector: SMA Male

Mechanical
• Material: ABS / Brass / Steel / Rubber
• Color: Black
• Mounting: 31 mm (1.25 in) hole - nut, washer & adhesive included
• Ground Plane: Integrated
• Ingress: IP67
• Op. Temp.: -40 to +85C

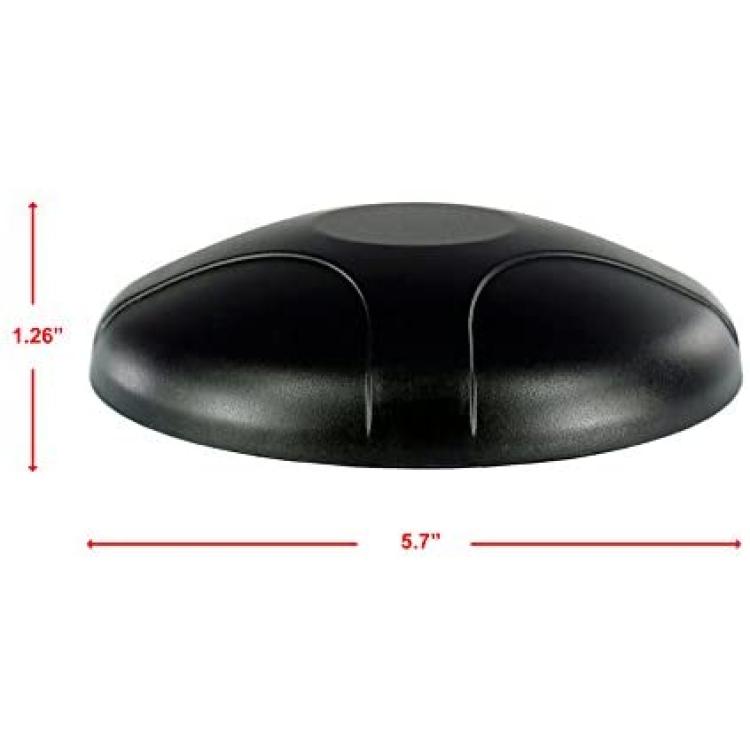

• Dimensions: 143.6 x 32 mm (5.7 x 1.26 in) when mounted
• Weight: 0.9 kg (2 lb)

See below for full Specification Sheet

Since 2000, USA-based Proxicast has been manufacturing innovative professional grade wireless equipment.
