Proxicast Professional Low-Profile MIMO LTE + Wi-Fi + GPS 5-in-1 Combination Screw Mount Vehicle Antenna

Proxicast's 5-in-1 LTE/WiFi/GPS antenna is a low-profile, heavy-duty, multi-element design for use in fleet management, mobile video and remote monitoring applications that cost-effectively combines high efficiency and peak gain in a compact easy to install form factor.

It is ideally suited for 2x2 MIMO vehicular modems and routers. LTE coverage includes all bands used by commercial and public safety operators worldwide. WiFi elements cover 2.4 GHz 802.11 b/g/n, 5 GHz 802.11 a/ac and 4.9 GHz public safety bands. The GPS L1 band element has a low noise amplifier (LNA).

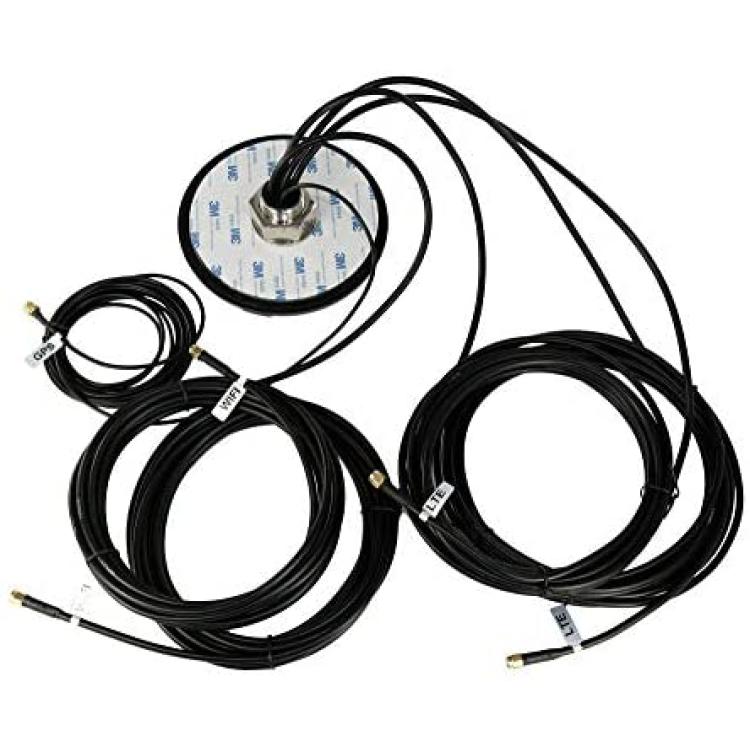

Each element has a 5 meter (16.4 ft) low-loss pre-terminated coax cable.

The durable ABS radome has the lowest profile of any combo antenna and is fully waterproof.

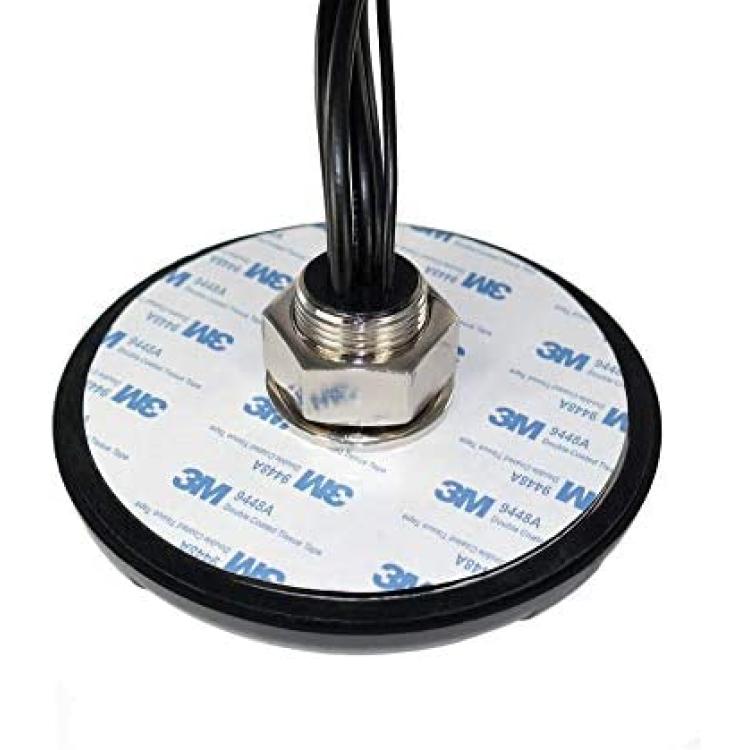

Installation requires only a 1.25 in diameter hole. The included rubber gasket, adhesive pad and mounting nut seal the opening from water and dust.

Compatible with routers from Cradlepoint, Digi, Peplink, Sierra and others.

Specifications

LTE
• Frequency Range: 698-960 / 1710-2700 MHz
• Gain: 3 dBi x 2
• Cable: 2x 5 meters RG58U

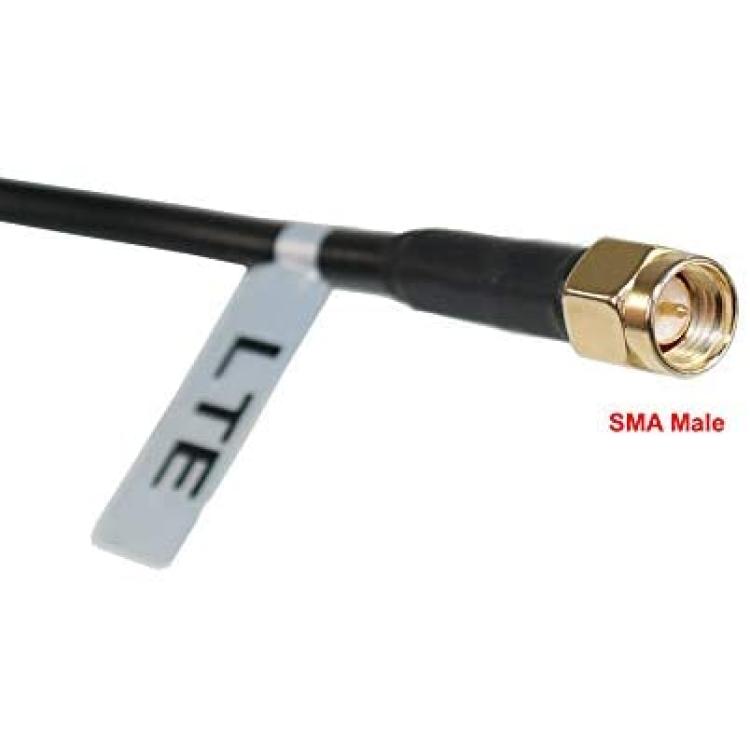

• Connector: 2x SMA Male

Wi-Fi
• Frequency Range: 2.4 / 5 GHz
• Gain: 3 dBi x 2
• Cable: 2x 5 meters RG58U

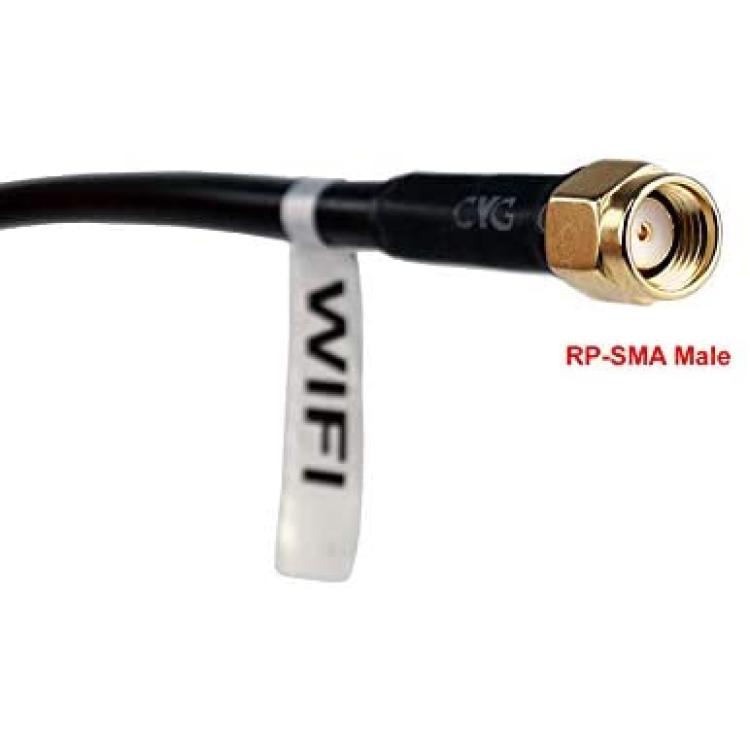

• Connector: 2x RP-SMA Male

GPS
• Frequency: 1575.42 MHz
• Gain: 28±2dB Typical
• Polarization: RHCP
• DC Voltage: 2.2-5.0V
• Cable: 5 meters RG174
• Connector: SMA Male

Mechanical
• Material: ABS / Brass / Steel / Rubber
• Mounting: 31 mm (1.25 in) hole - nut, washer & adhesive included
• Ground Plane: Integrated
• Ingress: IP67
• Op. Temp.: -40 to +85C

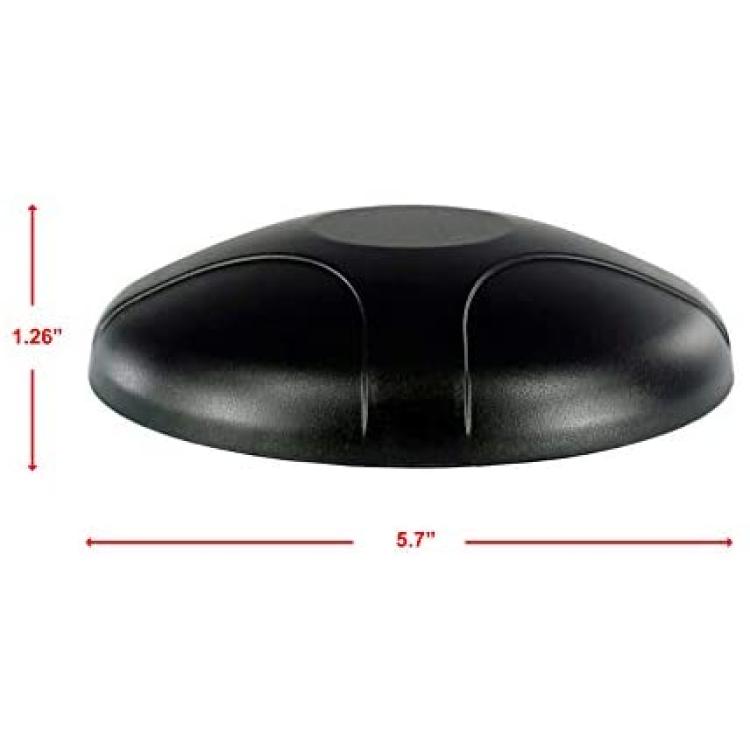

• Dims: 143.6 x 32 mm (5.7 x 1.26 in) when mounted
• Weight: 1.2 kg (2.6 lb)

See below for full Specification Sheet

Since 2000, USA-based Proxicast has been manufacturing innovative professional grade wireless equipment.
