9'' AHD Truck Parking Backup System & Built-in DVR Surveillance IPS Screen 4 Cameras 4-Channel Separate 720P HD Recording for Truck Bus Trailer Motorhome 12V-24V No-Light Night Vision 4-PIN Shockproof

Product Name: 9"" AHD Car Backup System, 9 inch IPS DVR Monitor + 4 AHD Cameras(3 Mirror image and 1 Non-Mirror image) with 4-PIN Aviation Plug 4 CH Simultaneous Recording for Truck Bus Trailer Motorhome Caravan Camper Surveillance 12V-24V Night Vision

?AHD IPS Montior?

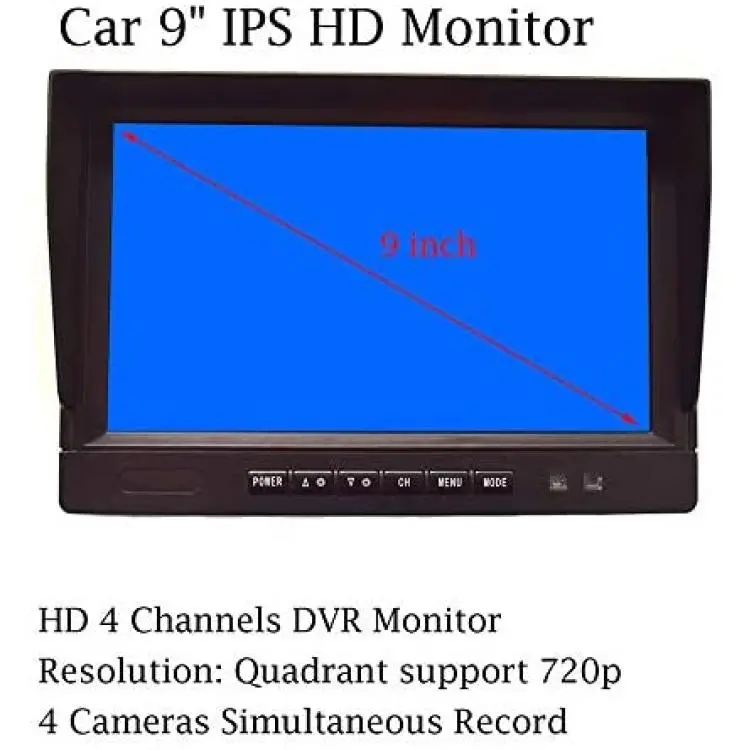

Display Size: 9 inch IPS AHD Screen
Resolution: 1024(W)xRGBx600(H) max support 1080p
Brightness: 500 cd/m2
Wide Power input Range: DC 9V-36V
Preview: Support single and multiple images
Video: 4 channels video input and simultaneous 720P recording
SD Card Slot: Support Upto 256GB

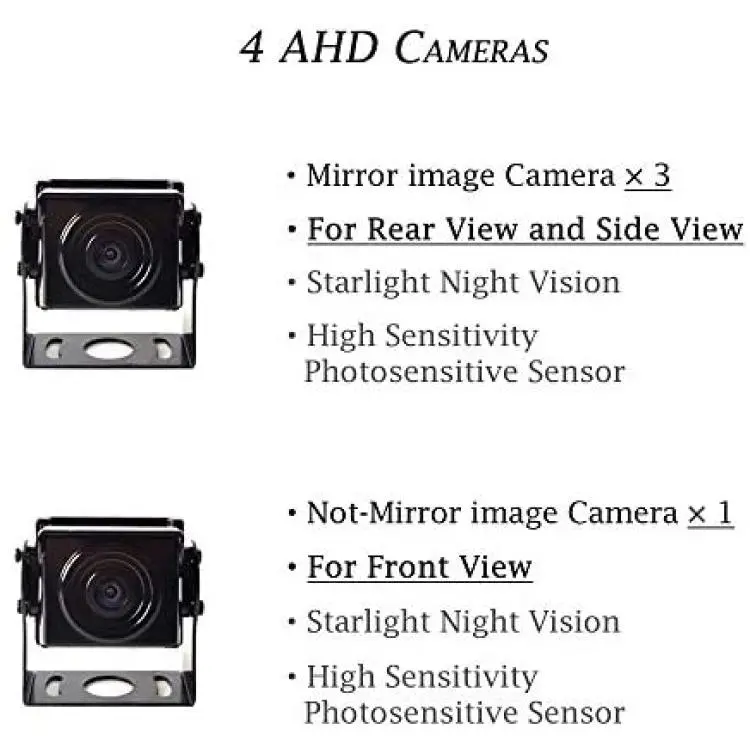

?4 AHD Cameras?
Lens: 3.0mm
Pixels: 1.3 million pixels
Grid Lines: No
Viewing Angle: 120°View angle
Work Temperature: -20~70 Celsius Degree
Backlight Compensation:Auto
White Balance:Full Auto
Night Vision:Yes, Complete No-light Night Vision
Video Output:4-PIN Connector

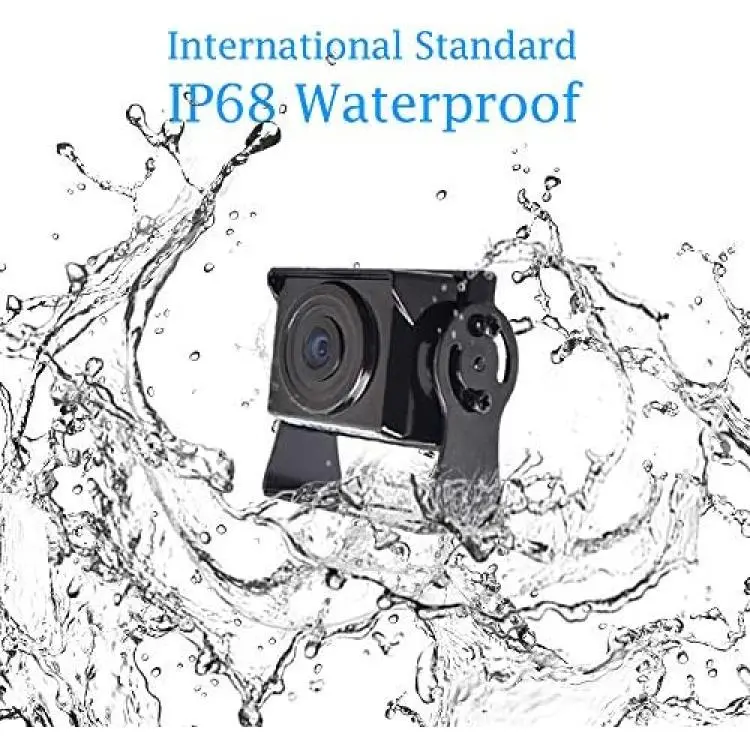

Waterproof:IP 68


Easy to install:

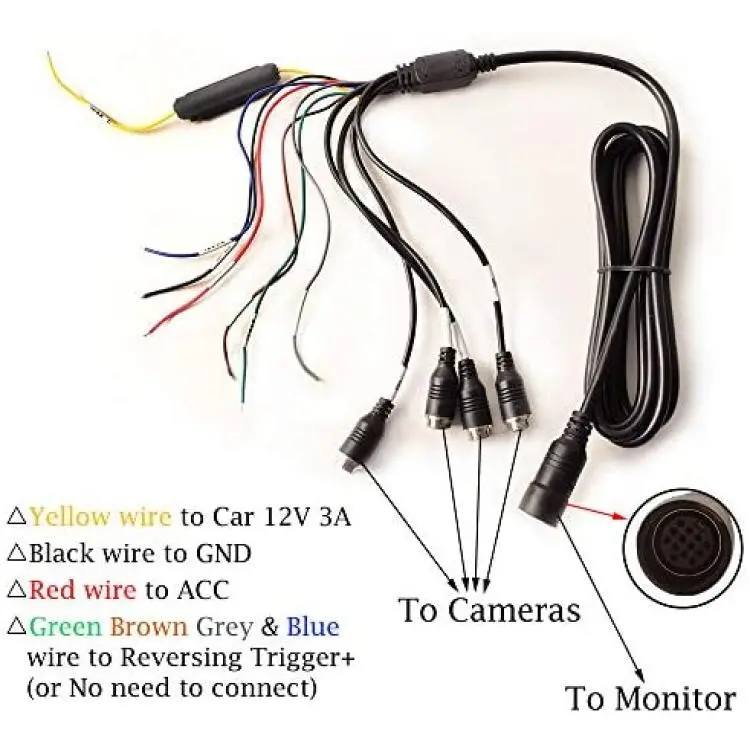

Connect the monitor power cable with car electronics sytem:
·Red wire to ACC
·Black wire to GND
·Yellow wire to Car 12V-24V
·Blue Brown Gray and Green wire to Reversing Trigger+ (or No need to connect)

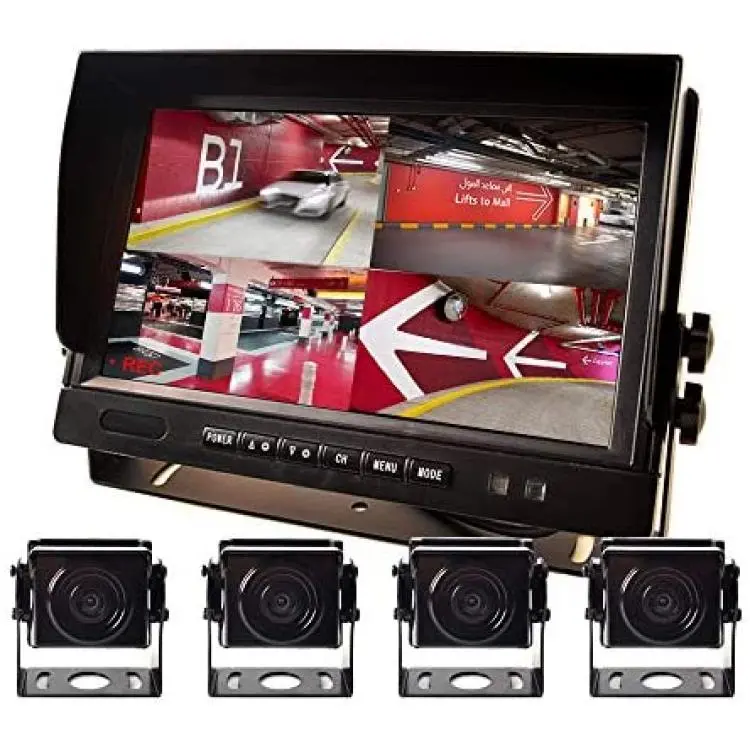

Package includes:
AHD 9"" IPS monitor x 1
AHD Front Camera x 1
AHD Mirror Image Camera x 3
Monitor Power Video Cable x 1

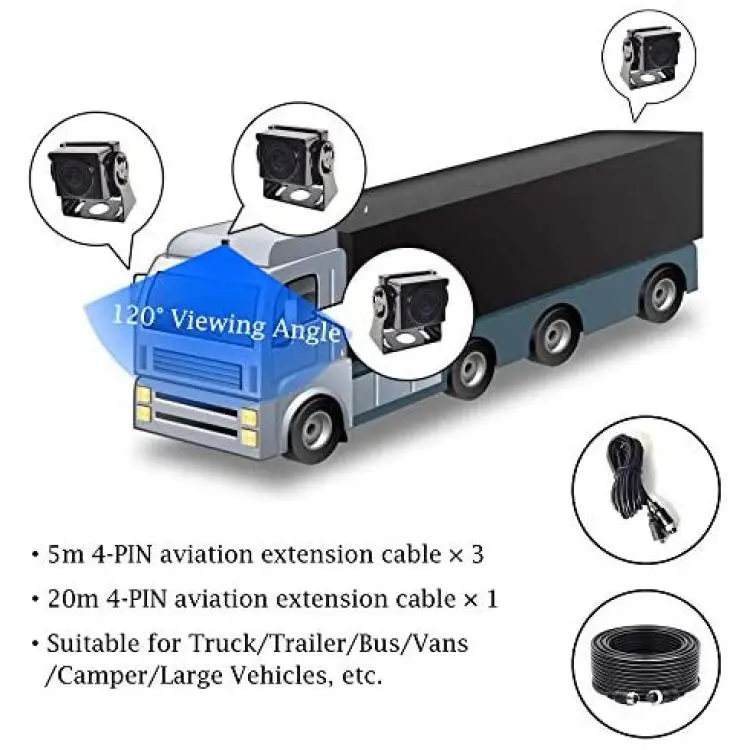

16FT/5m 4-PIN Video Cable x 3
65FT/20m 4-PIN Video Cable x 1
Remote Control x 1
Dashboard Bracket x 1
Bracket Screws x 4
Screws x 18
User Manual x 1
