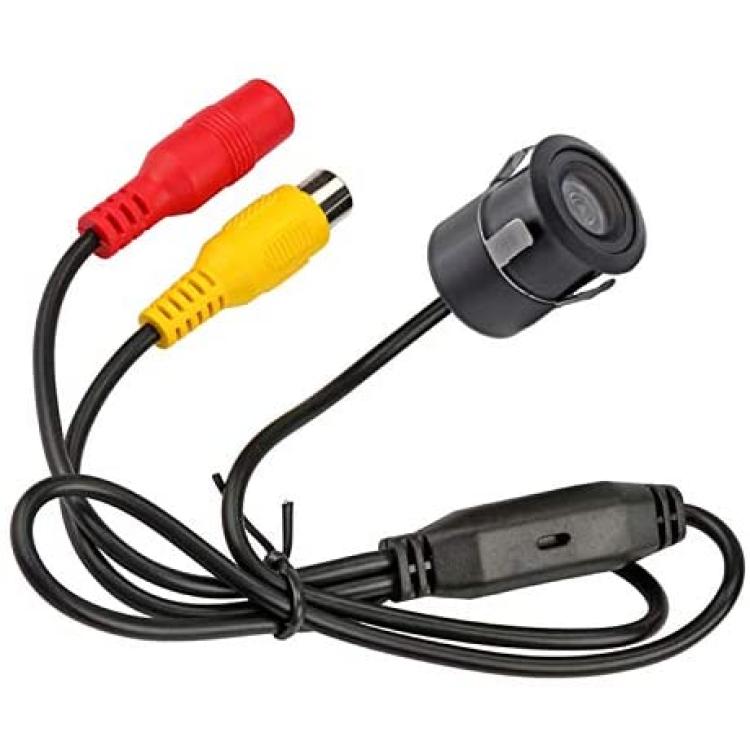

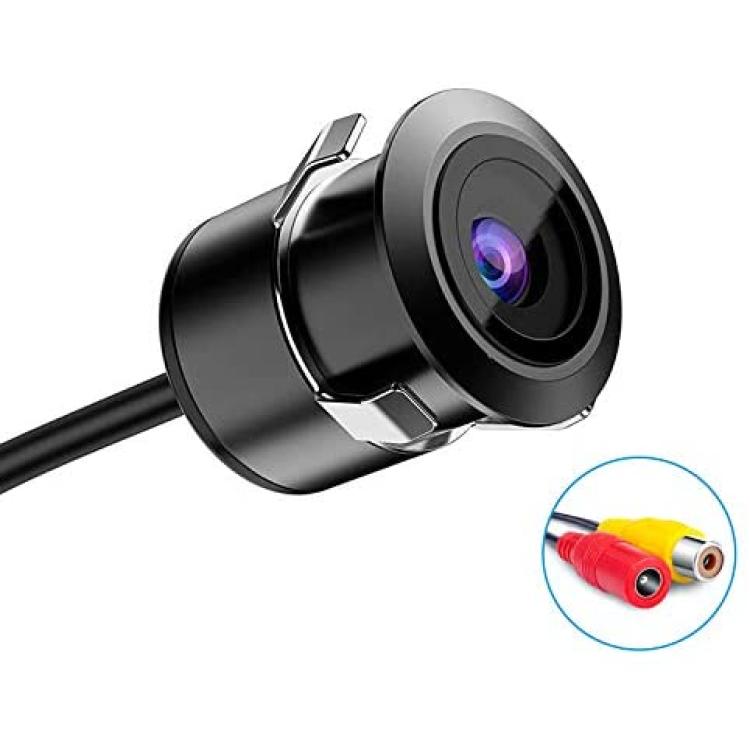

Backup Camera, 18.5mm Rear View Camera 170° View Angle, 12V CCD Reverse Camera with Parking Guidelines Mirror Image Night Vision Waterproof Parking Camera for 12V Car Mini-Truck RV SUV Minivan Camper

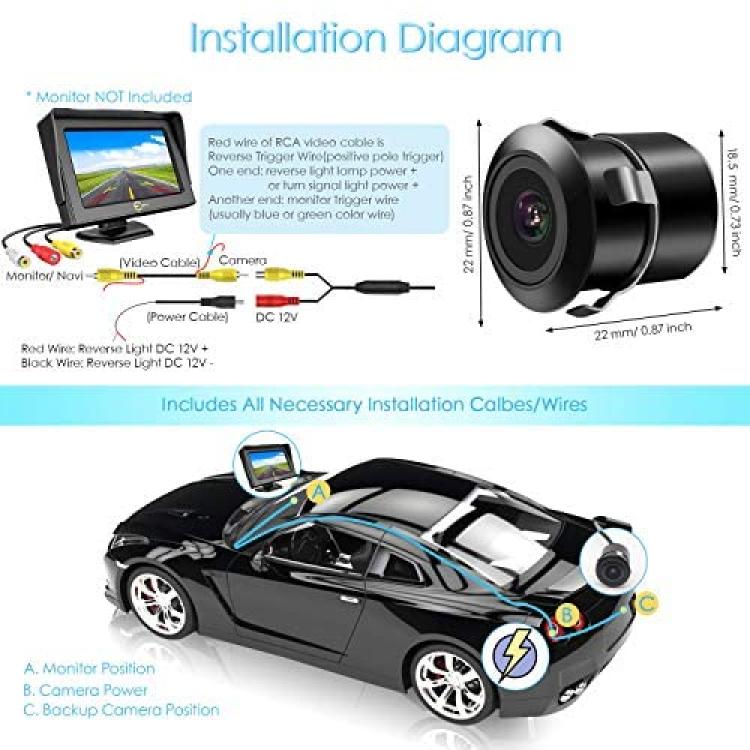

?Wiring Installation?
*Please test the rear view camera before routing 20ft video wire from back to front.
1. Find a flat surface(parallel to ground) for mounting camera, then drill a 18.5mm hole on the middle of car rear bumper.
2.Connect the power wire of parking camera to the DC 12V power of reversing light.
3.Connect the 20 ft RCA video wire of backup camera to the head unit of vehicle.
4.Start the vehicle and gear on reverse to test the camera.
5.Re-install the head unit.
The red wire of RCA video cable is reverse trigger cable. It is positive pole trigger. One connects to reverse light lamp power + or turn signal light power +; Another end connects to monitor trigger wire.(usually blue or green color wire)

?Features of Reversing Backup Camera:
? Easy to install
? Night vision
? IP68 Standard Waterproof

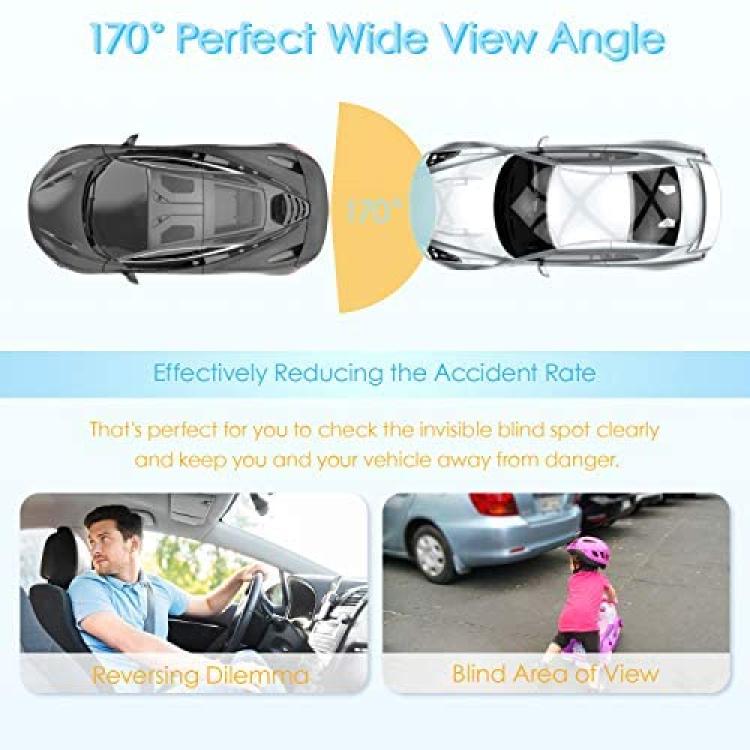

? 170 degree wide view angle, decrease blind zone accidents very well
? Wide compatible. Can be installed on most any car and without the need for any extra parts.

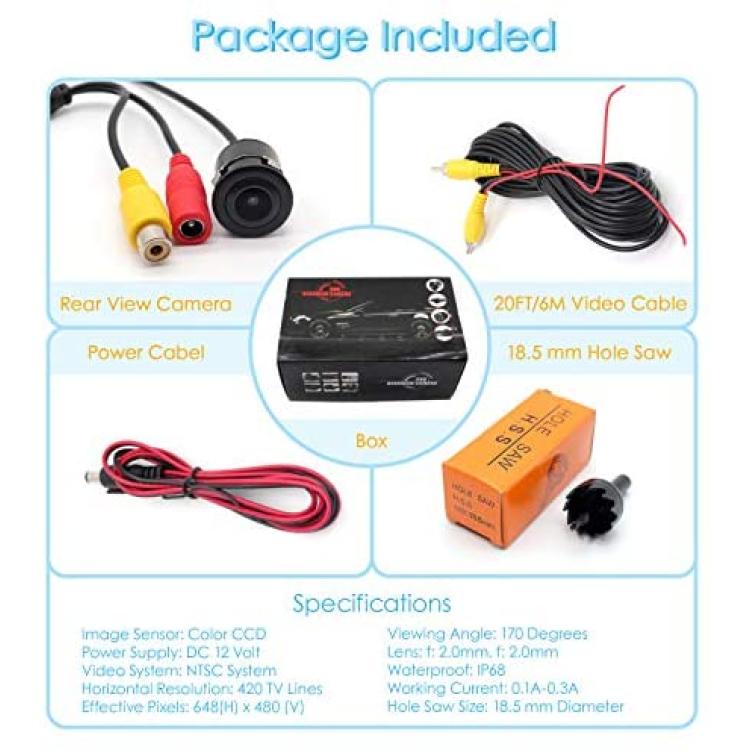

?Specifications?

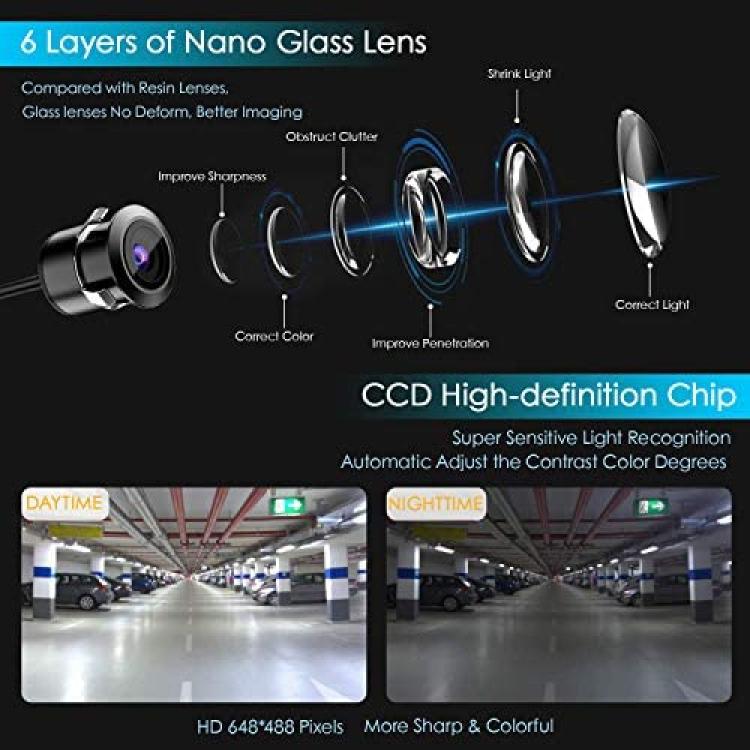

Image Sensor: Color CCD
Power Supply: DC 12 Volt
Video System: NTSC System
Horizontal Resolution: 420 TV Lines
Effective pixels: 648(H) x 488 (V);
Viewing angle: 170 degrees
Lens: f: 2.0mm, f: 2.0mm
Waterproof: IP68
Working current: 0.1A-0.3A
