Rear View Camera, 12V Backup Camera 4 LED Night Vision Waterproof 150° View Angle, HD Reversing Camera with Parking Guidelines Mirror Image, Universal for 12V Car/Minitruck/RV/SUV/Minivan/Camper
Availability: In Stock
About this product
*✅Wide Application✅ Our reversing backup camera is DC 12 voltage power, can universal fits most types of different length vehicles. Such as car, mini-truck, Jeeps, mini-van, RV, SUV, etc. As long as your head units or LCD/TFT display monitor supports standard RCA input and NTSC format. (Note: The camera is only support NTSC format system.)
Description

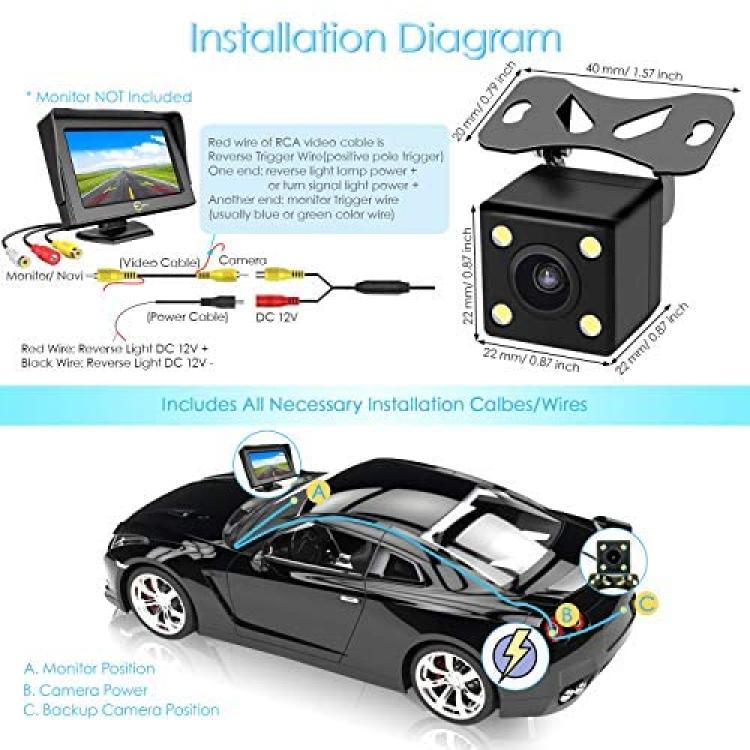

?Wiring Installation?
*Please test the rear view camera before routing 20ft video wire from back to front.
1. Find a flat surface(parallel to ground) for mounting camera,then secure the nuts and bolts in place.
2. Connect the power wire of parking camera to the DC 12V power of reversing light.
3. Connect the 20 ft RCA video wire of backup camera to the head unit of vehicle.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit.
The red wire of RCA video cable is reverse trigger cable. It is positive pole trigger. One connects to reverse light lamp power + or turn signal light power +; Another end connects to monitor trigger wire.(usually blue or green color wire)
?Features of Reversing Backup Camera:
? Easy to install
? 4 LEDs light for night vision

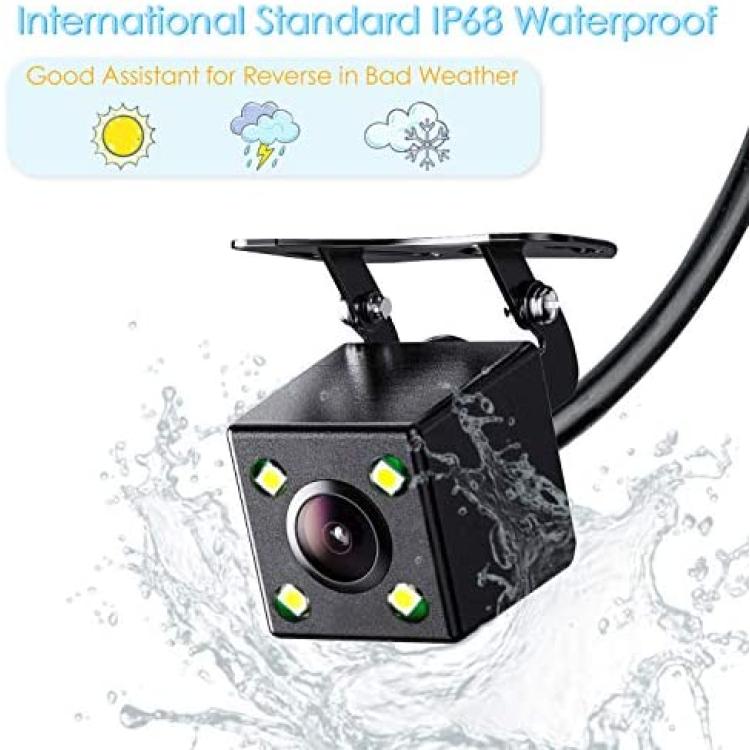

? IP68 Standard Waterproof
? 150 degree wide view angle, decrease blind zone accidents very well
? Wide compatible. Can be installed on most any car and without the need for any extra parts.
?Specifications?

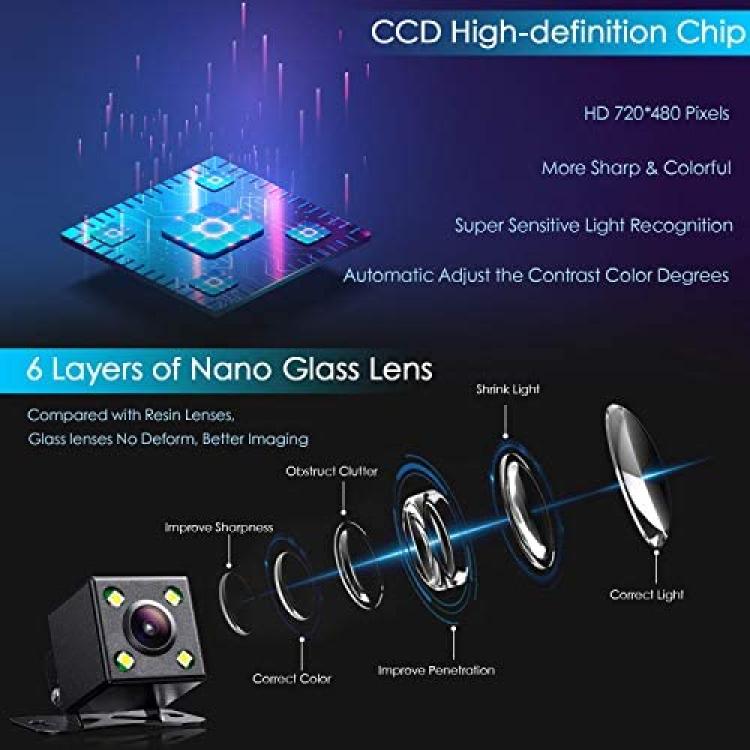

Image Sensor: Color CCD
Power Supply: DC 12 Volt
Video System: NTSC System
Horizontal Resolution: 420 TV Lines
Effective pixels: 648(H) x 488 (V);
Viewing angle: 150 degrees
Vertical adjustable angle: 140 degrees
Lens: f: 2.0mm, f: 2.0mm
Waterproof: IP68
Working current: 0.1A-0.3A

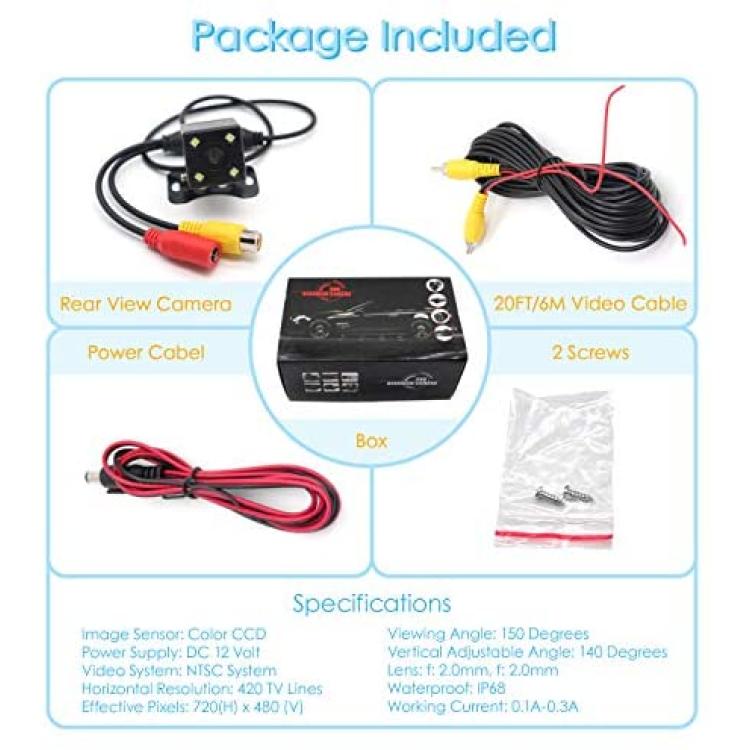

?Package Included
1 x Reversing Camera
1 x RCA Video Cable(20FT/6M )
1 x Power Wire(3FT/1M)
2 x Screw
1 x User Manual
