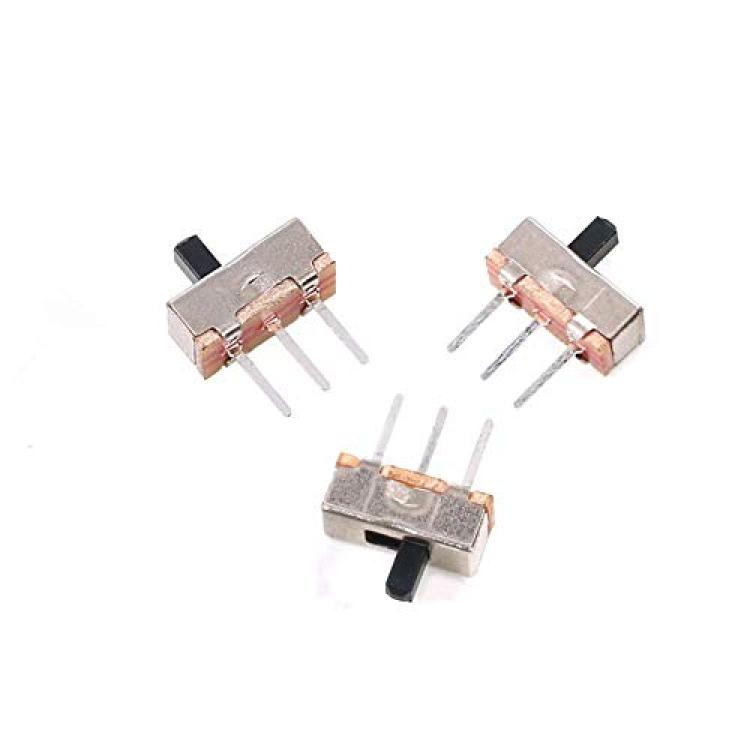

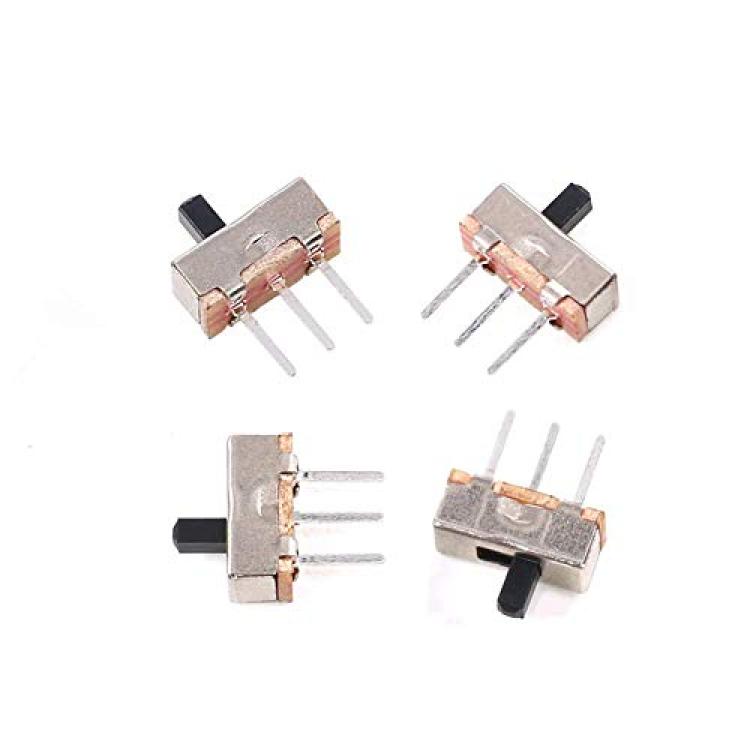

Qiying 100 Pcs SS12D00G3 2 Position SPDT 1P2T 3 Pin PCB Panel Mini Vertical Slide Switch 0.5 Amp, 50V DC

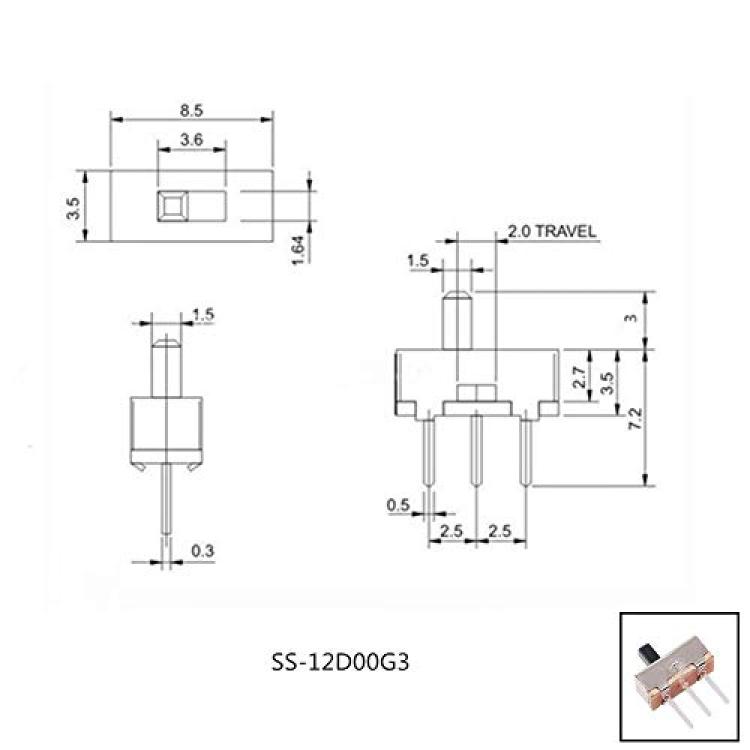

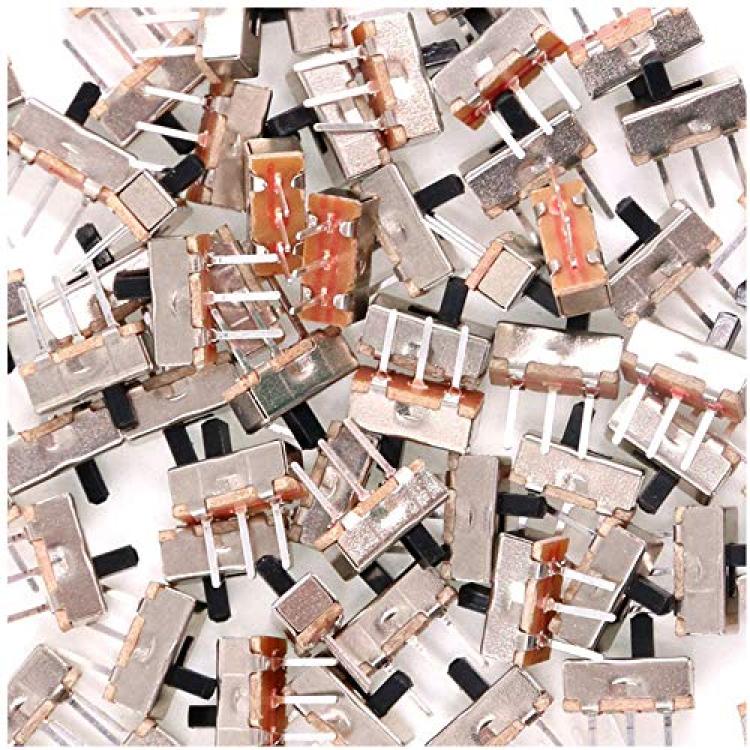

Product Name: Vertical Slide Switch; Model: SS12D00G3; Product Type: 2 position SPDT 1P2T 3 pin PCB panel mini vertical slide switch. Terminal Length: 3mm/ 0. 12"; Pin Pitch: 2. 5mm / 1"; Main Body Working Power: 0.5A 50V DC; Contact Resistance: 30m? Max; Insulation Resistance: 100m? Min at 500V DC; Withstand Voltage: AC 500V for 1 min? Size(not include Pins & Knob): 8.5 x 3.5 x 3. 5mm/ 0. 33" x 0. 14" x 0. 14"(L*W*H)? Knob Size: 1. 5 x 1. 5 x 3mm/ 0. 06" x 0. 06" x 0. 12"(L*W*H)? Switch Total Size: 8.5 x 3.5 x 10.2mm/ 0. 33" x 0. 14" x 0. 4"(L*W*H)? Main Color: Silver Tone, Black; ;Material: Plastic, Metal;Weight: 22g; Package Content: 100 Pcs(±2%) x Slide Switch ? High Knob 3P 2 Position 1P2T SPDT Vertical Slide Switch, 0.5 Amp, 50V DC, 50 Piece, G3 mm? Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. Also a great component for DIY.
