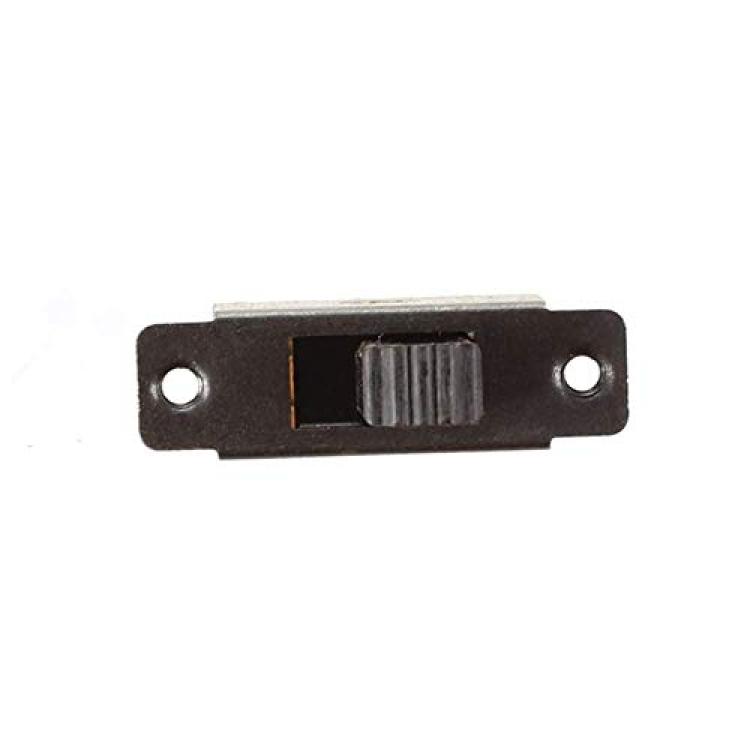

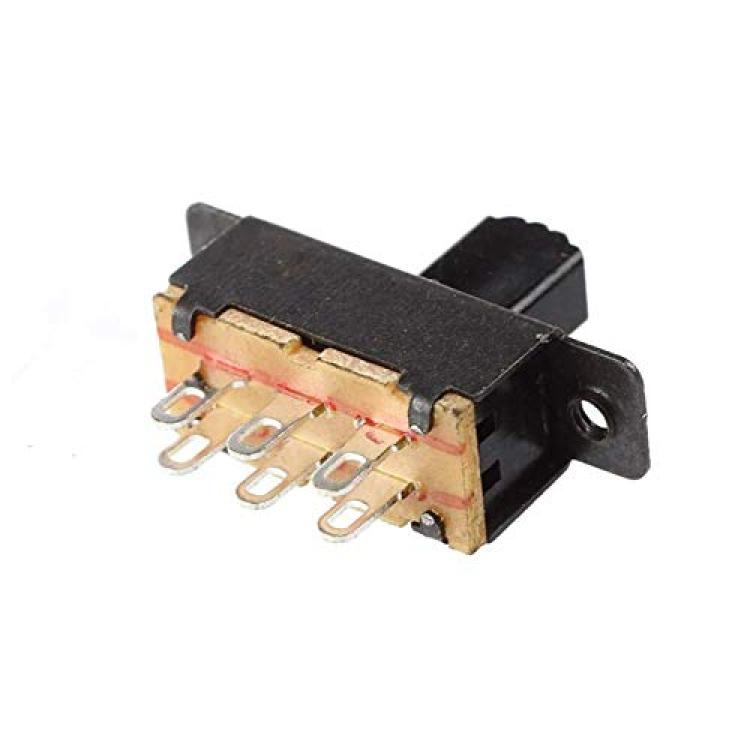

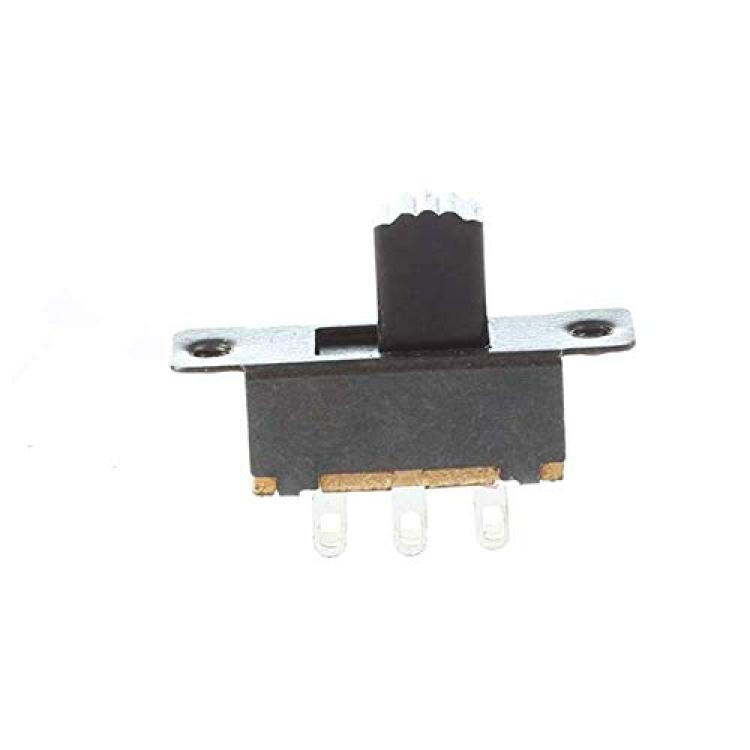

Qiying SS22F25-G7 2-Position DPDT 2P2T Panel Mount Mini Slide Switch Soldering Lug 20Pcs

Qiying SS22F25-G7 2-Position DPDT 2P2T Panel Mount Mini Slide Switch Soldering Lug 20Pcs

Product Code: HSM27026
Availability: Pre-Order, Inquiry Price

US$4.84

- +

For Bulk Order, Get Better Price.

About this product

*Product Name: Slide Switches; Model: SS22F25 G7; Action Type: DPDT; Position: 2 positions

*Number of Terminals: 6 Pieces; Operating Power: 0.5A 50V DC; Contact Resistance: 30mΩMax ；Lnsulation Resistance: 100mΩMin at 500V DC; Withstand voltage: AC 500V 1 minute; Terminal length: 4mm / 0.16"

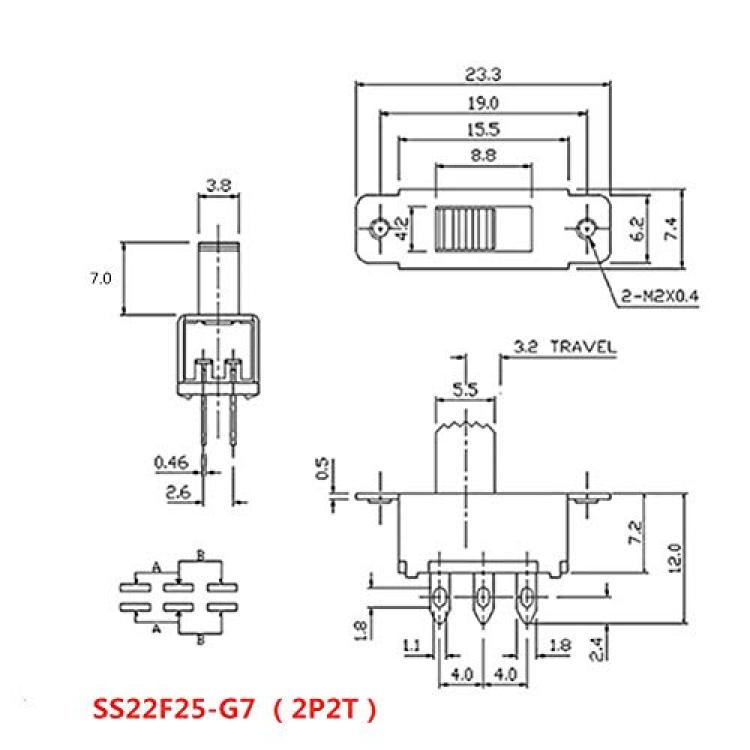

*Total Switch Size: 23.3 x 7.5 x 19mm / 0.9" x 0.3" x 0.75" (length * width * height); Knob size: 5.5 x 4.2 x 7mm / 0.21" x 0.17" x 0.28" (length * width * height)

*Material (external): Plastic, Metal; Main Color: Silver, Black

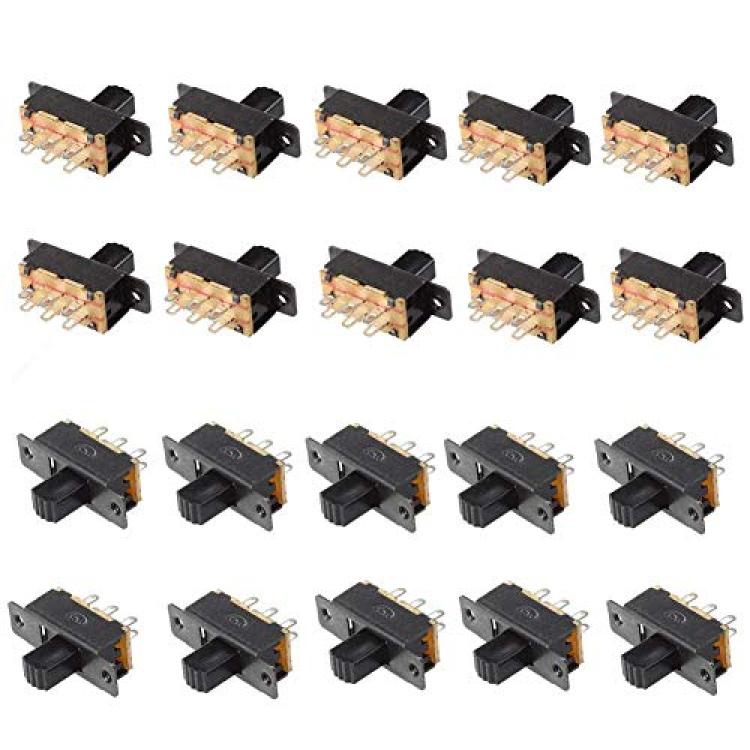

*Weight: 36 Grams; Package Content: 20Pcs x Toggle Switches

Description

Features: Simple structure, mini body, 6 terminals, vertical handle, 2 pole 2 position, sliding knob actuator. Widely used to control the operation of many low-power electronic projects, including the volume and other controls of the volume video, dimming control of the lamp. Etc. is also an important part of DIY.
