PP-NEST 10 Pieces 12mm Waterproof Push Button Momentary On Off Switch ANKG-01 (Black)

PP-NEST 10 Pieces 12mm Waterproof Push Button Momentary On Off Switch ANKG-01 (Black)

Product Code: HSM26857
Availability: In Stock

US$5.49

- +

For Bulk Order, Get Better Price.

About this product

*Constantly press it: on; release it: off.

*Color: Yellow, Blue, Red, Black, Green,Orange,White.

*Rated current and voltage:3A/125V AC; 1A/250V AC.

*Contact resistance: less 50mΩ. Insulation resistance: over 100mΩ.

*Commonly used as vehicle horns, ignition switch and for doorbells. Ideal for car boat outdoor project.

Description

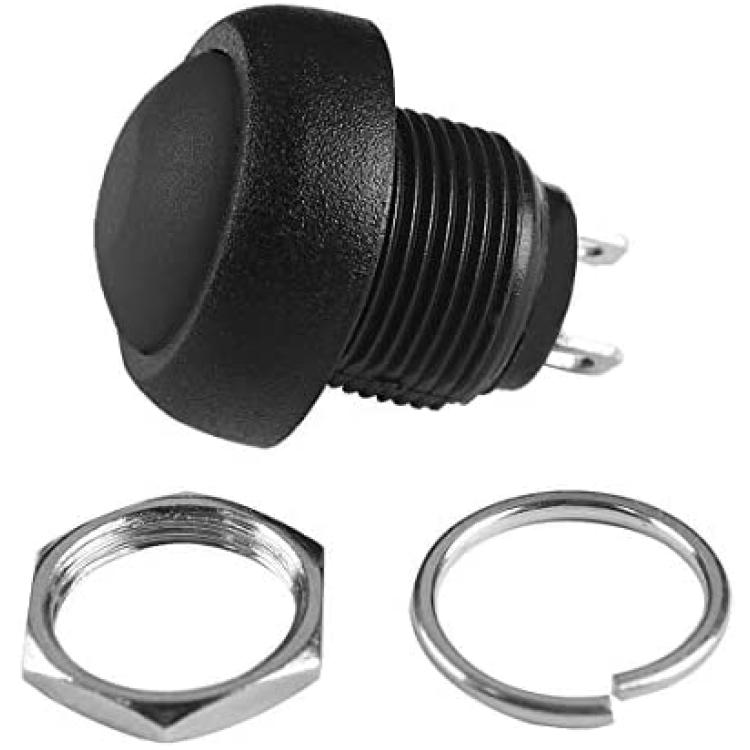

Waterproof Push Button Mini Round Switch
Color: Yellow, Blue, Red, Black, Green,Orange,White.
Quantity: 10 pieces

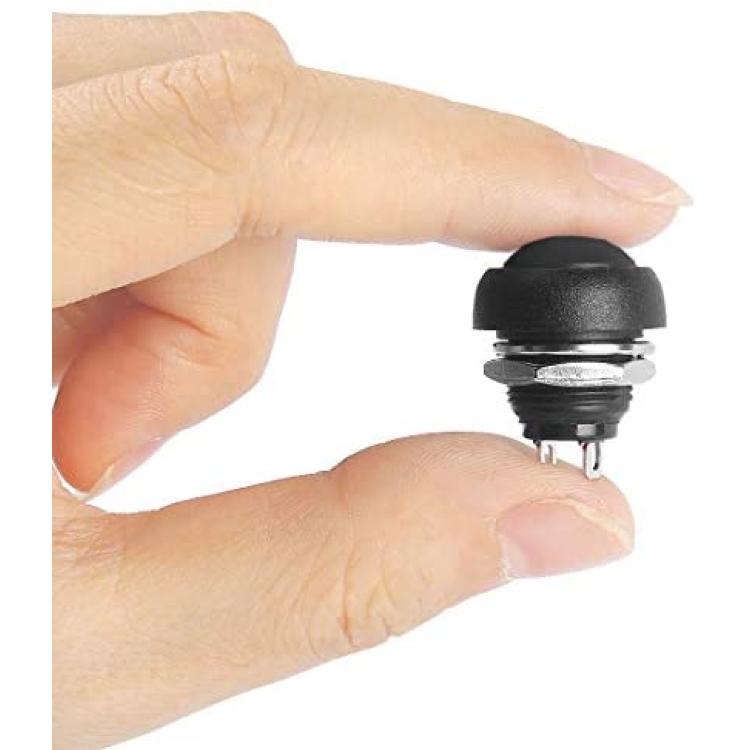

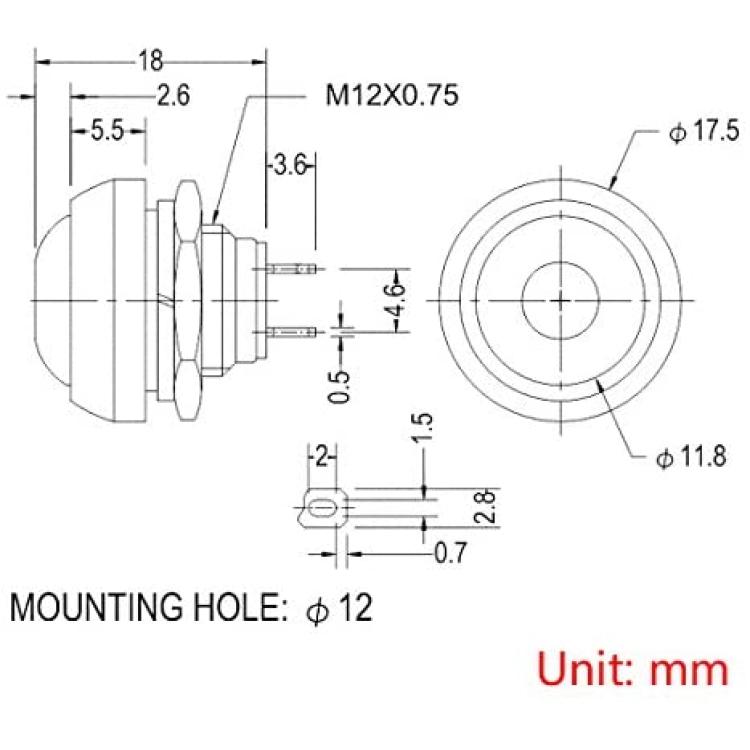

Mounting hole: Approx. 12mm
Rated current and voltage:3A/125V AC; 1A/250V AC
Dielectric Intensity: 1500VAC/1min
Life: >10000 Cycles
Contact type: NO
Work type: Push to ON(OFF-ON)
Environmental Temperature: -25 ? +85 ?
Contact Resistance: <50m?
Insulation Resistance: >100m?
Product Name: Push Button Switch; Action Type: Momentary

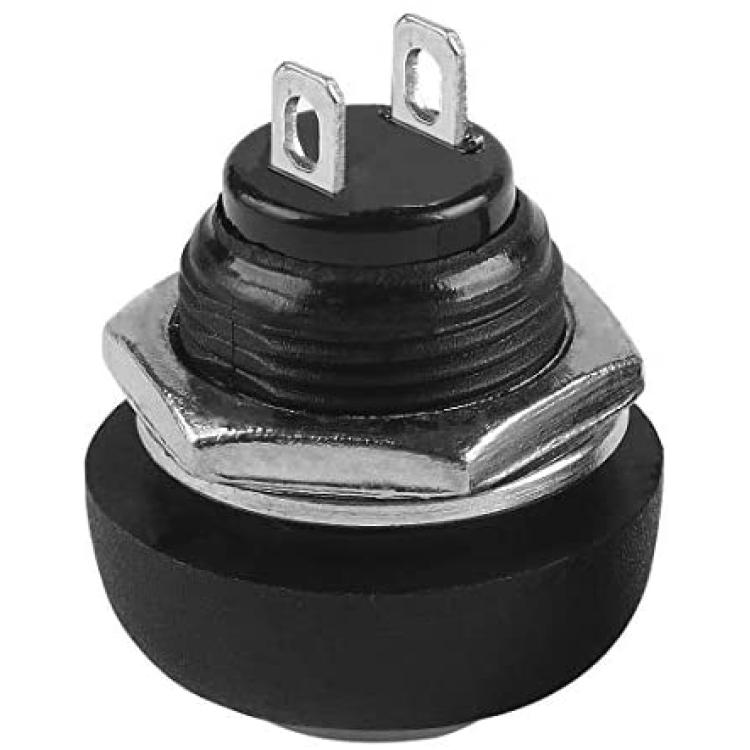

The terminals are very small, need to be very careful when soldering the wires on to them.

Package included:

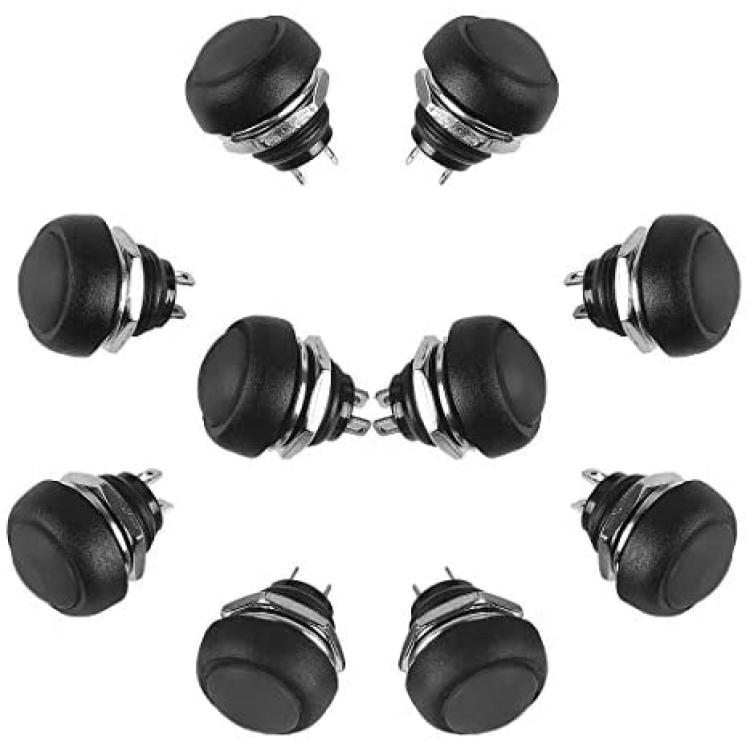

10 x Push buttons
