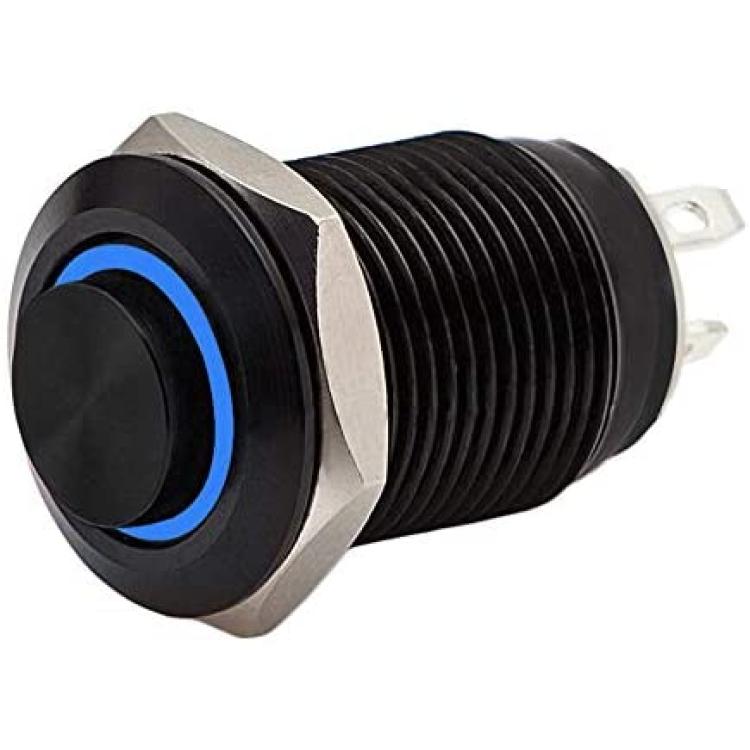

12mm 1/2'' Momentary Push Button Switch 1NO SPST Black Metal Shell LED Ring Light Waterproof Toggle Switches (Blue Light)

Package include :
1* Push Button Switch
1* 1.2K? resistance

Momentary Switch:
When the finger presses the button, the switch opens, when the finger release button, the switch automatically reset, switch off.

Momentary Switch Application :
Widely use for inside & outside Car/Motorcycle/Boat/Yacht(Such as critical lights, chassis lamp, fog lamps),circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls

Note:

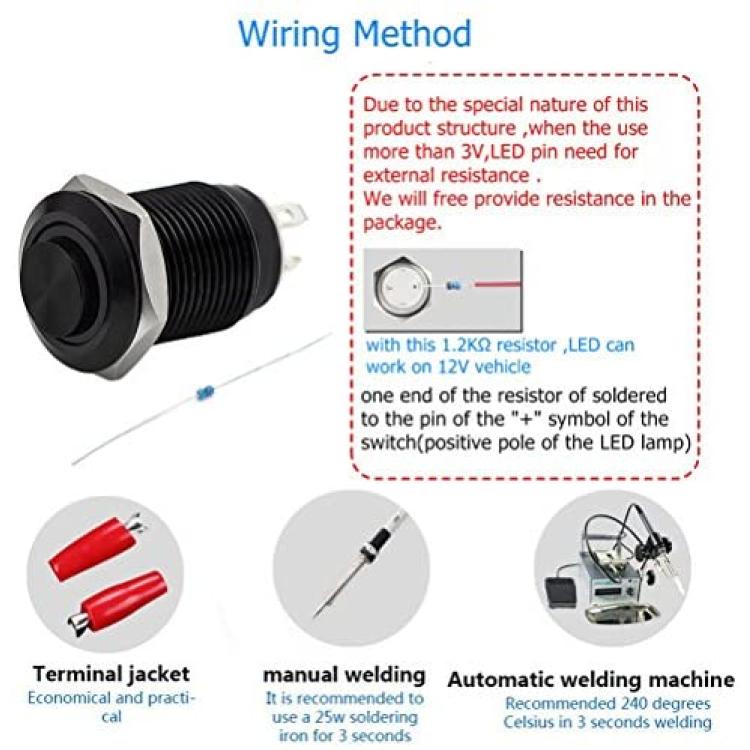

***Due to the special nature of this product structure ,when the use more than 3V,LED pin need for external resistance .We will free provide resistance (1.2K?)***

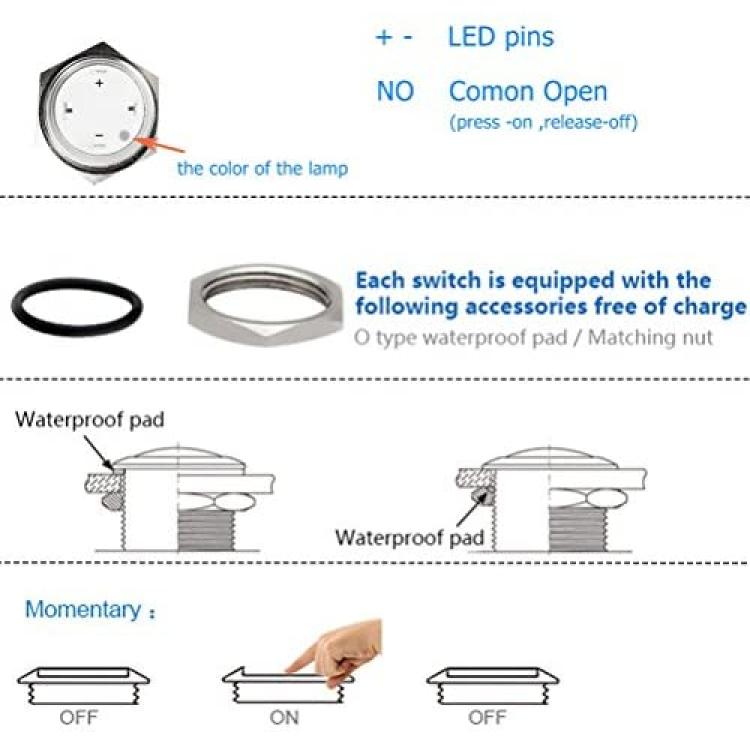

-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out

Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you

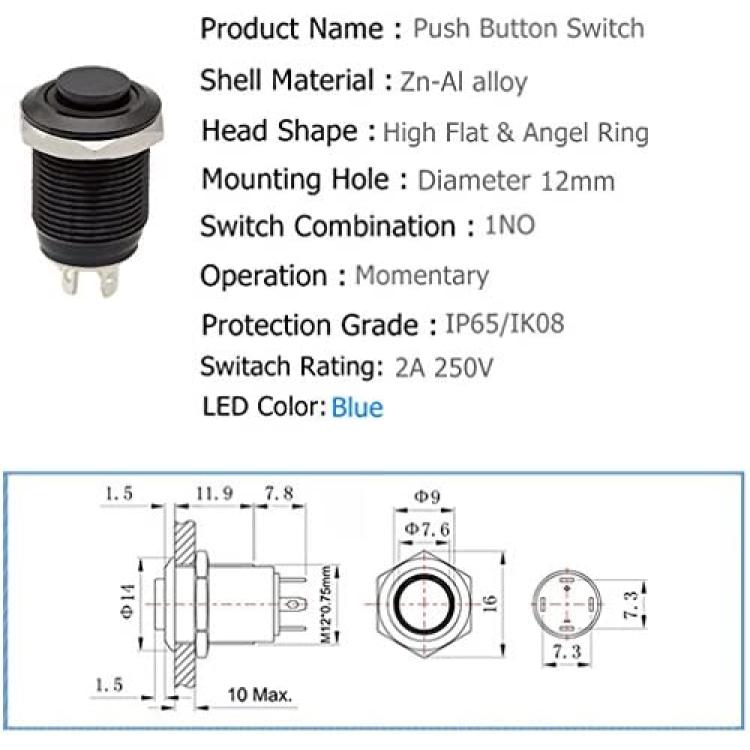

Specifications:
Head Diameter: 14mm
Mounting Hole Size: 1/2" (12mm)
Switch Combination: 1NO
Operation Types: Momentary
Switch Rating: 2A/250VAC
LED Rating: 15mA, AC/DC 3V
Head Shape:High Flat & Angel Ring Light
Enclosure Material: Zn-Al Alloy
LED Ring Color:Blue
