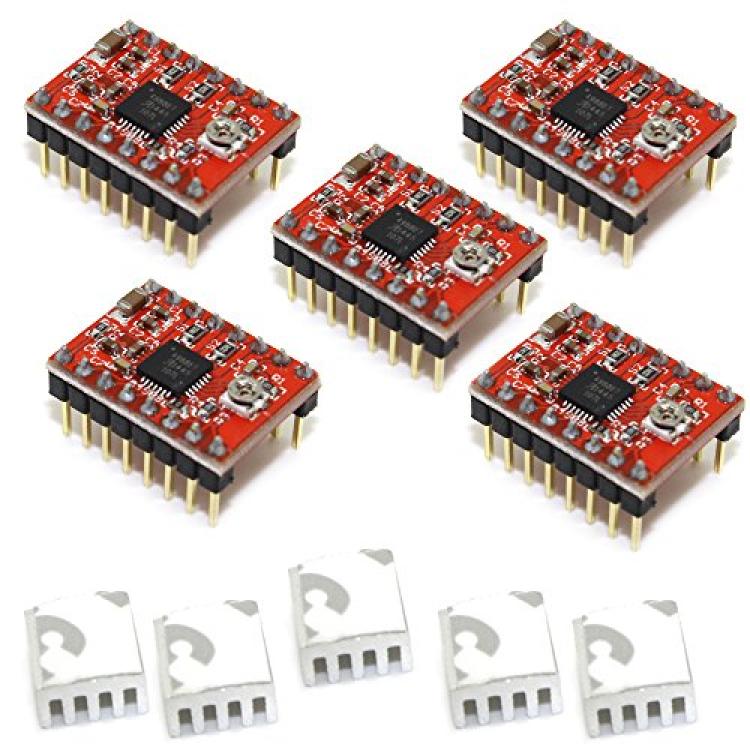

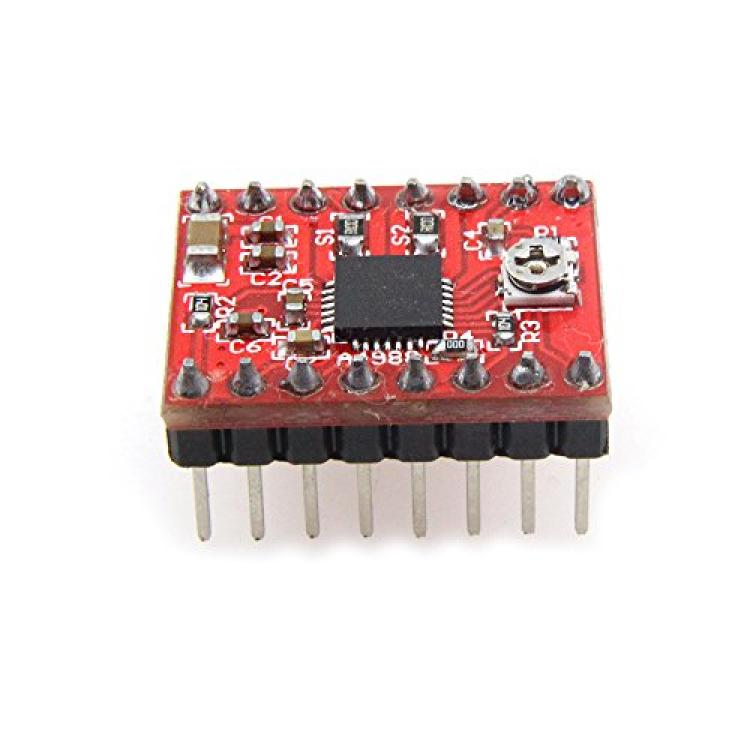

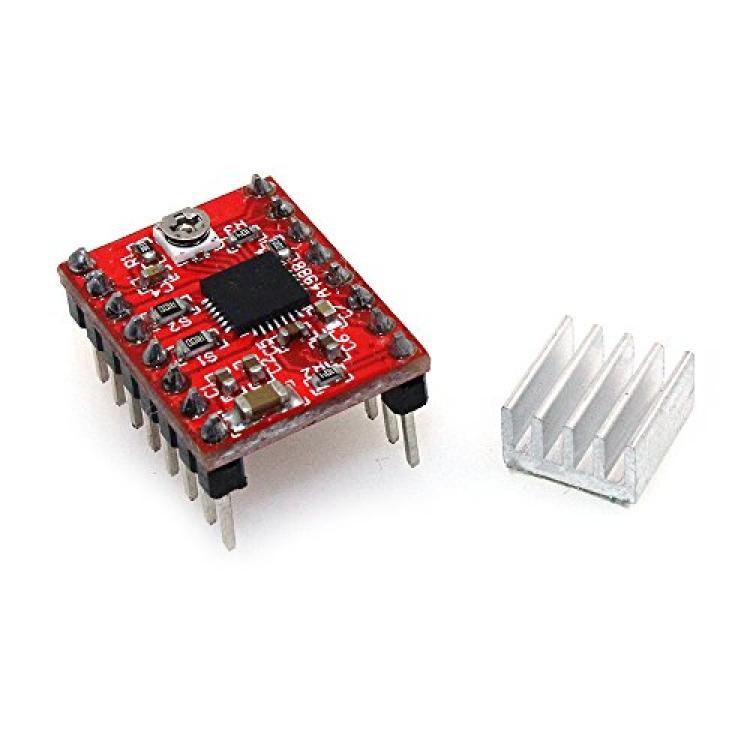

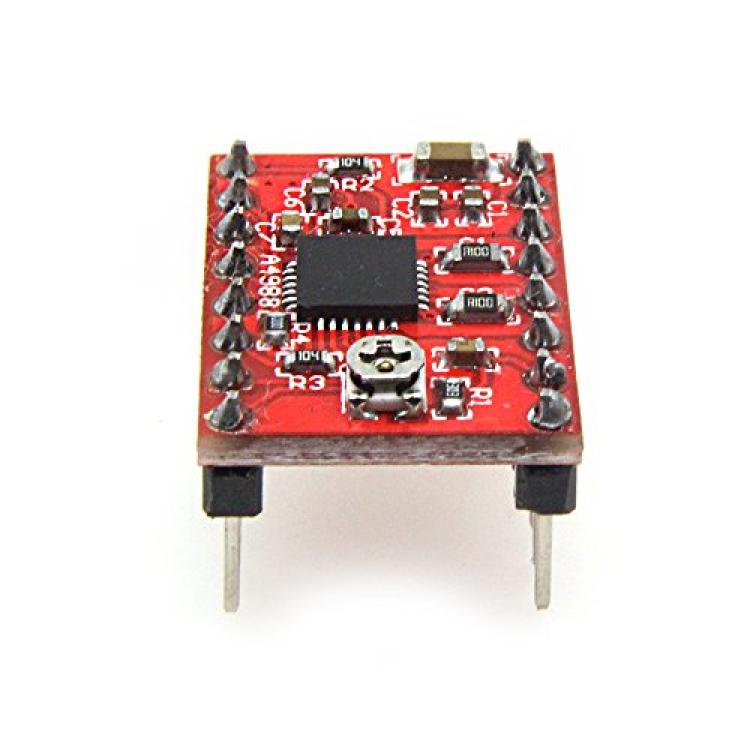

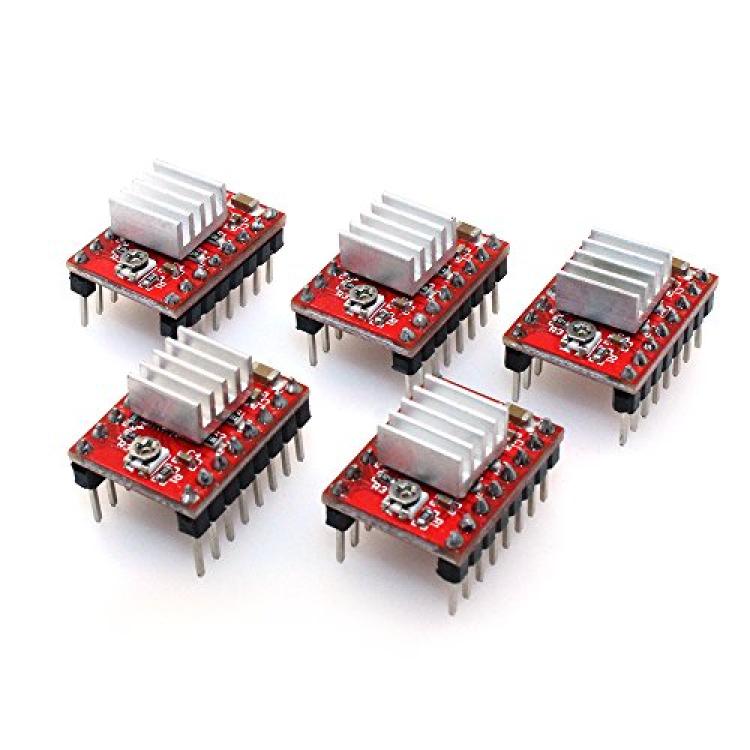

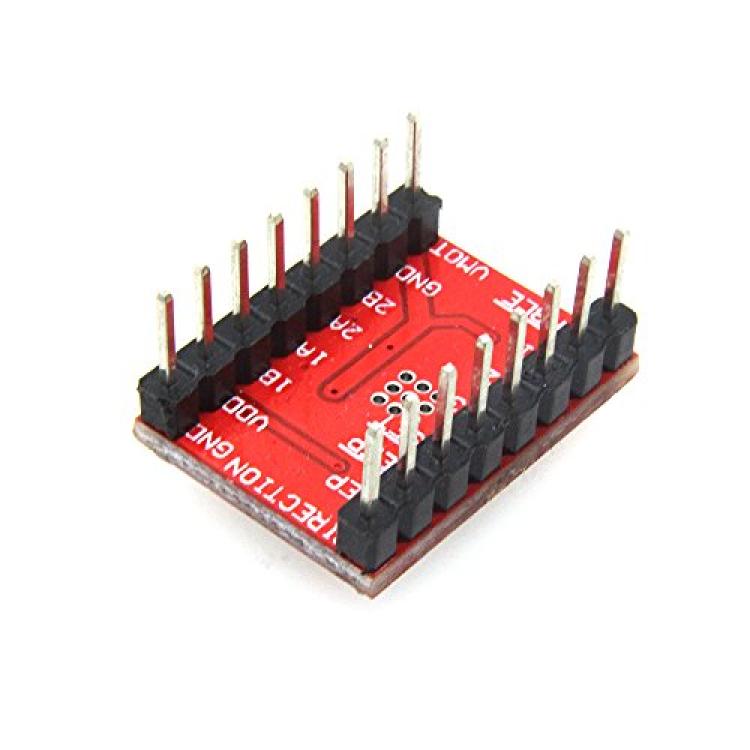

BIQU A4988 Compatible StepStick Stepper Motor Diver Module with Heat Sink for 3D Printer Controller Ramps 1.4(Pack of 5pcs)

BIQU A4988 Compatible StepStick Stepper Motor Diver Module with Heat Sink for 3D Printer Controller Ramps 1.4(Pack of 5pcs)

Product Code: HSM26818
Availability: Pre-Order, Inquiry Price

US$4.99

- +

For Bulk Order, Get Better Price.

About this product

*A4988 driver board widely used in 3D printers and small CNC machines

*Simple step and direction control interface

*Thermal protection, over-current protection, ground fault protection

*Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step

*Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage toachieve higher step rates

Description

Specifications:
Size:
A4988:20*15*11mm(LWH)
Heat Sink: 9*9*5mm(LWH)
Weight: 0.8ounces
Color: Red

Features:
-Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
-Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
-Automatic current decay mode detection / selection
-Internal UVLO
-Mixed with slow current decay modes
-Synchronous rectification for low power dissipation
-Crossover-current protection
-Thermal shutdown circuitry
-3.3 and 5 V compatible logic supply
-Thermal shutdown circuitry
-Ground Fault Circuit
-Load short-circuit protection
-Of five optional step mode: full, 1/2, 1/4, 1/8 and 1/16

Package Included:
5*A4988 StepStick Stepper Motor Diver Module
5*Heat Sink
