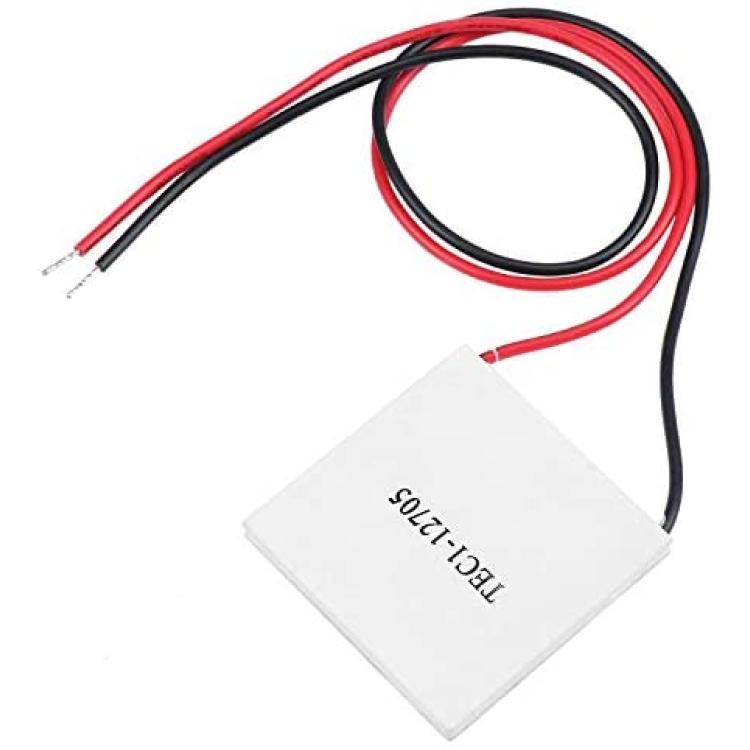

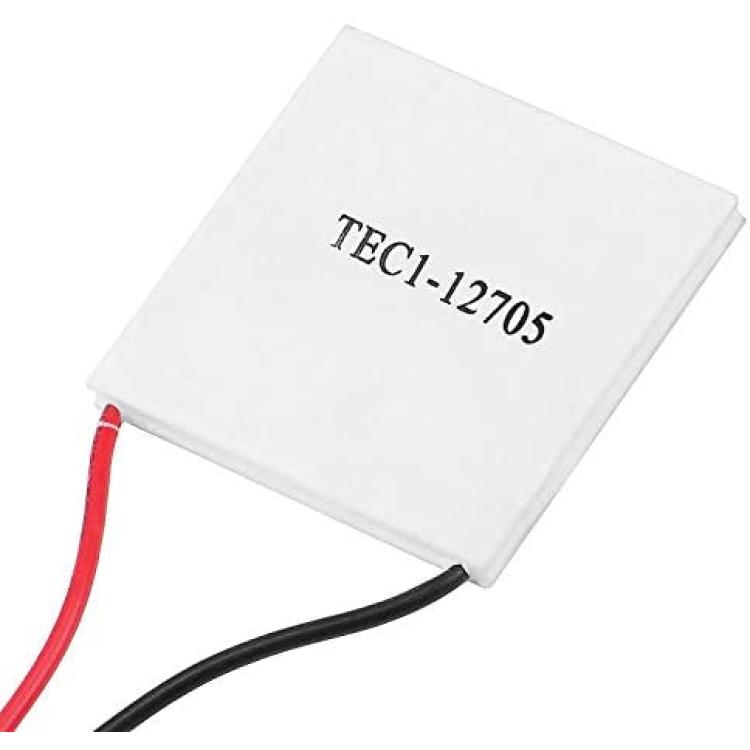

WiMas 5PCS Thermoelectric Cooler Peltier TEC1-12705 12V 5A 45W Heat Sink Cooling Peltier Module 40x40mm
About this product
*Noise-free,solid state,vibration free,precise temperature control.
*Easy to install and operate.Compact structure, small in size, light in weight.
*Perfect for cooling down semiconductor devices.
*Reverse the polarity to get device cold in minutes or heat.
*Used for many situations from CPU coolers to alternate power sources. Suitable for Portable cooler box for cars,scientific instrument, medical systems.
Description
Used for many applications from CPU coolers to alternate power sources. Great for your own custom car drink warmer/cooler as well
Features:
- It heats one side while simultaneously cooling on the other.
- You can use multiple ones in series or parallel.
- You may glue (use thermal glue) it right on to the chip or whatever you want.
- You can reverse the polarity and thus switch which side gets cold and which gets hot.
Specification:
- Model: TEC1-12705

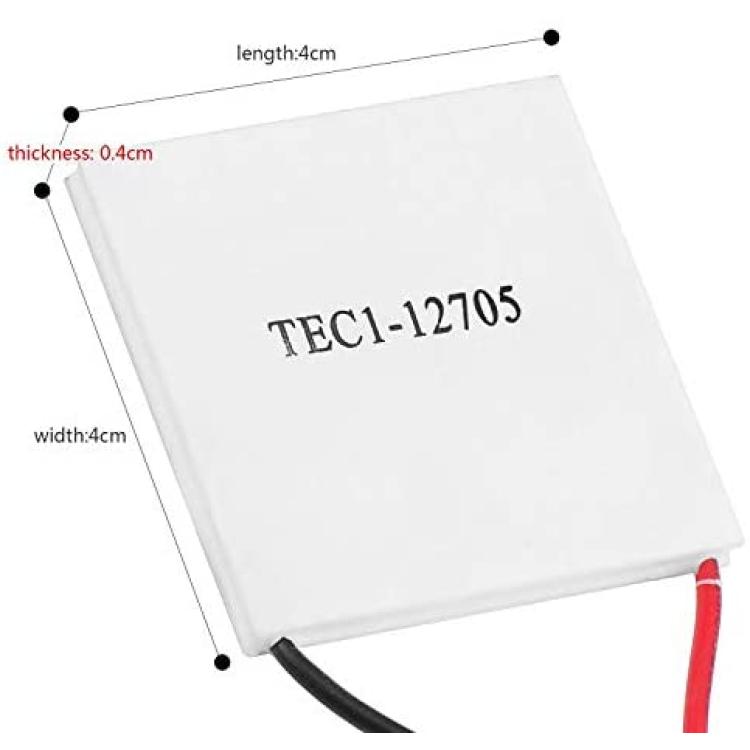

- Size: Approx. 40mm x 40mm x 4mm
- Voltage: DC 12V
- Max Power: 45W
- Imax (A): 5A
- Power Cord : 300mm
- Red wire to the positive, black wire to the negative
How to Use:
Prepare five things, Thermoelectric Cooler + heatsink + Grease + potholder + power.
Coated with silicone grease on both sides of the thermoelectric cooler.
Place the thermoelectric cooler on a heat sink with a potholder in the middle.
Tighten the screws. Powered, and it starts cooling.
Please Note:
- When installing, please pay attention to clean and flat surfaces
- Use only with the use of thermal grease
- Only in combination with a sufficiently dimensioned heat sink
Packing Contain:

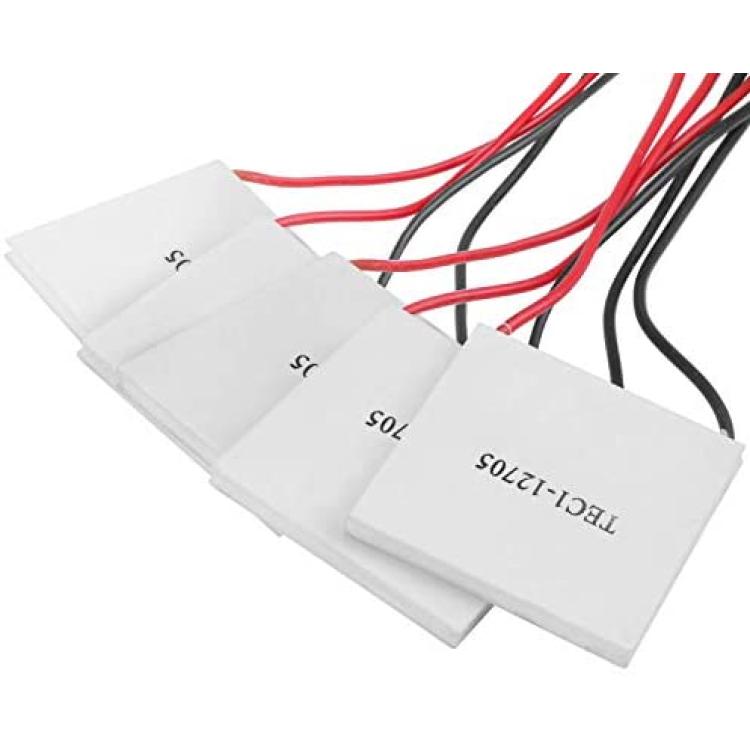

5PCS x TEC1-12705 Thermoelectric Cooler
