1.14in 8Pin ST7789 TFT Display Screen Module IPS Electronic Components Smart LCD Module Display for Arduino
Availability: In Stock
About this product
*The display screen simply perfect compatible 3.3 V IO - Level, support a variety of single chip paper connectivity and is professional and practical.
*The pin has good contacting performance which can ensure stable working. It has1.14 in screen which can provide clear view for you.
*The display screen adopts great workmanship and is easy and convenient to install. There is EPE inside to protect the screen module.
*The display screen is made of premium material, this lcd module display is sturdy, not easy to aging and abrasion resistant, to ensure maximum strength and durability for long lasting usage.
*We strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.
Description
Specification:
Condition: 100% Brand new
Item Type: Screen Module
LCD Size: 1.14 Inches
Resolution: 135x240 (adjustable display orientation, both horizontal and vertical)
LCD Color: Full Color
Interface Type: 4-Wire SPI Interface
Control Chip: ST7789
Working Temperature: -20? ~ 70?
Working Power: 3.3V
Number of Pins: 8P

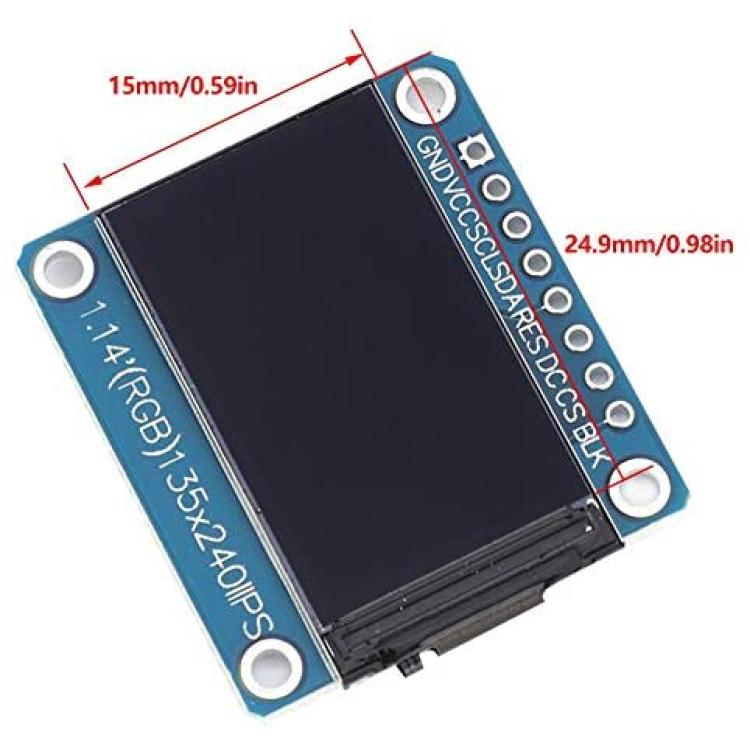

Display Area: 14.864x24.912mm

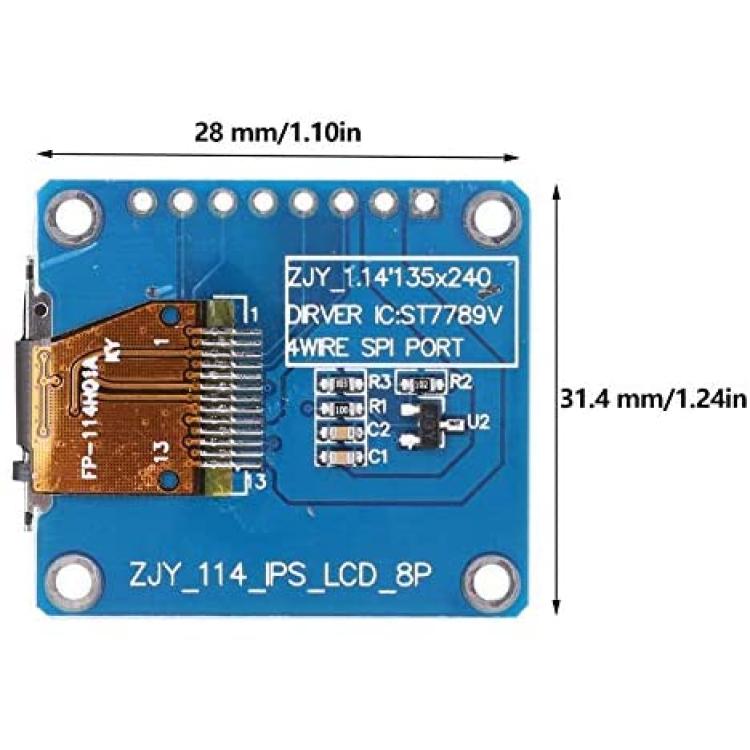

Size: Approx. 28 x 31.4mm / 1.1 x 1.2in
Viewing Direction: Full View (IPS)

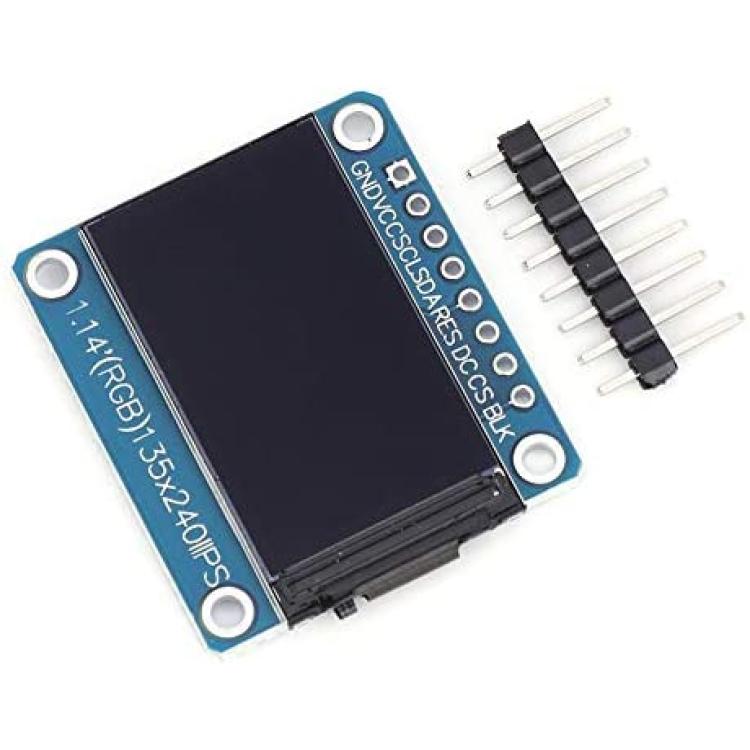

Package List:
1 x Screen Module
1 x 8Pin Header Connector
 Pin Definition:
1 GND
2 VCC
3 SCL
4 SDA
5 RES
6 DC
7 CS
8 BLK
