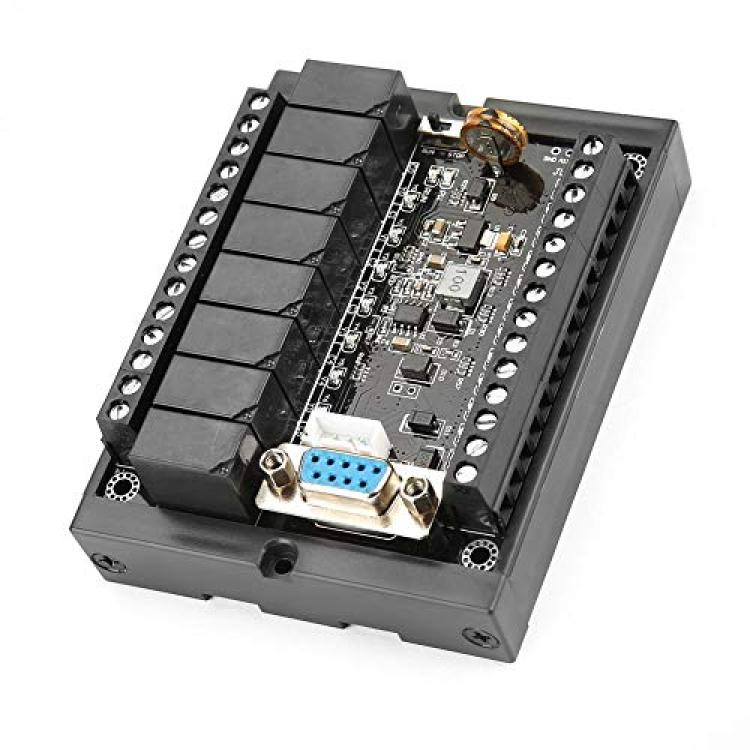

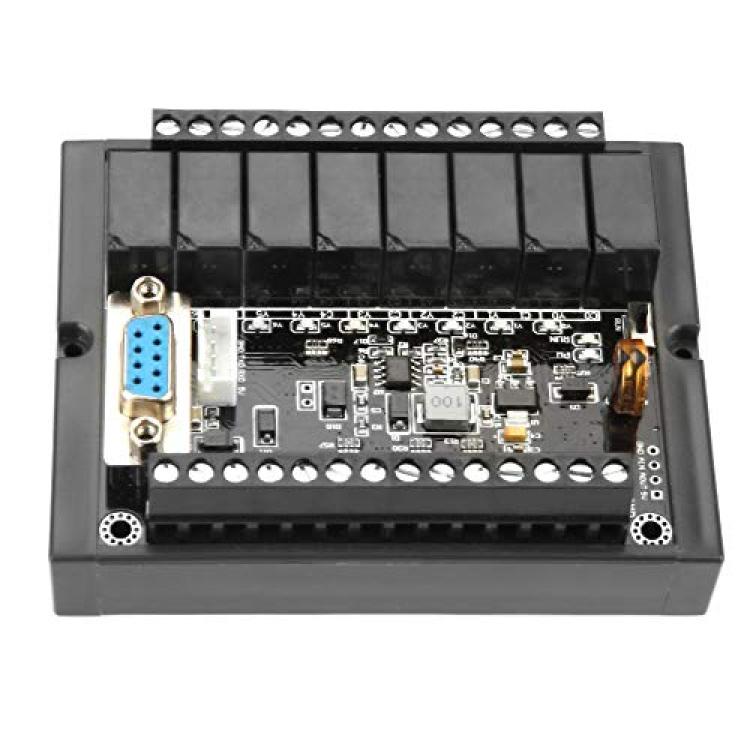

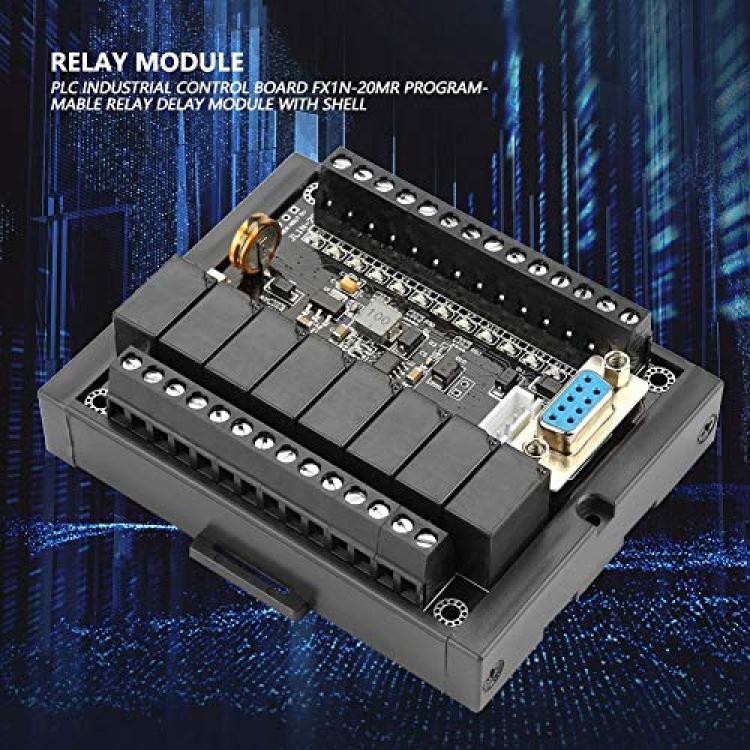

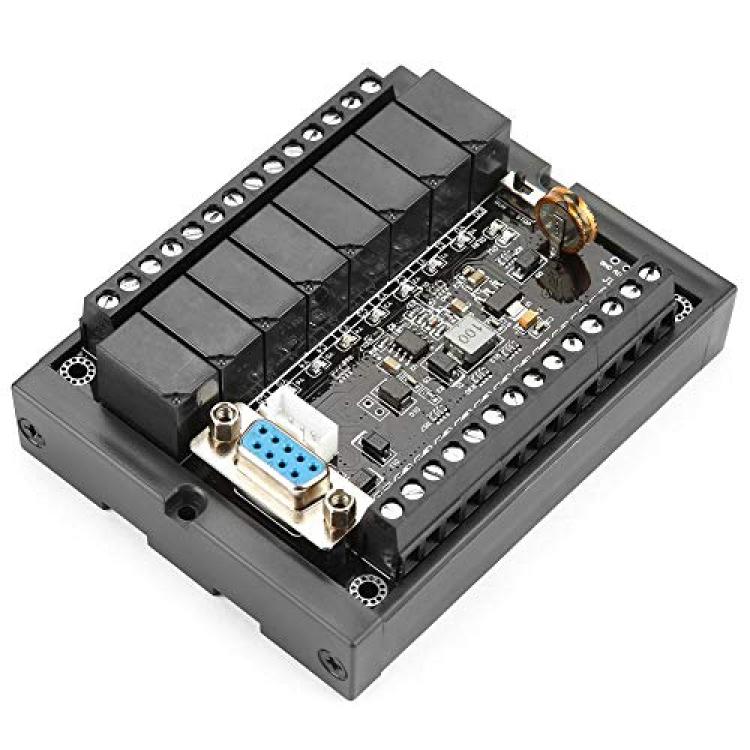

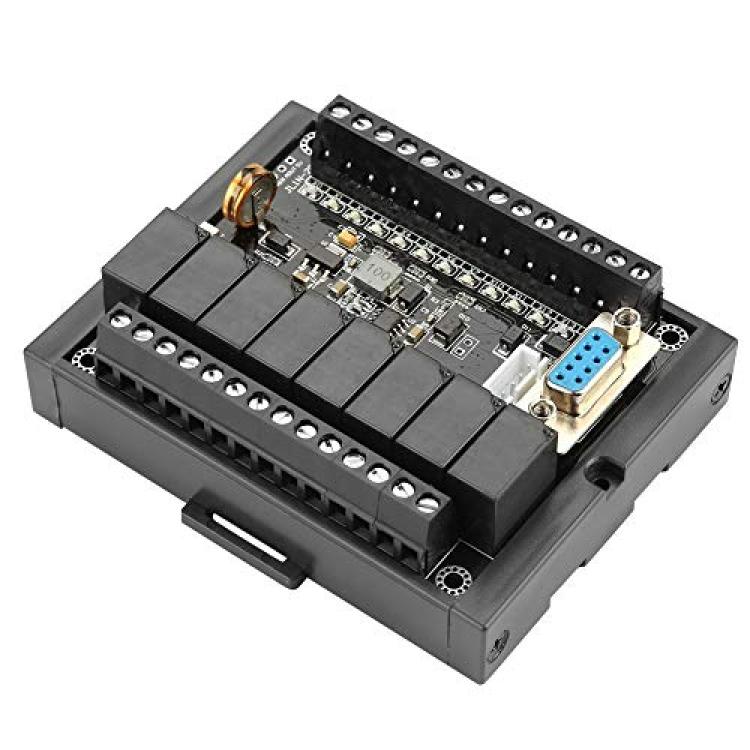

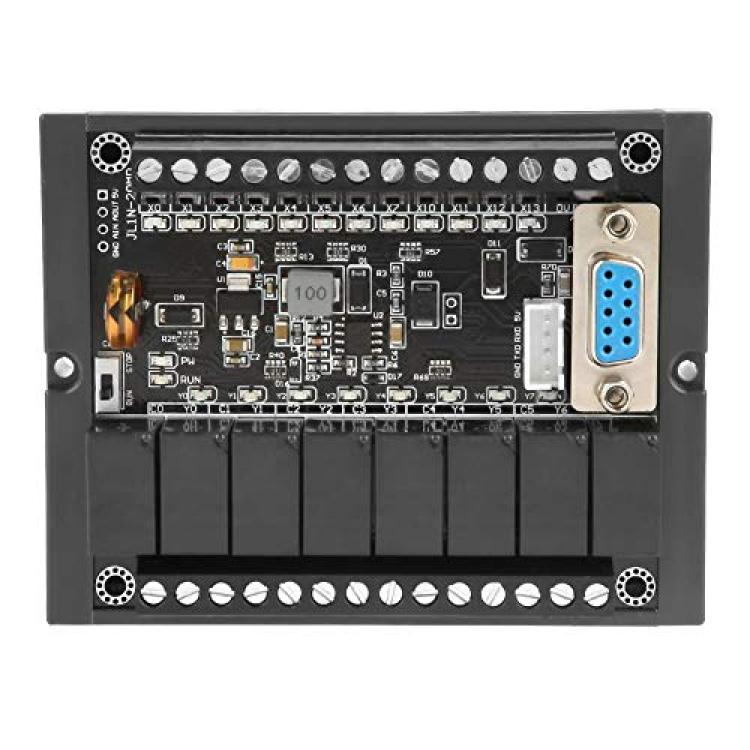

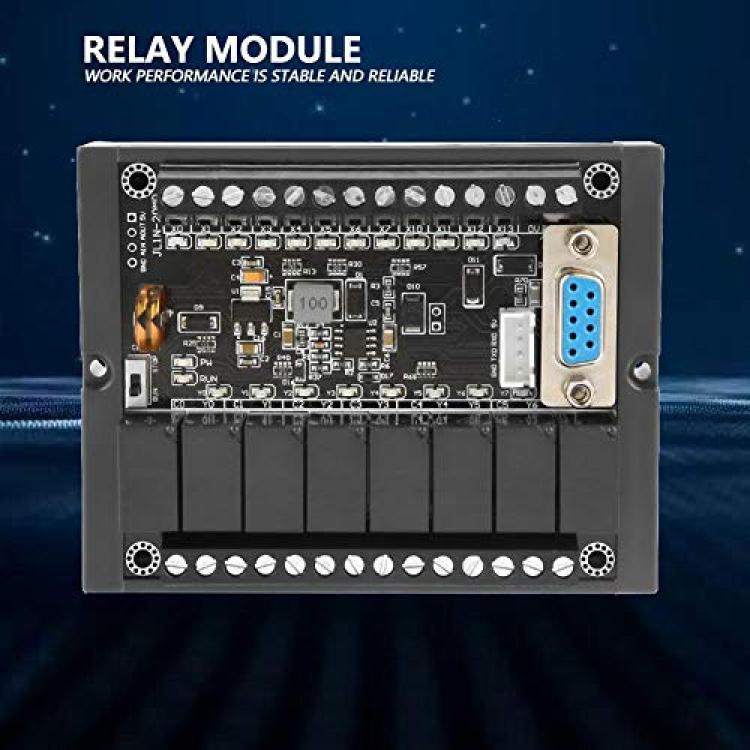

Relay Module, PLC Industrial Control Board FX1N-20MR Programmable Delay Modules with Shell

Relay Module, PLC Industrial Control Board FX1N-20MR Programmable Delay Modules with Shell

Product Code: HSM22054
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*★ High quality: high quality chip, small size, stable performance, online download, online monitoring, automatic saving when power is off.

*★ Support function: This module is programmable and can realize thousands of functions. Built-in timing circuit can effectively guarantee the long-term operation of the module.

*★ Communication: Support ladder logic programming language programming, download and monitoring.

*★ Powerful: The programmable logic controller adopts industrial grade 32-bit MCU, which has strong anti-interference ability and faster speed.

*★ Multi-purpose: Wide range of applications, can be used in a variety of industrial automation control applications.

Description

Specification:
Condition: 100% Brand New
Model: FX1N-20MR
Power Supply: 10-28VDC
Working Voltage: 24VDC
Weight: Approx. 165g / 5.8oz

Function:
1. Turn on the power, the relay 1 is closed after N seconds of closing; then the relay 2 is closed after N seconds of closing.
2. Turn on the power, the relay 1 is turned off after N seconds of closing; then the relay 2 is turned off after N seconds, and then cycles.
3. When the power is turned on, the relays 1 and 2 are not activated. When there is a signal or a button is triggered, the relay 1 is turned off after N seconds is closed; then the relay 2 is turned off after N seconds and then turned off until the next trigger, repeating the same action. By programming the signals 1, 2, any control of the relays 1 and 2 can be achieved.
4. When signal 1 has a signal, relay 1 is closed and relay 2 is turned off; 5. When signal 2 has a signal, relay 1 is turned off and relay 2 is closed.
6. Only the NPN sensor signal can be connected, and the sensor signal can be programmed to realize any control of the relay.
7. When signal 1 has a trigger, control relay 1; when signal 2 has a trigger, control relay 2.
8. Turn on the power, control the motor to rotate for N seconds, then reverse N seconds, and cycle.
9. When the signal 1 has a signal, the motor is controlled to rotate forward; when the signal 2 has a signal, the motor is reversed.

Package List:
1 * Relay Module
