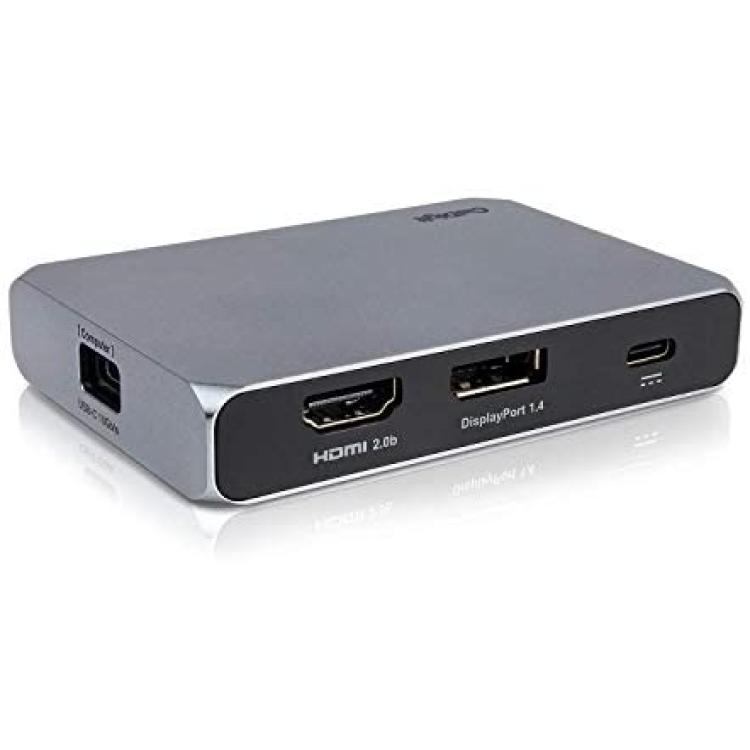

CalDigit USB-C Gen2 10Gb/s SOHO Dock - Up to 4K 60Hz, HDMI 2.0b, HDR, DisplayPort 1.4, 10Gb/s USB A & USB C, UHS-II microSD and SD Card Readers, Bus Power and Passthrough Charging Support

The USB-C SOHO Dock has the ability to be bus-powered, making it an ideal solution for users that need to expand their connectivity on the road. This is ideal for photographers, or anyone that needs to access SD cards and USB devices in the field, with the flexibility of offering a full desktop docking solution if needed. The USB-C SOHO Dock’s dual video connectors and pass-through charging capability make it an ideal desktop docking solution for creative professionals looking to expand their laptop’s connectivity in an elegant, all-in-one solution.

System Requirements

Dimension and Weight

Power: Type-C Powered or Bus-Powered

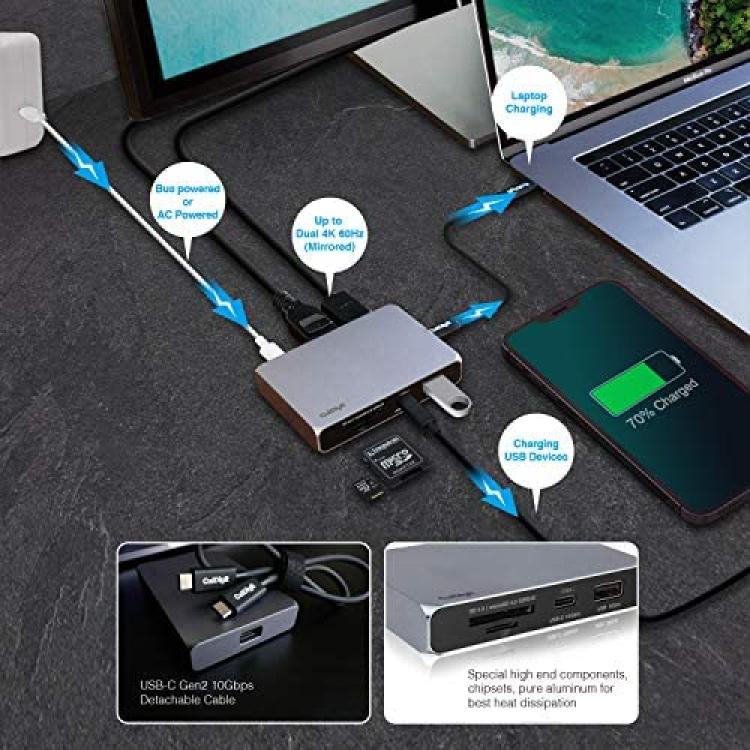

Type-C Host Charging: Type-C Host Charging: Up to 90W host charging when using a 100W Type-C Charger¹ | Supports Type-C chargers from 18W

In the box: 1 x USB-C SOHO Dock | 1 x USB-C Cable (0.5m)

¹The power supplied to your laptop will vary based on the wattage of the charger you use and how many USB devices you have connected. Power is shared by all USB ports and adjusted based on connected devices. Windows laptops with proprietary charging, or ports without power delivery, will not provide laptop charging. Type-C charger is not included. The charger must be connected to the Power Delivery port. Type-C chargers with a power delivery under 18W are not compatible. Use of Type-C chargers over 100W will not charge your laptop faster as USB-C Power Delivery specification is limited to 100W.

²In order to output at 4K 60Hz, your computer must support DP 1.4 (HBR3).

The following Macs & iPad can support DP 1.4 (HBR3):

15” MacBook Pro from 2018

16” MacBook Pro from 2019

13” MacBook Air from 2020

13” 4-port MacBook Pro from 2020

iMacs from 2019 with AMD graphics

Mac Pro from 2019

Apple Silicon Macs from late 2020

iPad Pro

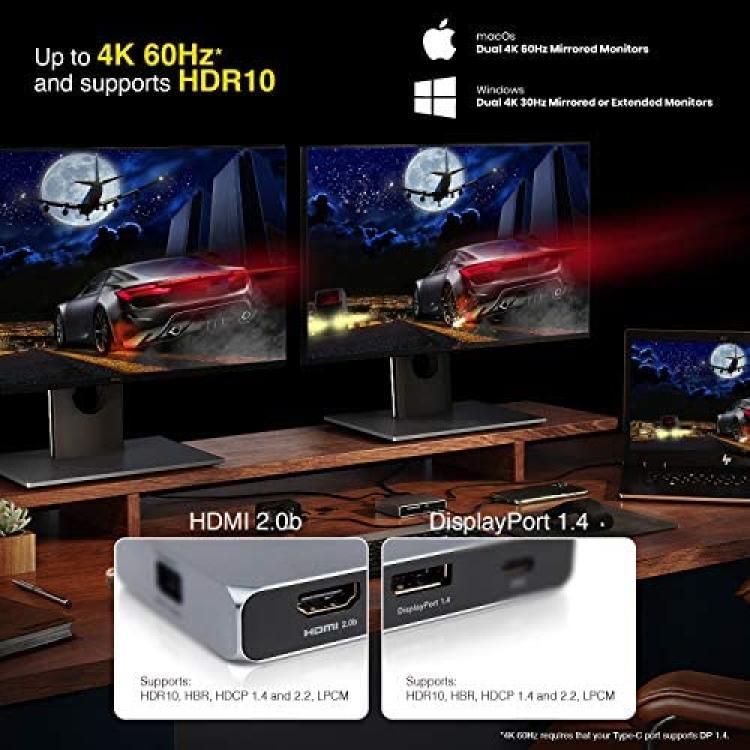

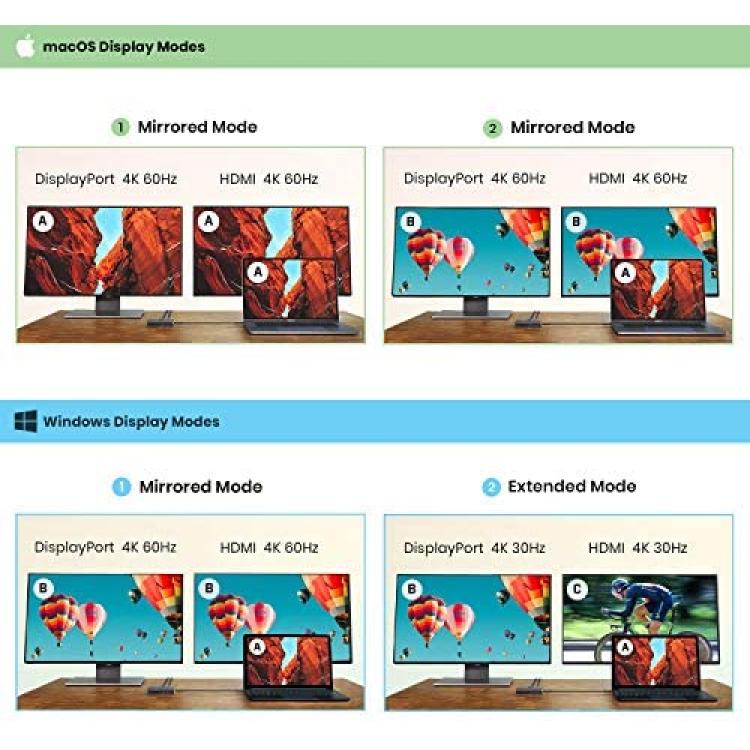

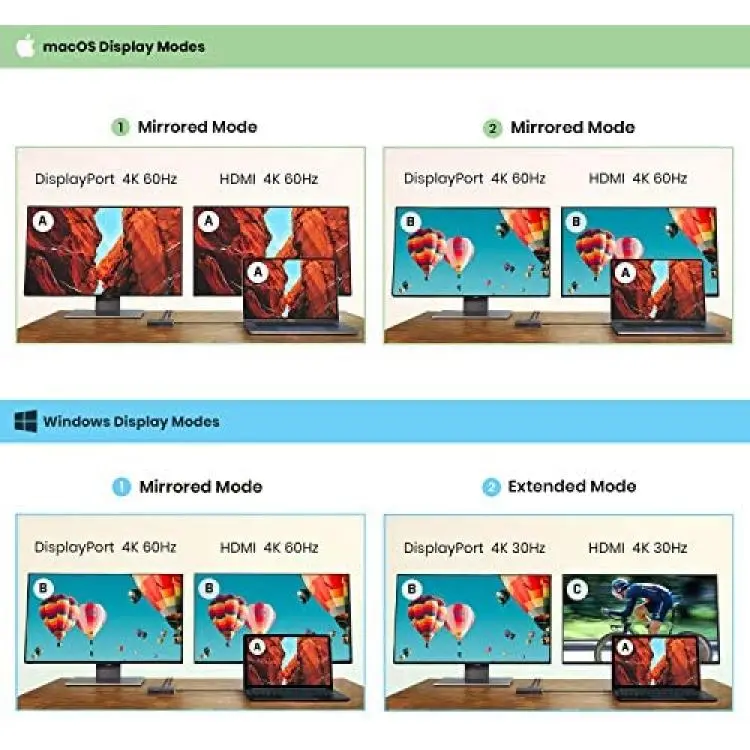

Windows computers can output Single 4K 60Hz or dual extended 4K 30Hz if system & GPU can support it through DP 1.4 MST hub.

³USB-C (5Gb/s) Laptops are compatible with reduced functionality.

*Aluminum dissipates heat quickly through the chassis. Surface may be warmer to touch when all ports are connected. This does not affect the integrity of the internal components. Normal operating temperature: 25°C – 50°C (82°F-122°F)

The USB-C SOHO Dock has the ability to be bus-powered, making it an ideal solution for users that need to expand their connectivity on the road. This is ideal for photographers, or anyone that needs to access SD cards and USB devices in the field, with the flexibility of offering a full desktop docking solution if needed. The USB-C SOHO Dock’s dual video connectors and pass-through charging capability make it an ideal desktop docking solution for creative professionals looking to expand their laptop’s connectivity in an elegant, all-in-one solution.

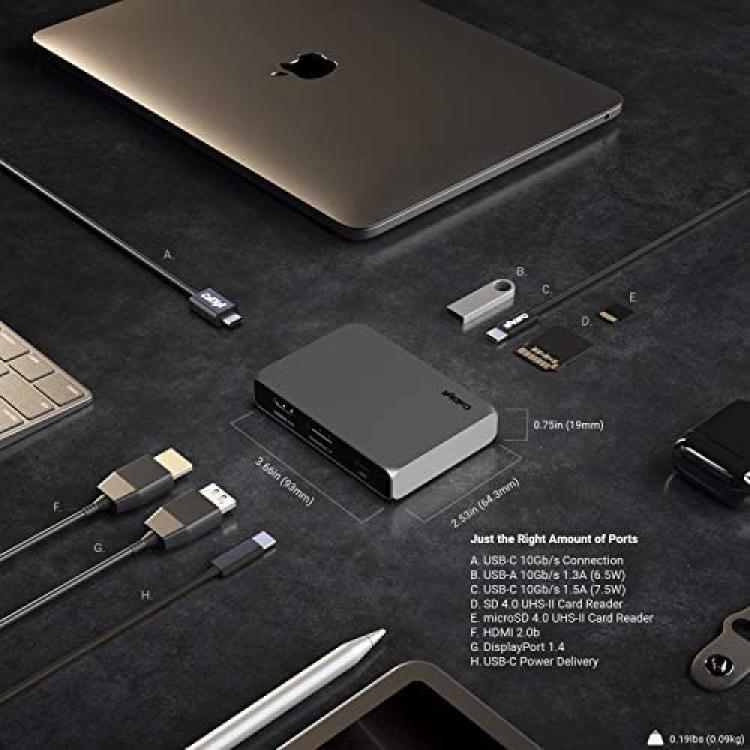

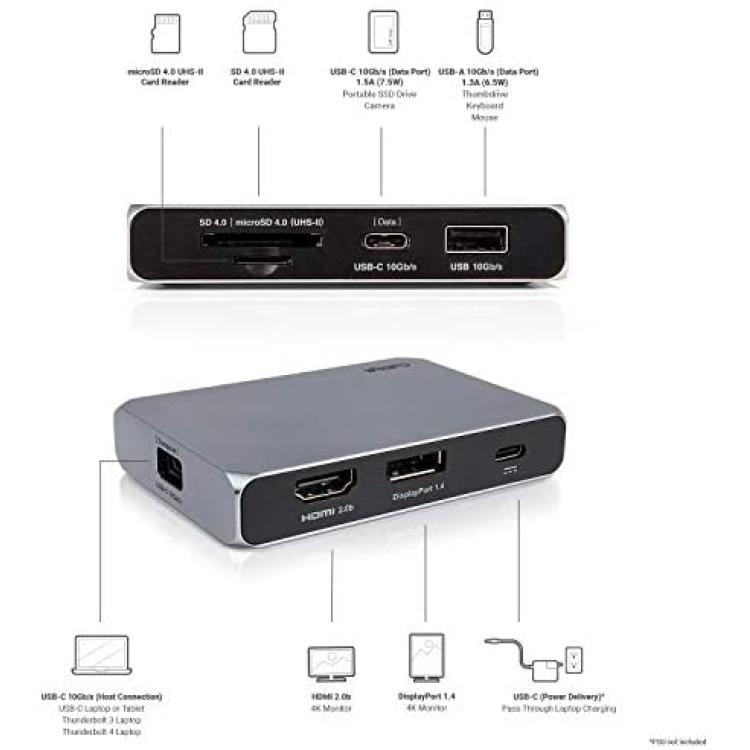

1 x USB-C 10Gb/s (Data Port) 1 x USB-C (Power Delivery) 1 x DisplayPort 1.4 1 x HDMI 2.0b 1 x USB-A 10Gb/s (Data Port) 1 x SD 4.0 UHS-II Card Reader 1 x microSD UHS-II Card reader macOS 10.13.6 or later | Windows 10 or later | iPadOS 13.6 or later | USB-C (10Gb/s) Laptop or Tablet³ | Thunderbolt 3 or Thunderbolt 4 LaptopHeight: 0.98 inches (25.0 mm) | Width: 8.43 inches (214.0 mm) | Depth: 3.15 inches (80.0 mm) | Weight: 0.93 lbs (0.42 kgs)
