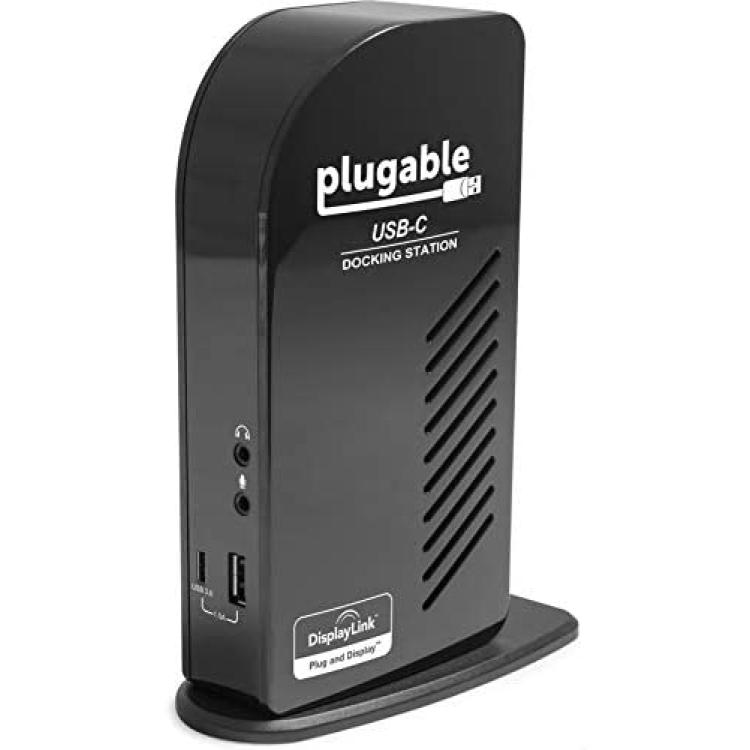

Plugable USB-C Triple Display Docking Station with Charging Support Power Delivery for Specific Windows USB Type-C and Thunderbolt 3 Systems (2X HDMI and 1x DVI Outputs, 5X USB Ports, 60W USB PD)

Plugable USB-C Triple Display Docking Station with Charging Support Power Delivery for Specific Windows USB Type-C and Thunderbolt 3 Systems (2X HDMI and 1x DVI Outputs, 5X USB Ports, 60W USB PD)

Product Code: HSM3513
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

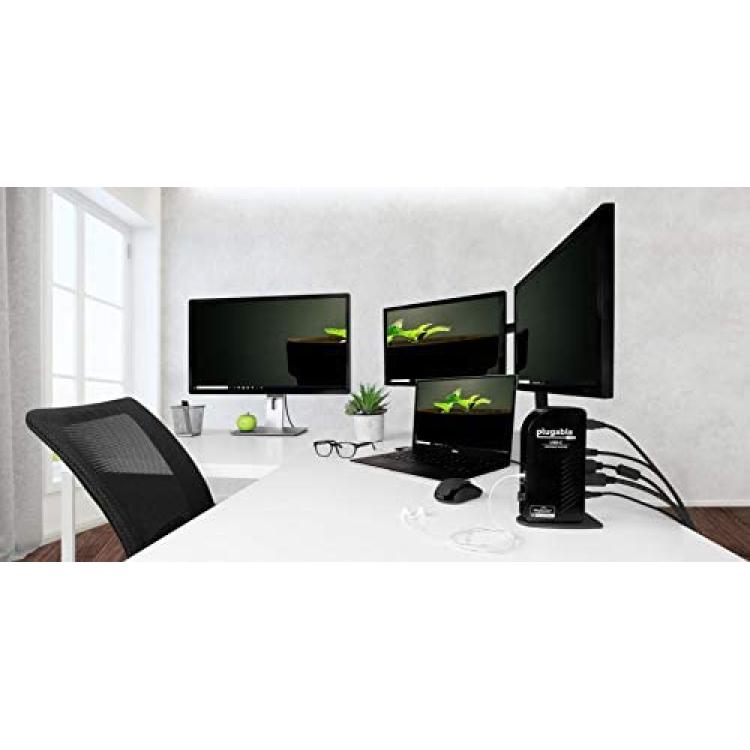

*TRIPLE MONITOR DOCK - With a compatible USB-C or Thunderbolt 3 laptop or Windows tablet, this dock can charge your device, connect up to 3 monitors, add a Gigabit Ethernet connection, add 3.5mm headphone and microphone jacks, and add multiple USB ports

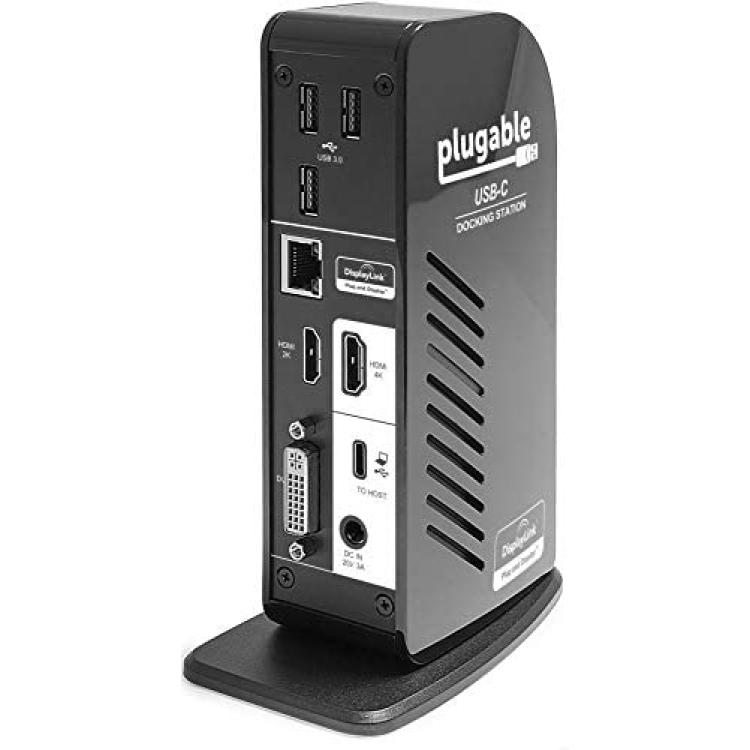

*HDMI AND DVI/VGA - This dock features 3 video outputs including 1x HDMI 1.4 output capable of 4K 30Hz, 1x HDMI 1.3, and 1x DVI/VGA outputs support 1080p 60Hz

*USB-C FEATURES - USB-C and Thunderbolt 3 ports can enable features such as USB Alternate Mode (Alt Mode) and 60W USB Power Delivery (PD) charging. Support for these features is determined by your laptop manufacturer. See product description for details

*IMPORTANT NOTES - The full product description has important info regarding requirements and limitations of this dock. USB-C required. Not all devices support all features. No HDCP support. Linux, Chrome OS not supported. For Mac-compatible triple display dock, check out UD-ULC4K and UD-3900PDZ

*2 YEAR WARRANTY - We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support

Description

Hardware Compatibility Notes

USB-C is a new standard with much versatility. As a result, compatibility information is complex. Some USB-C systems support Alt Mode video output, while others do not. Some can be powered and charged through USB PD, while others do not. It is very important to check the compatibility of your device before purchase.

In the "Technical Specification" section of this Amazon product page is a "Specification Sheet" PDF that contains detailed compatibility notes for a variety of laptops, tablets, 2-in-1s, motherboards, and mobile devices that is updated regularly.

In the Box

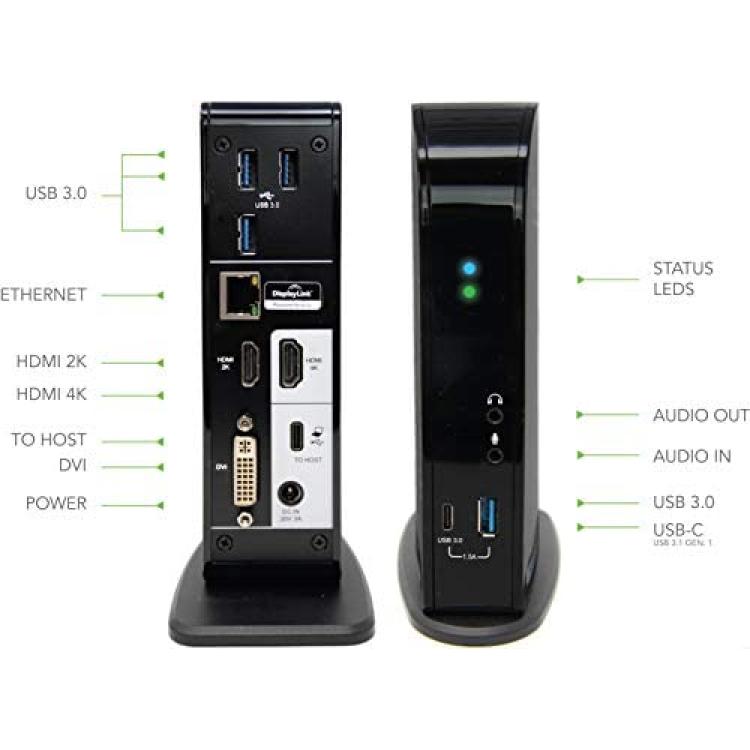

Port Features, Limitations, Notes, and Terminology

Alternate Mode (Alt Mode) is a new feature introduced with USB 3.1, allowing USB cables to carry video signals directly from a device over a USB cable. Alt Mode video comes directly from the graphics card or integrated graphics processor on a device, meaning outputs from an Alt Mode video port have the full graphics acceleration of your system. Not all systems with USB-C support this functionality.

HDMI 1.4 allows for a maximum output resolution of 4K 30Hz (3840x2160 @ 30Hz). Lower resolutions such as 1920x1200, and 1920x1080 (1080p) are supported at 60Hz. The HDMI 1.4 connection on this dock is provided by converting DisplayPort Alt Mode to HDMI 1.4.

HDMI 1.3 allows for a maximum output resolution of 2K 60Hz (1920x1200 @ 60Hz). The HDMI 1.3 connection on this dock is provided by the DisplayLink DL-3900 USB graphics chipset.

DVI Single-Link (DVI-SL) allows for a maximum output of 2K 60Hz (1920x1200 @ 60Hz). The DVI connection on this dock is provided by the DisplayLink DL-3900 USB graphics chipset. Conversion to Dual-Link DVI (DL-DVI) is not supported.

DisplayLink is a technology that allows compressed data of various types to be sent over USB data connections. The DisplayLink DL-3900 chipset in this docking station connects all the data and video connections, other than the "4K" HDMI 1.4 connection, on this dock.

There are a few important limitations of DisplayLink technology. DisplayLink uses a proprietary compressed video stream that is partially generated by both your computer's CPU and GPU, and is a "virtual" video adapter. Because the video is compressed and packetized as data, then reassembled by the DisplayLink chip, the pacing of new frames of video can be inconsistent, particularly if large portions of the content being sent through DisplayLink is changing (such as with video playback).

Because of how DisplayLink provides video, video outputs provided by DisplayLink technology should only be used to display content like office applications and web browser windows, not games or video content.

HDCP is not supported, this means protected content such as Netflix, Amazon Video, YouTube Premium, Hulu, Blu-ray videos, and other protected content, either may not work or will play at a lower resolution, depending on the content provider.

Some USB-C ports on PCs and Macs are labelled as Thunderbolt 3 ports. Thunderbolt 3 ports are USB-C ports with additional functionality that are also compatible with this docking station.

USB Power Delivery (USB PD) is a standard introduced with USB-C that provides enough power for many mobile devices and laptops. This dock is able to supply up to 60W of power to a host. Some laptops may require more power than this. The Dell XPS 15 9550/9560 and Precision 5510/7510, for example, will display a warning during boot if connected to a 60W power adapter, rather than a Dell 130W power adapter. These systems may still charge, but at a slower rate.

Up to 60W of USB Power Delivery1x HDMI 1.41x HDMI 1.31x DVI4x USB 3.0 Ports1x USB-C Port1x Gigabit Ethernet1x 3.5mm Headphone Jack1x 3.5mm Microphone Jack1x Plugable Triple Display USB-C Docking Station (UD-ULTCDL) With Vertical Stand1x 1m USB-C to USB-C Cable With eMarker1x 65W (20V 3.25A) Power Supply (100V-240V) With US Power Plug (UL 60950-1 Listed)1x Quick Start Guide
