DaierTek Momentary Push Button Switch Waterproof 1NO1NC SPDT ON Off 5 Pin Black Metal Shell with Red Ring Power Symbol LED for 16MM Mounting Hole

About this product

*Function: Momentary push button switch,1NO1NC.Push & Hold - ON;Release – OFF.Easy to operate and use.The rating is 3A 250VAC/2A 36VDC.

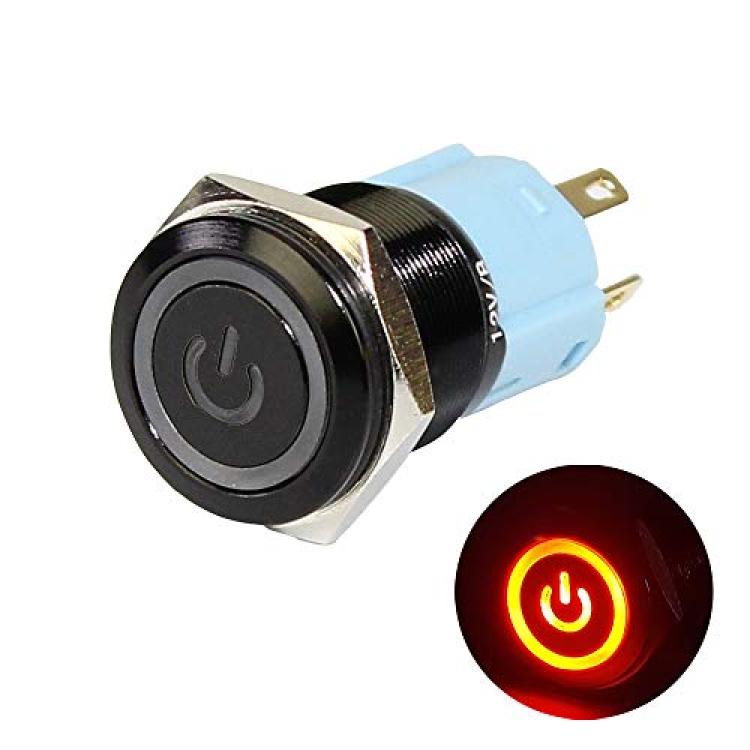

*Material: Metal. Housing Colors: Black or Silver. Head Shape: Flat Round. LED Type: Ring illuminated and Ring + power symbol illuminated.LED Color: Red or Blue. LED Voltage: 12VDC.

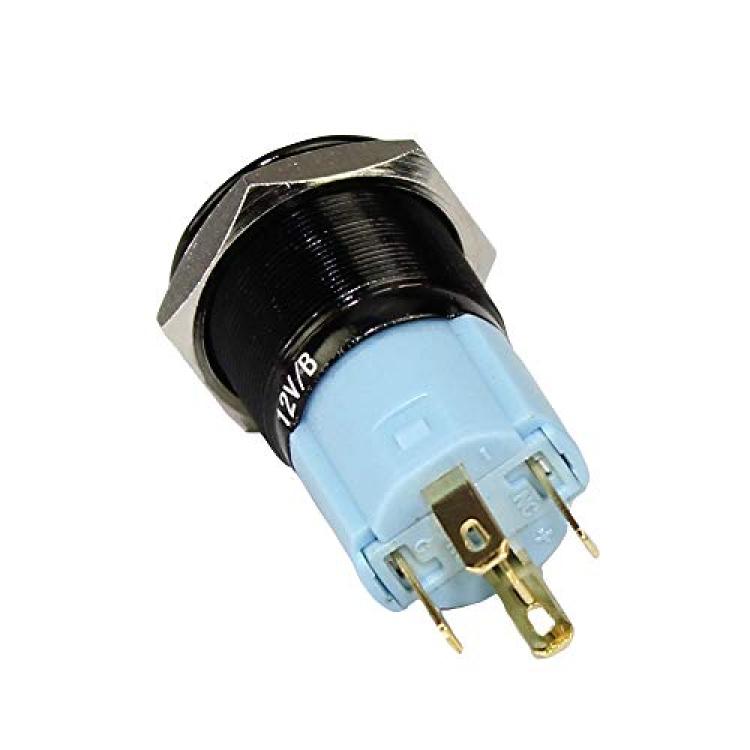

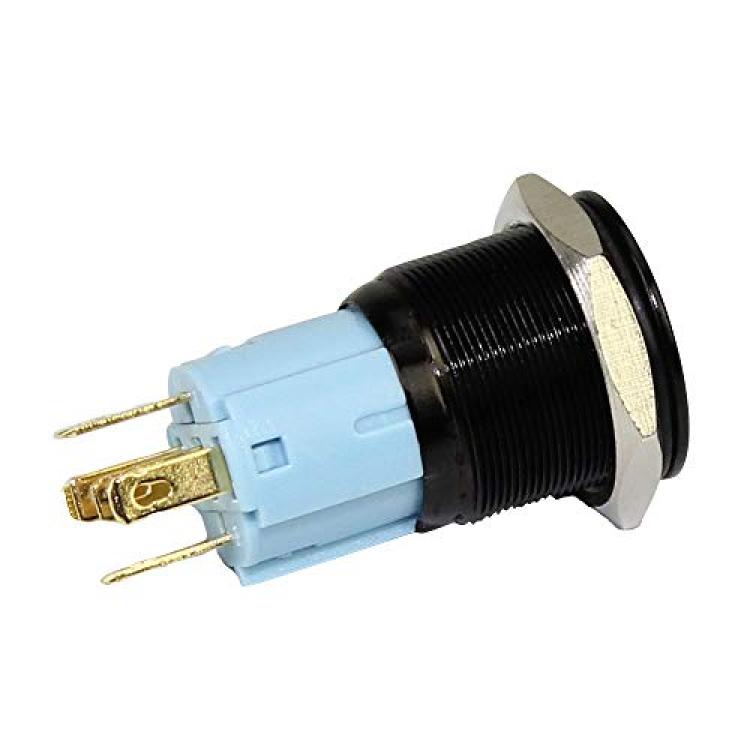

*Size: Total size is 21.94*19*34.7 MM.Mounting Hole Size is 16mm. Switch with 5 pins.Terminal size: 2.8X0.5mm, for solder use or 110 quick-connect.Terminals with gold plated so that contact resistance is smaller and not easily oxidized.

*IP67 Waterproof & IK10 Protection: Dustproof, momentary push button switch can be used in wet or dusty environment.Electrical Life is more than 50,000 Cycles.

*Wide Application: Momentary push button switch is suitable for almost any motorized vehicle of motor starting, power starting devices,and also can be use as a switch for various additional electric equipment, inside & outside the car.
