Quentacy 19mm Latching Push Button Switch 12V Power Symbol Light 1NO1NC SPDT ON/OFF Black Metal Shell Waterproof Toggle Switches with Wire Socket Plug 3/4'' Mounting Hole (Red)

Package include :
1* Push Button Switch
1* Wire Connector Sockets

What's Latching Switch:
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatches

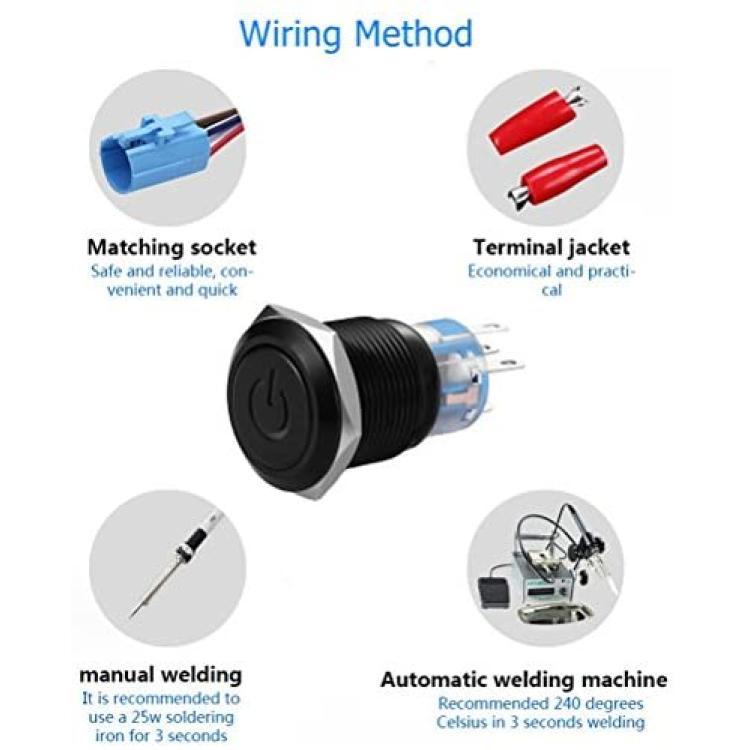

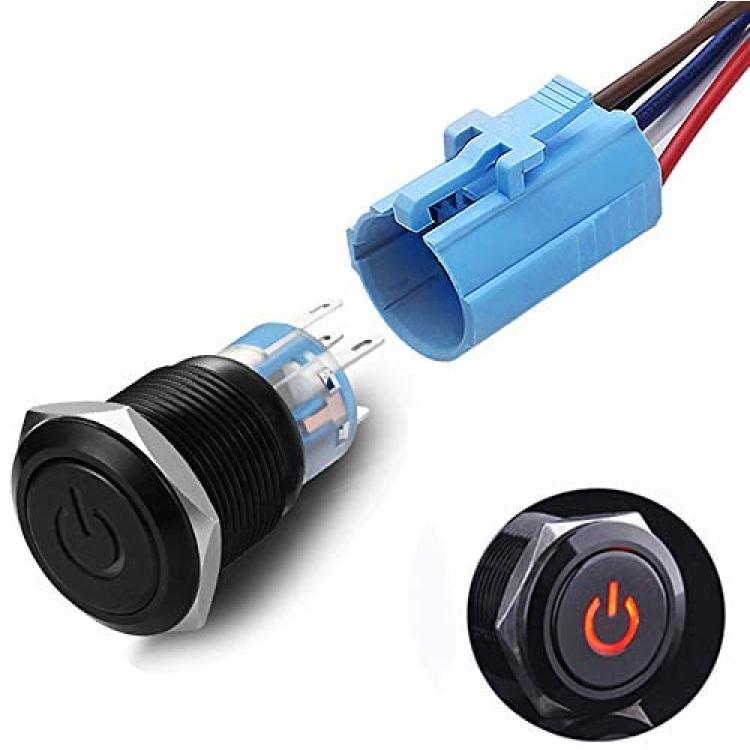

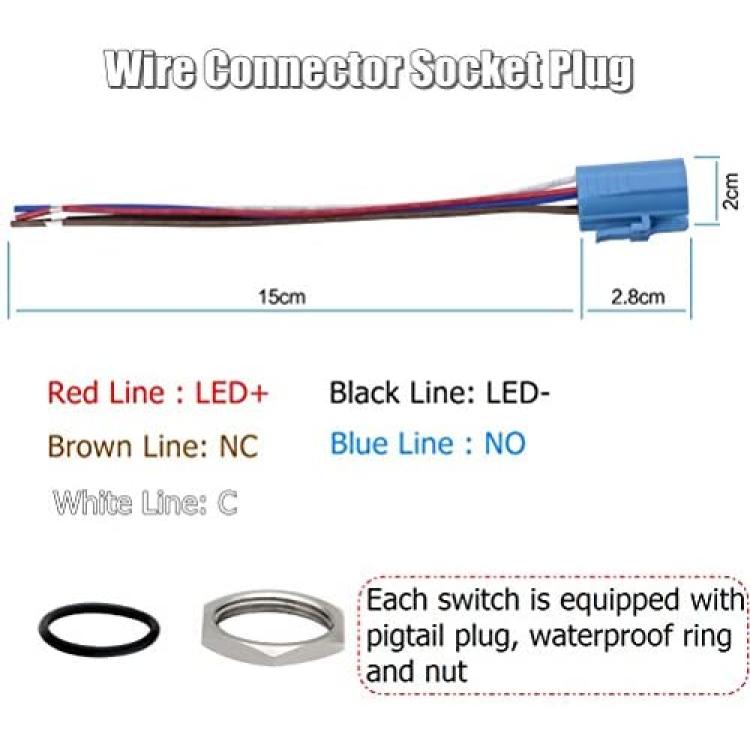

What's the Wire Connector:
With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket

What's Latching Switch Used for:
Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light)

What's Note:
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out

What's Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you

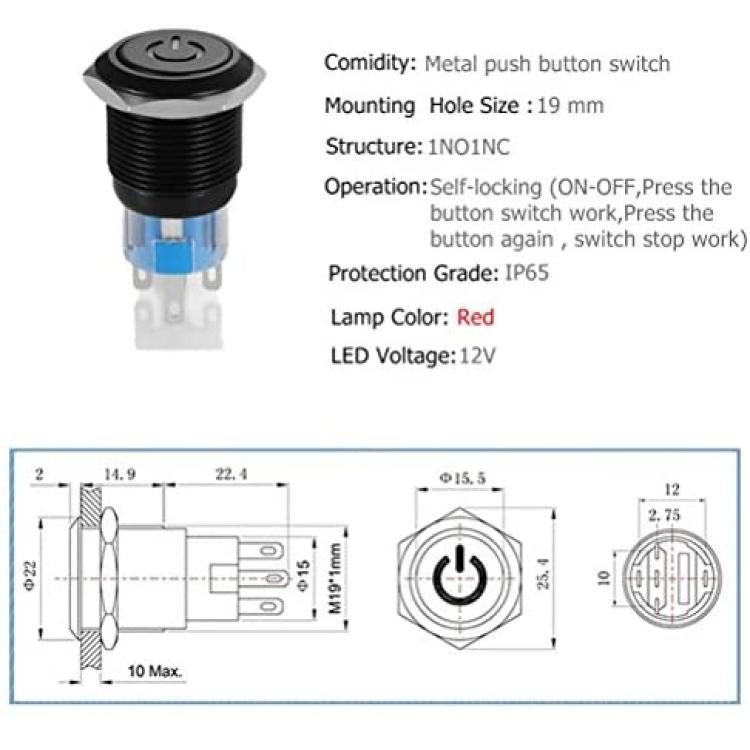

Specifications:
Head diameter: 7/8" (22mm)
Mounting hole size: 3/4" (19mm)
Depth inc contacts: 1.5" (38mm)
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 12V
Head shape: Flat
Enclosure material: Aluminium alloy
Color:Red LED
Protection level: IP65, IK10
