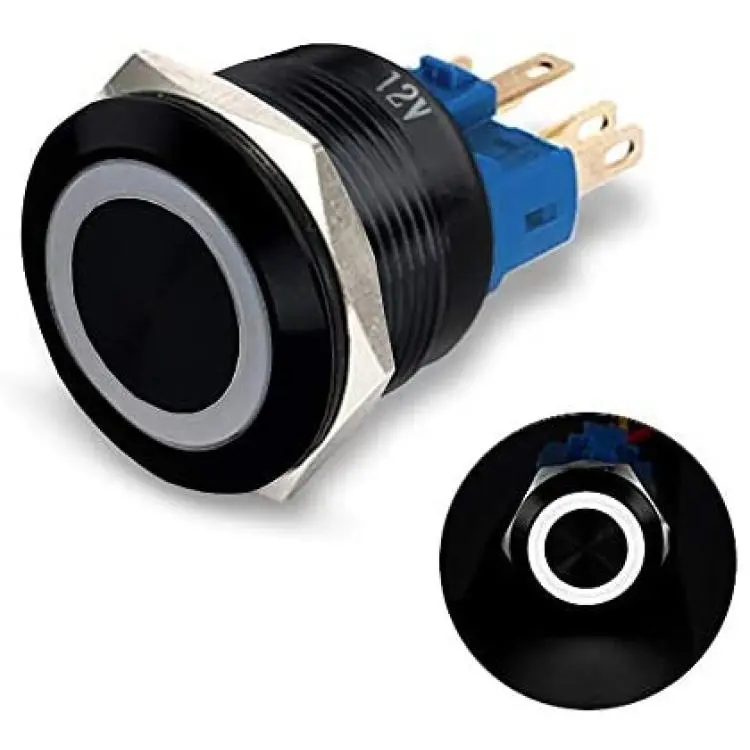

MGI SpeedWare Black Aluminum Push Button Switch 22mm with Socket, 3A 12vDC Ring LED (Momentary, White)
About this product

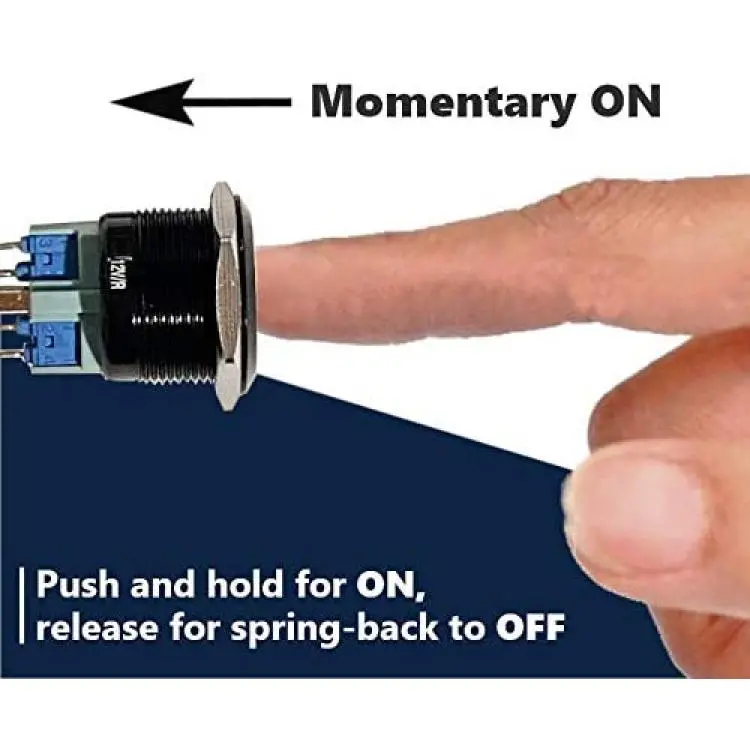

*Momentary (ON)/OFF push button. Press and hold for ON, release for OFF.
*White angel eye LED ring illuminates when pressed
*Pushbutton rated 3 amps at 12vdc
*Polished stainless steel with black aluminum body

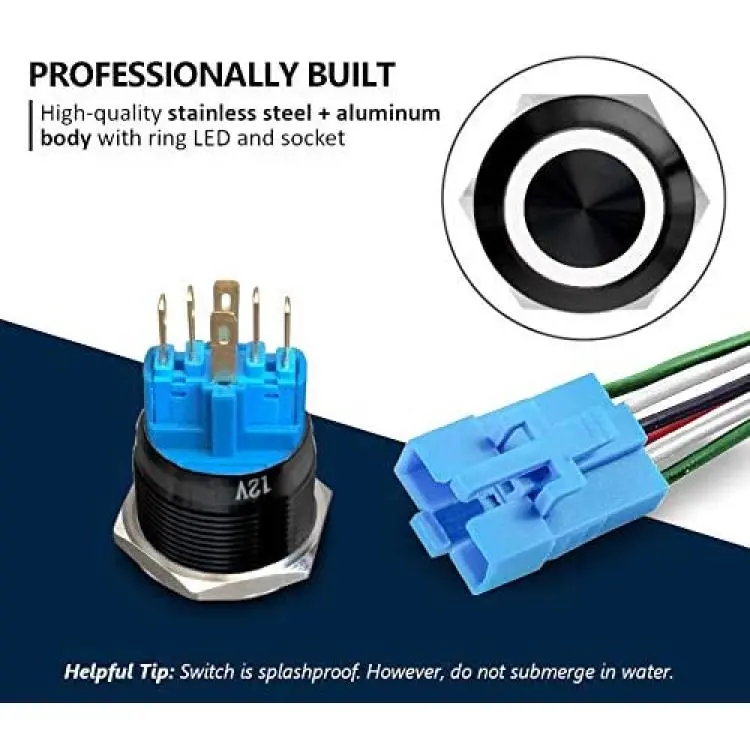

*Comes with pre-wired 6-pin socket. Easy installation into 22mm (7/8") mounting hole
Description
Rain or shine, a 12vDC weatherproof angel-eye LED push button switch boasts style, durability, and functionality. Great for automotive and marine projects, including ignition key switch replacement, universal start button, or momentary horn
QUICK INSTALLATION
• Insert push button switch and o-ring on top of panel, screw on nut beneath.Â
• Wires easily connect to 6 pins using mini push-on crimp terminals
BRIGHT LED
• A white ring halo LED illuminates when the push button is pressed
• Can also be wired so that the push button switch is always lighted unless pressed
Specifications
• Rated 3A at 12vdc. For larger loads, always use an additional relay
• Fits 22mm (7/8”) mounting hole
• SPST Momentary action — press and hold to turn ON, release to turn OFF
• Weatherproof O-ring make this switch splash resistant. However, do not submerge the push button underwater
• Durable stainless steel with black aluminum body
• Wires easily connect to 6 terminal pins using a pre-wired socket
