LAPOND High Performance VFD Inverter VFD Drive 10HP 7.5KW 220V 32A,Variable Frequency Drive for Motor Speed Control,V8 Series(7.5KW)
About this product
*This is single phase VFD with single phase 220V INPUT and three phase 220V OUTPUT,only work with three phase asynchronous motor,If your motor is heavy load, pls choose a higher Horsepower vfd than your motors or contact sales for model selection suggestion.
*This new series has better performance Vector controlled and stability to enable motor to achieve high torque in low speed rotation to increase motor working efficiency; work well with CNC controller, say Mach3 controller, support fast accelerate/deccelerate with external optional braking resistor and external potentiometer.

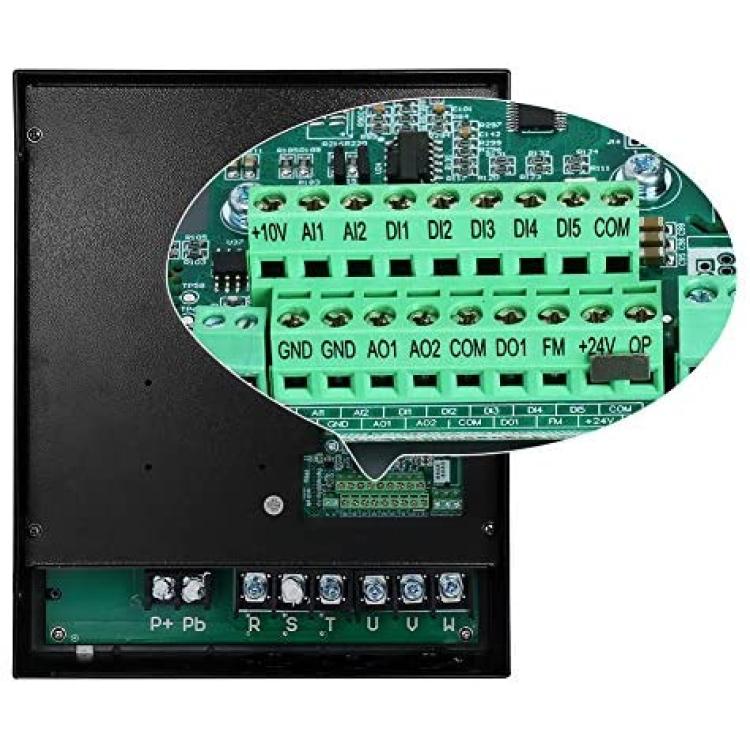

*Rich of digital and analogy control terminals for versitile control , optional MODBUS (RS485) extension, well controlled fans produce low acoustics noise.
*Application : spindle motor,lathe,milling,pumps,treadmills,conveyors,winding machine, mixer, extruder, slitter, compressor, ventilator,elevator,centrifuger and other speed control machines.
*Due to the VFD product is a flexibly configurable device , you are welcomed to consult with our CS make best choice for your exact application.
Description
This Series has better performance stability and adopt DSP vector control to enable motor to achieve high torque in LOW SPEED rotation to increase motor working efficiency.
Parameters
Suitable Motor:< 7.5KW(11HP)
Model: V8 2S 7R5GB
Power: 7.5KW 11HP 220V
Input: 1PH AC220V 40A 50Hz / 60Hz
Output: 3PH AC220V 34A 0-400HZ
Package include: 1xVFD;1x English User Manual book
Features
High startup torque and Excellent low speed stability;Strong overload capability.
Advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
Rich of AI & I/O port, RS485 communication port, well work with Mach3 controller.
Easy PLC function can realize 16 legs of speed and inverter control function.
Supports various encoders such as differential encoder,open-collector encoder,resolver and UVW encoder.
Supports three control modes,sensorless vector control(SVC),closed-loop vector control(CLVC) and V/F control.
Support add External braking resistor(1000w ? 16?) and potentiometer(recommend 10K).
Broad voltage working area, normal running in 304V-456V.
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability.
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes.
Dead-time compensation and auto torque slip compensation function, can realize 180% high orque output at low frequency 0.25Hz.
Unique EMC design, can minimize inverter's pollution to power.
Overall reinforcement layer to suit all kinds of harsh environment.
