UHPPOTE Full Complete Stand-Alone Door Access Control System Kit with Electric Strike Lock Power Supply Remote Control

Features:
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 users, Supports Card, PIN, Card + PIN
Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
Adjustable door output time, alarm time, door open time
Red, yellow and green LEDs display the working status

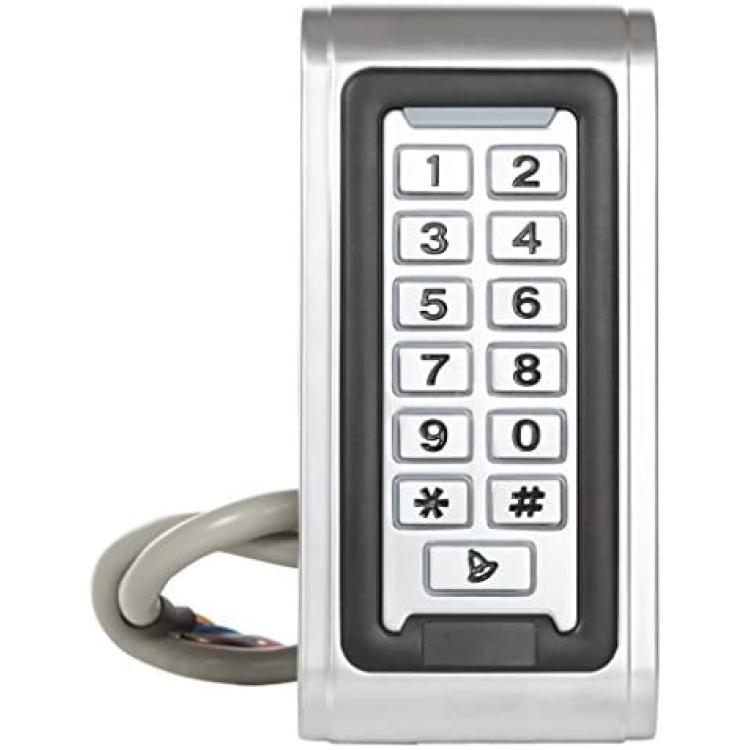

Access Control:
Operating Voltage: DC 12V
User Capacity: 2000
Card Reading Distance: 3~6cm / 1.18-2.36in
Current: <30mA (Standby);<60mA (Active)
Lock Output Load: <3A
Alarm Output Load: <20A
Operation Temperature: -45?~60? / -49?~140?
Operating Humidity: 10%~90% RH
Adjustable Door Relay time: 0~99 seconds
Wiegand Interface: Wiegand 26 bit

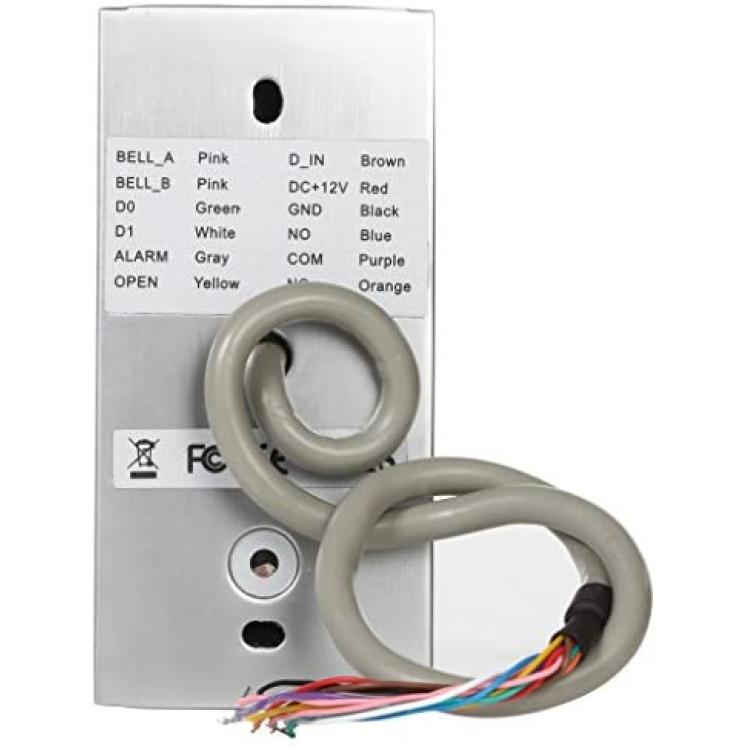

Wiring Connections: Electric Lock, Exit Button, External Alarm, External Reader
Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK etc)
Dimension : Approx. 120(W)x58(H)x22(D) mm / 4.7(W)x2.28(H)x0.87(D)in
Net Weight: Approx. 371g / 0.82lb

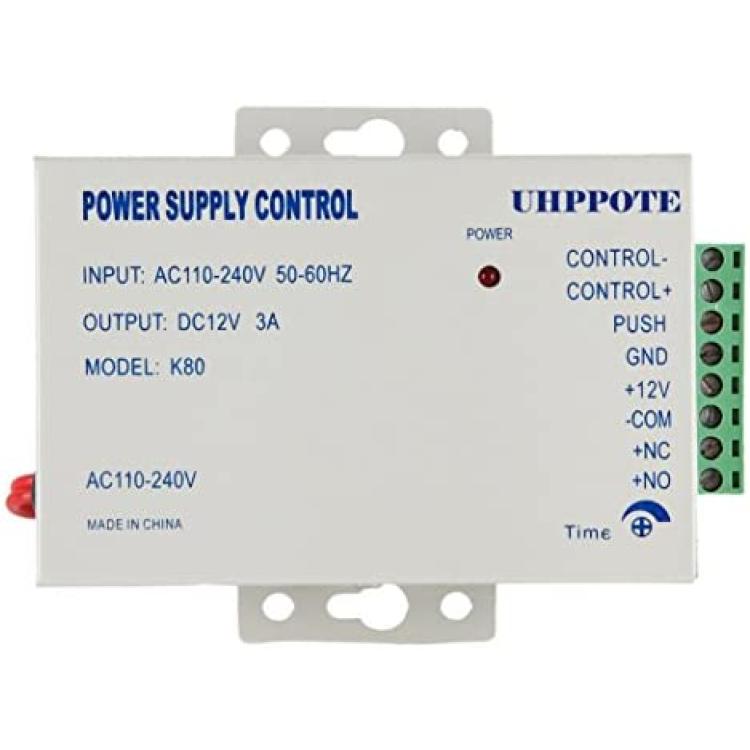

Power Supply:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50~60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15 sec
Dimensions: 4.72Lx3.74Wx1.50H(in) / 120Lx95Wx38H(mm)

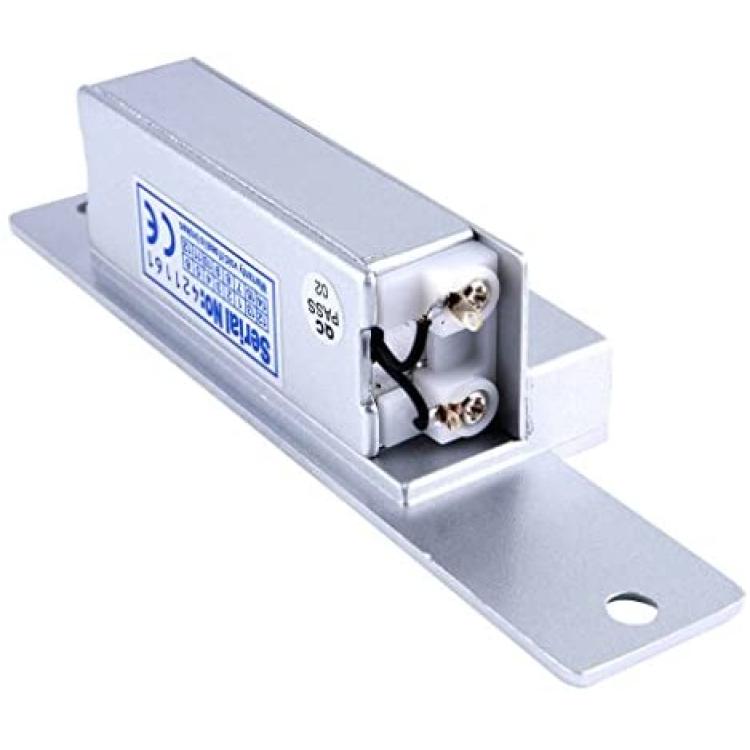

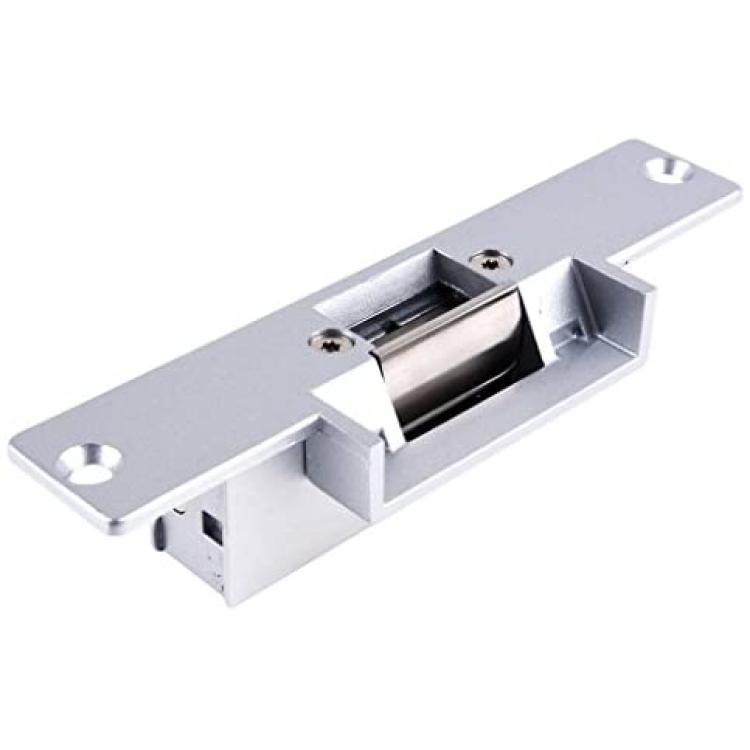

Strike Lock:
Voltage: DC12V
Current: 450mA
Holding: 500kg / 1102lb
Mode: Fail secure, NO mode (Locked when power is removed)
Signal Output: Not
Dimension: 1.34x1.55x5.9in / 34x39.5x150mm

Keyfobs & Cards:
Operation Frequency: 125KHz
Reading distance: 3-10cm / 1.18-3.94in
Each keyfob has an uniqe ID number

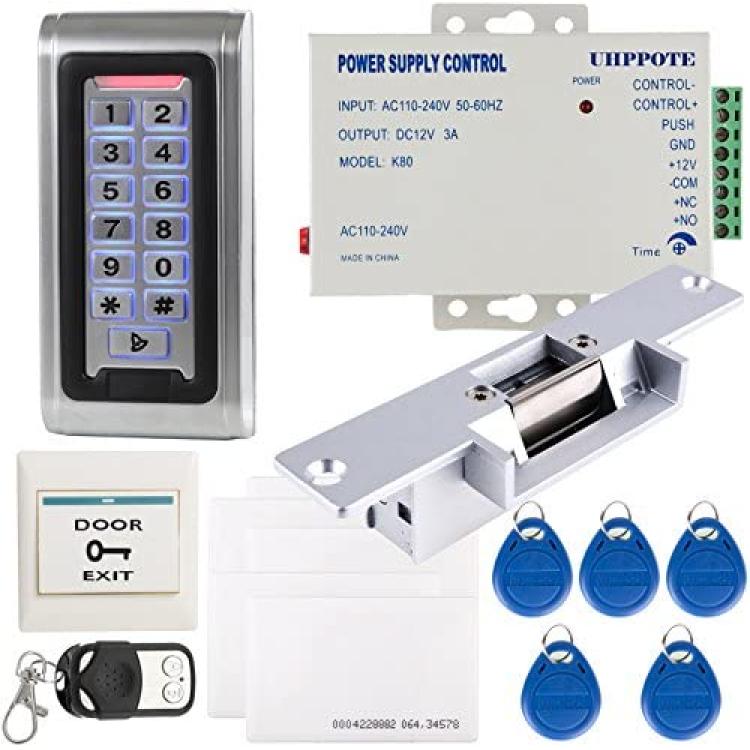

Package includes:
1 x Metal access control
1 x Electric Strike lock
1 x Power supply controller
1 x Exit button
1 x Remote
5 x ID cards (Thickness: 0.8mm/0.03in)
5 x RFID keyfobs
1 x User Manual
